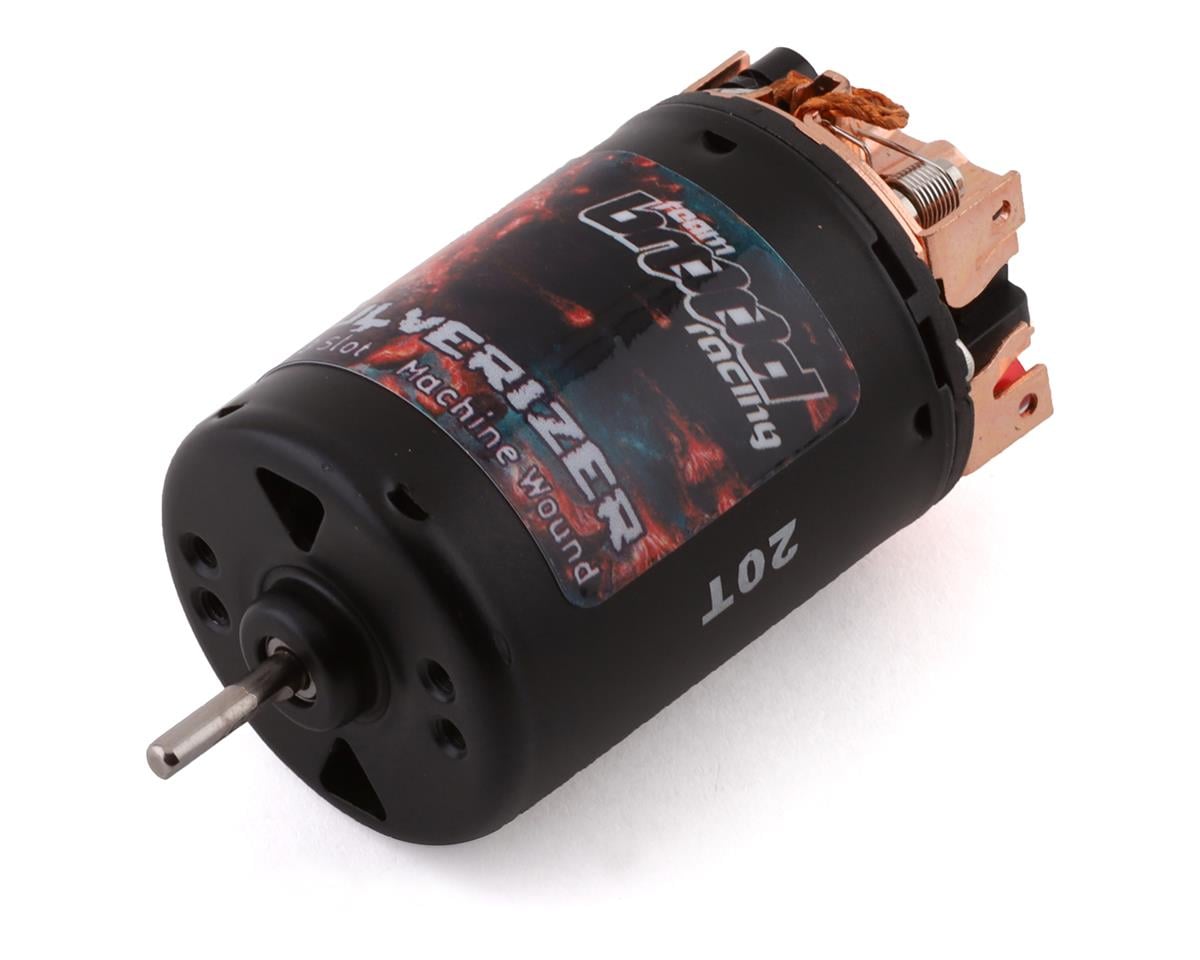

Team Brood Pulverizer Machine Wound 3 Slot Dual Magnet 550 Crawler Motor (20T)

The Team Brood Pulverizer 550 Crawler Motor features a machine-wound 3-slot armature, dual C6 magnets, adjustable timing, and a rebuildable design. Each motor is assembled with hand-shimmed armature alignment, precision-spaced components, cleaned and lubricated bearings, aligned brush hoods, and a low-impact break-in and dyno test.

Features

• Motor design: 3-slot, 2-pole machine-wound armature
• Magnets: Dual C6 magnets for torque and brake strength
• Timing: Adjustable
• Bearings: Dual precision ball bearings, cleaned and lubed
• Cooling: Aluminum heatsinks
• Brushes: Standup brushes with optimal tension springs
• Serviceability: Rebuildable design
• Testing: Components are tested on precision calibrated equipment; motor is fully broken-in
• Warranty: 30 Day Limited through manufacturer

Specifications

• Turns: 20T
• Voltage input: 3.7v-14.8v
• Break-in: 300 seconds at 3 volts, 30 seconds at 3.5 volts
• Armature construction: Machine wound
• Lamination size: .014"
• Stack design: Straight
• Wire type: Copper round
• Balance type: Drill
• Weight: 8 ounces
• Length: 63mm (2.48")
• Diameter: 35.85mm (1.41")
• Shaft size: 3.175mm (1/8th)
• Mounting pattern: Standard 540/550 M3x25mm
