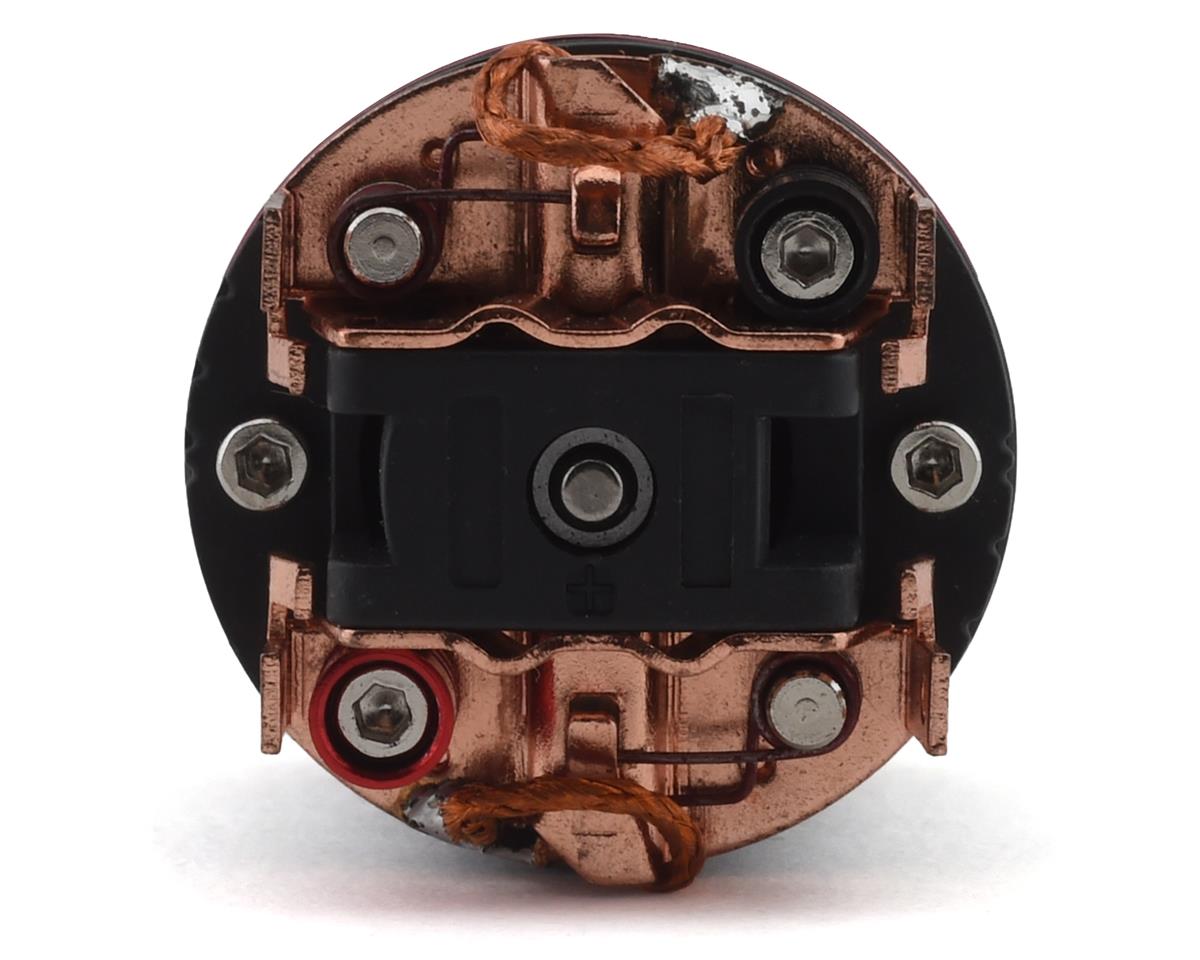

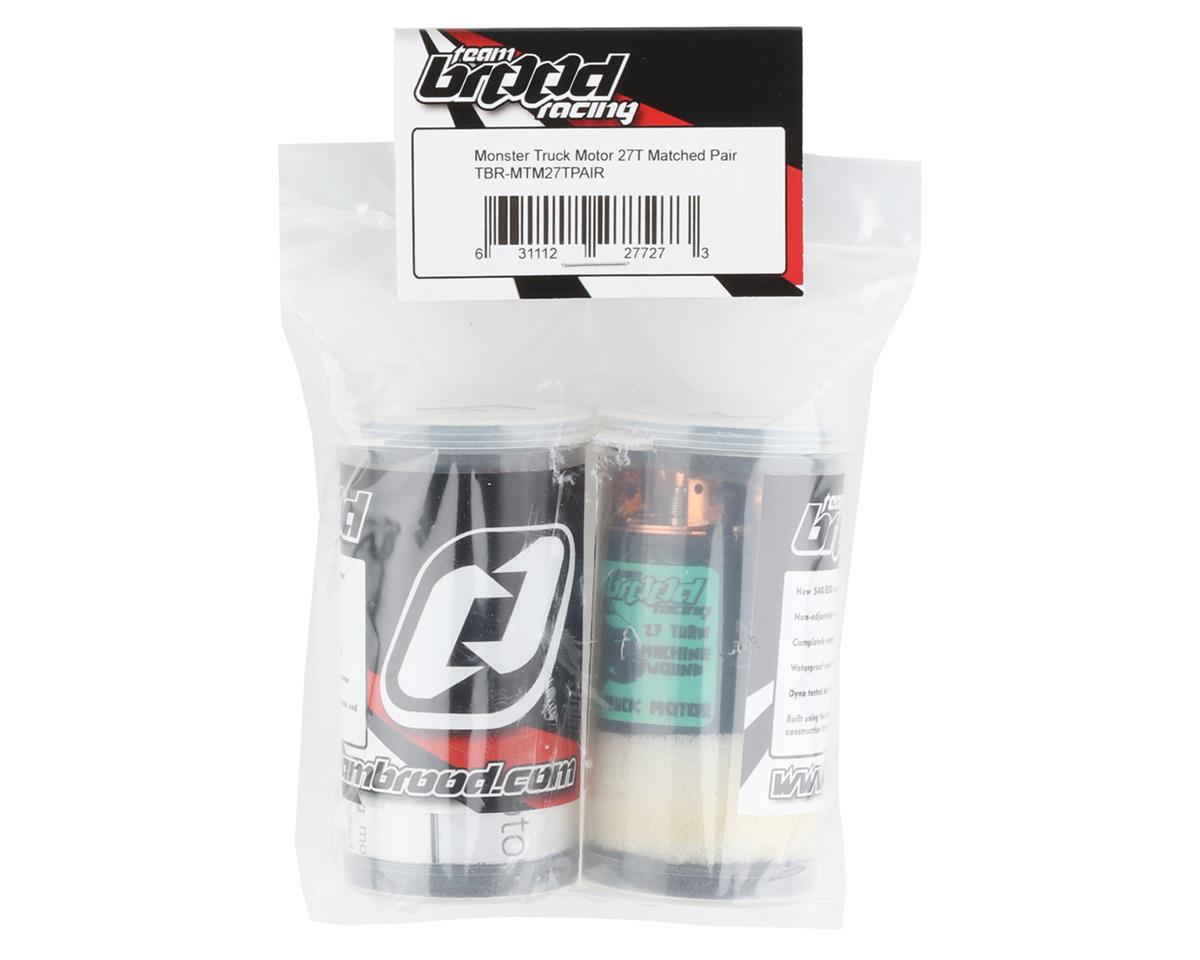

Team Brood Monster Truck Machine Wound 540 Clod Buster Motor Set (2) (27T)

The Team Brood Monster Truck Machine Wound 540 Clod Buster Motor Set includes two matched 27T motors developed for spec Clod Buster racing. Each motor is marked for its forward or reverse position and tuned to run in sync. Both are broken in using the correct rotation and set to 0 degrees timing.

Motor Specifications

• Motor type: 540
• Turn count: 27 Turns
• Poles: 2
• Magnets: Dual CR6
• Brush style: Standup
• Voltage input: 3.7v-14.8v
• Break-in: 300 seconds at 3 volts, 30 seconds at 3.5 volts
• Armature construction: Machine Wound
• Lamination size: .2mm
• Stack design: Skew
• Slots: 3
• Web: 4mm
• Commutator size: 7.5mm (.3002)
• Small wire type: Copper Round
• Balance type: Drill
• Weight: 6 ounces
• Length: 54mm (2.125)
• Diameter: 35.85mm (1.41)
• Shaft size: 3.175mm (1/8th)
• Mounting pattern: Standard 540 M3x25mm
