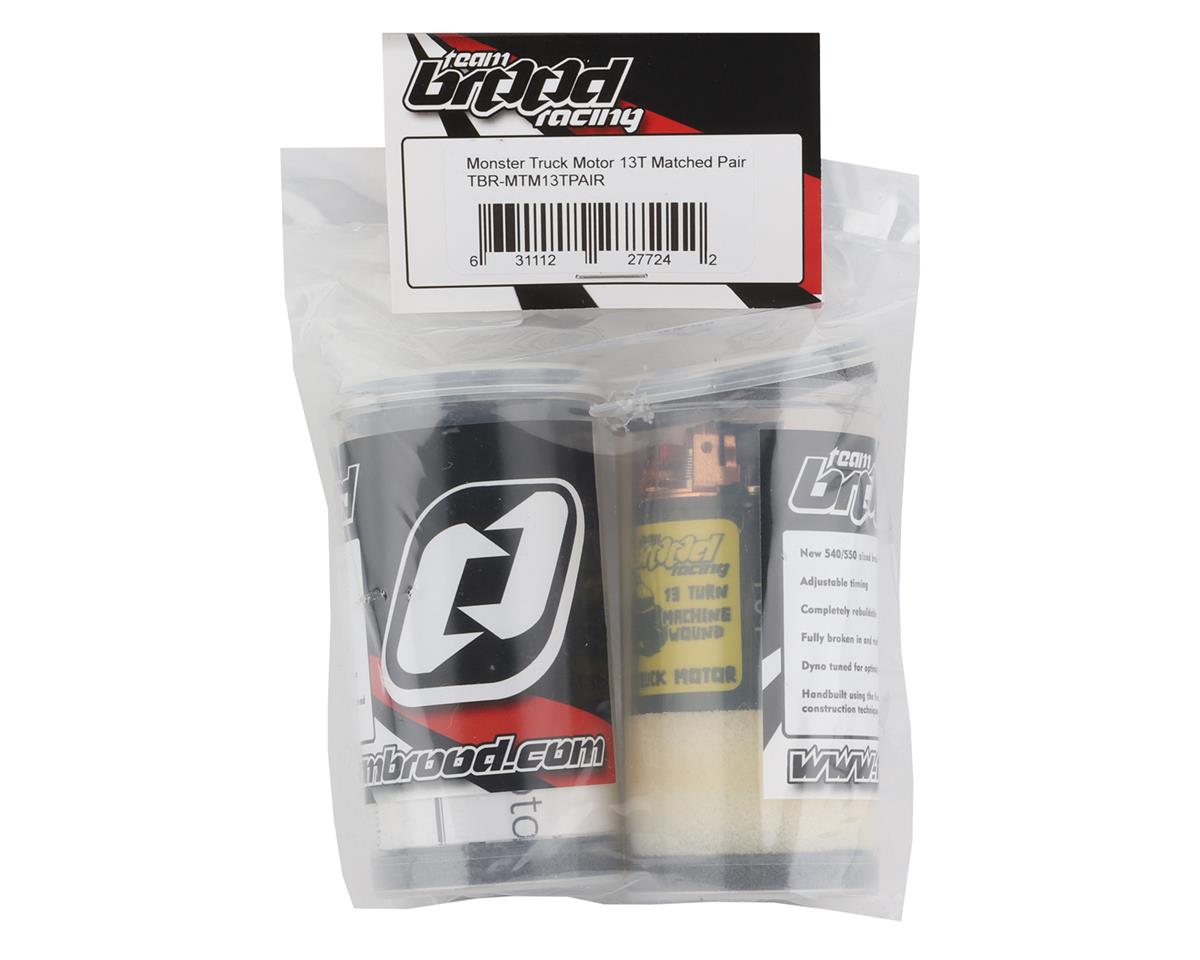

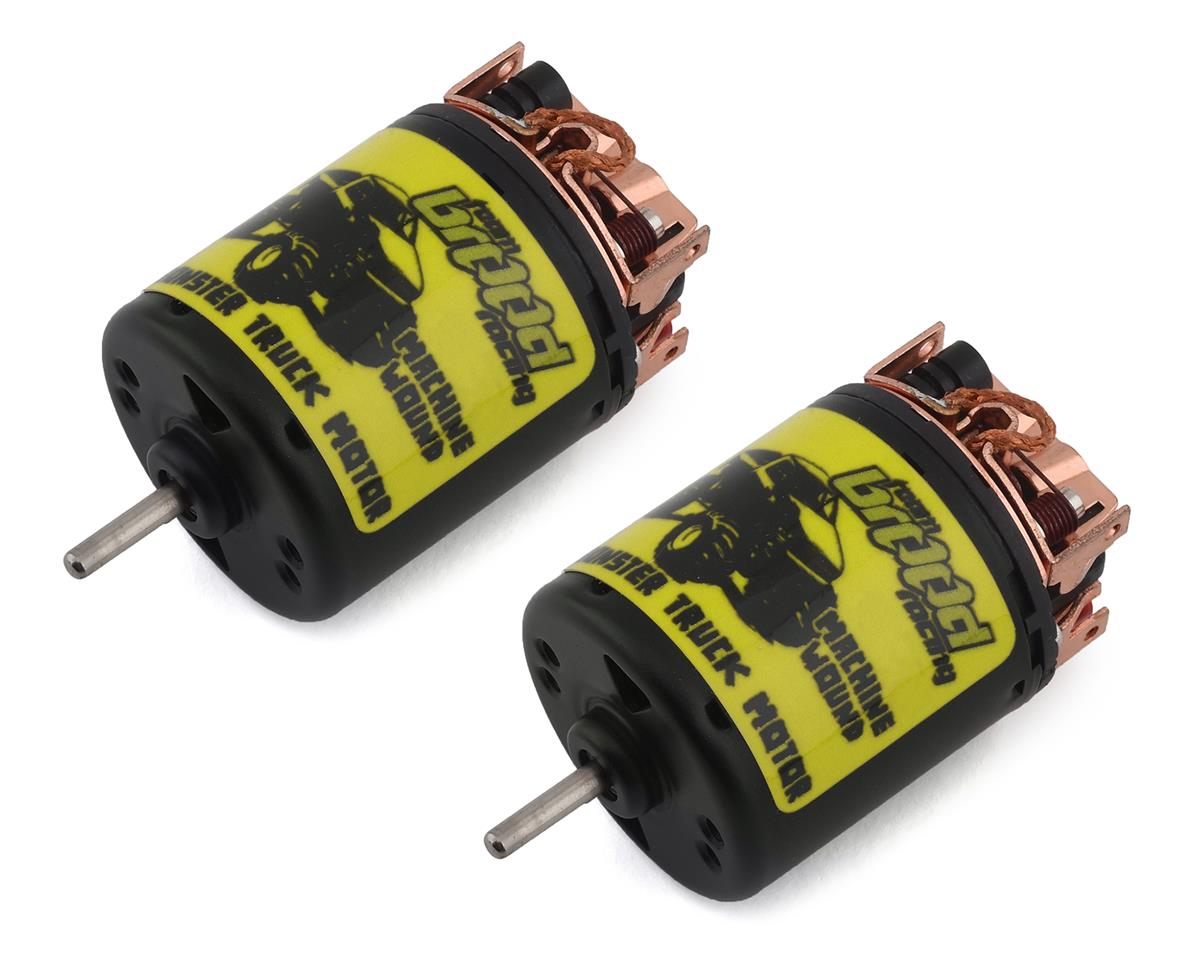

Team Brood Monster Truck Machine Wound 540 Clod Buster Motor Set (2) (13T)

The Team Brood Monster Truck Machine Wound 540 Clod Buster Motor Set includes two matched 13-turn motors developed for spec Clod Buster racing. Each motor is marked for forward or reverse position and tuned to run in sync. The pair is broken in in the correct rotation and set to 0 degrees timing.

Motor Specifications

• Motor type: Machine Wound 540
• Turn count: 13 Turns
• Poles: 2
• Magnets: Dual CR6

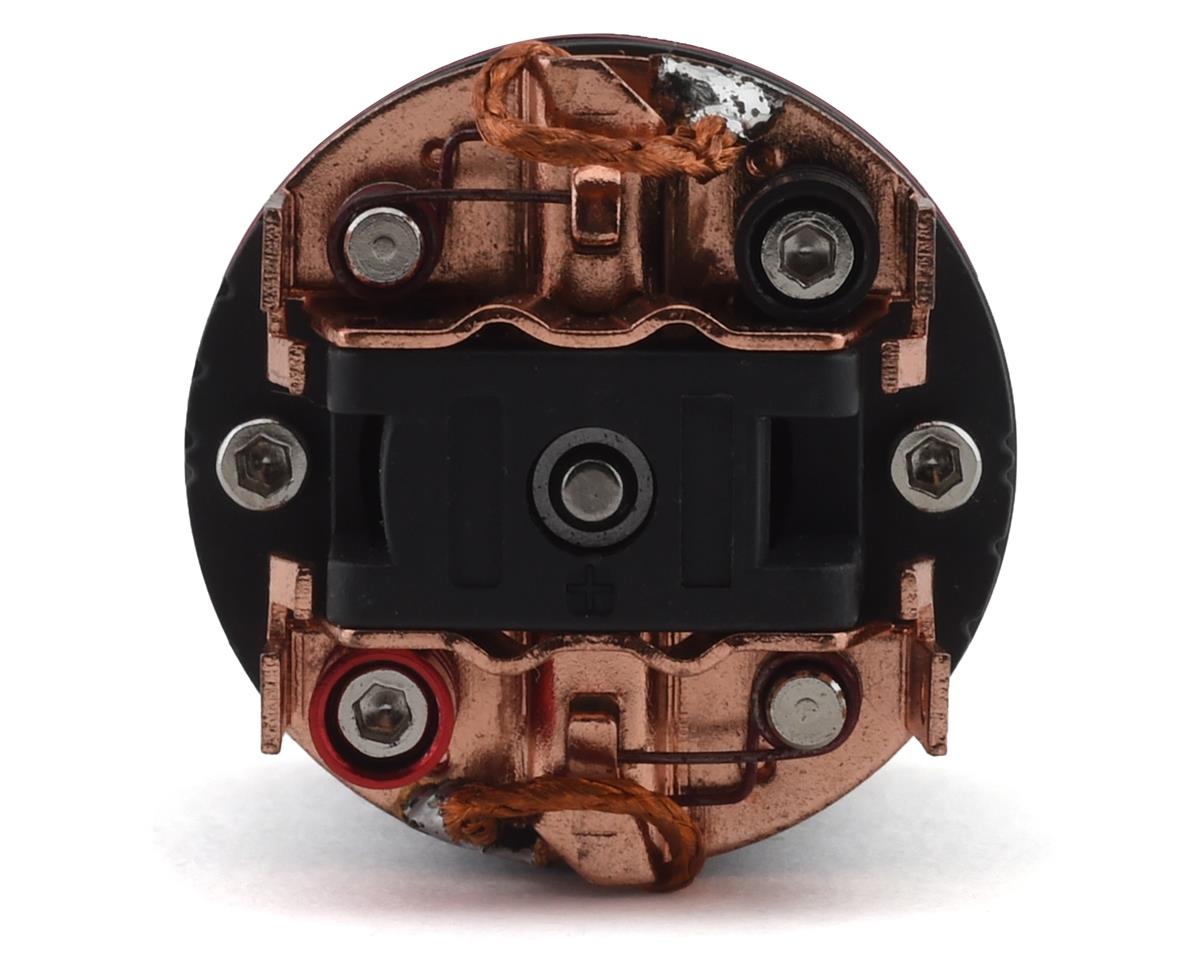

• Brush style: Standup
• Voltage input: 3.7v-14.8v
• Timing: 0 degrees
• Set: Matched pair, 2 motors

Break-In

• 300 seconds at 3 volts
• 30 seconds at 3.5 volts

Armature Specifications

• Construction: Machine Wound
• Lamination size: .2mm
• Stack design: Skew
• Slots: 3
• Web: 4mm
• Commutator size: 7.5mm (.300&2quot;)
• Small wire type: Copper Round
• Balance type: Drill

Dimensions

• Weight: 6 ounces
• Length: 54mm (2.125&2quot;)
• Diameter: 35.85mm (1.41&2quot;)
• Shaft size: 3.175mm (1/8th)
• Mounting pattern: Standard 540 M3x25mm
