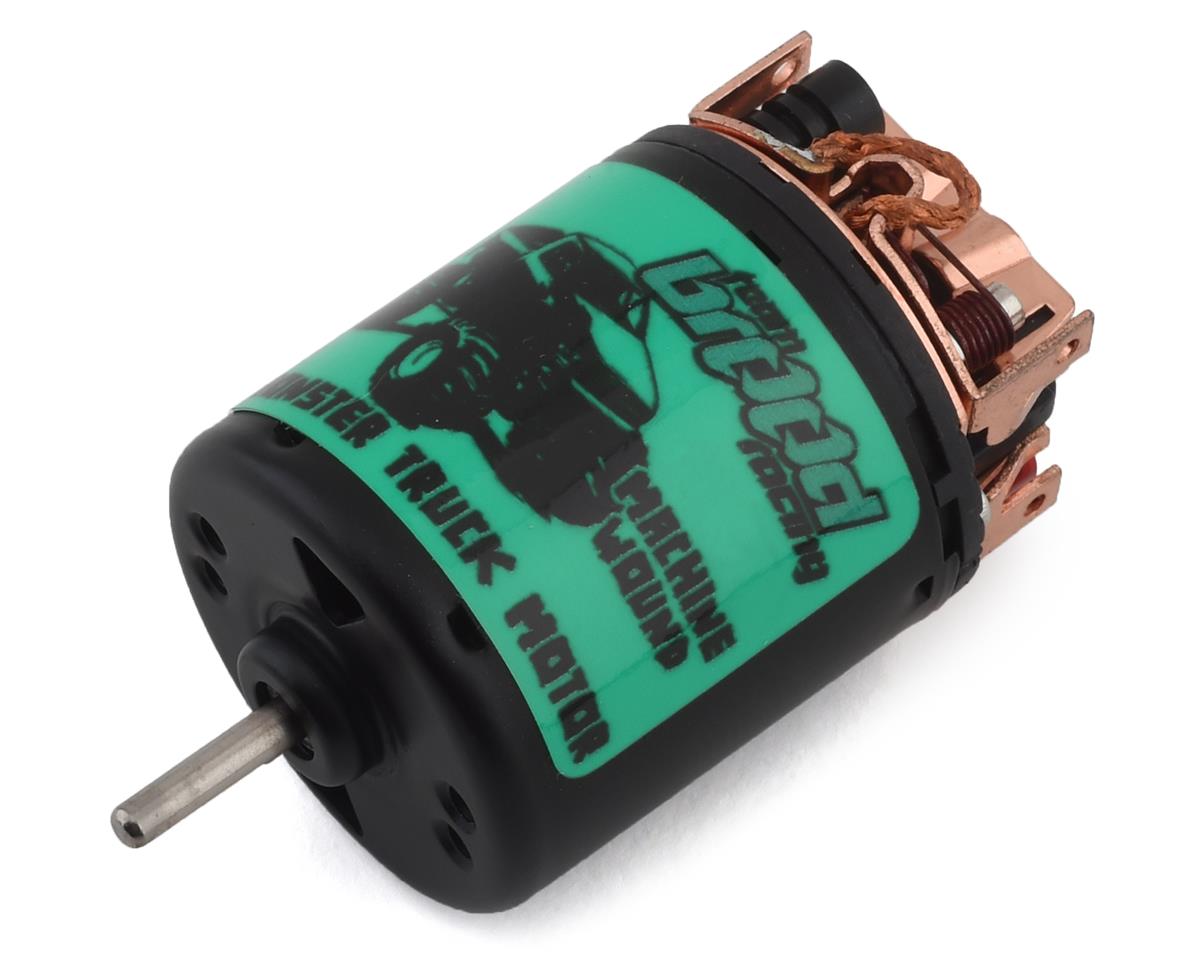

Team Brood Monster Truck Machine Wound 540 Clod Buster Motor (27T)

The Team Brood Monster Truck Machine Wound 540 3 Segment Brushed Motor is developed for spec solid axle monster truck racing. It features 0 degrees timing and a 27-turn machine-wound armature.

Motor Specifications

• Poles: 2
• Magnets: Dual CR6
• Brush Style: Standup
• Voltage Input: 3.7v-14.8v
• Break-In: 300 seconds at 3 volts, 30 seconds at 3.5 volts
• Timing: 0 degrees

Armature Specifications

• Construction: Machine Wound
• Lamination Size: .014"
• Stack Design: Skew
• Slots: 3
• Web: 4mm
• Commutator Size: 7.5mm (.300")
• Small Wire Type: Copper Round
• Balance Type: Drill
• Turn Count: 27 Turns

Dimensions

• Weight: 6 ounces
• Length: 54mm (2.125")
• Diameter: 35.85mm (1.41")
• Shaft Size: 3.175mm (1/8th)
• Mounting Pattern: Standard 540 M3x25mm
