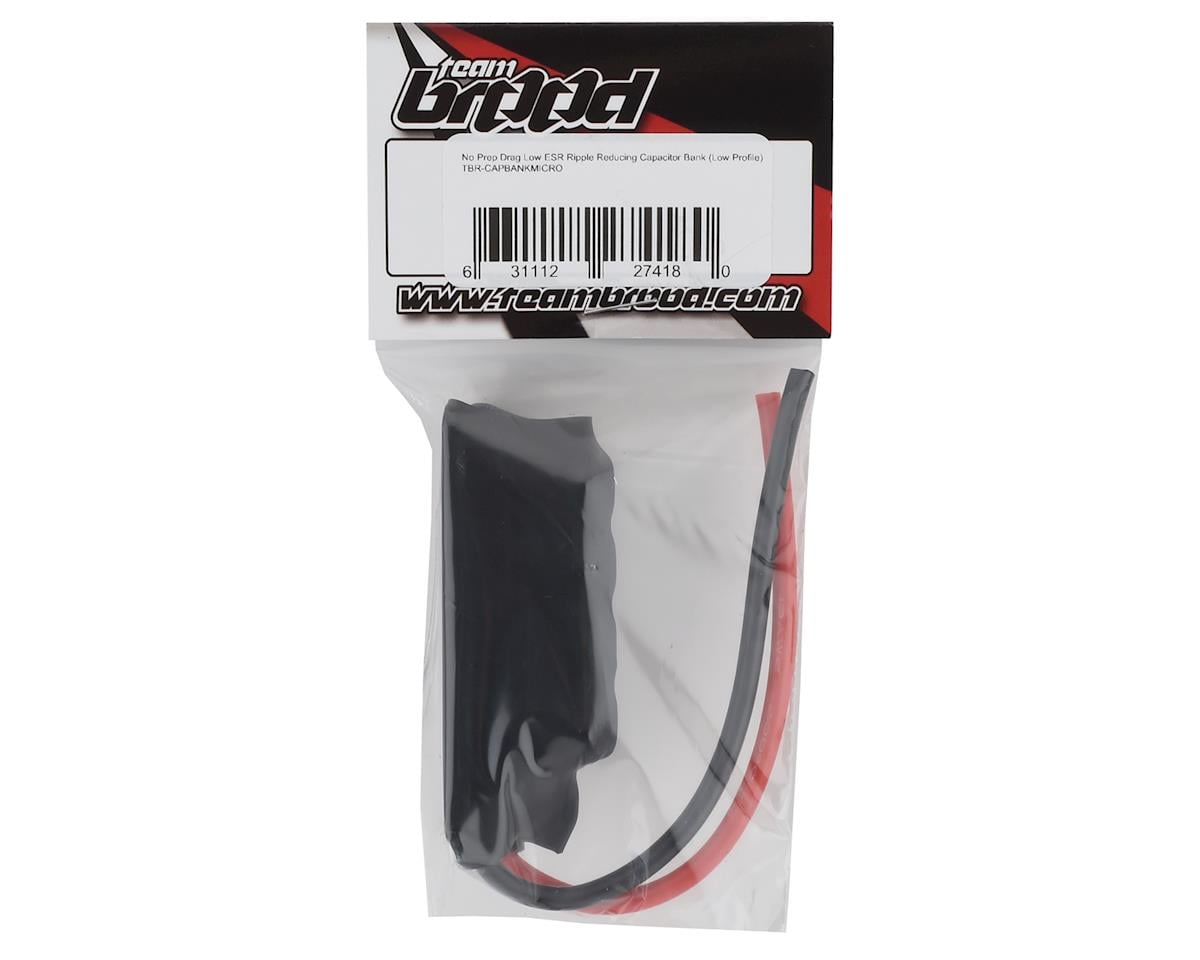

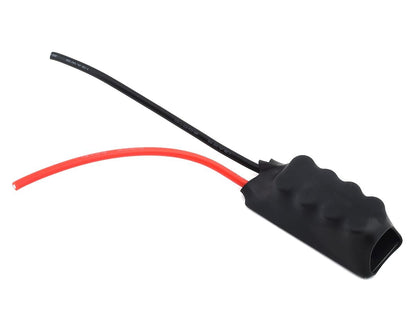

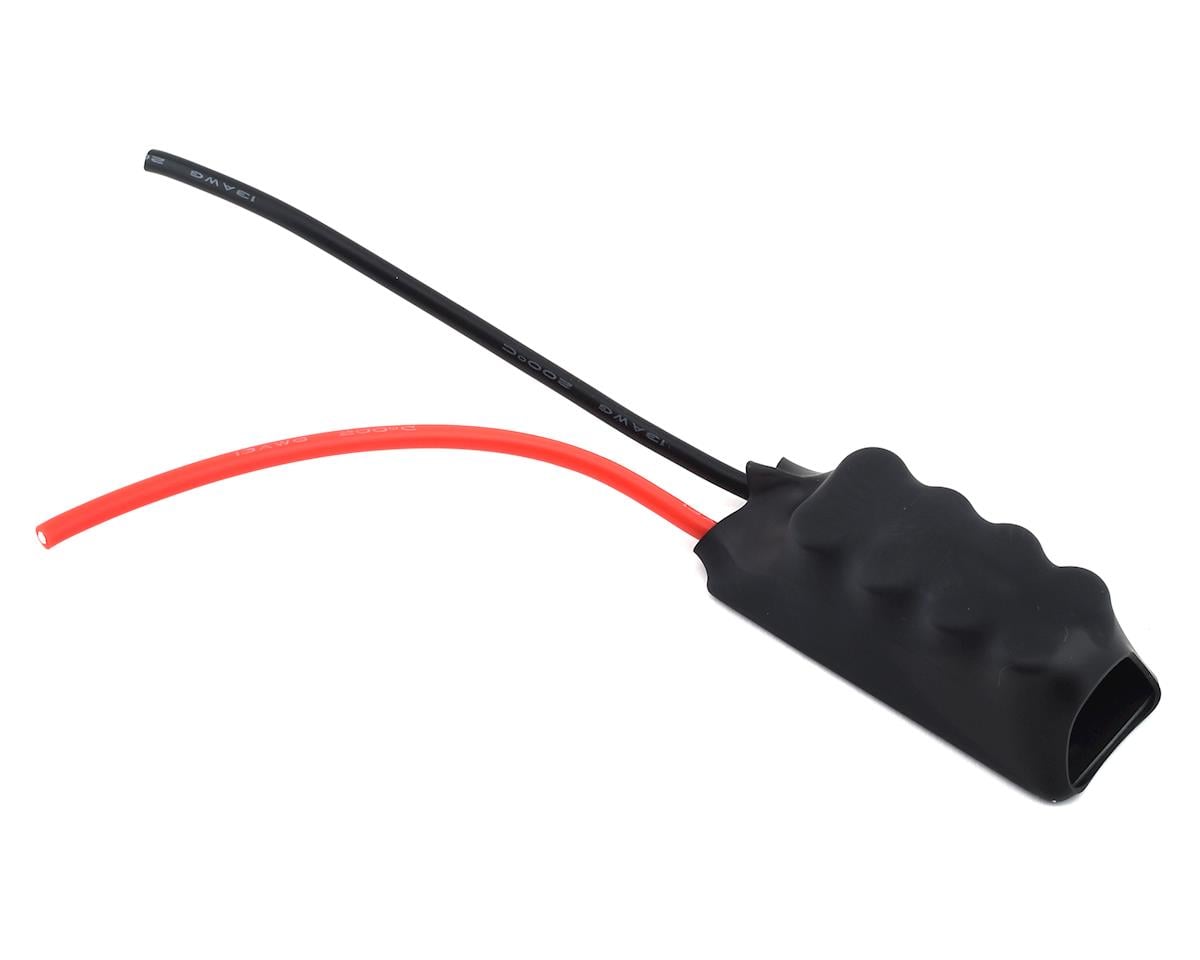

Team Brood "Micro" No Prep Drag Low ESR Capacitor Bank (Low Profile)

The Team Brood “Micro” No Prep Drag Low ESR Capacitor Bank is designed for 2s No-Prep Drag Racing setups where a low-profile capacitor bank can help conserve chassis space. It uses eight 470uF capacitors mounted to custom-made circuit boards.

Capacitor banks help protect the ESC from ripple voltage during hard acceleration by reducing the load on the ESC’s capacitors. Large solder tabs accommodate different wire lengths or gauges, and the bank is intended to be installed as close to the battery terminals on the ESC as possible.

Specifications

• Capacitance Rating: 3760 uF (x8 470uF)
• Voltage Rating: 35v
• Ripple Current @ Low Frequency Rating: 1.64 Amps @ 120Hz per capacitor
• Ripple Current @ High Frequency Rating: 2.18 Amps @ 100kHz per capacitor
• ESR Rating: 19 mOhms per capacitor
• Temperature Rating: 105 C
• Wire Size: 4 Inches 13 AWG
• Dimensions (Does NOT include Wire): Length: 71mm; Width: 31mm; Height: 25mm
• Weight (Including Wire): 44 Grams
