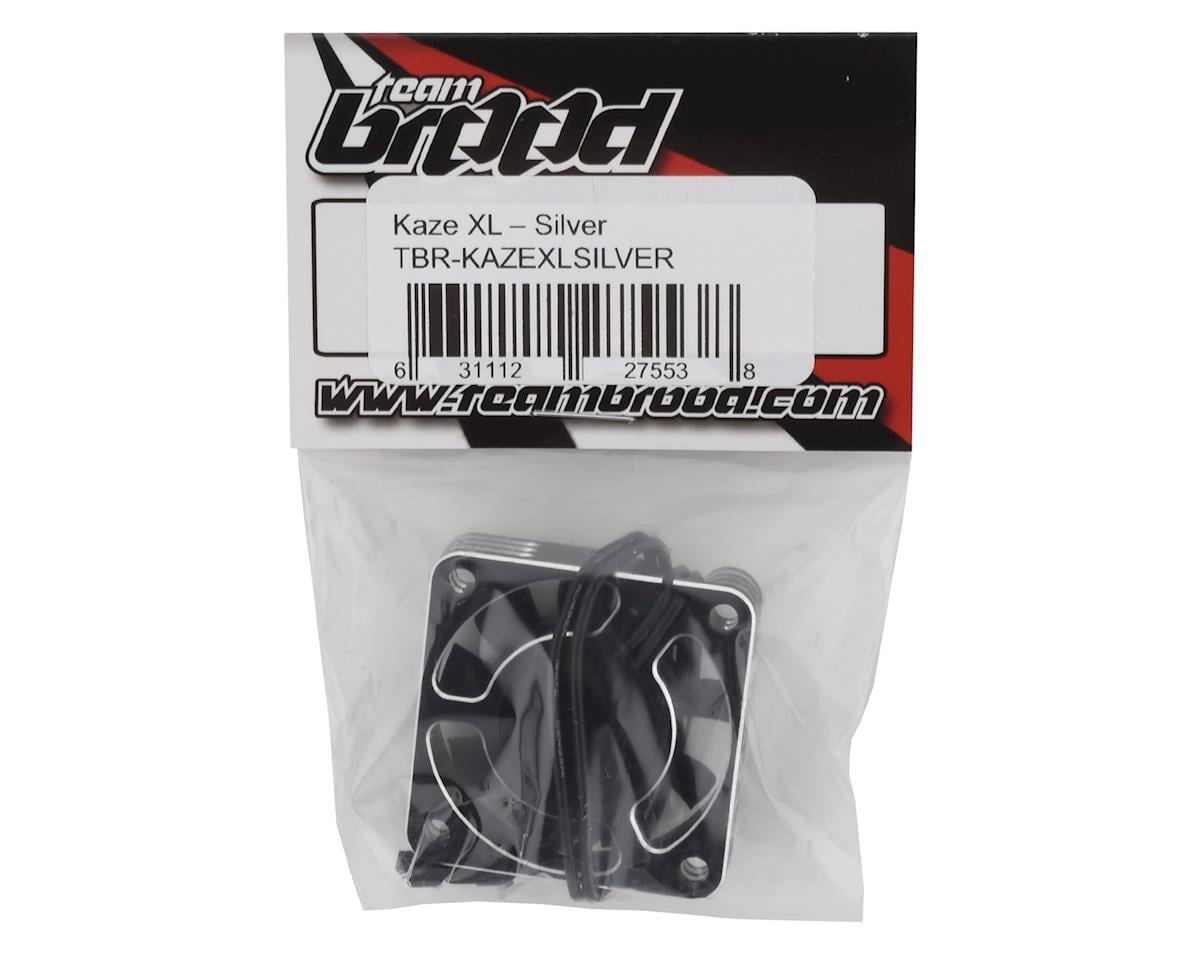

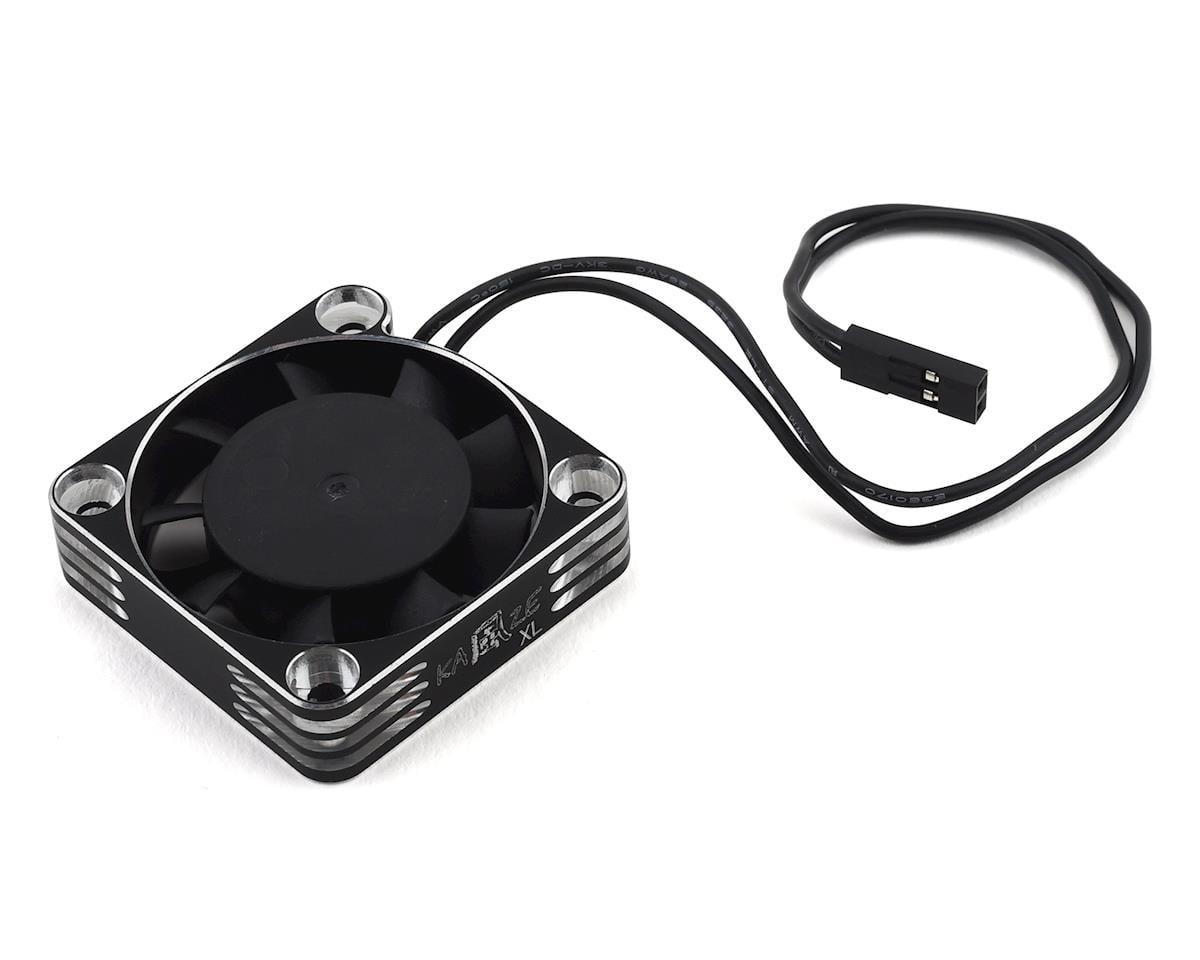

Team Brood Kaze XL Aluminum 40mm HV High Speed Cooling Fan (Silver)

The Team Brood Kaze XL Aluminum 40mm HV High Speed Cooling Fan features an aluminum casing designed to help protect the fan blades and dissipate heat. Its dual ball bearings support fan speeds up to 28,000 RPM, while the flat-sided case makes chassis mounting with double-sided tape convenient.

Features

• 40mm aluminum cooling fan
• Compatible with 2S HV LiPo systems up to 8.75V
• Anodized black casing with silver chamfered edges
• JWT 2-pin connector for installation with a receiver or other power source
• Applications include 1/8 Scale, 1/7 Scale, 1/6 Scale and 1/5 Scale
• 30 Day Warranty against defects

Specifications

• Dimensions: 40x40x10.75mm
• Mounting Pattern: 32x32mm
• Weight: 21.5 grams
• Material: Aluminum & Plastic
• Bearing: Dual Ball Bearing
• Operating Voltage: 5V - 8.75V
• Fan Speed: 28,000 @ 8.4 Volts
• Current: 0.55A
• Connector: JWT 2-Pin Fan

For optimal performance, install the fan at least 5mm away from the motor to help prevent magnet interference and allow sufficient airflow.
