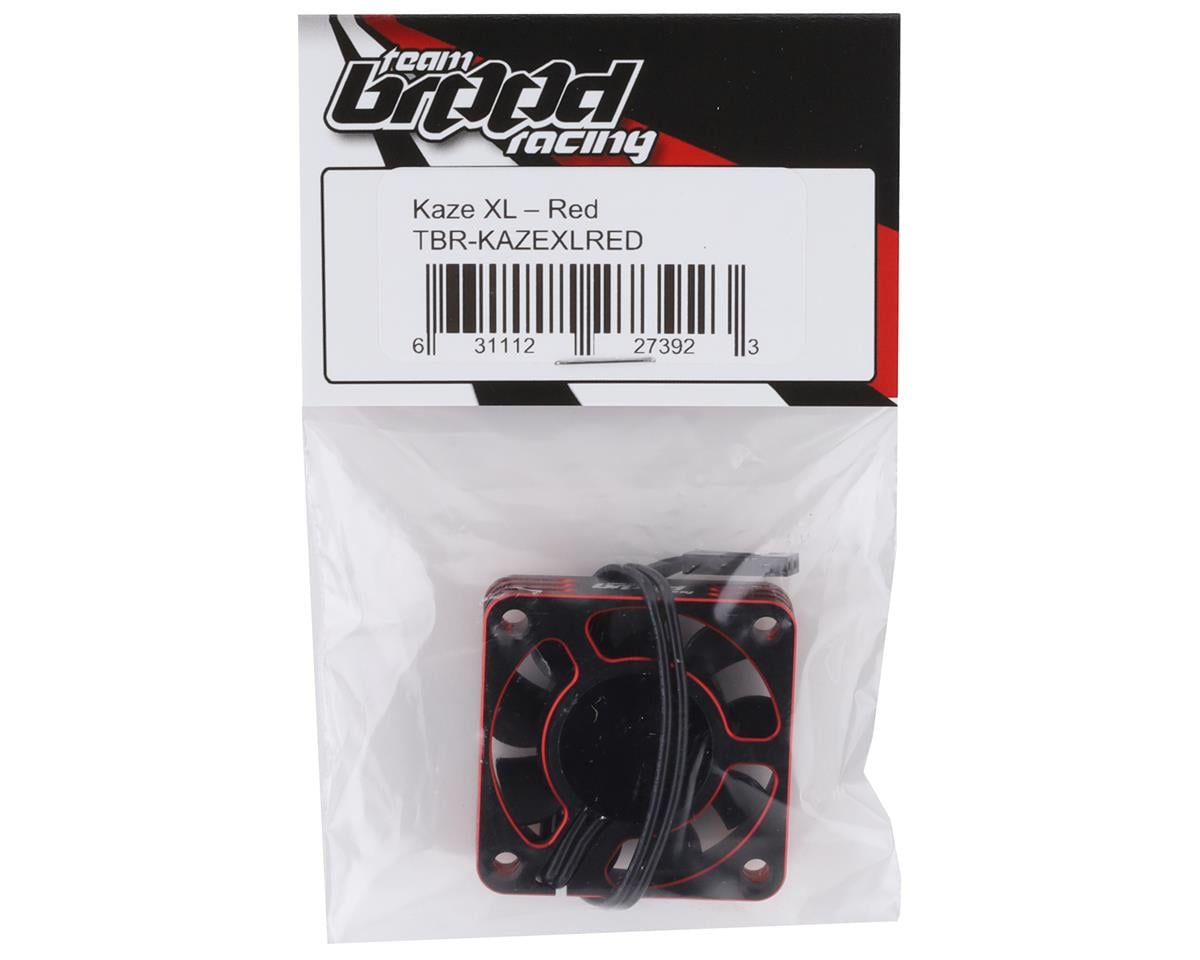

Team Brood Kaze XL Aluminum 40mm HV High Speed Cooling Fan (Red)

The Team Brood Kaze XL is a 40mm high-speed cooling fan with an aluminum casing, dual ball bearings, and operation up to 28,000 RPM. Its red anodized housing features silver chamfered edges and flat sides for securing the fan to a chassis with double-sided tape.

Features

• 40mm aluminum cooling fan
• Aluminum casing helps protect the fan blades
• Compatible with 2S HV LiPo systems (8.75V max)
• Dual ball bearings
• 2 pin connector for installation
• Applications include 1/8 Scale, 1/7 Scale, 1/6 Scale & 1/5 Scale
• 30 Day Warranty against defects

Specifications

• Dimensions: 40x40x10.75mm
• Mounting Pattern: 32x32mm
• Weight: 21.5 grams
• Material: Aluminum & Plastic
• Bearing: Dual Ball Bearing
• Operating Voltage: 5V - 8.75V
• Fan Speed: 28,000 @ 8.4 Volts
• Current: 0.55A
• Connector: JWT 2-Pin Fan

For optimal performance, install the fan at least 5mm away from the motor to prevent magnet interference and allow sufficient airflow.
