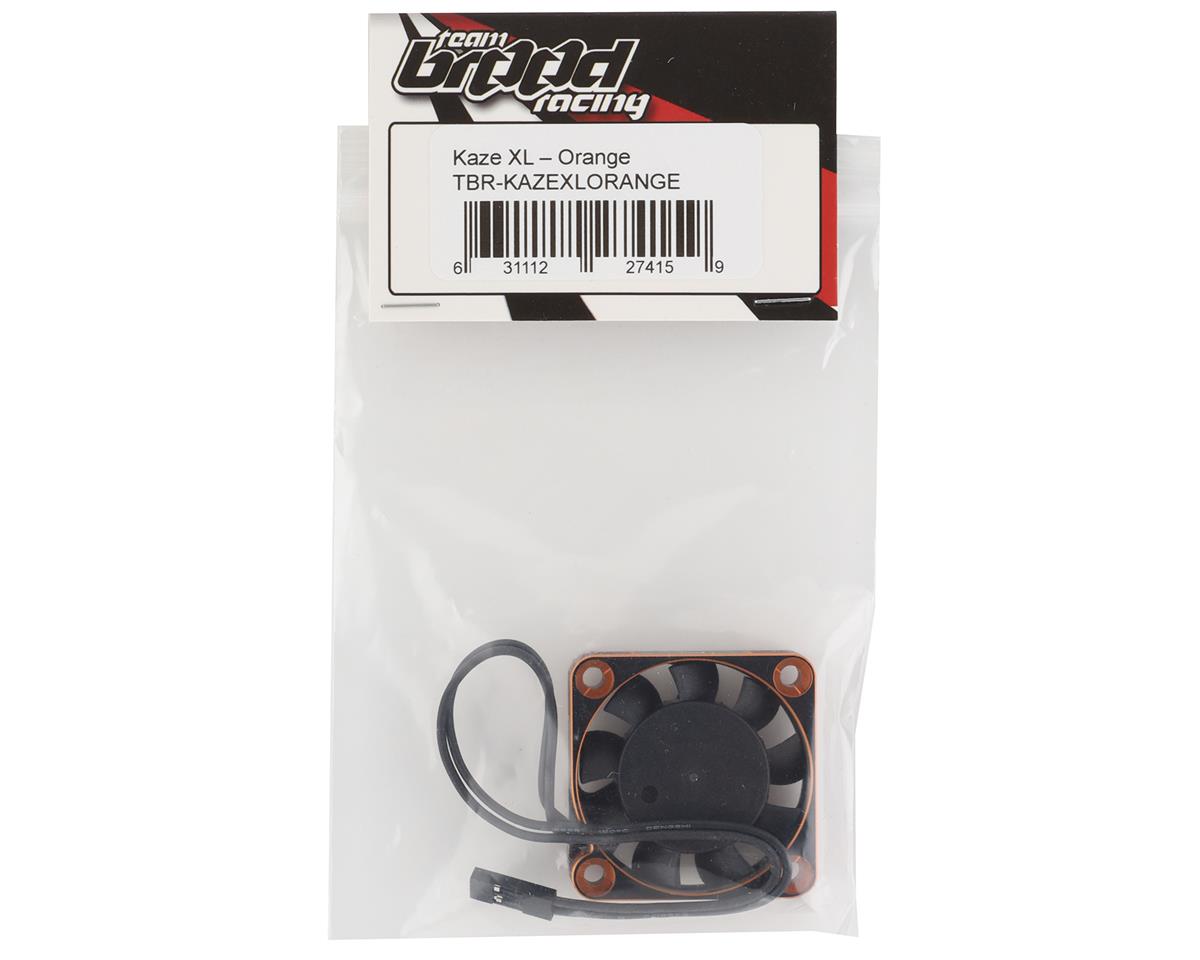

Team Brood Kaze XL Aluminum 40mm HV High Speed Cooling Fan (Orange)

The Team Brood Kaze XL is a 40mm high-speed cooling fan with an anodized orange aluminum casing and silver chamfered edges. Its aluminum housing helps protect the fan blades and dissipate heat, while flat sides allow installation to a chassis with double-sided tape.

Features

• 40mm aluminum cooling fan
• Compatible with 2S HV LiPo systems (8.75V max)
• Dual ball bearings
• JWT 2-Pin Fan connector for installation through a receiver or another power source
• Suitable for 1/8 Scale, 1/7 Scale, 1/6 Scale & 1/5 Scale applications
• 30 Day Warranty against defects

Specifications

• Dimensions: 40x40x10.75mm
• Mounting Pattern: 32x32mm
• Weight: 21.5 grams
• Material: Aluminum & Plastic
• Bearing: Dual Ball Bearing
• Operating Voltage: 5V - 8.75V
• Fan Speed: 28,000 @ 8.4 Volts
• Current: 0.55A
• Connector: JWT 2-Pin Fan

For optimal performance, install the fan at least 5mm away from the motor to prevent magnet interference and allow sufficient airflow.
