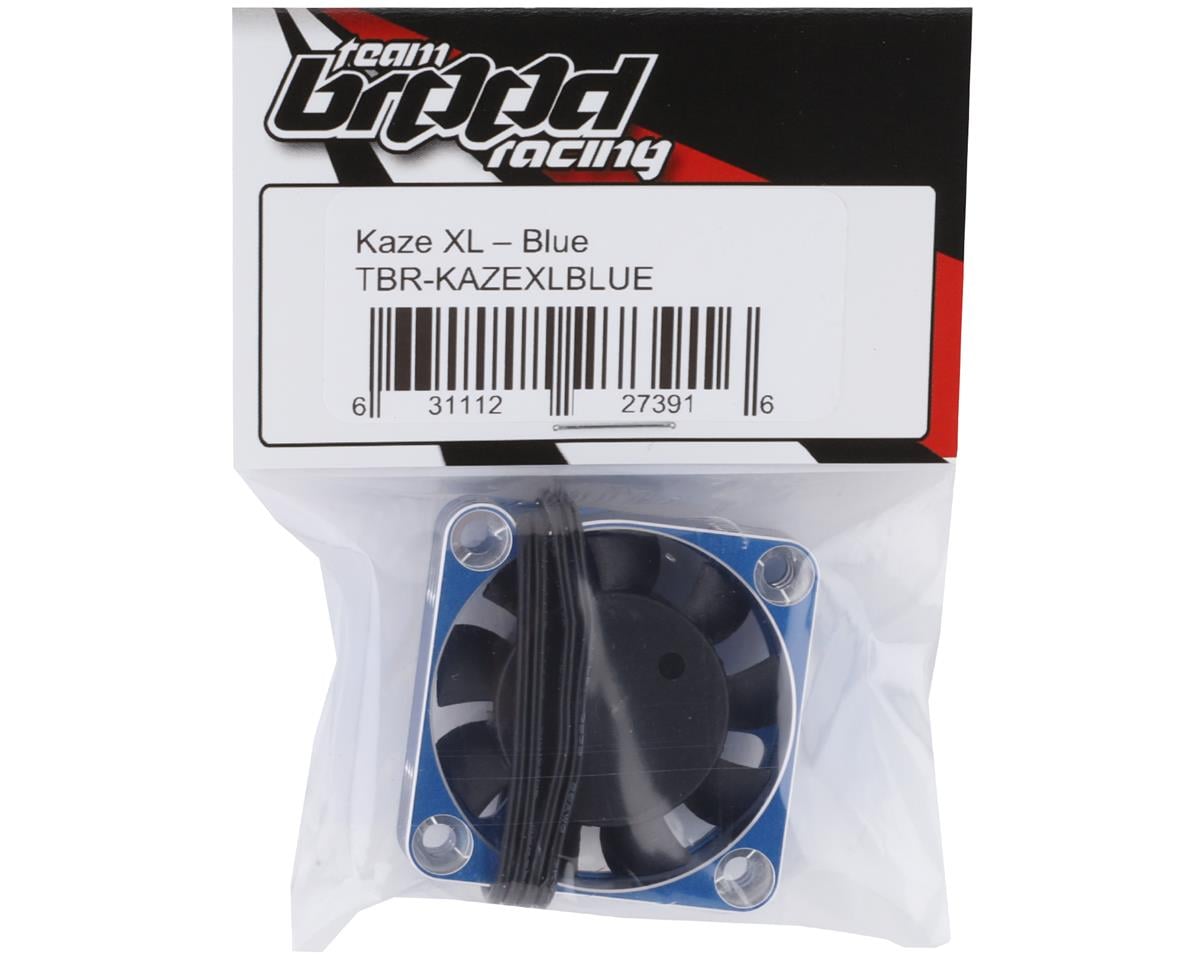

Team Brood Kaze XL Aluminum 40mm HV High Speed Cooling Fan (Blue)

The Team Brood Kaze XL Aluminum 40mm HV High Speed Cooling Fan features an aluminum casing designed to help protect the fan blades while supporting heat dissipation. It operates at speeds up to 28,000 RPM and is compatible with 2S HV LiPo systems up to 8.75V.

Dual ball bearings and a pre-wired JWT 2-pin connector support straightforward installation through a receiver or another power source. The casing has flat sides for securing the fan to a chassis with double-sided tape. For optimal performance, install the fan at least 5mm away from the motor to help prevent magnet interference and allow sufficient airflow.

Features

• 40mm aluminum cooling fan
• Aluminum casing helps protect the fan blades
• Compatible with 2S HV LiPo systems (8.75V max)
• Anodized blue with silver chamfered edges
• For 1/8 and large-scale applications
• JWT 2-pin connector
• 30 Day Warranty against defects

Specifications

• Dimensions: 40x40x10.75mm
• Mounting Pattern: 32x32mm
• Weight: 21.5 grams
• Material: Aluminum & Plastic
• Bearing: Dual Ball Bearing
• Operating Voltage: 5V - 8.75V
• Fan Speed: 28,000 @ 8.4 Volts
• Current: 0.55A
• Connector: JWT 2-Pin Fan
• Fan Applications: 1/8 Scale, 1/7 Scale, 1/6 Scale & 1/5 Scale
