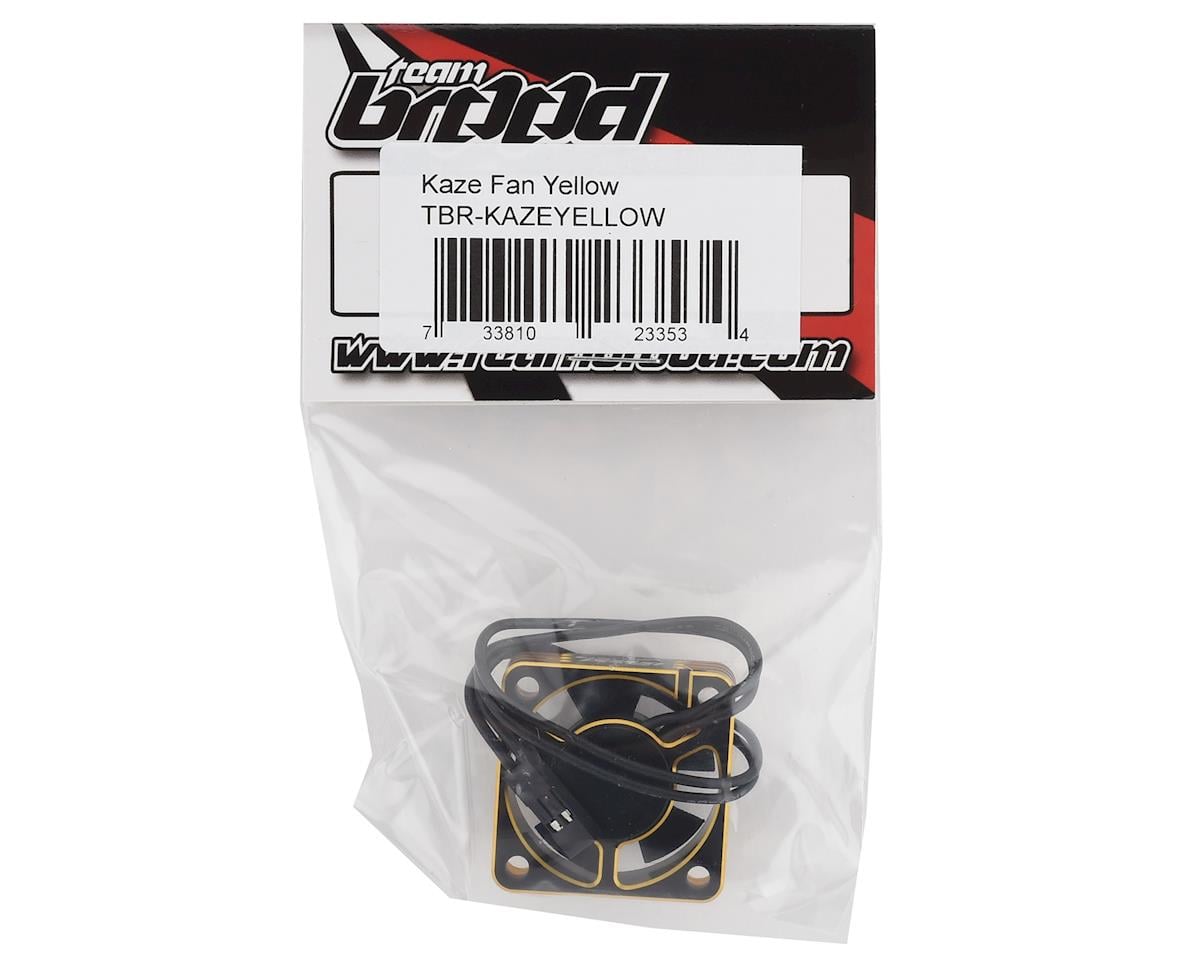

Team Brood Kaze Aluminum HV High Speed Cooling Fan (Yellow)

The Team Brood Kaze Aluminum HV High Speed Cooling Fan provides airflow for ESC and motor applications in 1/12, 1/10, and 1/8 scale vehicles. Its aluminum casing helps protect the fan blades and dissipate heat, while dual ball bearings support operation at speeds up to 28,000 RPM.

Features

• 30mm aluminum cooling fan
• Aluminum casing helps protect the fan blades
• Compatible with 2S HV LiPo systems (8.75V max)
• Anodized black with yellow chamfered edges
• 2 pin connector for easy installation
• Flat casing sides allow mounting with double side tape or the optional Brood Machined Aluminum Fan Mount
• 30 Day Warranty against defects

Specifications

• Dimensions: 31x31x10.5mm
• Mounting Pattern: 24mm x 24mm
• Weight: 14 grams
• Material: Aluminium & Plastic
• Bearing: Dual Ball Bearing
• Operating Voltage: 5V - 8.75V
• Fan Speed: 28,000 @ 8.4 Volts
• Current: 0.45A
• Connector: JWT 2-Pin Fan
• Fan Applications: 1/10 Scale, 1/8 Scale or 1/12 Scale

Note: For optimal performance, install the fan at least 5mm away from the motor to prevent magnet interference and allow sufficient airflow. Mount not included. Optional mount: BRO-TBR-CNCFANCMOUNT.
