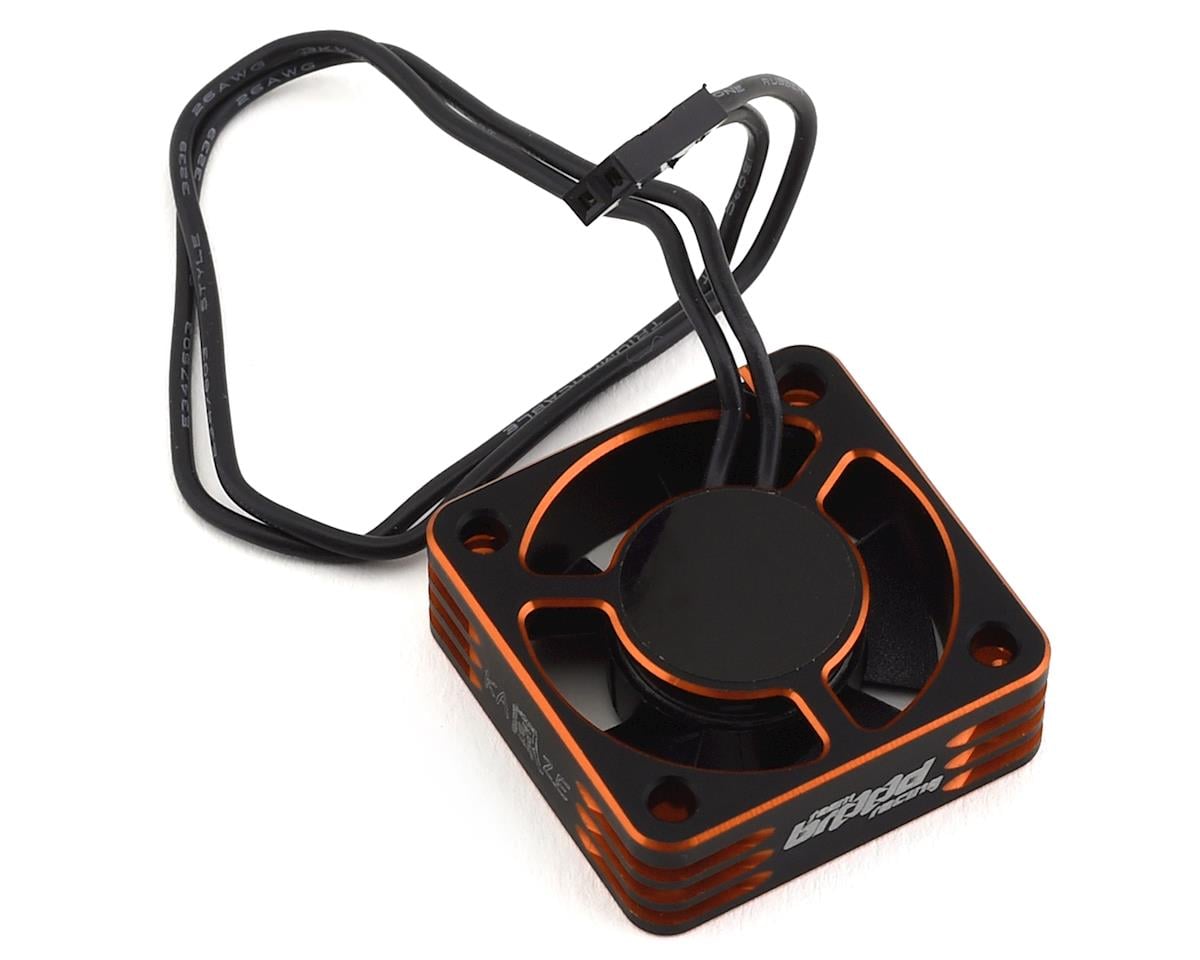

Team Brood Kaze Aluminum HV High Speed Cooling Fan (Orange)

The Team Brood Kaze Aluminum HV High Speed Cooling Fan features an aluminum casing designed to help protect the fan blades and dissipate heat from the fan motor. It operates at speeds up to 28,000 RPM and supports 2S HV LiPo systems up to 8.75V.

Features

• Aluminum cooling fan casing
• Dual ball bearings
• Anodized black finish with orange chamfered edges
• JWT 2-pin connector for installation through a receiver or another power source
• Suitable for 1/12, 1/10 and 1/8 scale applications
• 30 Day Warranty against defects

Specifications

• Dimensions: 31x31x10.5mm
• Mounting Pattern: 24mm x 24mm
• Weight: 14 grams
• Material: Aluminium & Plastic
• Bearing: Dual Ball Bearing
• Operating Voltage: 5V - 8.75V
• Fan Speed: 28,000 @ 8.4 Volts
• Current: 0.45A
• Connector: JWT 2-Pin

For optimal performance, install the fan at least 5mm away from the motor to help prevent magnet interference and allow sufficient airflow. The optional Brood Machined Aluminum Fan Mount (BRO-TBR-CNCFANCMOUNT) is not included.
