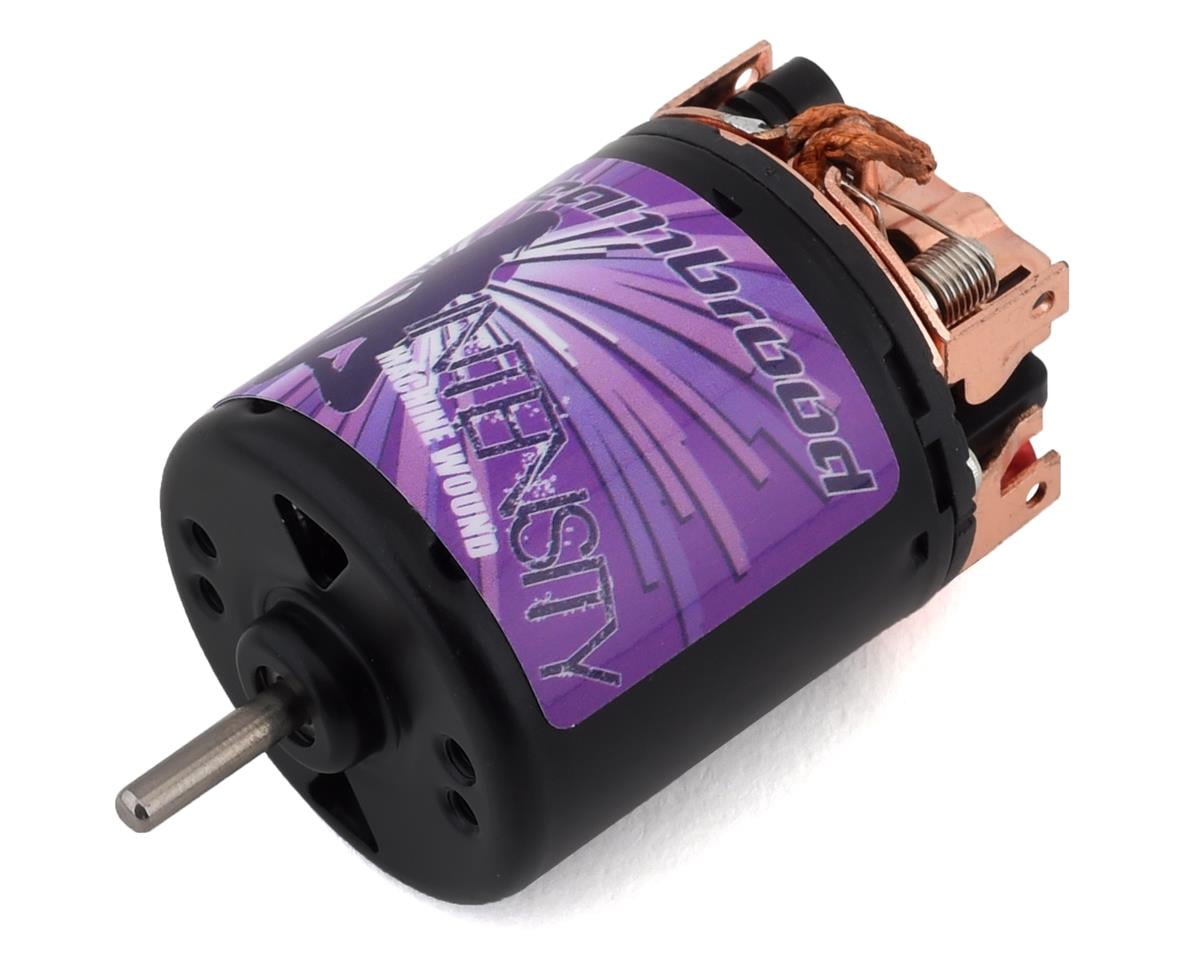

Team Brood Intensity V2 Machine Wound 540 3 Segment Brushed Motor (55T)

The Team Brood Intensity V2 is a 55T machine-wound 540 brushed motor with a skewed 3-slot armature, dual HG6 magnets and adjustable timing. Its design supports smooth startup while maintaining torque delivery and brake strength.

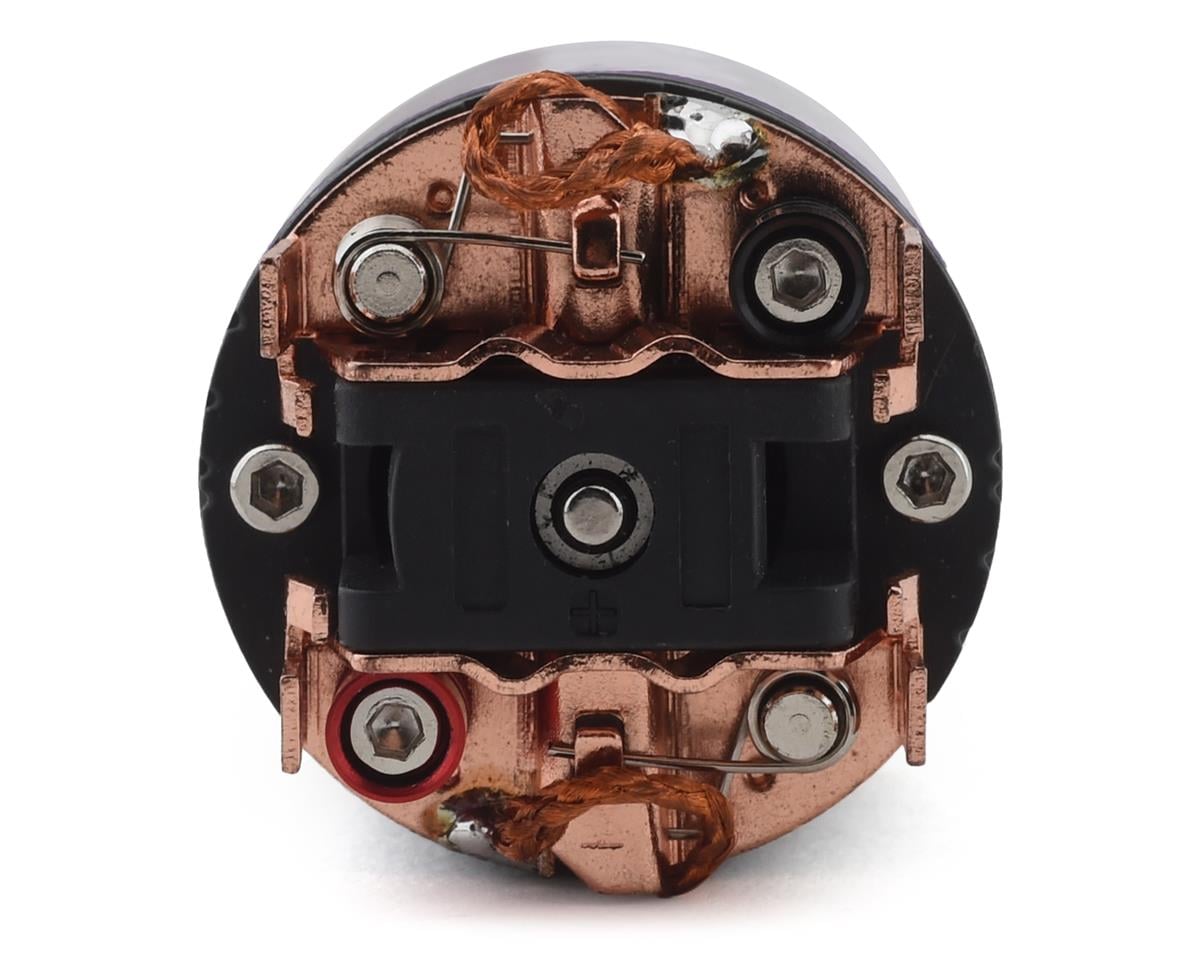

This rebuildable motor is assembled with hand-shimmed armature alignment, precision-spaced components, aligned brush hoods and precision-measured springs. It also features dual precision ball bearings, aluminum heatsinks, standup brushes and optimal tension springs. Each motor is fully broken-in and tested on precision-calibrated equipment before leaving the factory.

Features

• Skewed armature for smooth startup
• Dual HG6 magnets
• 1.4mm thick can
• Adjustable timing
• Rebuildable construction
• Dual precision ball bearings
• Aluminum heatsinks
• Standup brushes
• Machine-wound armature
• 30 Day Limited warranty through manufacturer

Specifications

• Motor: 540 3 Segment Brushed Motor
• Poles: 2
• Magnets: Dual HG6
• Brush Style: Standup
• Voltage Input: 3.7v-14.8v
• Break-In: 570 seconds at 3 volts, 30 seconds at 3.5 volts
• Timing: 0°
• Rotation: Normal
• Kv: 1130Kv
• Armature Construction: Machine wound
• Stack Design: Skewed
• Slots: 3
• Wire Type: Copper Round
• Balance Type: Drill Balanced
• Turns: 55T
• Weight: 6 ounces
• Length: 54mm (2.125")
• Diameter: 35.85mm (1.41")
• Shaft Size: 3.175mm (1/8th)
• Mounting Pattern: Standard 540 M3x25mm
