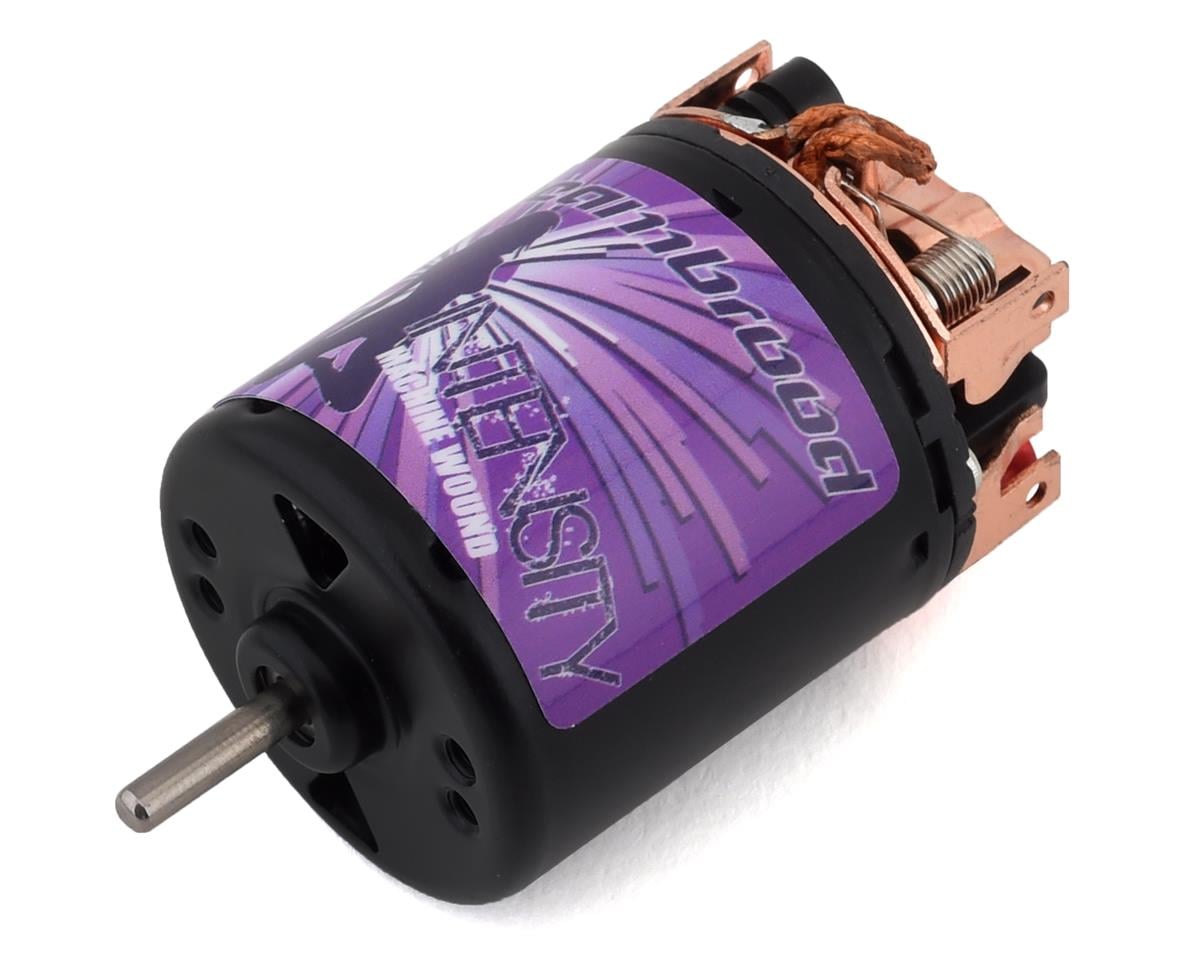

Team Brood Intensity V2 Machine Wound 540 3 Segment Brushed Motor (45T)

The Team Brood Intensity V2 is a 45T machine-wound 540 brushed motor with a skewed 3-slot armature, dual HG6 magnets, adjustable timing, and a rebuildable design. Its 3-segment armature is built for smooth startup while maintaining torque delivery and brake strength.

Features

• Skewed armature for smooth startup
• Dual HG6 magnets for torque and brake strength
• 1.4mm thick can
• Adjustable timing
• Rebuildable design
• Dual precision ball bearings
• Aluminum heatsinks
• Standup brushes with optimal tension springs
• Machine-wound copper round wire armature
• Cleaned and lubed bearings
• Precision-spaced armature
• Aligned brush hoods
• Fully broken-in and tested

Specifications

• Motor: 540 brushed motor
• Poles: 2
• Magnets: Dual HG6
• Brush style: Standup
• Voltage input: 3.7v-14.8v
• Break-in: 570 seconds at 3 volts, 30 seconds at 3.5 volts
• Timing: 0°
• Rotation: Normal
• Kv: 1410Kv
• Armature construction: Machine wound
• Stack design: Skewed
• Slots: 3
• Turns: 45T
• Weight: 6 ounces
• Length: 54mm (2.125")
• Diameter: 35.85mm (1.41")
• Shaft size: 3.175mm (1/8th)
• Mounting pattern: Standard 540 M3x25mm

Warranty: 30 Day Limited through manufacturer.
