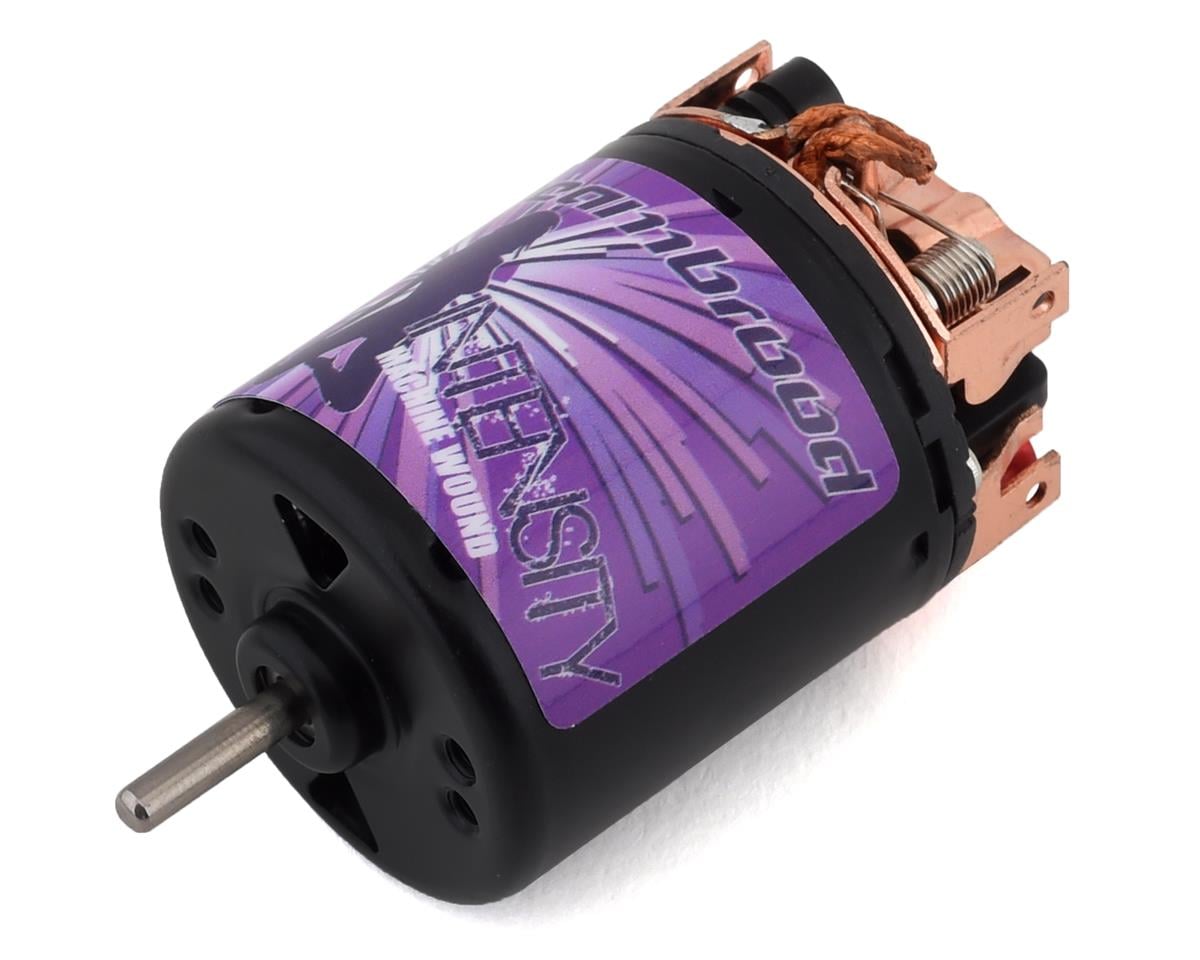

Team Brood Intensity V2 Machine Wound 540 3 Segment Brushed Motor (35T)

The Team Brood Intensity V2 is a machine-wound 540 brushed motor with a skewed 3-slot armature, dual HG6 magnets, and a 35T winding. It is assembled, tested, and fully broken in for installation and use out of the box.

Features

• Skewed armature: Provides smoother startup while maintaining torque delivery and brake strength.
• Dual magnet can: Uses HG6 magnets.
• 1.4mm thick can: Strengthens the magnetic field and provides a durable finish.
• Adjustable timing: Allows fine tuning of the motor's powerband.
• Rebuildable design: Supports rebuilding for continued performance and service life.
• Dual precision ball bearings: Reduce friction.
• Aluminum heatsinks: Provide additional cooling.

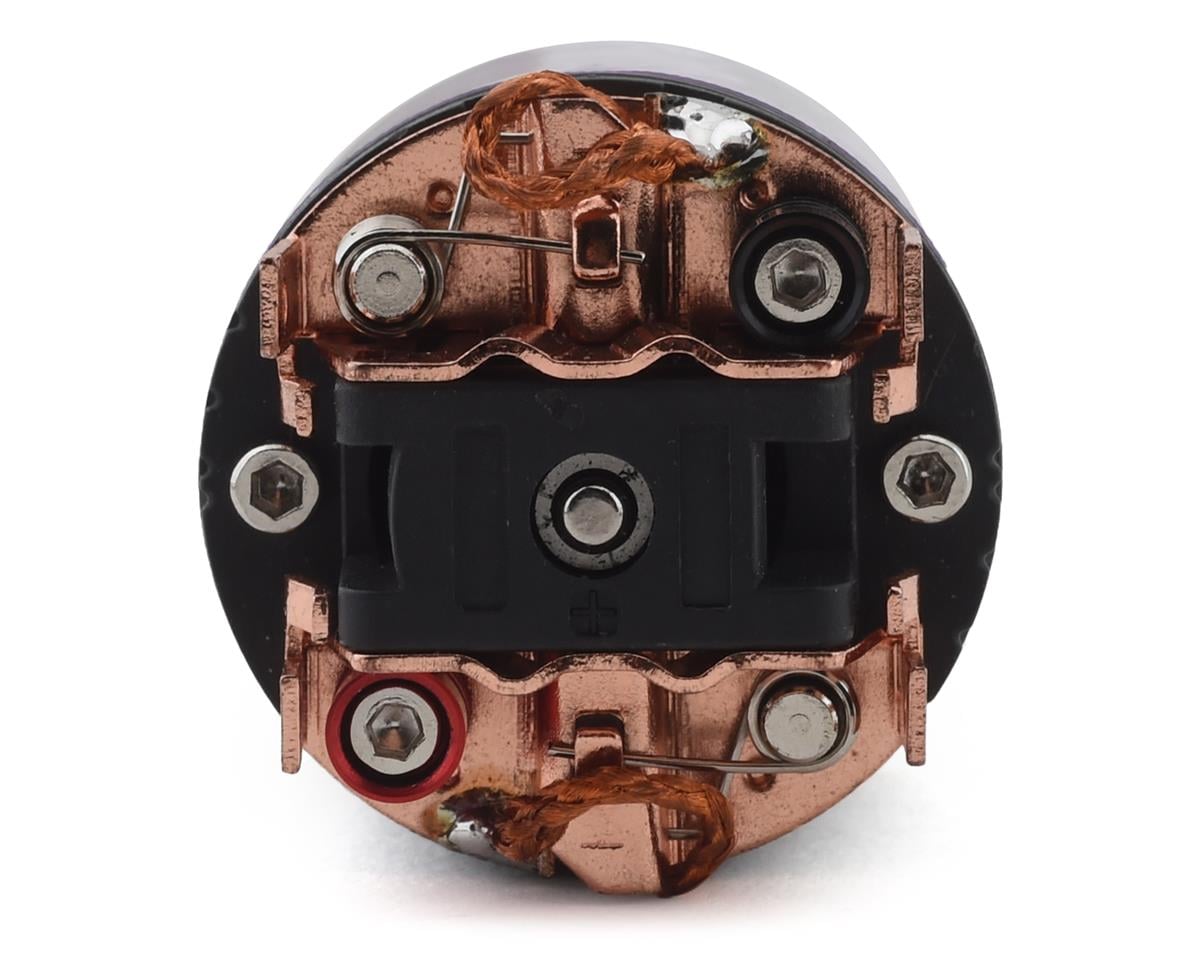

• Standup brushes: Designed for long-lasting performance.
• Machine wound: Delivers consistent performance.

Build Features

• Cleaned and lubed bearings
• Precision-spaced armature
• Precision-measured springs
• Aligned brush hoods for full brush contact and even wear
• Each component tested on precision-calibrated equipment
• Fully broken in and ready to install and run

Specifications

• Motor: 540 3 segment brushed motor
• Poles: 2
• Magnets: Dual HG6
• Brush style: Standup
• Voltage input: 3.7v-14.8v
• Break-in: 570 seconds at 3 volts, 30 seconds at 3.5 volts
• Timing: 0°
• Rotation: Normal
• Kv: 1870Kv
• Armature construction: Machine wound
• Stack design: Skewed
• Slots: 3
• Wire type: Copper round
• Turns: 35T
• Weight: 6 ounces
• Length: 54mm (2.125")
• Diameter: 35.85mm (1.41")
• Shaft size: 3.175mm (1/8th)
• Mounting pattern: Standard 540 M3x25mm

Warranty: 30 Day Limited through manufacturer.
