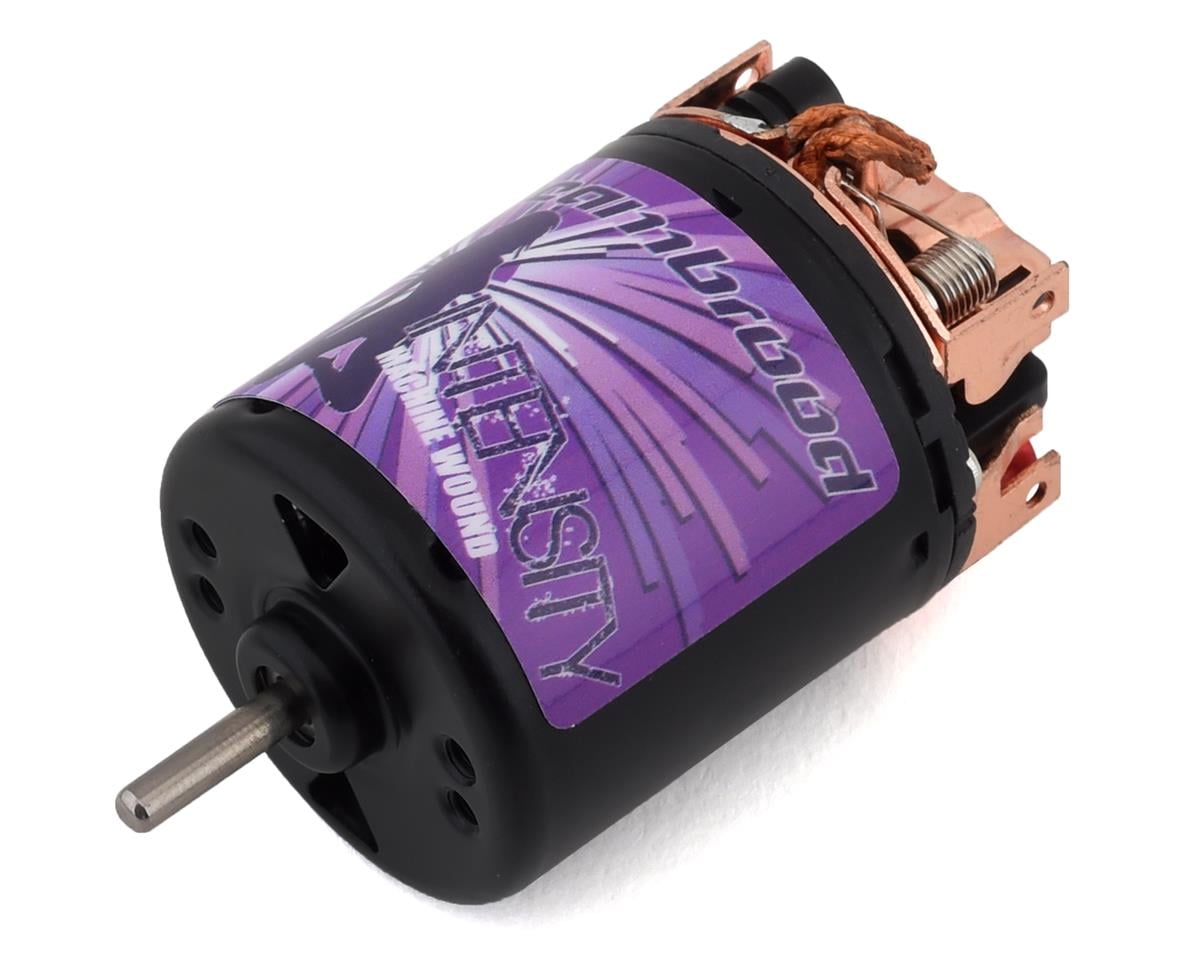

Team Brood Intensity V2 Machine Wound 540 3 Segment Brushed Motor (30T)

Team Brood Intensity V2 Machine Wound 540 3 Segment Brushed Motor (30T) combines a skewed 3-slot armature with dual HG6 magnets for smooth startup, torque delivery, and brake strength. This rebuildable motor features adjustable timing, dual precision ball bearings, aluminum heatsinks, standup brushes, and machine-wound construction.

Each motor is assembled with a hand-shimmed armature, precision brush hood alignment, cleaned and lubed bearings, precision-measured springs, and a low-impact break-in and dyno test. It is fully broken-in and ready to install and run.

Features

• Skewed armature for smoother startup without negatively affecting torque delivery or brake strength
• Dual HG6 magnets for increased torque and brake strength
• 1.4mm thick can
• Adjustable timing
• Rebuildable design
• Dual precision ball bearings
• Aluminum heatsinks for additional cooling

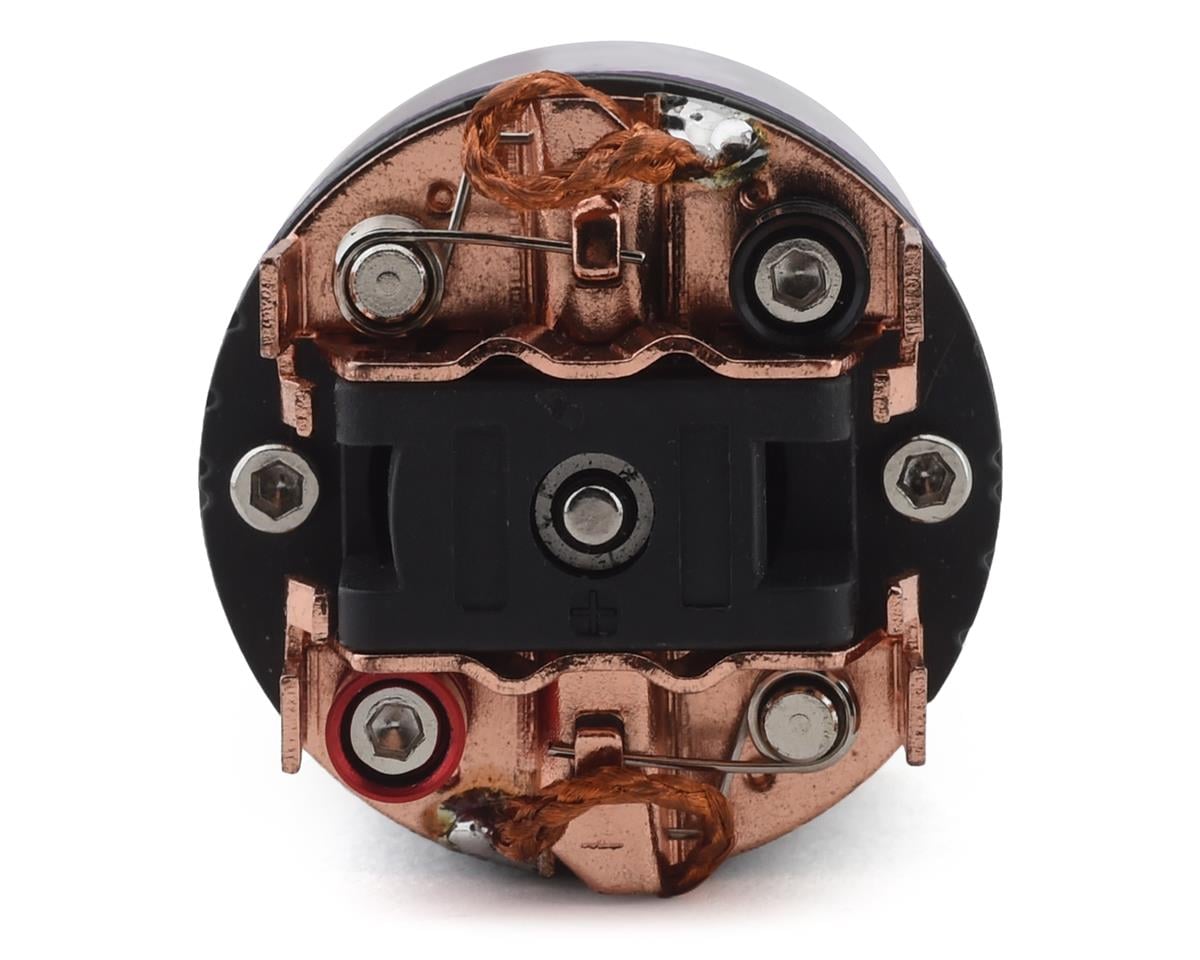

• Standup brushes with optimal tension springs
• Machine-wound construction for consistent performance
• 30 Day Limited warranty through manufacturer

Specifications

• Poles: 2
• Magnets: Dual HG6
• Brush Style: Standup
• Voltage Input: 3.7v-14.8v
• Break-In: 570 seconds at 3 volts, 30 seconds at 3.5 volts
• Timing: 0°
• Rotation: Normal
• Kv: 2170Kv
• Armature Construction: Machine wound
• Stack Design: Skewed
• Slots: 3
• Wire Type: Copper Round
• Balance Type: Drill
• Turns: 30
• Weight: 6 ounces
• Length: 54mm (2.125")
• Diameter: 35.85mm (1.41")
• Shaft Size: 3.175mm (1/8th)
• Mounting Pattern: Standard 540 M3x25mm
