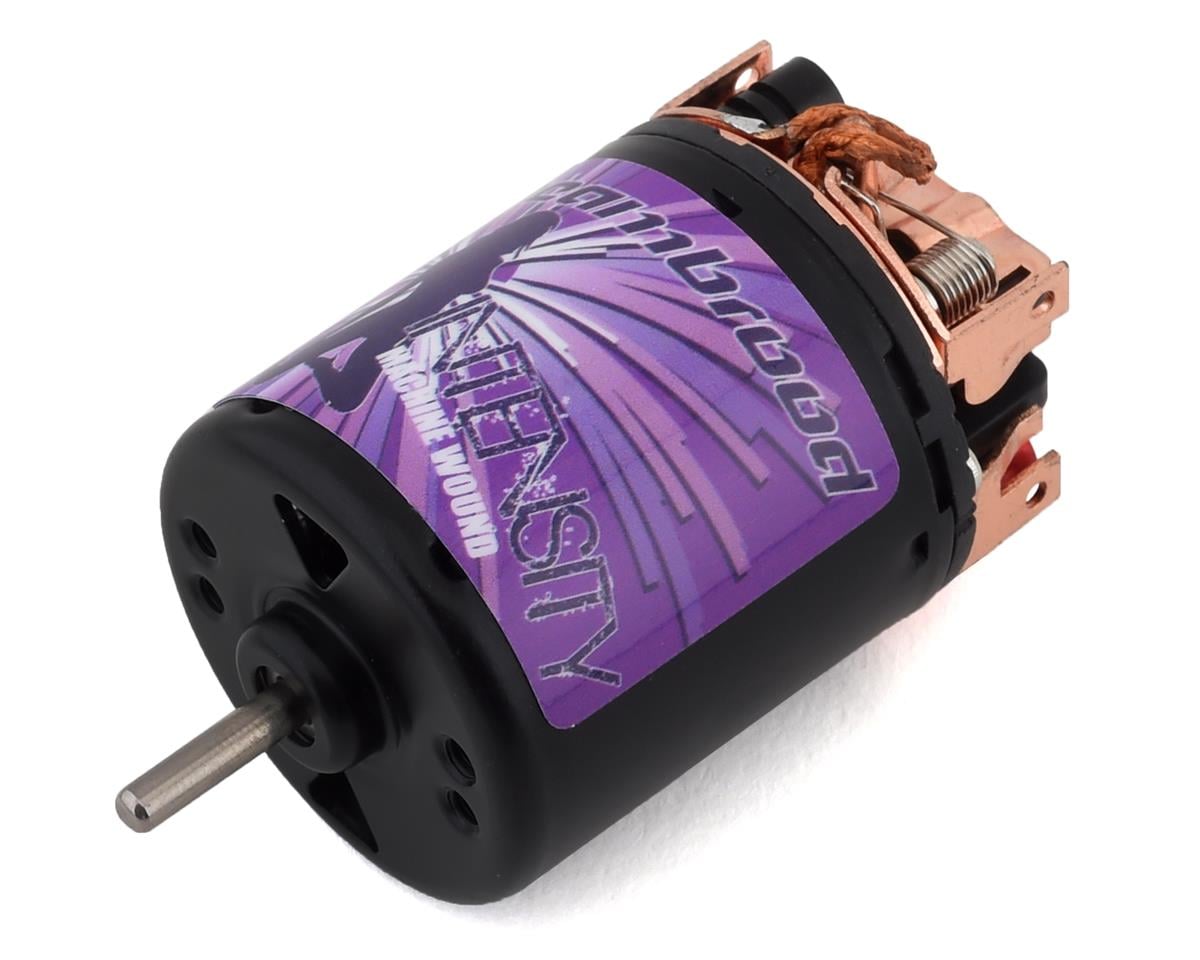

Team Brood Intensity V2 Machine Wound 540 3 Segment Brushed Motor (27T)

The Team Brood Intensity V2 is a machine-wound 540 brushed motor with a skewed 3-slot armature, dual HG6 magnets, adjustable timing, and a rebuildable design. Its assembly includes hand-shimmed armature alignment, precision brush hood alignment, cleaned and lubricated bearings, and testing on precision calibrated equipment.

Features

• Skewed armature for smooth startup while maintaining torque delivery and brake strength
• Dual HG6 magnets maximize torque and brake strength
• 1.4mm thick can strengthens the magnetic field and provides a durable finish
• Adjustable timing for fine-tuning the motor's powerband
• Rebuildable design
• Dual precision ball bearings reduce friction
• Aluminum heatsinks provide additional cooling
• Standup brushes with optimal tension springs
• Machine-wound construction for consistent performance
• Fully broken-in and ready to install and run

Specifications

• Motor: 540 brushed motor
• Poles: 2
• Magnets: Dual HG6
• Brush Style: Standup
• Voltage Input: 3.7v-14.8v
• Break-In: 570 seconds at 3 volts, 30 seconds at 3.5 volts
• Timing: 0°
• Rotation: Normal
• Kv: 2400Kv
• Armature Construction: Machine wound
• Stack Design: Skewed
• Slots: 3
• Wire Type: Copper Round
• Balance Type: Drill
• Turns: 27
• Weight: 6 ounces
• Length: 54mm (2.125")
• Diameter: 35.85mm (1.41")
• Shaft Size: 3.175mm (1/8th)
• Mounting Pattern: Standard 540 M3x25mm

Warranty

30 Day Limited through manufacturer.
