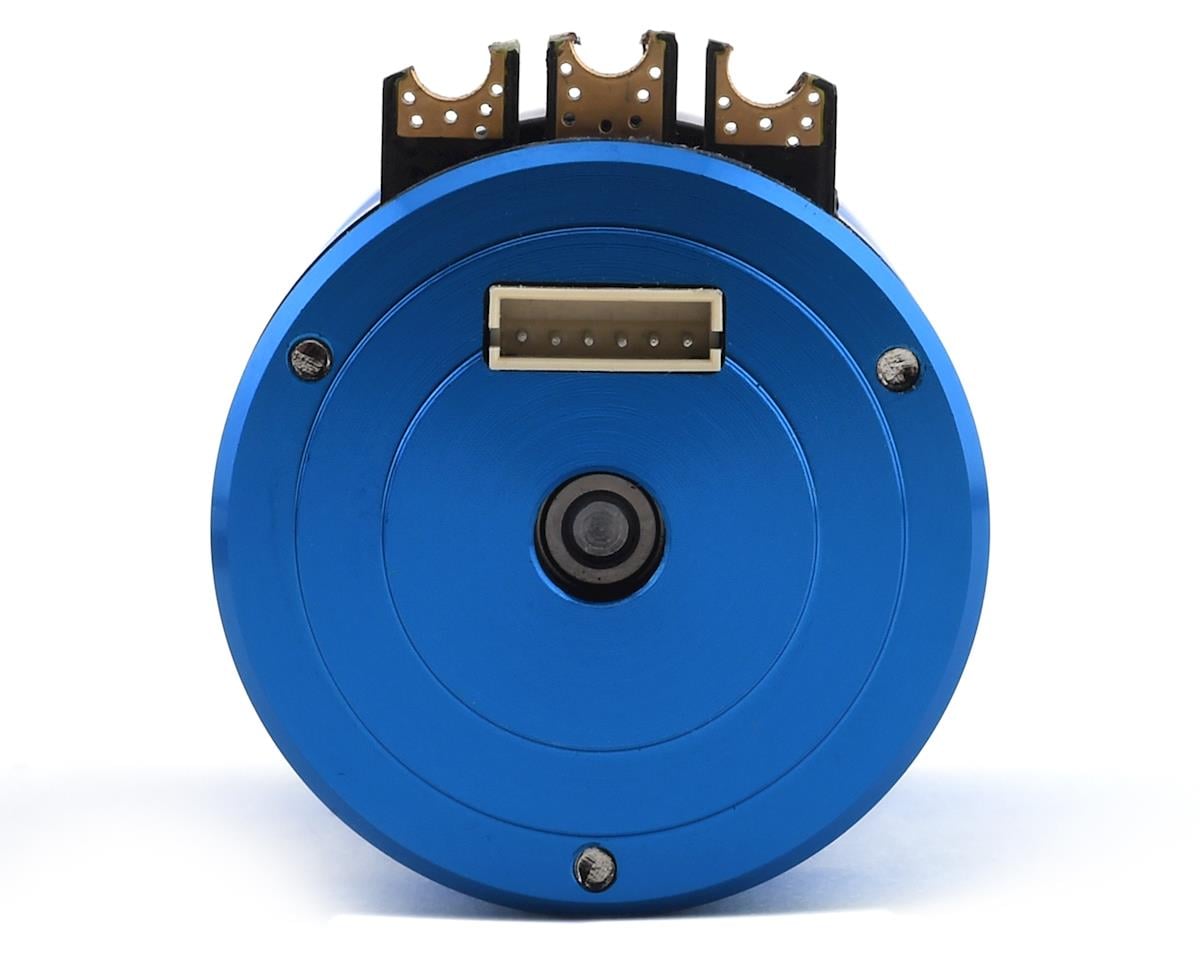

Team Brood Eradicator 2 Pole Sensored 540 Brushless Motor (1750Kv)

The Team Brood Eradicator 2 Pole Sensored 540 Brushless Motor delivers a budget-friendly sensored motor option for crawlers, bashers and racers that do not require a ROAR approved motor. Its conformal coated sensor board helps protect the sensor board in wet environments, while the CNC machined billet T6 aluminum heatsink can helps manage motor heat.

Features

• Sensored 540 2 Pole Brushless Motor
• 1750Kv
• Compatible with any Sensored/Sensorless ESC
• High RPM precision ball bearings
• Non-Adjustable Timing
• Can removable/replaceable rotor
• Powerful sintered neodymium magnet
• Conformal coated sensor board
• Includes 155mm flat sensor wire
• Includes a maintenance guide with gearing tips and more
• 1 Year Limited Manufacturers Warranty covers defects

Specifications

• Size: 540
• Voltage Input: 3.7v-14.8v
• Break-In: 120 Seconds
• Timing: Non-Adjustable
• Stator Construction: Handwound
• Lamination Size: .35mm
• Termination: Wye
• Slots: 3
• Wire Type: Round Copper
• Rotor Poles: 2
• Rotor Diameter: 12.5mm
• Rotor Length: 25mm
• Magnet Type: Neo
• Balance Type: Epoxy
• Weight: 170g
• Length: 53mm
• Diameter: 36mm
• Shaft Size: 3.175mm (1/8th)
• Mounting Pattern: Standard 540 M3x25mm
