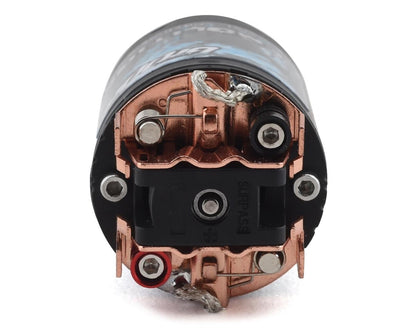

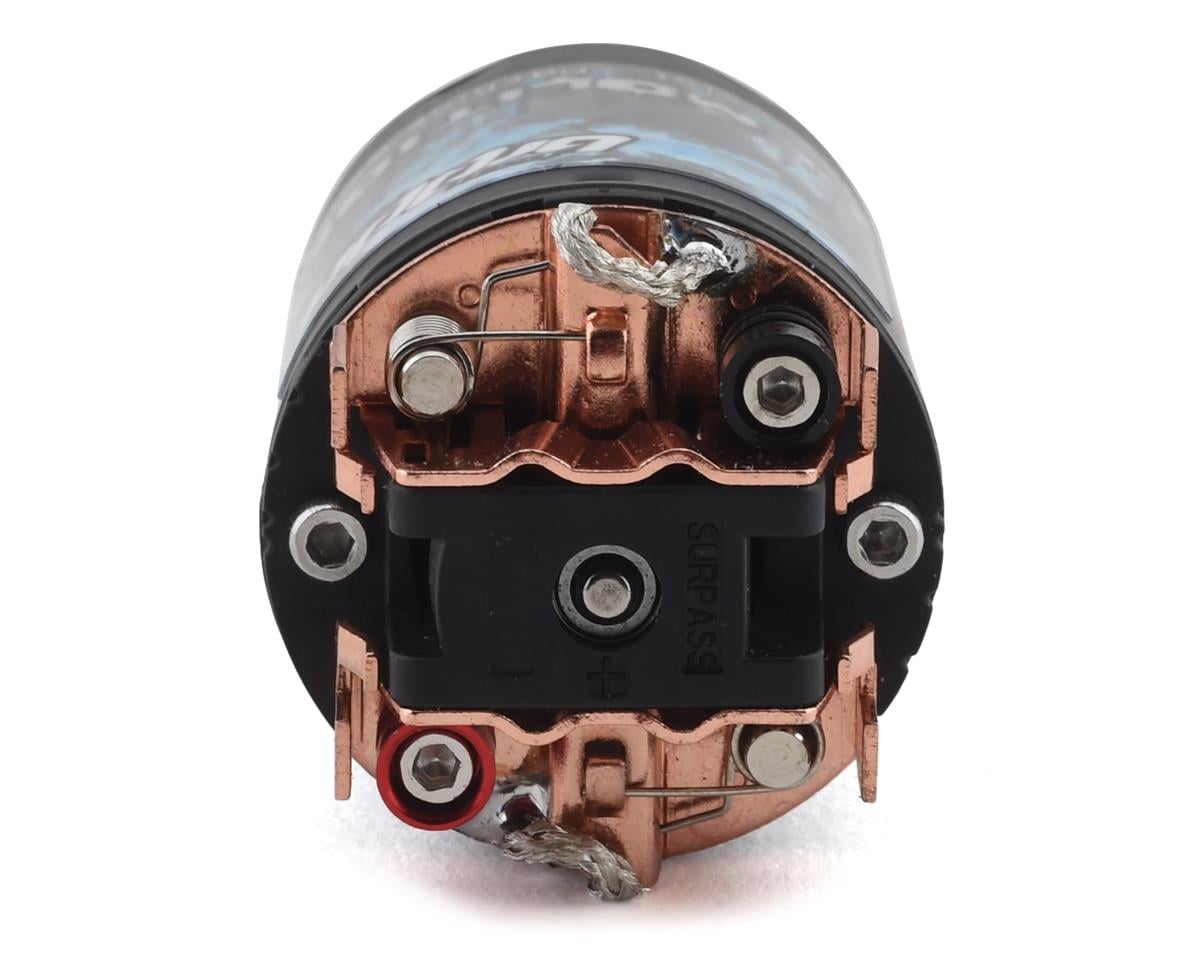

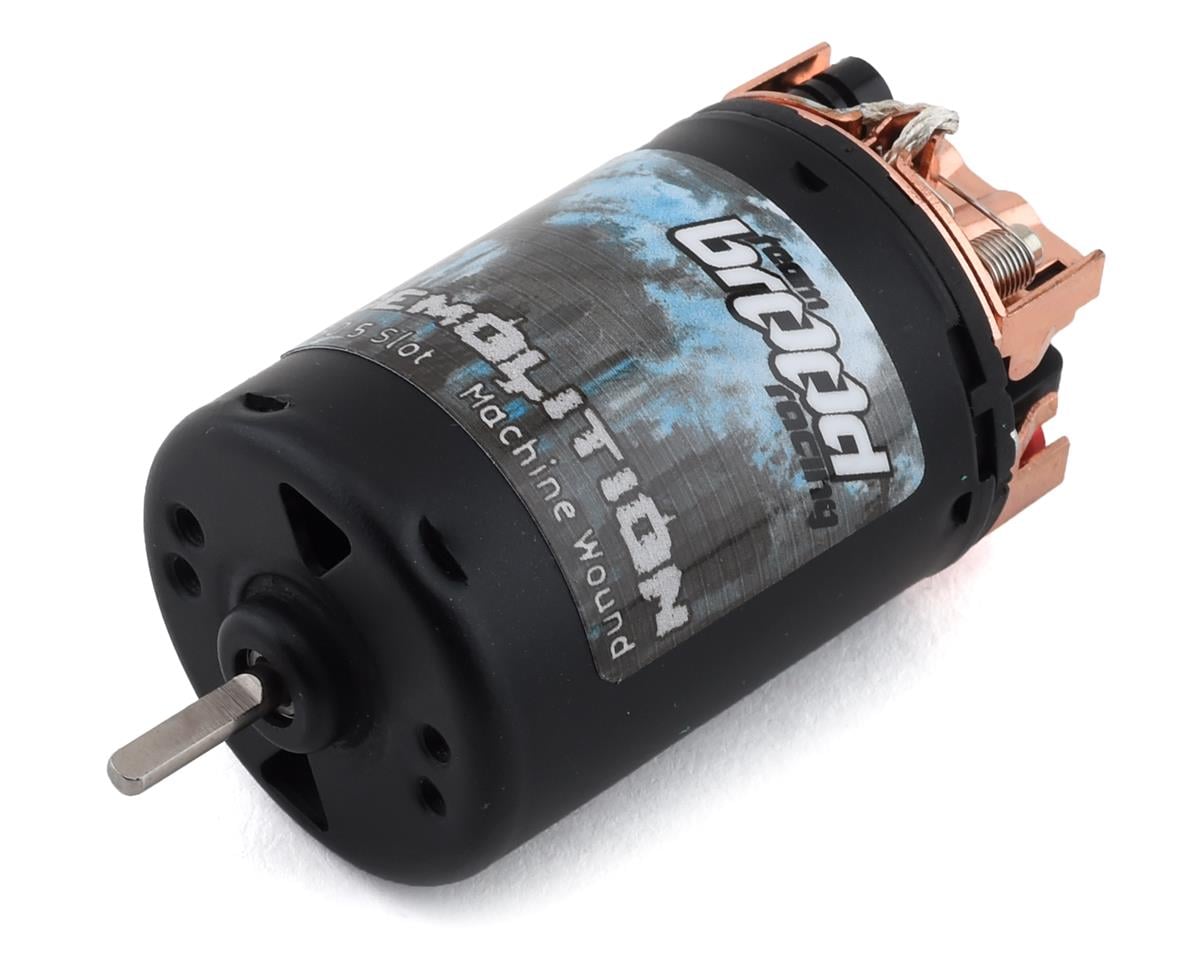

Team Brood Demolition 550 5-Slot Skewed Machine Wound Brushed Motor (12T)

The Team Brood Demolition 550 5-Slot Skewed Machine Wound Brushed Motor (12T) is a rebuildable brushed motor with a machine wound armature, dual C6 magnets, adjustable timing and dual precision ball bearings. Each motor is cleaned, lubricated, aligned, broken in and tested on precision calibrated equipment.

Features

• Dual C6 magnet can for torque and brake strength
• Adjustable timing for powerband tuning
• Rebuildable design
• Dual precision ball bearings
• Aluminum heatsinks for additional cooling
• Standup brushes with optimal tension springs
• Machine wound armature
• 30 Day Limited Warranty through manufacturer

Build Features

• Cleaned and lubed bearings
• Precision-spaced armature
• Precision-measured springs
• Aligned brush hoods
• Each component tested on precision calibrated equipment
• Fully broken-in and ready to install and run

Specifications

• Poles: 2
• Magnets: Dual C6
• Brush Style: Standup
• Voltage Input: 3.7v-14.8v
• Break-In: 300 seconds at 3 volts, 30 seconds at 3.5 volts
• Armature Construction: Machine wound
• Lamination Size: .014"
• Stack Design: Skew
• Slots: 5
• Wire Type: Copper Round
• Balance Type: Epoxy
• Turns: 12T
• Weight: 8 ounces
• Length: 63mm (2.48")
• Diameter: 35.85mm (1.41")
• Shaft Size: 3.175mm (1/8th)
• Mounting Pattern: Standard 540 M3x25mm
