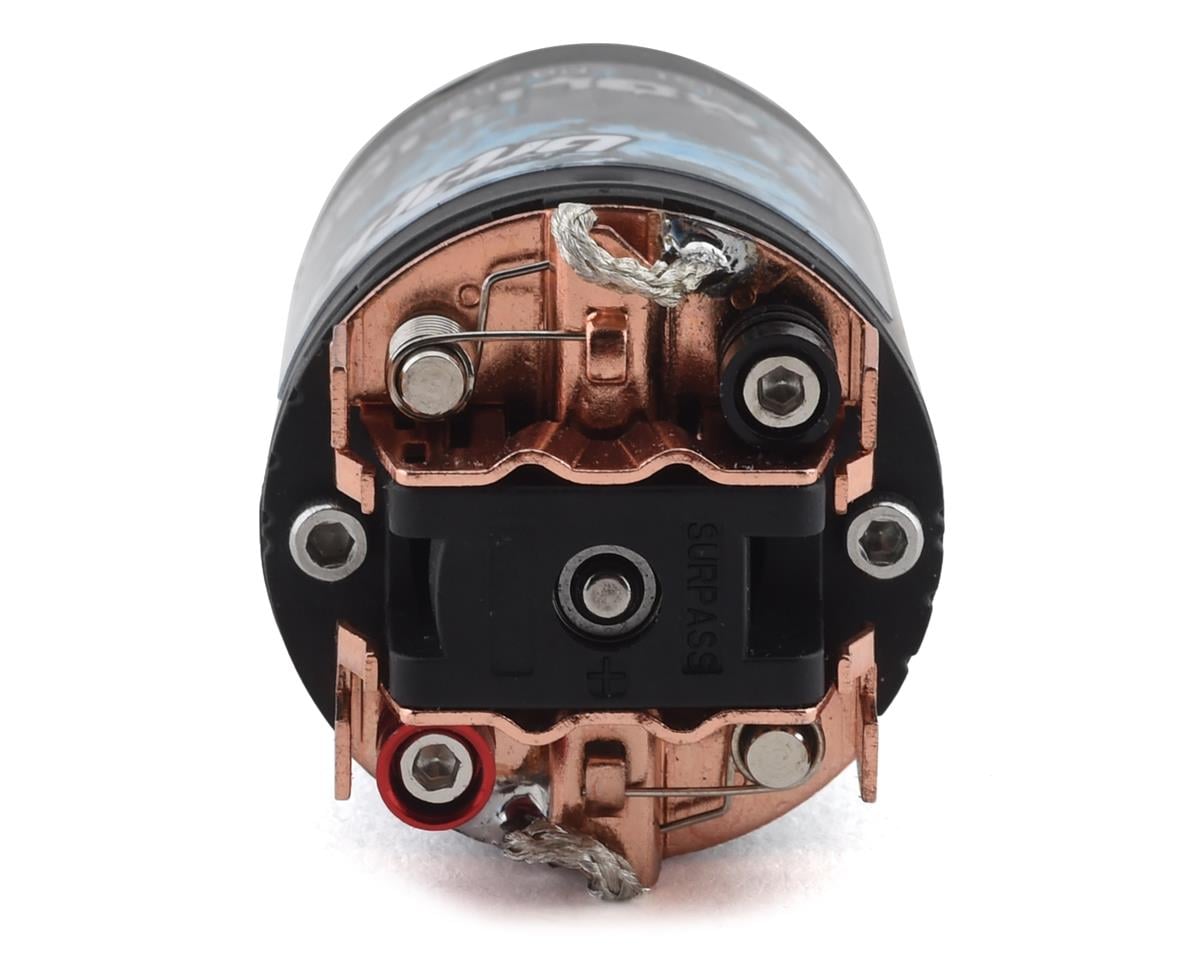

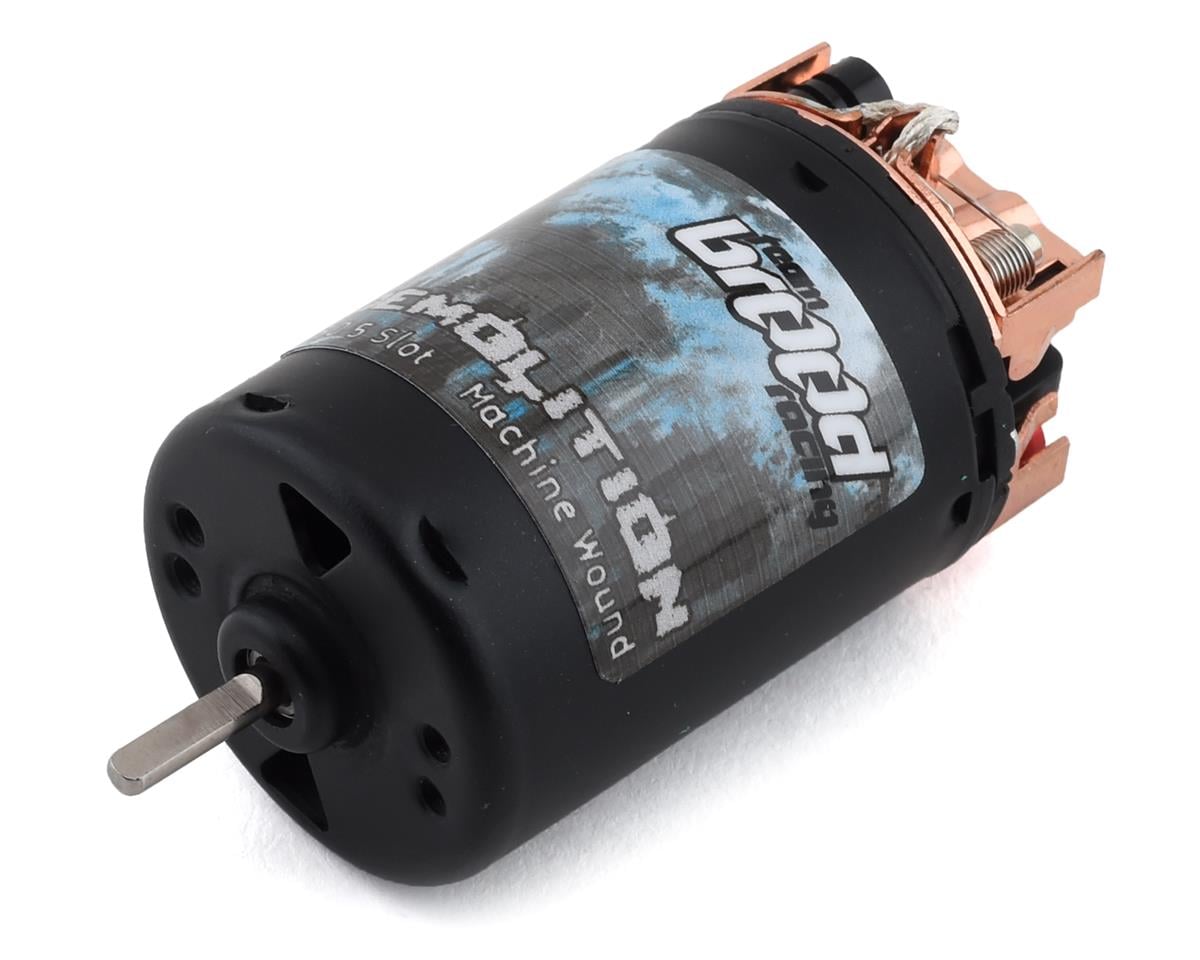

Team Brood Demolition 550 5-Slot Skewed Machine Wound Brushed Motor (10T)

The Team Brood Demolition 550 5-Slot Skewed Machine Wound Brushed Motor (10T) is built for budget-conscious crawlers seeking the torque and brake strength of a larger 550 motor. Each motor is assembled with hand-shimmed armature alignment, precision brush hood alignment, a low-impact break-in, and dyno testing.

Features

• Dual C6 magnet can for increased torque and brake strength
• Adjustable timing for tuning the motor's powerband
• Rebuildable design
• Dual precision ball bearings
• Aluminum heatsinks for additional cooling
• Standup brushes with optimal tension springs
• Machine wound armature for consistent performance

Build Features

• Cleaned and lubed bearings
• Precision-spaced armature
• Precision-measured springs
• Aligned brush hoods
• Components tested on precision calibrated equipment
• Fully broken-in and ready to install and run

Specifications

• Poles: 2
• Magnets: Dual C6
• Brush Style: Standup
• Voltage Input: 3.7v-14.8v
• Break-In: 300 seconds at 3 volts, 30 seconds at 3.5 volts
• Armature Construction: Machine wound
• Lamination Size: .014"
• Stack Design: Skew
• Slots: 5
• Wire Type: Copper Round
• Balance Type: Epoxy
• Turns: 10T
• Weight: 8 ounces
• Length: 63mm (2.48")
• Diameter: 35.85mm (1.41")
• Shaft Size: 3.175mm (1/8th)
• Mounting Pattern: Standard 540 M3x25mm
• Warranty: 30 Day Limited through manufacturer
