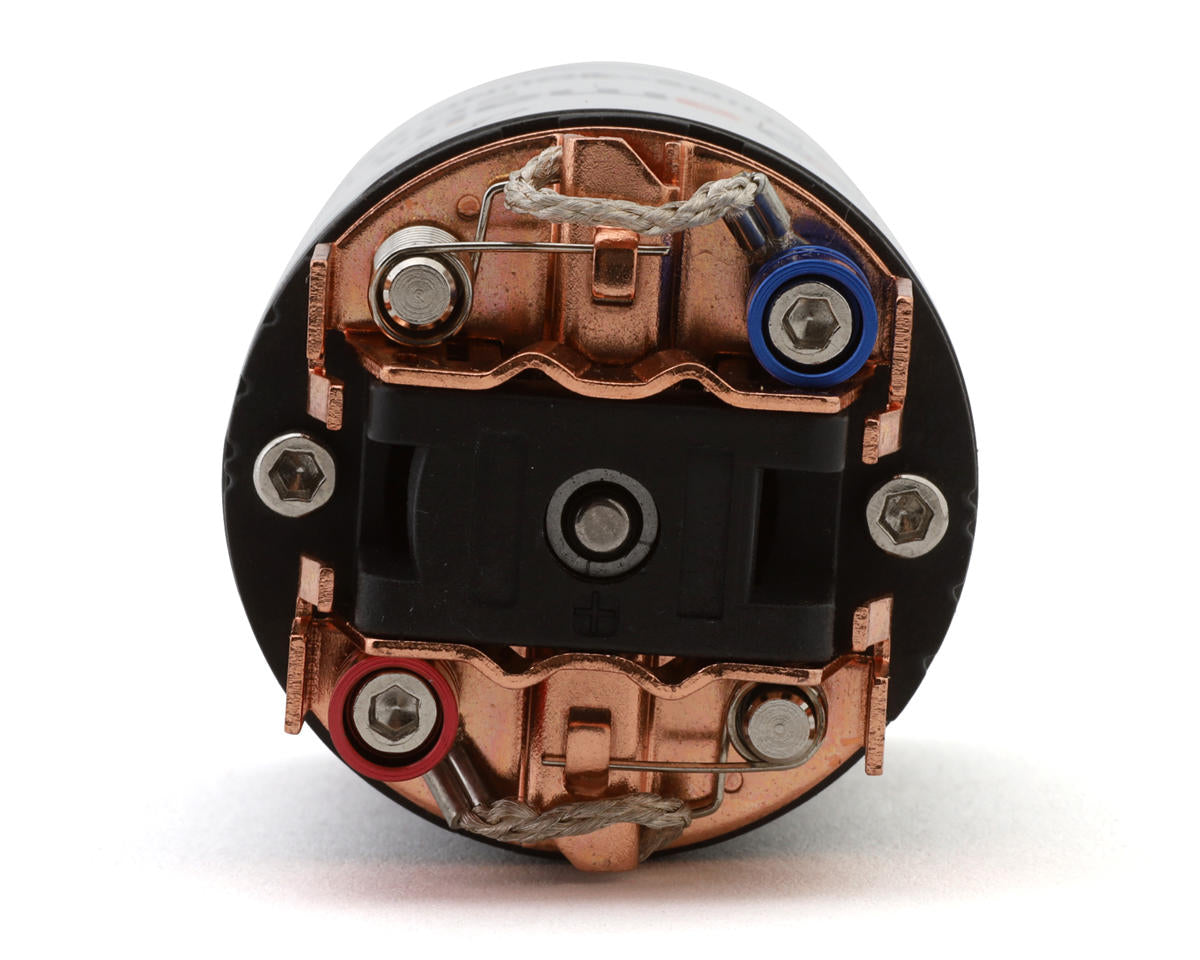

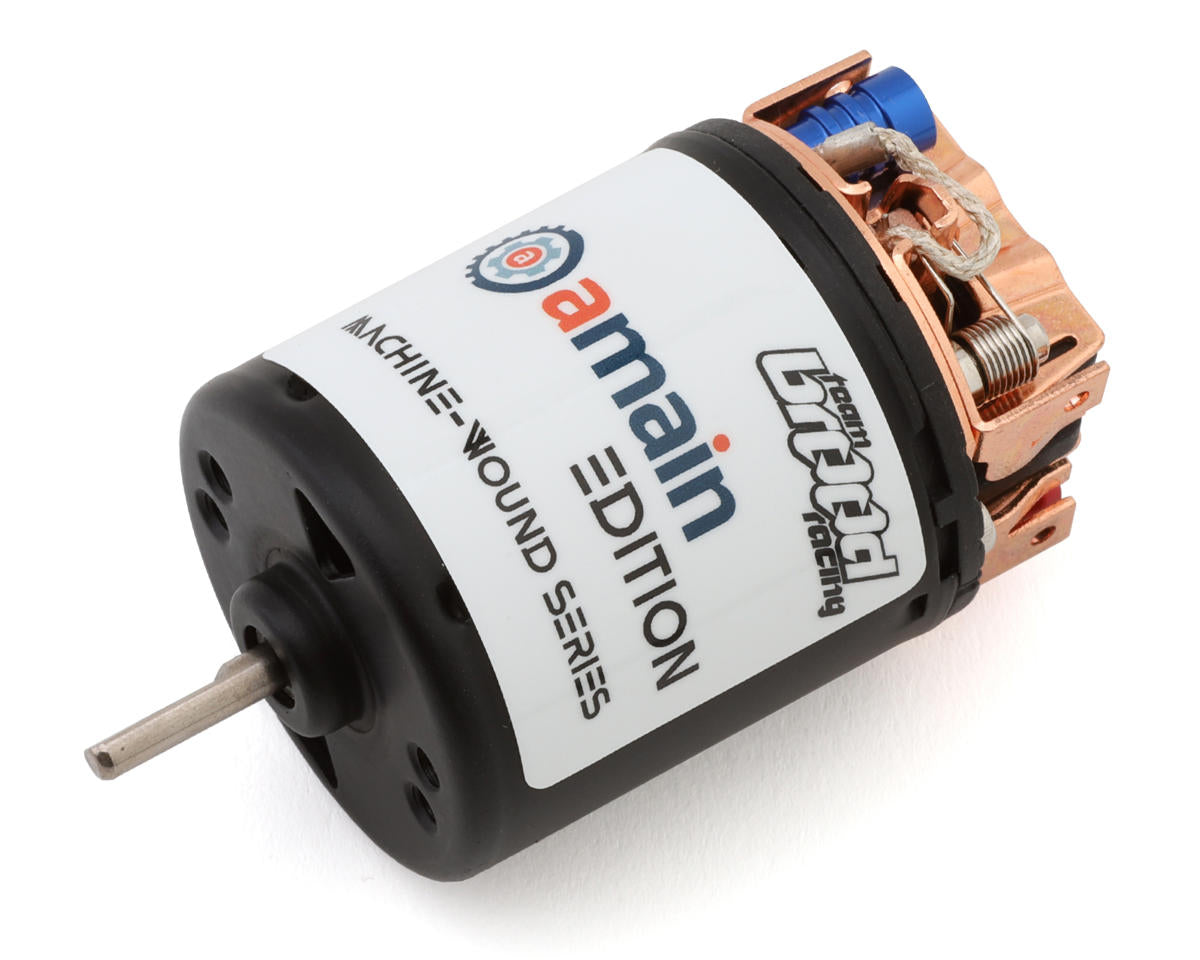

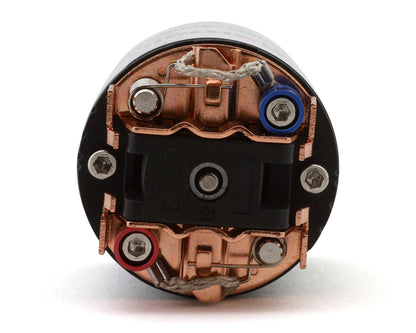

Team Brood "AMain Edition" Ravage 540 5 Segment

The Team Brood "AMain Edition" Ravage 540 5 Segment Dual Magnet Brushed Motor is a 16T motor designed for 1:10 RC crawler applications. It features a five-segment armature, adjustable timing, treated serrated brushes, dual precision ball bearings, and an aluminum heatsink.

Features

• Exclusive AMain Edition design
• Custom heat sink for enhanced cooling
• Precision hand-shimmed armature
• Serrated, treated brushes for extended life
• Premeasured and hand-adjusted tension springs
• Diamond-trued commutators for peak efficiency
• Set at zero timing for smooth operation
• Dual precision ball bearings for reliability
• Aluminum heatsinks for optimal cooling
• Fully dyno-tested for performance assurance
• Adjustable timing for optimal performance

Specifications

• Suggested Application: 1:10
• Size: 16T
• Type: Brushed 5 Segment
• Voltage: 1-4S LiPo (3.7-14.8V)
• Adjustable Timing: Yes
• Watts: -
• Connector: Solder Tab
• Dimensions: 2.125x1.41in (54x35.85mm)
• Shaft Length: -
• Shaft Diameter: 1/8in (3.175mm)
• Weight: 6oz (170g)

Includes

• (1) Team Brood "AMain Edition" Ravage 540 Brushed Motor
