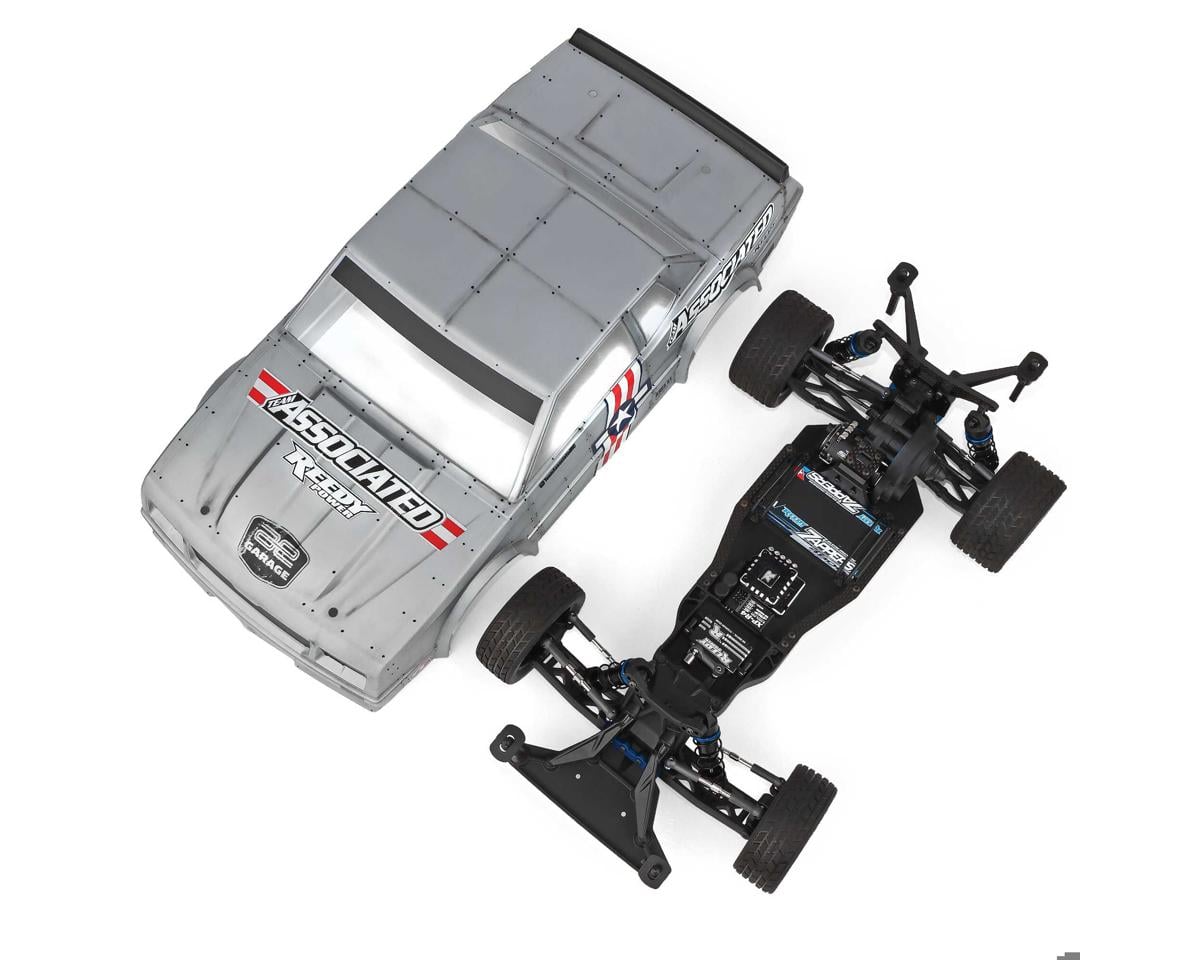

Team Associated SR10M 1/10 2WD Electric Dirt Oval Team Kit

The Team Associated SR10M is a 1/10 2WD electric dirt oval street stock team kit with a mid-motor, low center-of-gravity G10 fiberglass chassis. It features a 2.6:1 gearbox, sealed gear differential, externally adjustable slipper clutch, and components designed for dirt oval racing.

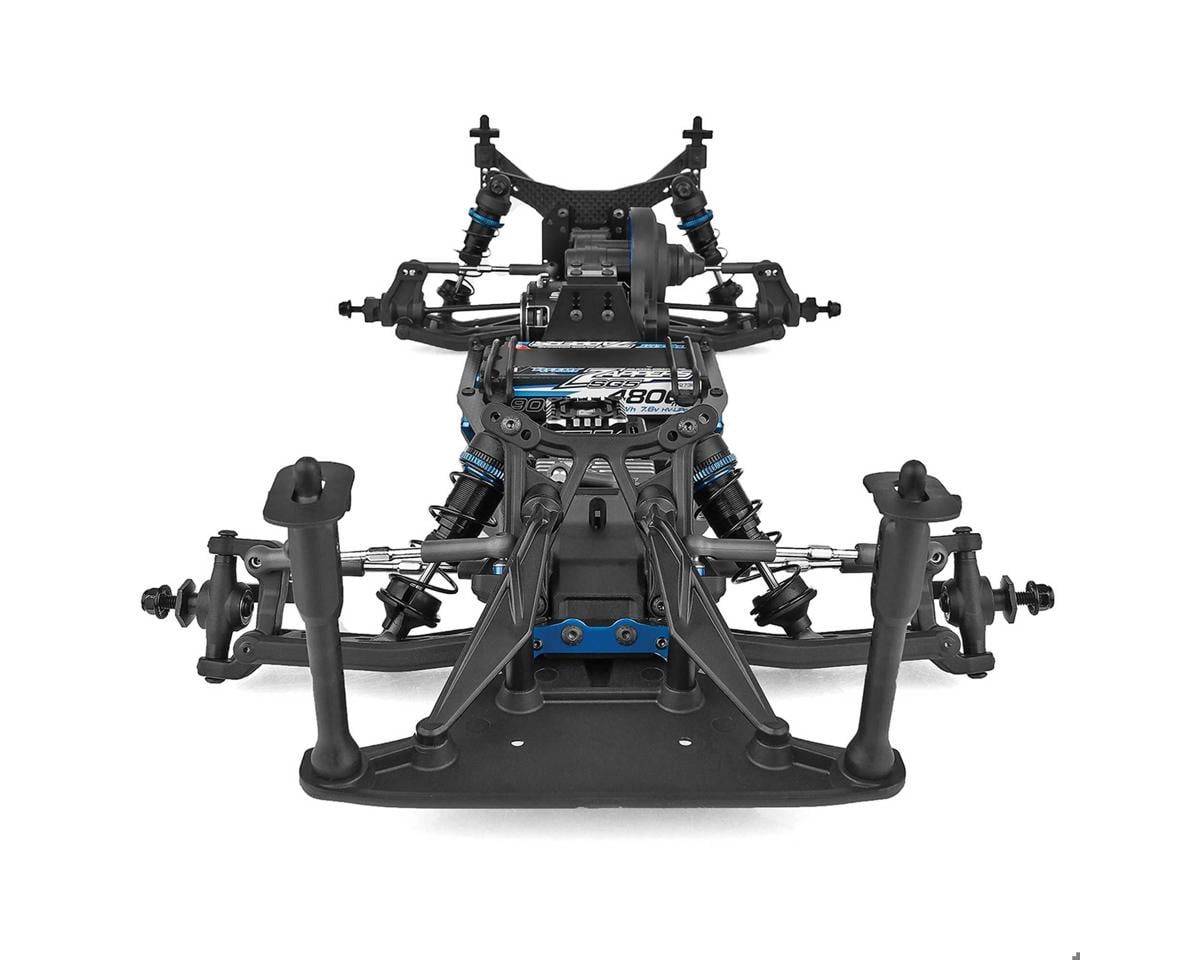

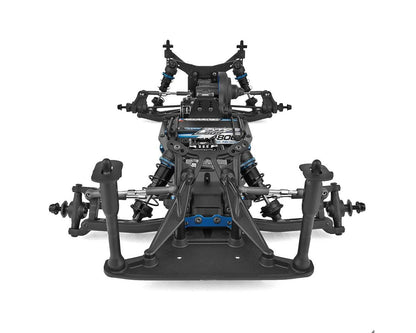

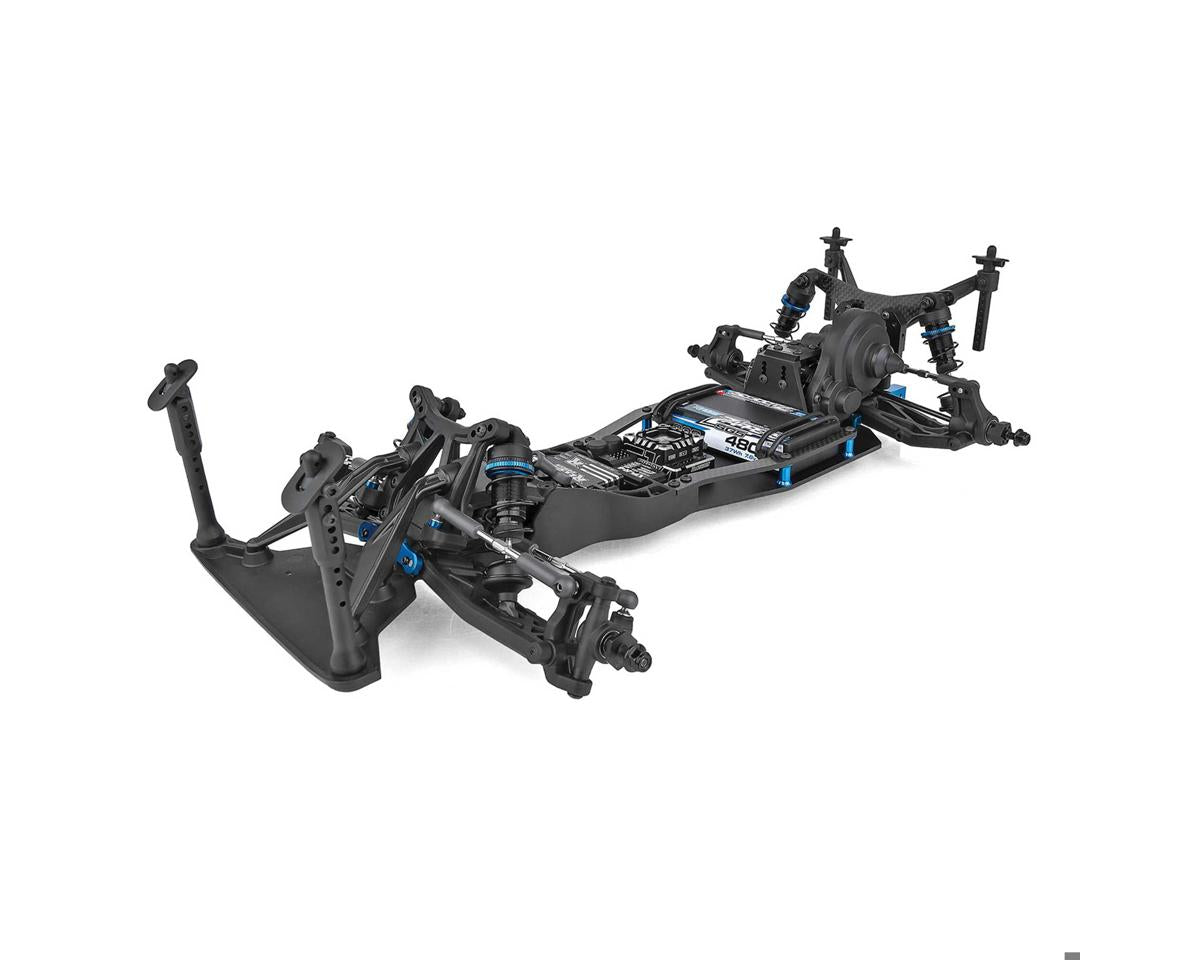

Chassis and Suspension

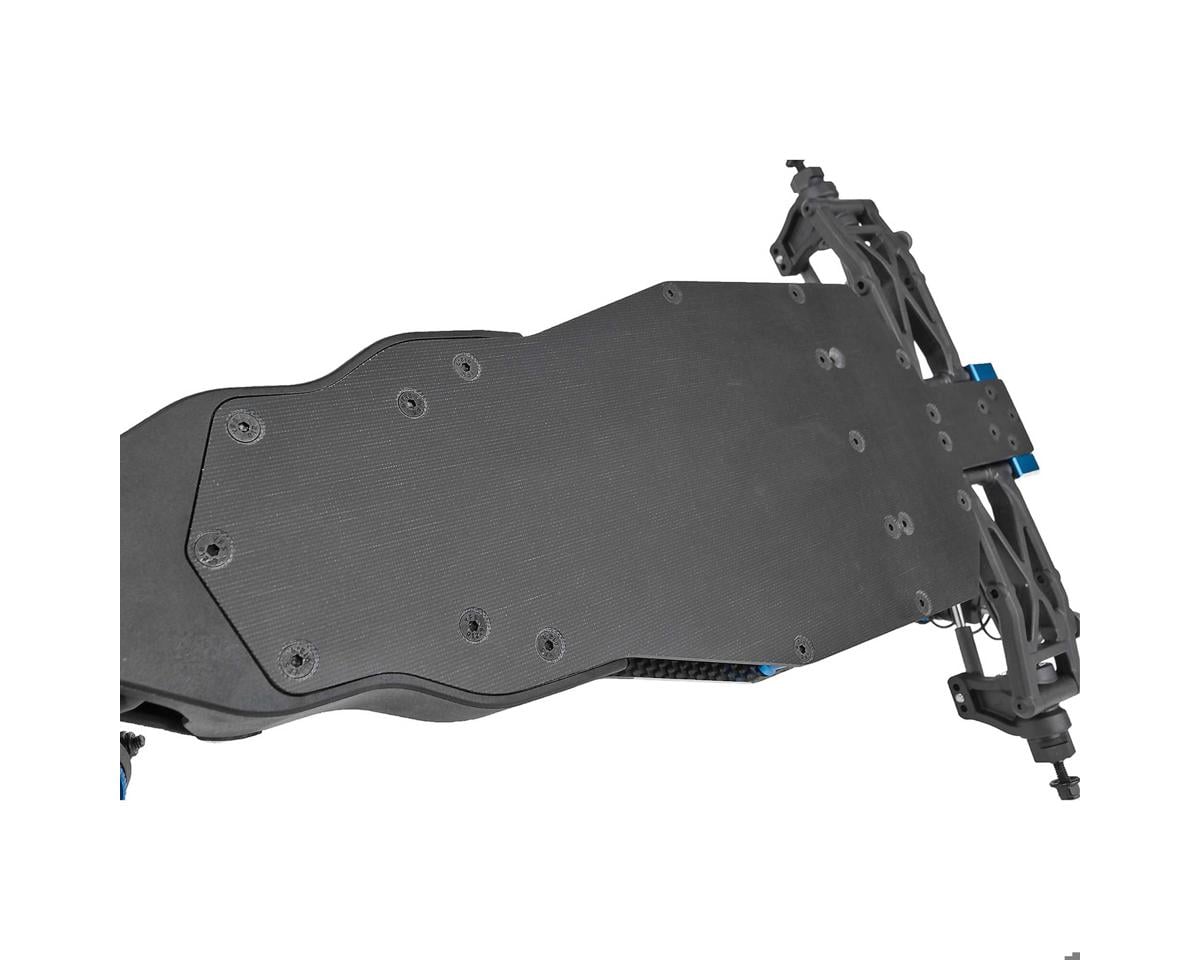

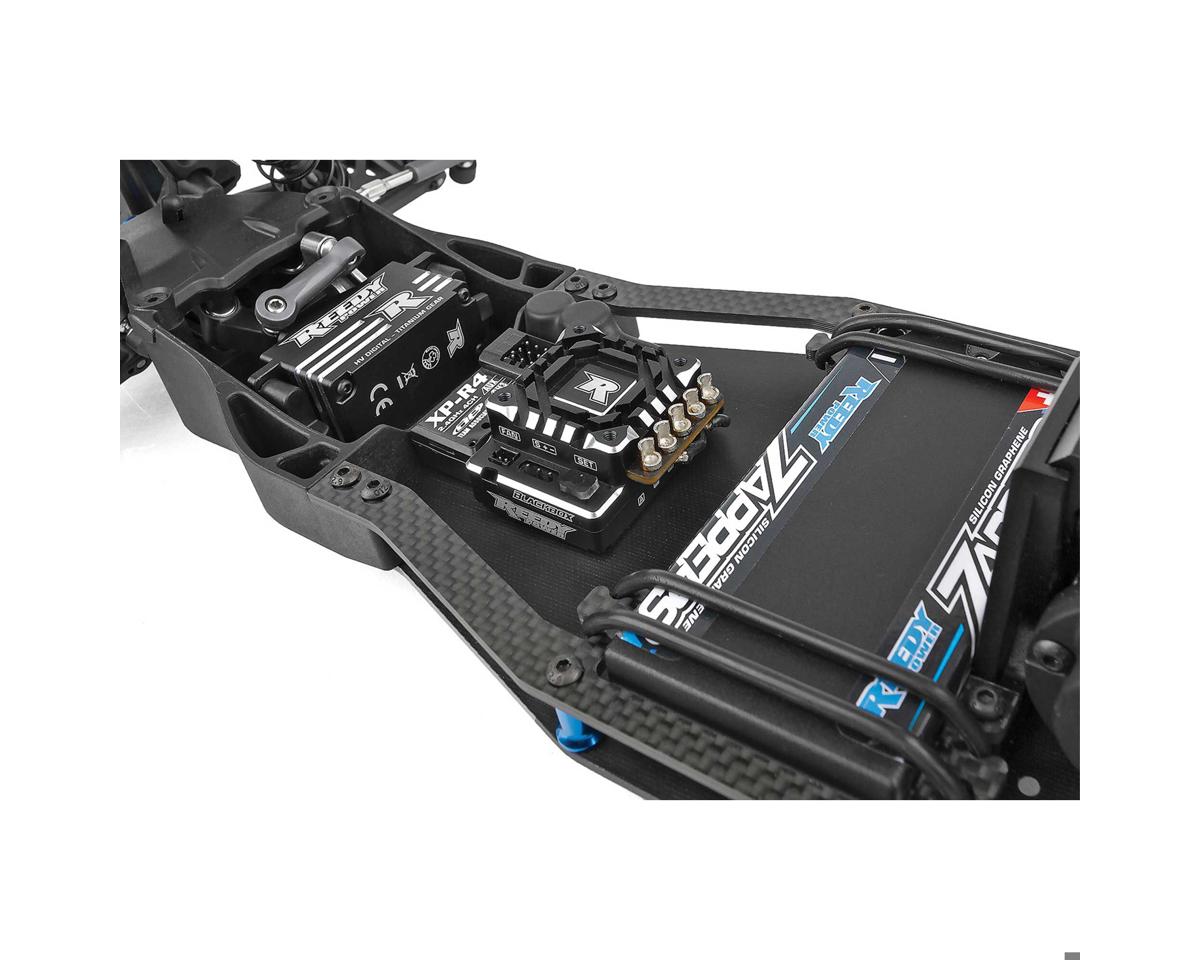

• Mid-motor, low center-of-gravity G10 fiberglass chassis with updated O-Ring battery straps for 2S LiPo “shorty” battery packs.

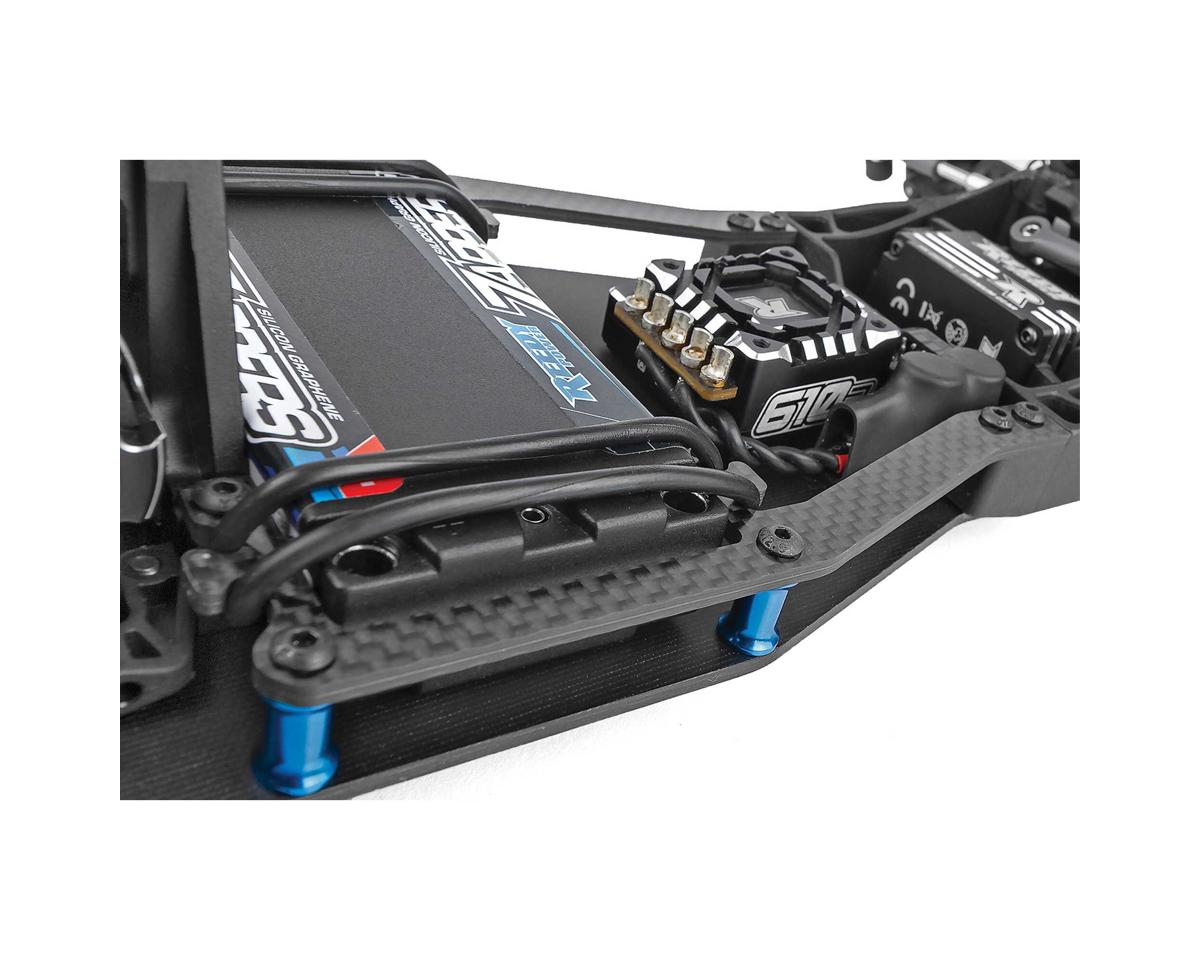

• Carbon fiber chassis side braces for added stability and durability.

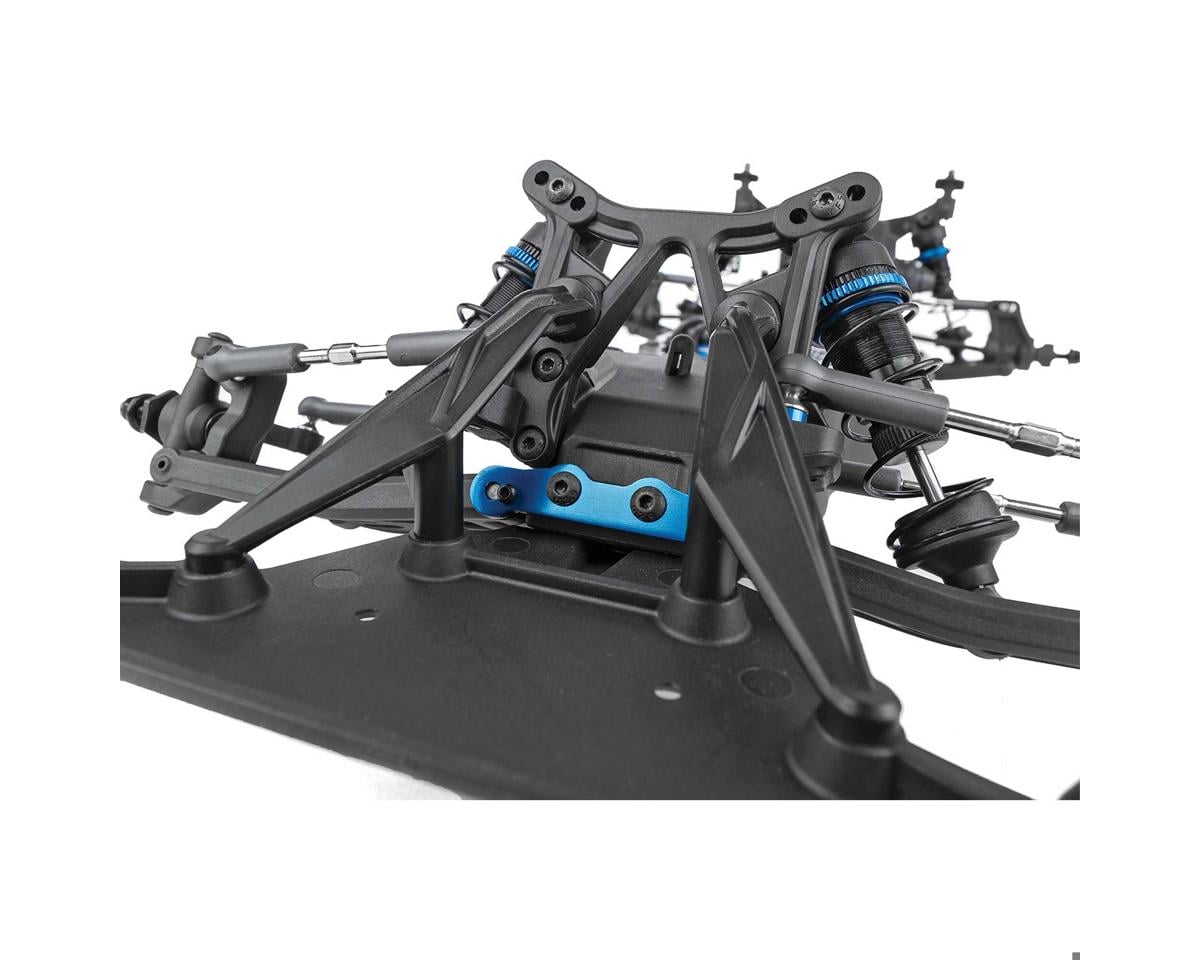

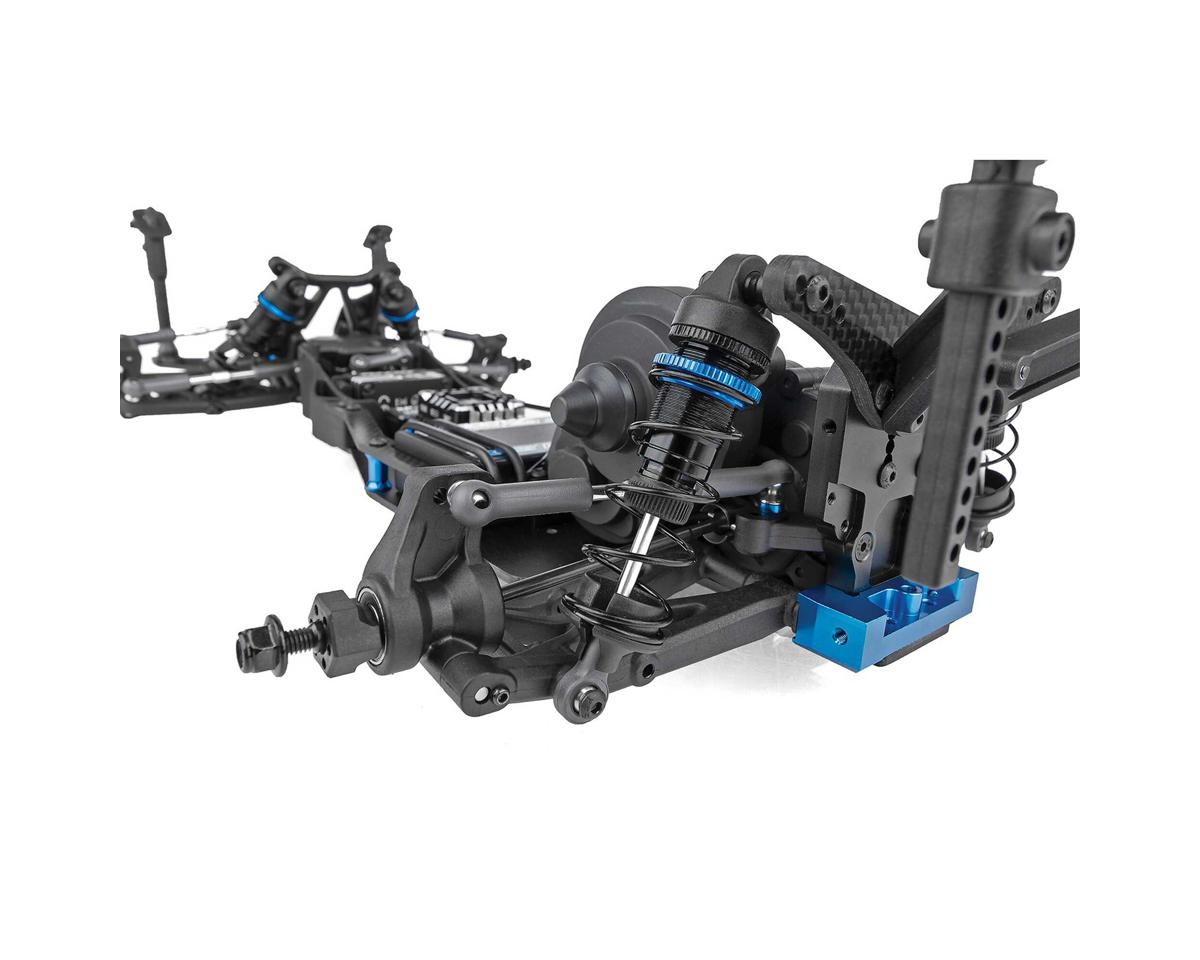

• Enhanced rear carbon fiber shock tower designed for oval track performance.
• Revised rear toe block optimized for dirt oval racing.
• Adjustable suspension geometry with steel turnbuckles for camber and front toe-in adjustments.
• Vertical ball ends allow roll center adjustments at the front and rear.

Drivetrain

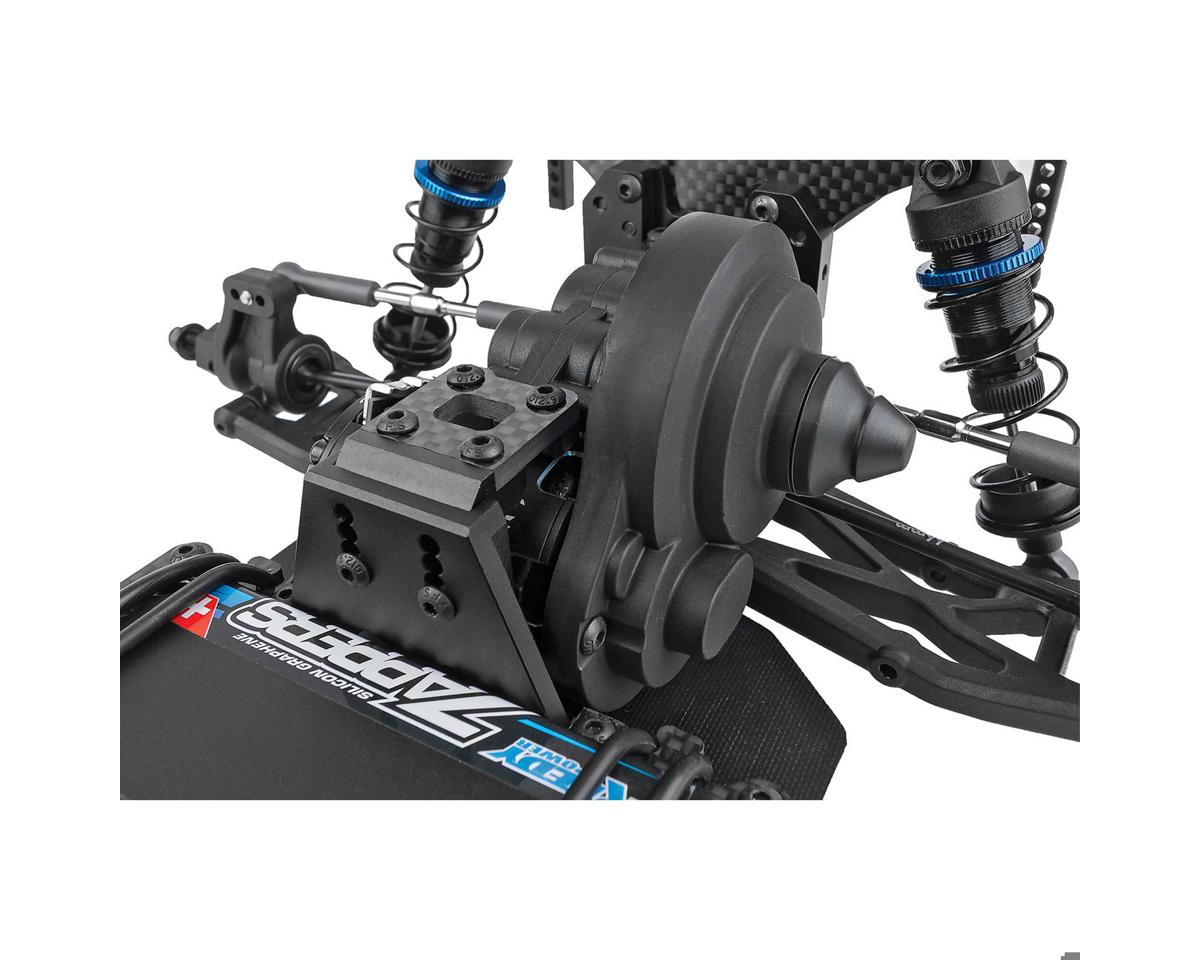

• 2.6:1 ratio gearbox with a heavy-duty sealed gear differential.
• Externally adjustable slipper clutch.
• Lightweight aluminum top shaft.
• Rear CVA drive shafts.
• Compatible with numerous Factory Team options for further performance enhancements.

Included

• (1) SR10M Dirt Oval Team Kit
• Manual

Needed to Complete

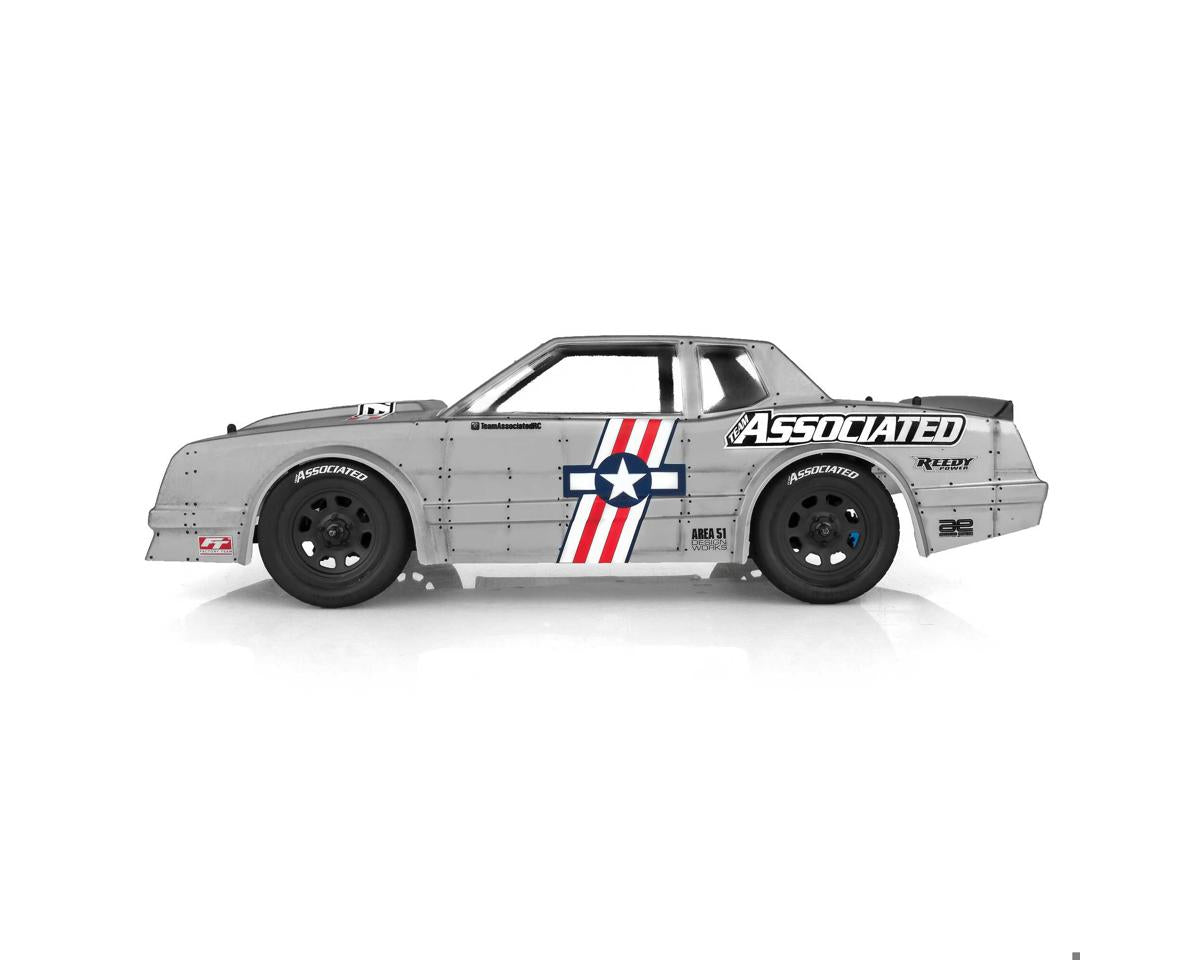

• (1) 1/10 Street Stock Body
• (1) 2+ CH Transmitter and Receiver system
• (1) Steering Servo
• (1) 1/10 540 Electric Motor
• (1) Suitable ESC (Electronic Speed Controller)
• (1) 2S (7.4V) LiPo Battery
• (1) Compatible Charger
• (4) 1:10 scale off-road wheels and tires
• Assembly tools & Polycarbonate paint for body

Specifications

• Scale: 1/10
• Type: Street Stock
• Length: 21.12in (536.4mm)
• Width: 9.84in (250mm)
• Wheelbase: 10.94in (277.8mm)
• Weight: 3.14lbs (1424g)
• Drivetrain: 2WD
• Power Source: Electric
• Assembly Level: Kit

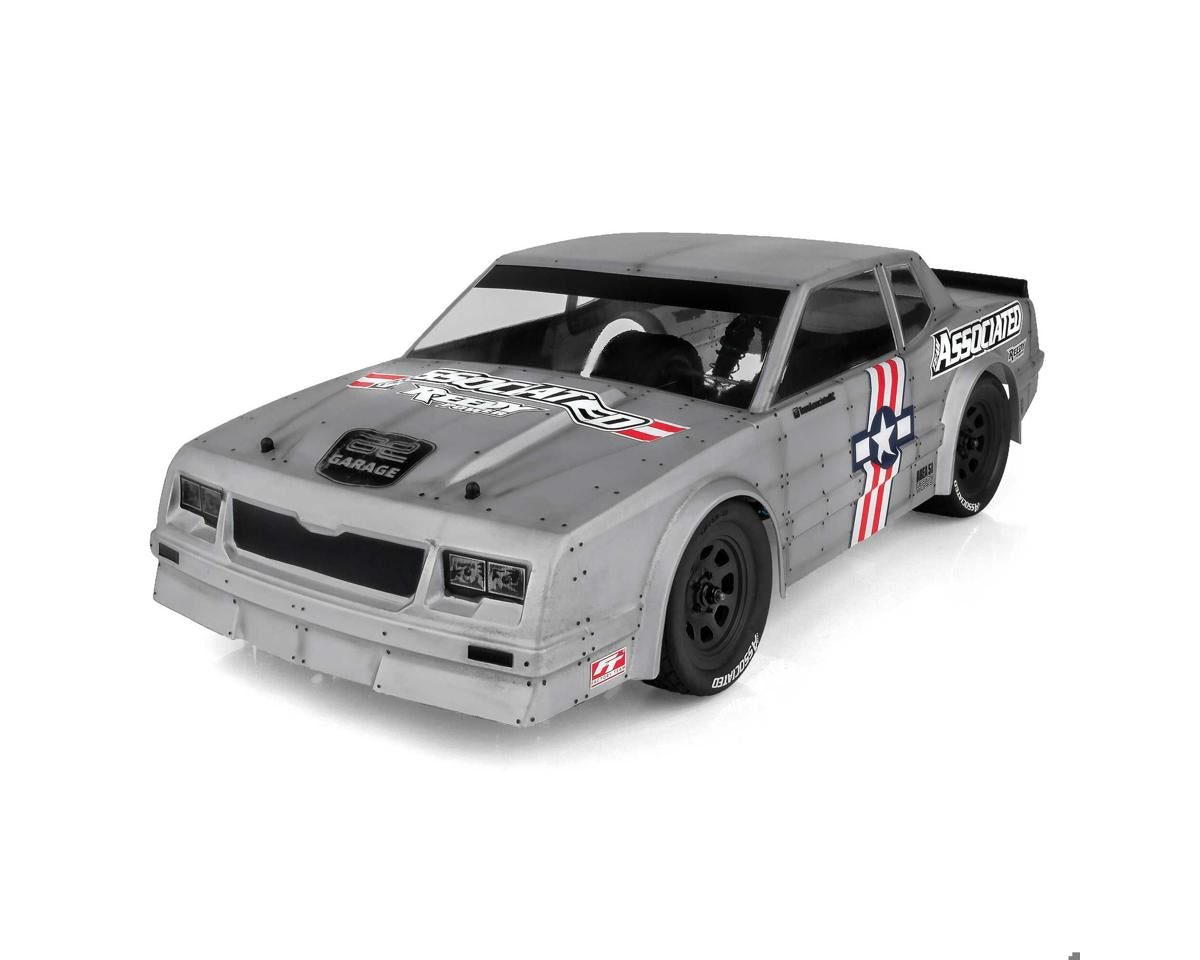

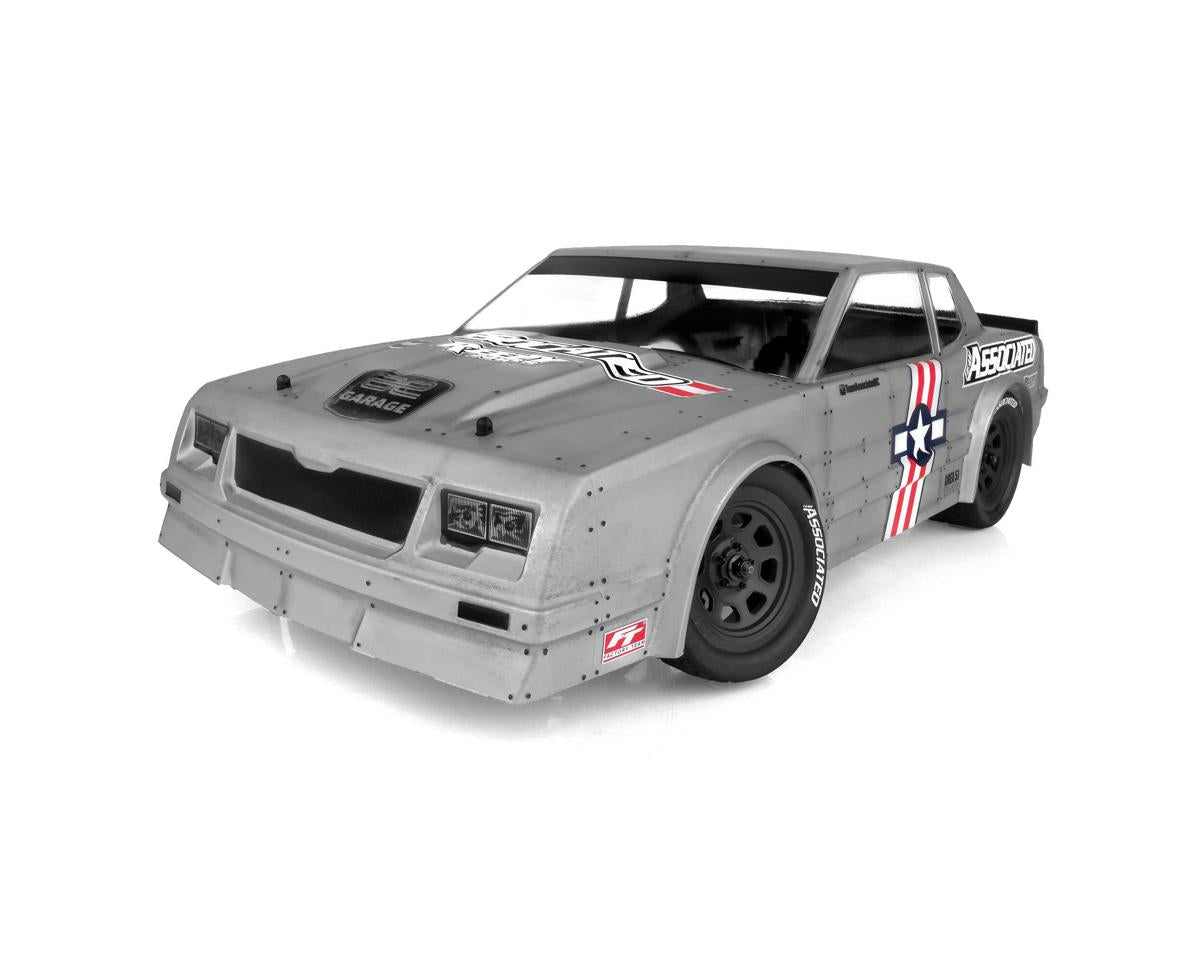

Note: This is an unassembled remote control model that requires assembly, racer-selected electronics, and other racer-provided items. Photos of the assembled kit are for illustrative purposes only.
