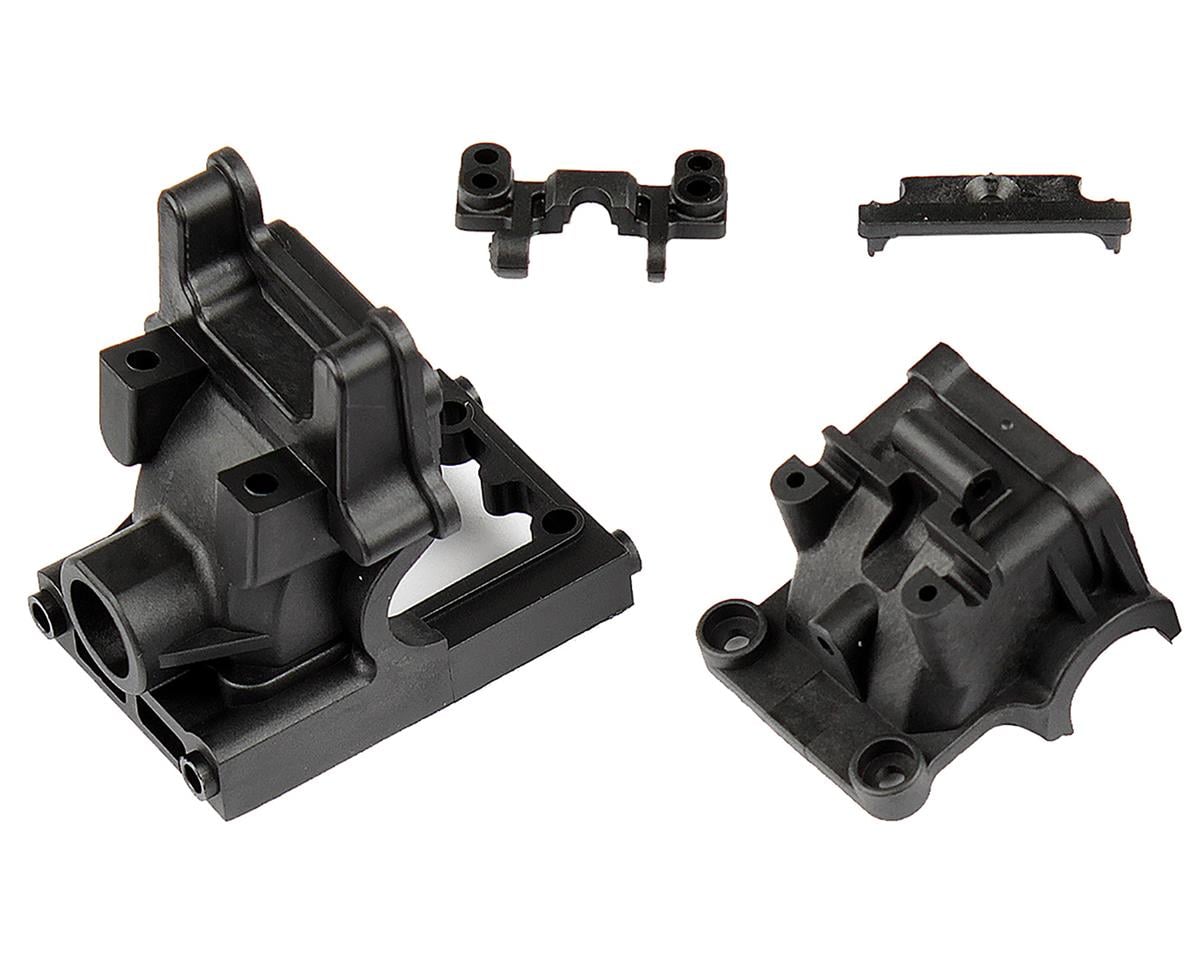

Team Associated RC8B3.2/T3.2 Factory Team HD Gearbox

The Team Associated Factory Team HD Gearbox is an upgrade gearbox for the RC8B3.2, T3.2, and the RC8B3 and RC8T3 family. Its stiffer, high-temp polymer material is designed to improve bearing fit and durability while maintaining a more consistent gear mesh during long runs.

This complete gearbox can be installed in the front or rear position.

Installation Notes

• The differential will need adjustment from the stock ASC81015 gearbox.
• For differential shimming, start with one thin 0.1mm shim on each side.
• For inner hinge pin suspension arm shimming, use 0.9 or 1.0 caster adjustment shims from the ASC81446 RC8B3.2 Shim Set. The pull-tab can be trimmed for ground clearance.
