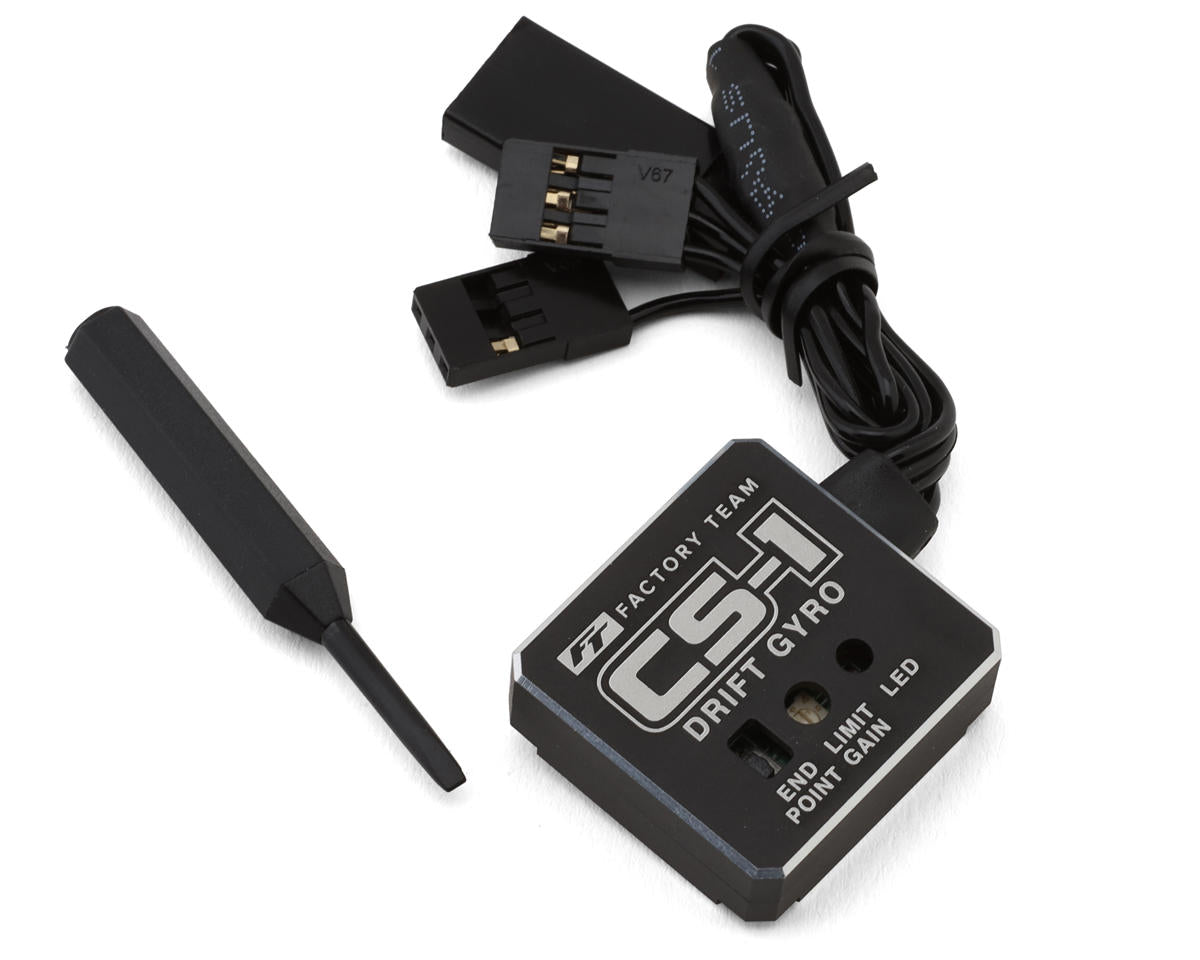

Team Associated Factory Team CS-1 Drift Gyro

The Team Associated Factory Team CS-1 Drift Gyro is a compact steering gyro for RC cars and boats. Its high-performance gyroscope sensor, dual gain modes, and EPA feature provide adaptable control for drifting applications. The CNC aluminum case supports cooling and protection.

Features

• CNC aluminum case for cooling and protection
• High-performance gyroscope sensor
• Compact design
• Compatible with Futaba SBUS2, PWM, and Sanwa SSR/SHR signals
• Dual gain modes: Normal/AVCS
• EPA feature
• Optimized for competition drifting

Specifications

• Voltage Input: 3.7-8.4V
• Current Drain: 20mA at 6 volts
• Operating Temperature: -10 to 50 degrees Celsius
• Control System: PID
• Input Signal: PWM (50-333Hz), Sanwa SHR/SSR, Futaba SBUS2
• Output Signal: 1520uS (50Hz/333Hz), Sanwa SSR
• Dimensions: 25.7x24.7x9.5mm
• Weight: 10g

Includes

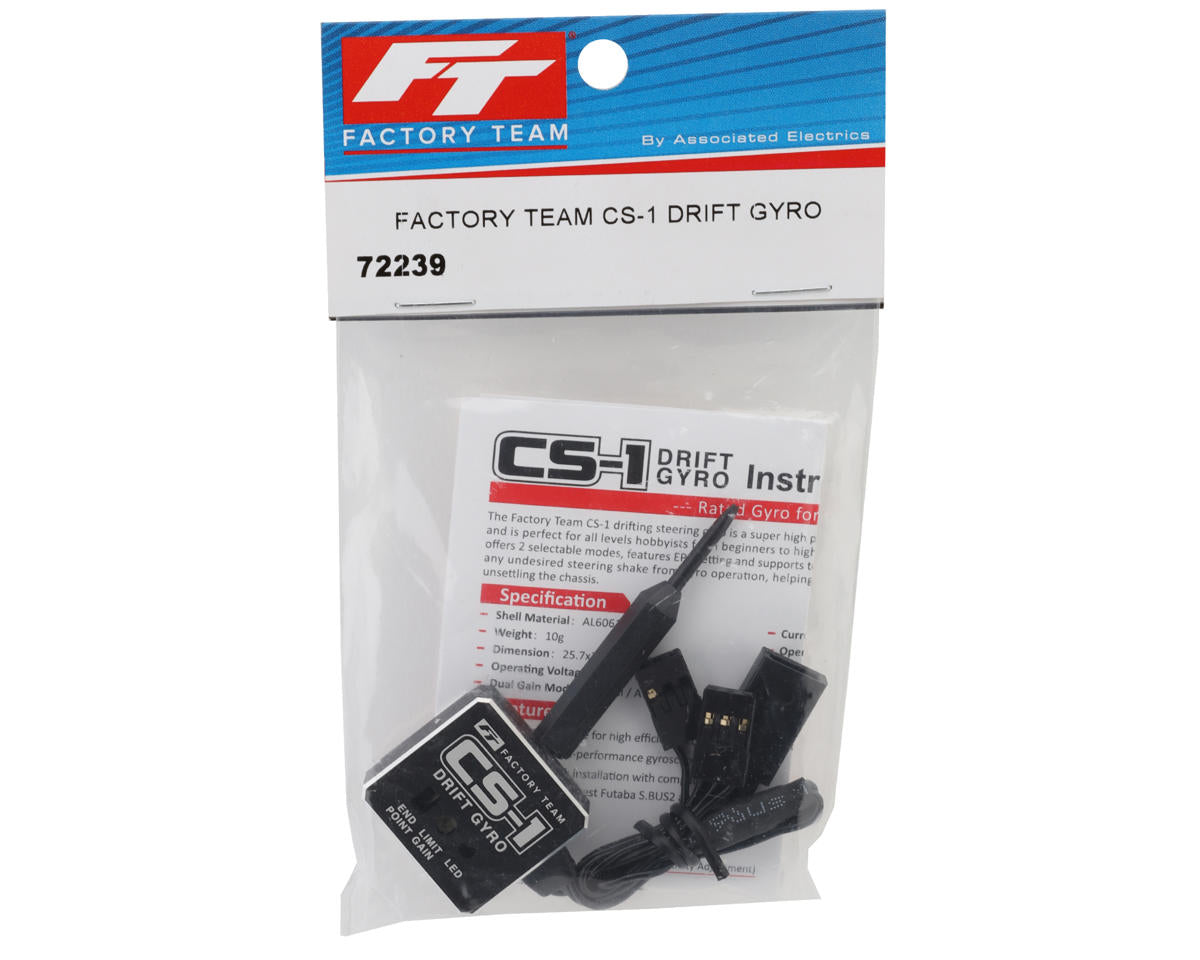

• (1) Factory Team CS-1 Drift Gyro
• (1) Instruction Manual
