Team Associated DR10 Electric Drag Car Race Kit

The Team Associated DR10 Electric Drag Car Race Kit is a 1:10 scale, 2WD electric kit designed for no-prep racing and the sanctioned Street Eliminator class. Its low center-of-gravity molded composite chassis, adjustable suspension, and drag-focused drivetrain provide a solid foundation for building your own race car.

Features

• Three-position wheelie bar with optional large wheels
• Lightweight drag race inspired wheels
• Rear anti-roll bar and rear silicone diff fluid
• Aluminum 12mm big bore coil-over shock absorbers
• 2.6:1 ratio gearbox with heavy-duty sealed gear differential and externally adjustable V2 slipper clutch
• Low center-of-gravity molded composite chassis with hook-and-loop battery straps for NiMh and 2/3s LiPo battery packs
• Rear CVA driveshafts, durable front and rear body mounts, and a lightweight aluminum top shaft
• Fully adjustable suspension geometry with vertical ball ends for front and rear roll center adjustments
• Rugged steel turnbuckles for adjustable camber and front toe-in
• Water-resistant, enclosed receiver box
• Metric hardware throughout and 26 precision ball bearings
• Many Factory Team options are already available

Specifications

• Power Source: Electric
• Terrain: On-Road
• Scale Size: 1:10 Scale
• Assembly Level: Kit*
• Width: 272mm (10.71in)
• Wheelbase: 322mm (12.68in)
• Drive: 2WD
• Length: varies
• Weight: varies

Needed to Complete

• 540-size electric motor
• Electronic speed control
• 2-3 cell 7.4V-11.1V LiPo or 6-7cell NiMH battery pack
• Battery charger
• 2-channel surface transmitter and receiver
• Steering servo
• 1:10 scale 2.2" / 3.0" rear tires and 2.2" front tires
• CA glue for tires and wheels
• 1:10 scale Drag Racing (No-Prep) body
• Polycarbonate-specific spray paint for body, and body scissors

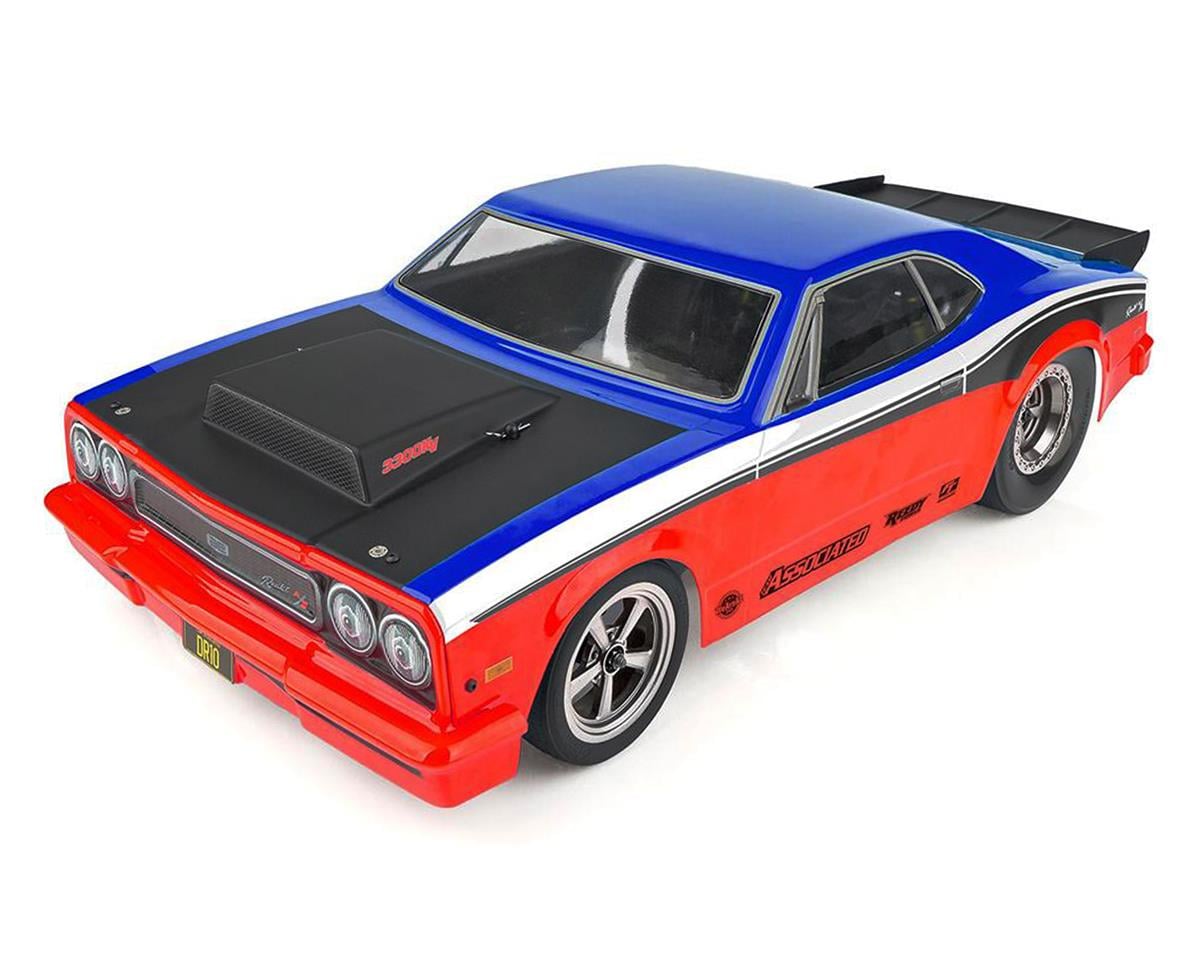

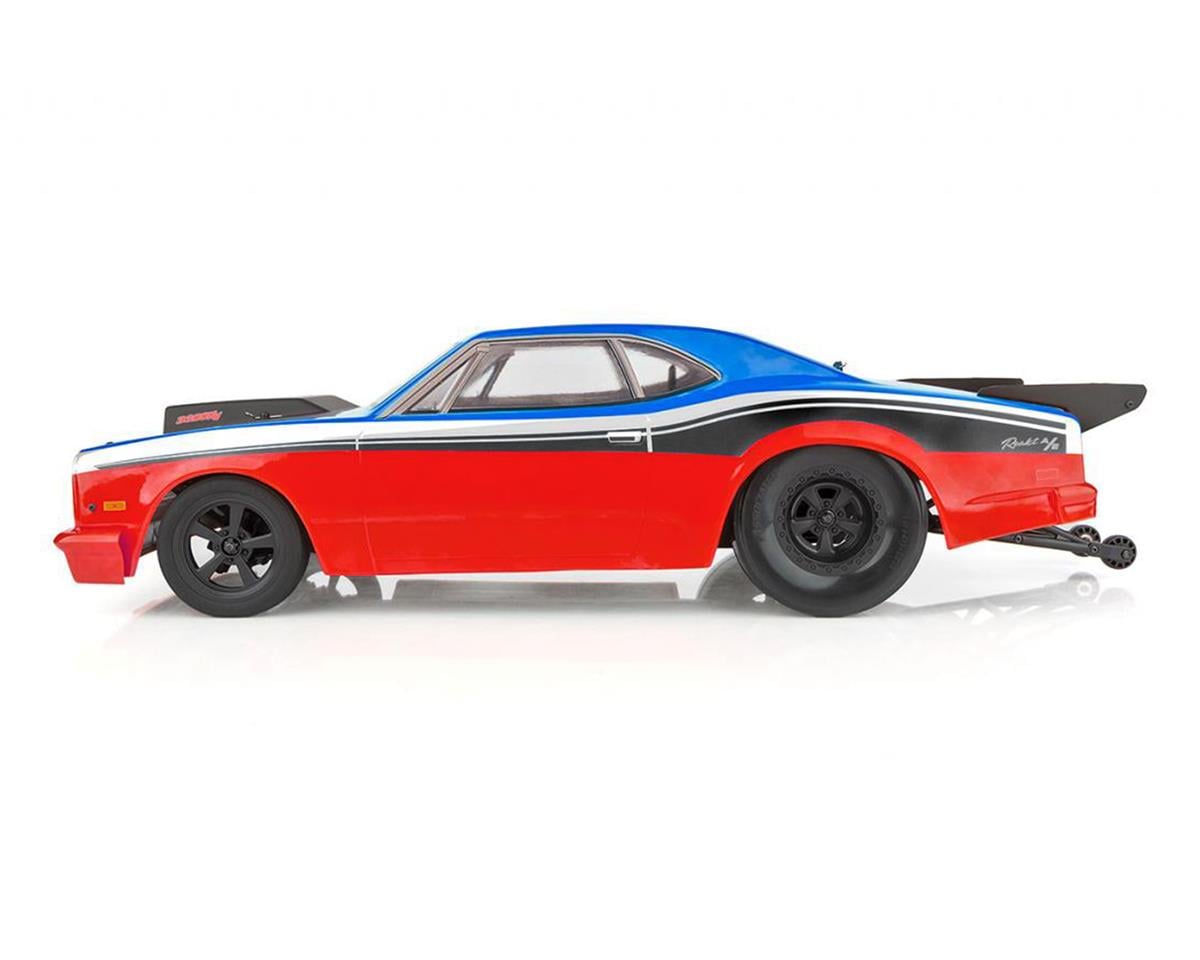

Painted body, tires, and electronics shown in photos are for illustrative purposes only and are not included.
