Tamiya XV-02 Pro Chassis 4wd Rally Kit

The Tamiya XV-02 Pro Chassis 4wd Rally Kit is a shaft-driven 4WD rally chassis with a front midship motor layout, center-left longitudinal battery position, and long aluminum oil dampers. Its design is suited to both tarmac and dirt surfaces.

Chassis Features

• Updated metal motor mount, propeller shafts, input and center shafts
• Urethane bumpers
• Front and rear driveshafts are equal lengths for a 50/50 torque split
• Two differential gear options allow front or rear over-drive or under-drive adjustment
• Long aluminum dampers at the front and rear
• Polycarbonate chassis cover with wheel well liners to help prevent dirt and dust from entering
• Suspension arms and front uprights based on the XV-01 chassis kit

Specifications

• Chassis Length: 368mm (excluding body)
• Chassis Width: 180mm
• Wheel Base: 257mm
• Frame: Bathtub type
• Drive System: Front midship motor / shaft drive 4WD
• Diff Gear: oil-filled gear differential for both front and rear
• Steering: 3-split tie rod type
• Suspension: 4-wheel double wishbone
• Shocks: Aluminum body long oil damper
• Gear Ratio: 9.58:1 when using the 19T pinion included in the kit; 10.71:1 to 6.28:1 with separately sold pinions
• Up to 14 types of gear ratios can be selected

Needed to Complete

• Body
• 2-channel Radio System
• Steering Servo
• ESC
• 540-Type Motor
• 7.2-7.4volt Battery
• Compatible Charger

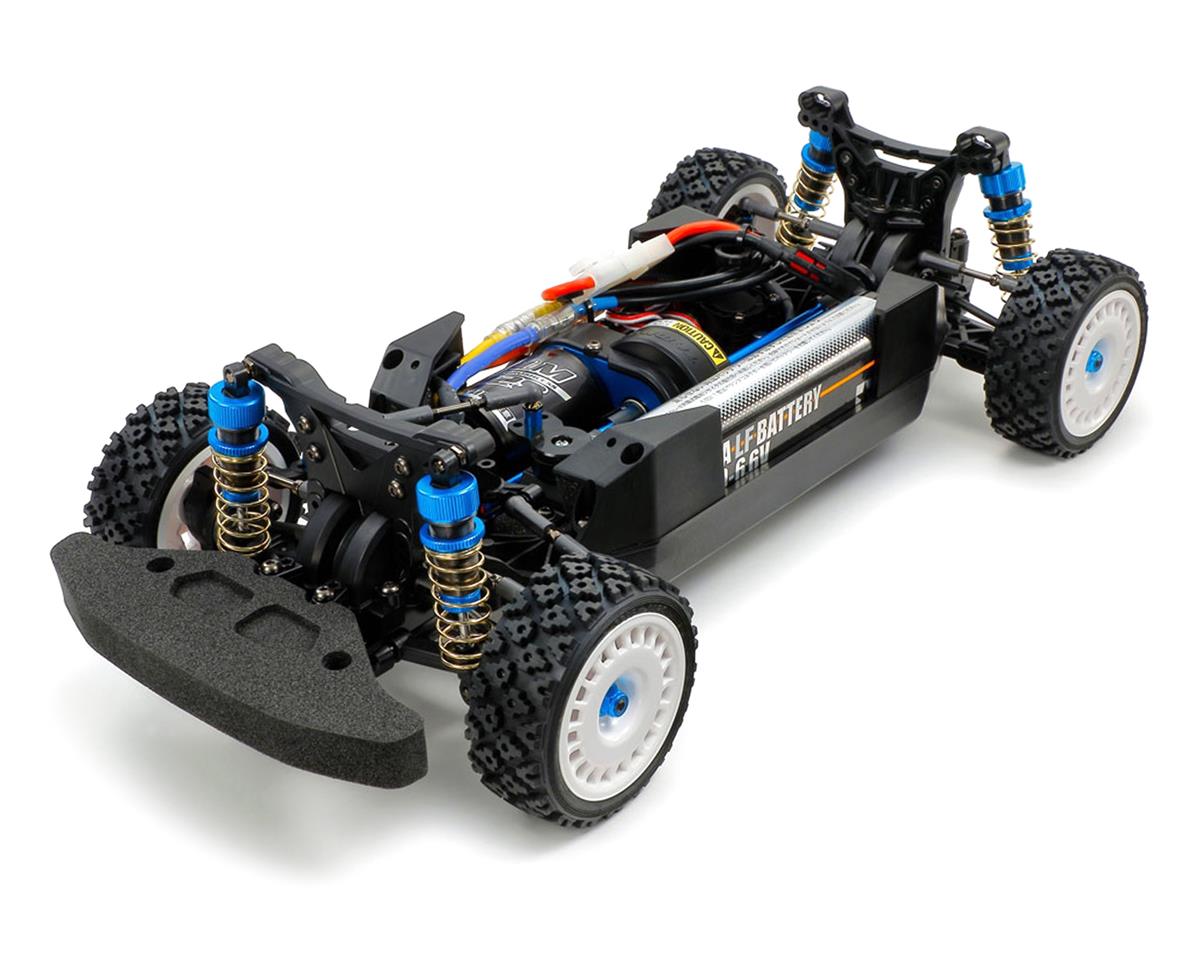

This model is a kit requiring assembly and additional items. Complete vehicle shown in photos is for illustrative purposes only.
