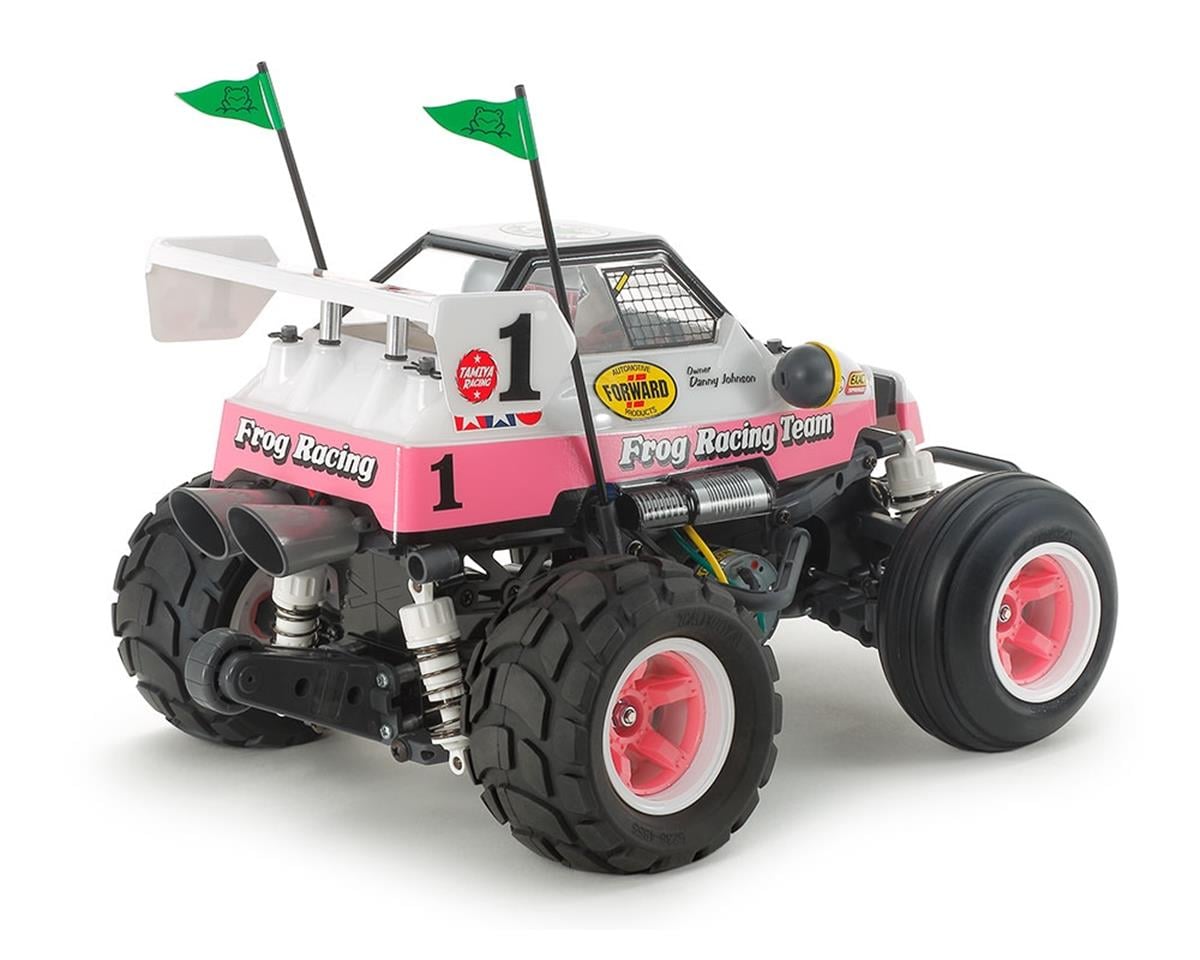

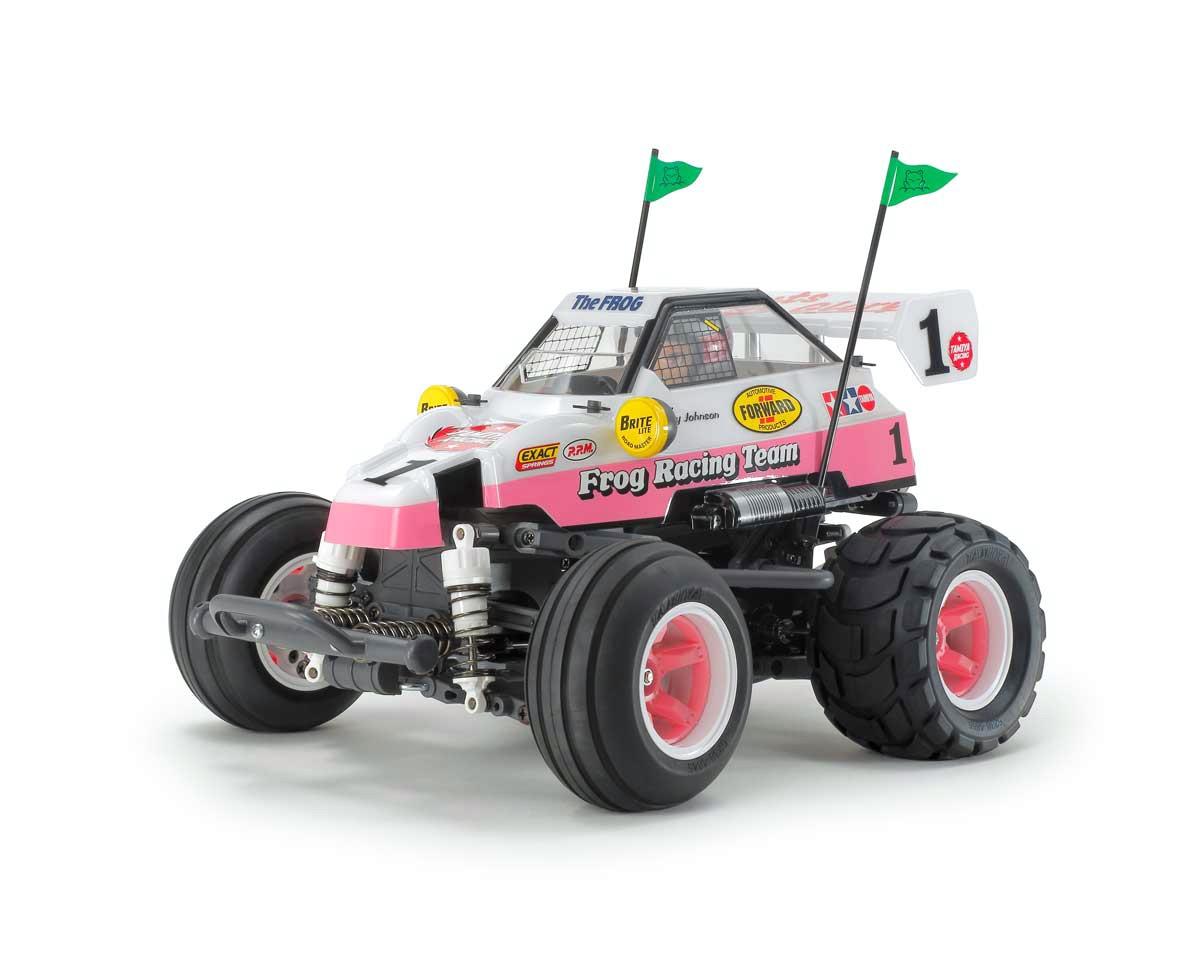

Tamiya WR02CB Comical Frog 1/10 Off-Road 2WD Buggy Kit

The Tamiya WR02CB Comical Frog is a 1/10 scale 2WD off-road buggy assembly kit inspired by the original Tamiya Frog. Its dedicated WR-02CB chassis features a pre-assembled gearbox with the motor already attached, long suspension arms, CVA oil dampers, under guard, side guards and a rear wheelie bar.

Features

• 1/10 scale R/C model assembly kit
• 2WD drivetrain with a durable monocoque centerpiece and inline battery pack position
• 4-wheel double wishbone suspension
• 2-piece steering tie-rod setup
• Polycarbonate body with sticker design based on the original Frog

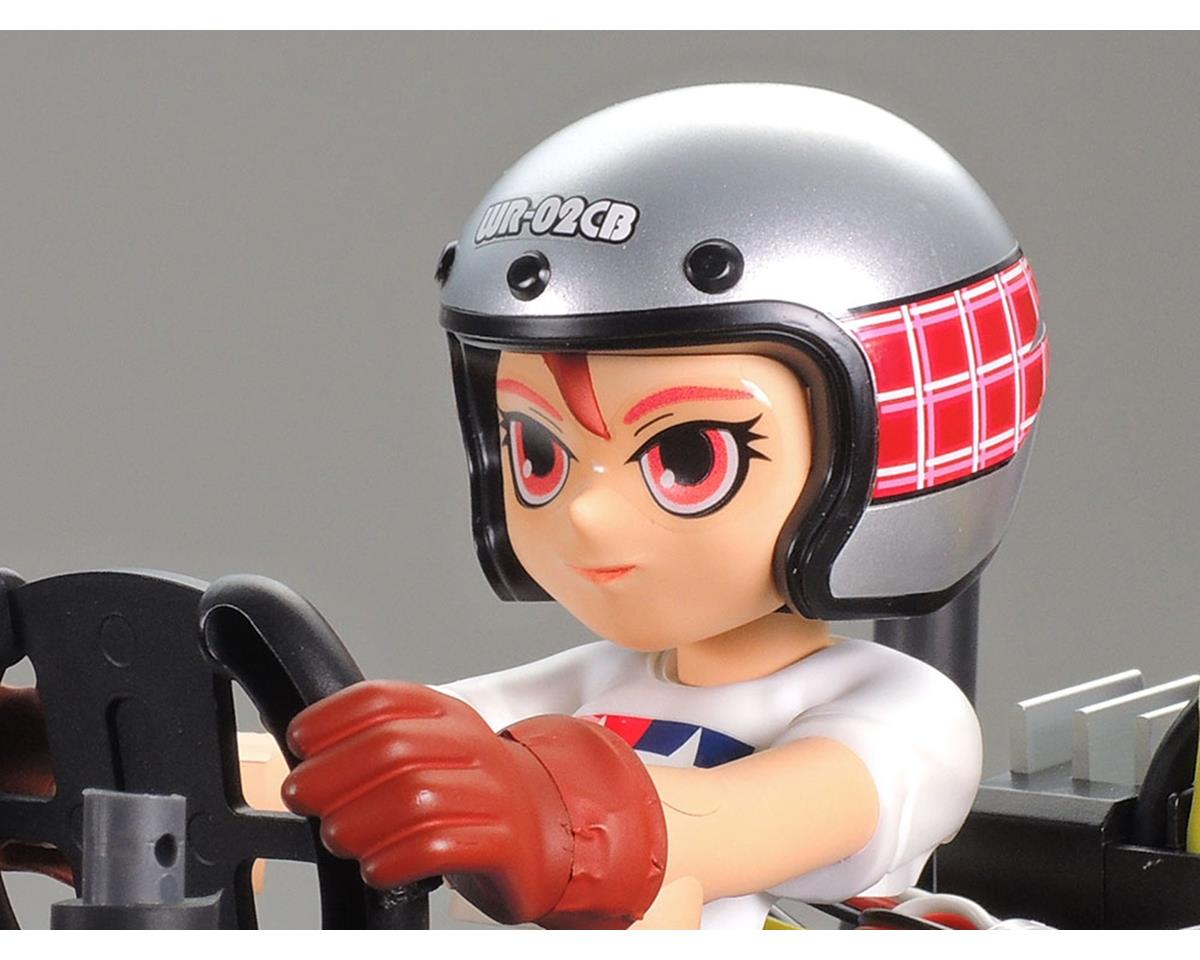

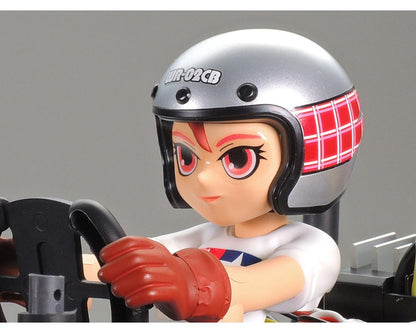

• Driver figure included

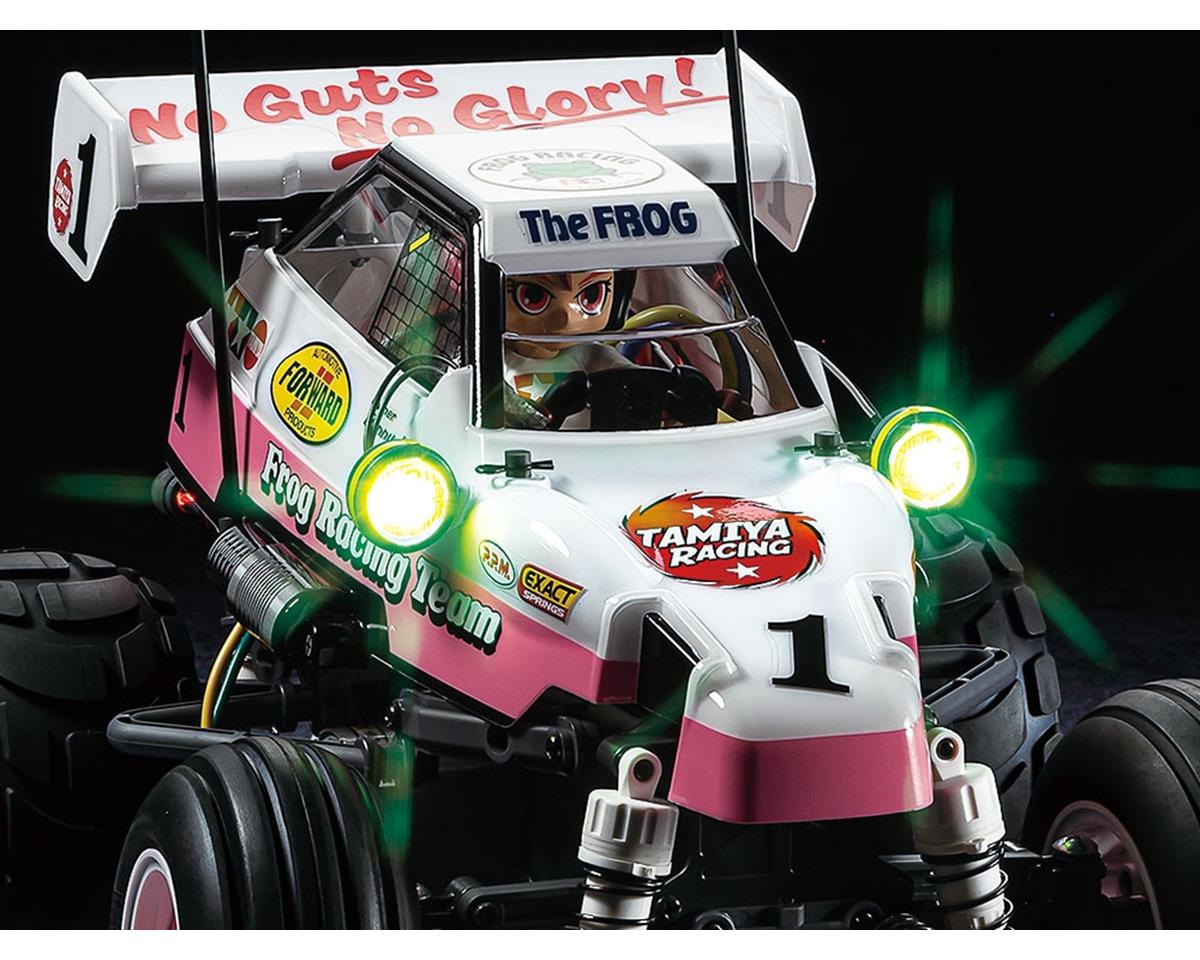

• Headlight cases support installation of 5mm LEDs; LEDs are not included
• Suspension arms feature multiple damper attachment holes for adjustable performance
• 2-piece wheels molded in durable ABS
• Bubble tires with a rib pattern front and block pattern rear
• Oil-filled CVA Mini shock units
• HobbyWing THW 1060 Brushed Motor ESC included; supports 2-3S
• 540-type brushed motor included

Specifications

• Drive Type: 2WD
• Scale: 1/10
• Length: 356mm
• Width: 244mm
• Height: 195mm
• Wheelbase: 170mm
• Tire Width/Diameter: 46/95mm (Front), 56/98mm (Rear)
• Tread: 189mm (Front), 186mm (Rear)

Needed to Complete

• 2 channel radio system
• Steering servo
• Polycarbonate paint for body
• 7.2V - 7.4V Battery w/Tamiya Connector
• Compatible battery charger

Use a round type battery pack; square shaped batteries will not fit the battery compartment.
