Tamiya Universal Arm Set

The Tamiya Universal Arm Set provides components for creating crank systems, link systems, and structural assemblies for robots or other projects.

Features

• Four arms with 33 3 mm holes spaced 5 mm apart
• Arms measure 10 x 170 mm (0.4 x 6.7")
• Regularly spaced grooves help make straight cuts for adjusting arm length
• Holes can be modified to create longer slots for cranking systems
• Four four-hole L-shaped brackets can be used for mounting axles or structural support
• Includes 5 mm, 10 mm, and 15 mm spacers

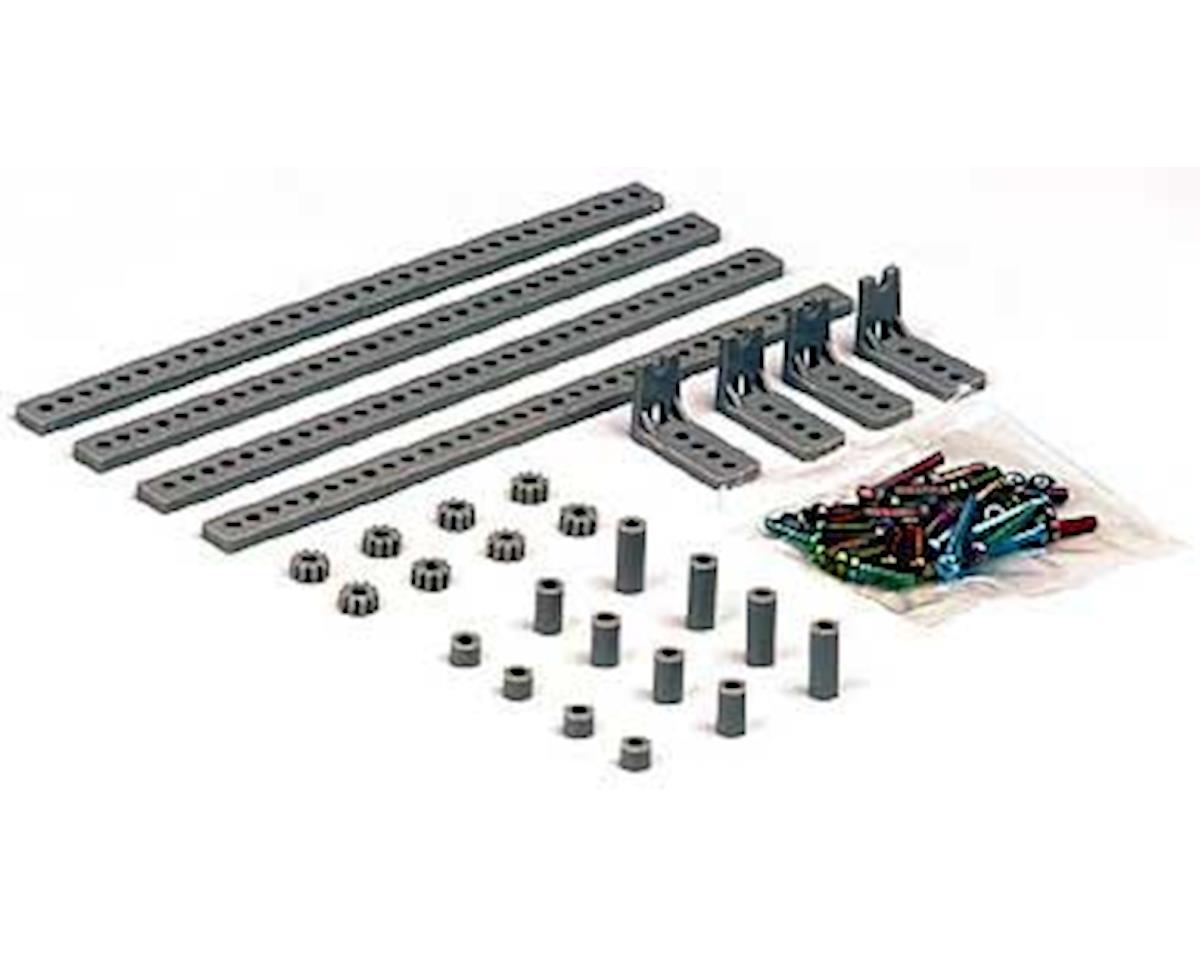

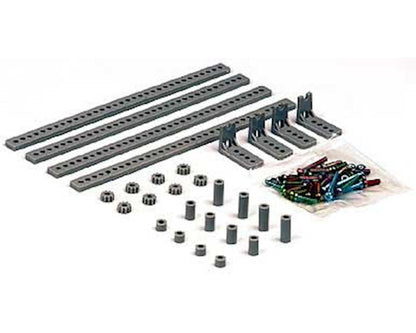

Included Parts

• Four arms with 33 3 mm holes spaced 5 mm apart
• Four four-hole L-shaped brackets
• Four 5 mm spacers
• Four 10 mm spacers
• Four 15 mm spacers
• 15 3 x 10 mm screws
• Four 3 x 20 mm screws
• Four 3 x 25 mm screws
• Eight 3 x 12 mm tapping screws
• Eight plastic nuts
• 15 metal nuts
