Tamiya TT-02 Audi 90 Quattro Racing 1/10 4WD Electric Touring Car Kit

The Tamiya Audi 90 quattro Racing is a 1/10 4WD electric touring car kit built on the versatile TT-02 chassis. This limited-edition kit includes a pre-painted polycarbonate body with smoke-tinted windows, a Hobbywing 1060 ESC with Tamiya Connector, and a torque-tuned 540 brushed motor.

TT-02 Chassis Features

• Shaft-driven 4WD system

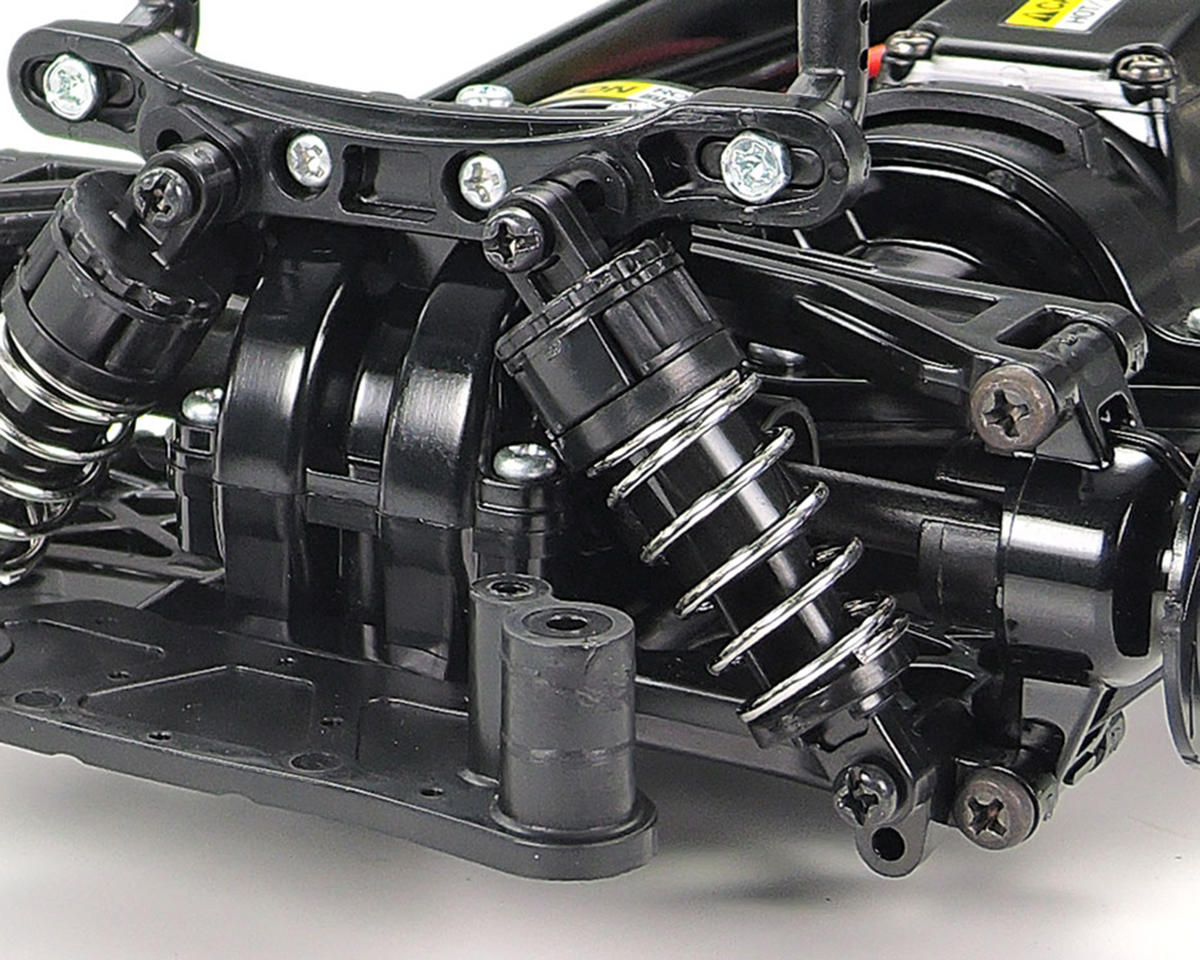

• Fully independent double wishbone suspension
• Friction-style shocks
• Grease-filled differentials
• ABS chassis construction
• Multiple setup options for wheelbase, ground clearance, tread, and gear ratio
• Low-maintenance design

Body Features

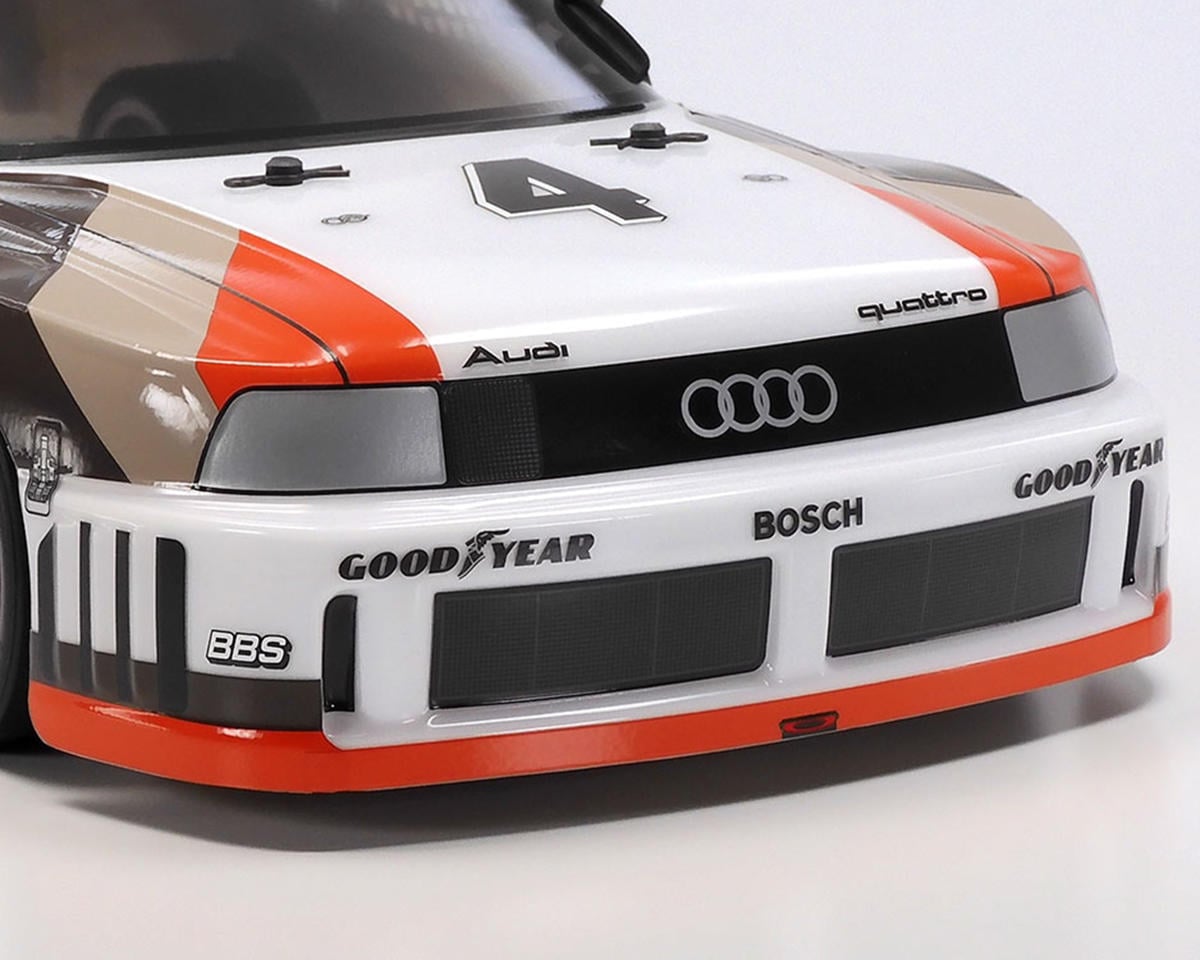

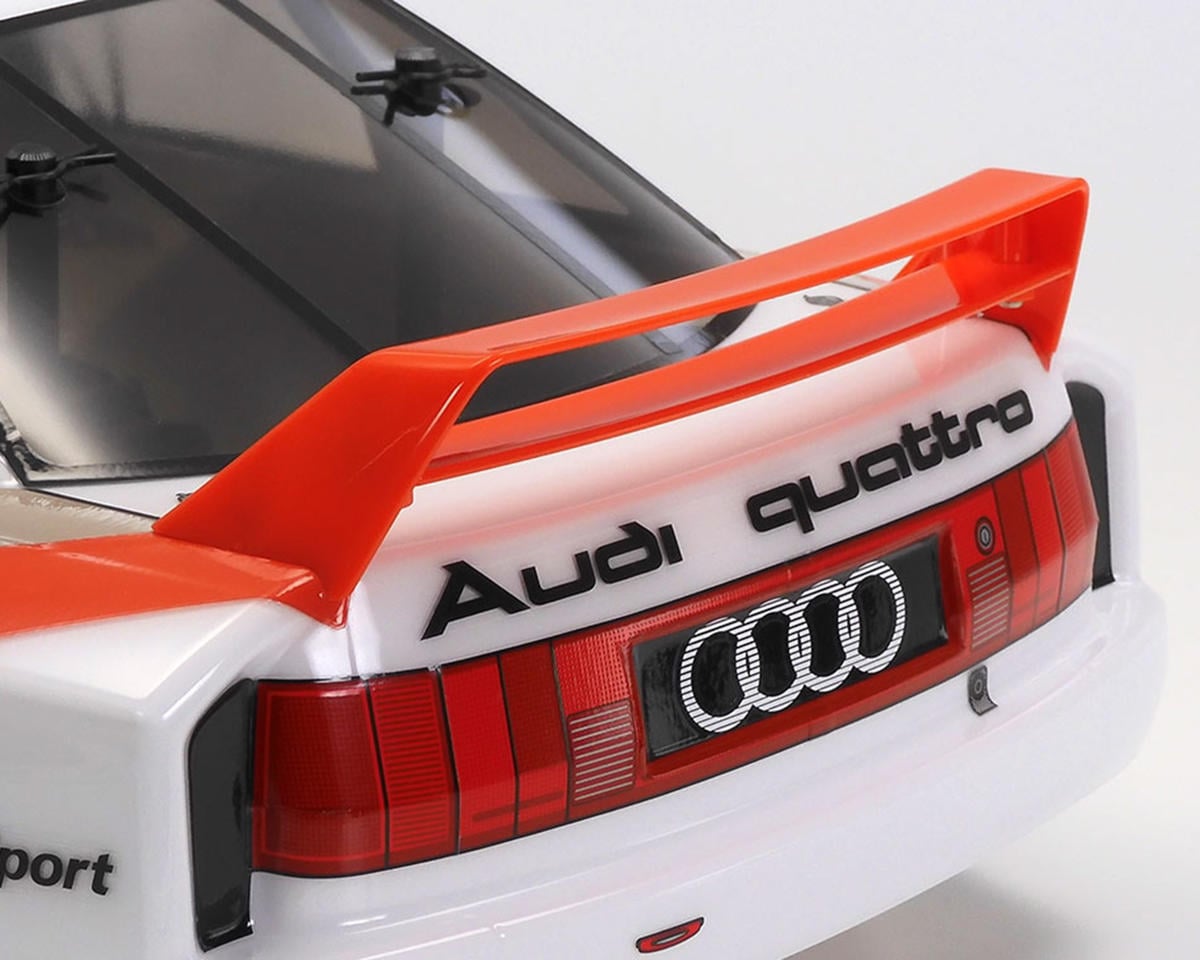

• Pre-painted polycarbonate Audi 90 quattro Racing body
• Smoke-tinted windows
• Pre-cut wheel arches and pre-drilled mounting holes
• Aerodynamic design

Included

• Audi 90 quattro Racing 1/10 4WD electric touring car kit
• Pre-painted Audi 90 quattro Racing 1/10 touring car body
• Hobbywing 1060 ESC with Tamiya Connector

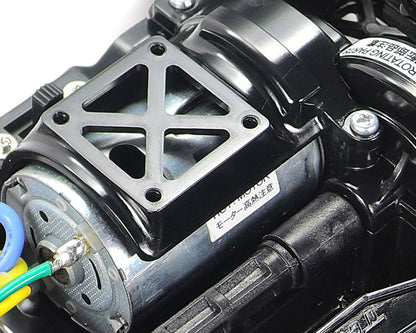

• Torque-tuned 540 brushed motor
• Manual

Needed to Complete

• 2-channel radio system
• Standard or low-profile steering servo
• 7.2V NiMH battery with Tamiya Connector
• Compatible battery charger

Specifications

• Scale: 1:10
• Drive: 4WD
• Power Source: 4-6 Cell (4.8-7.2V)
• Length: 17.56in (446mm)
• Wheelbase: 9.88in (251mm)
• Width: 7.56in (192mm)
• Height: 5in (127mm)
• Assembly Level: Kit

This is an unassembled RC model that requires assembly and racer-provided items listed above. Photos of the assembled kit are for illustrative purposes only.
