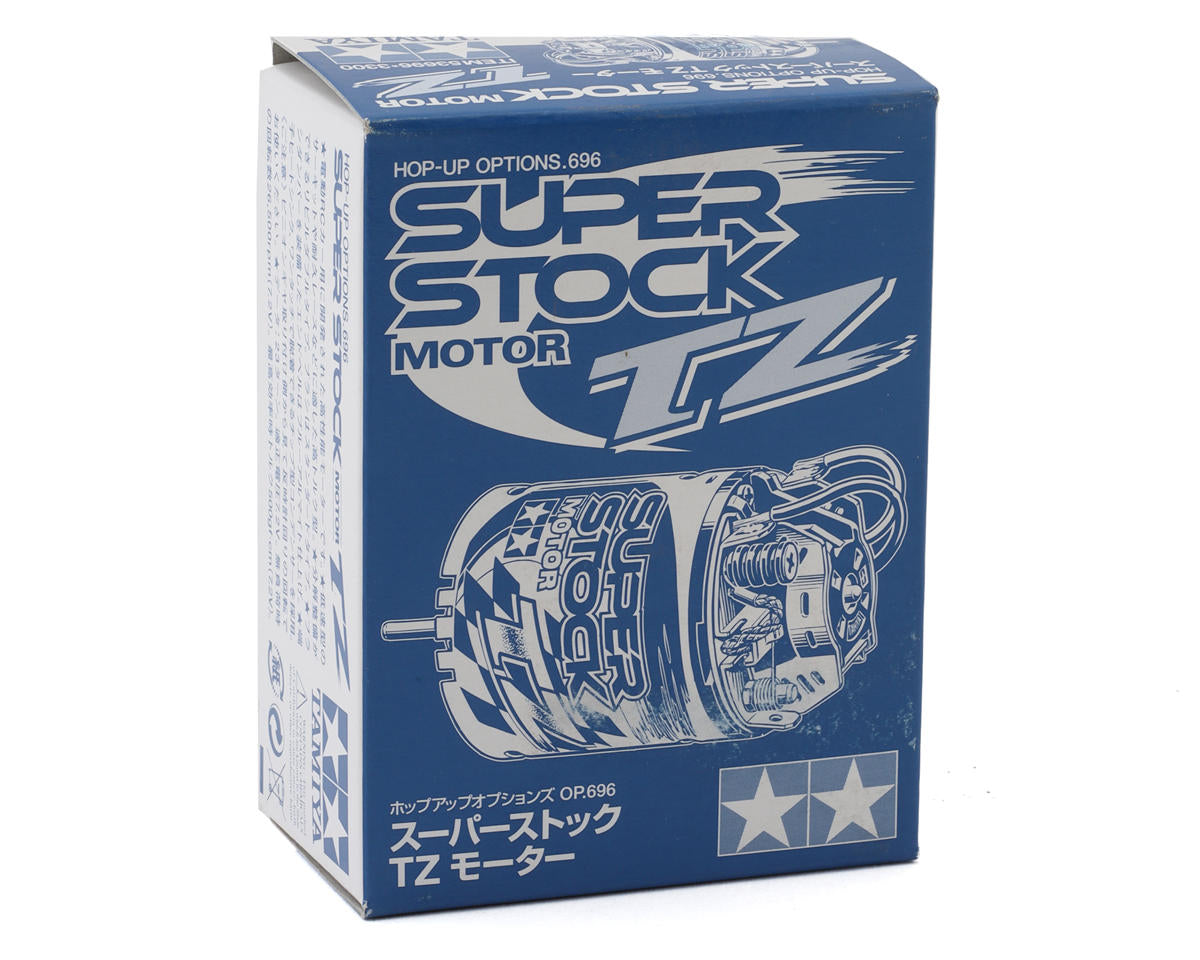

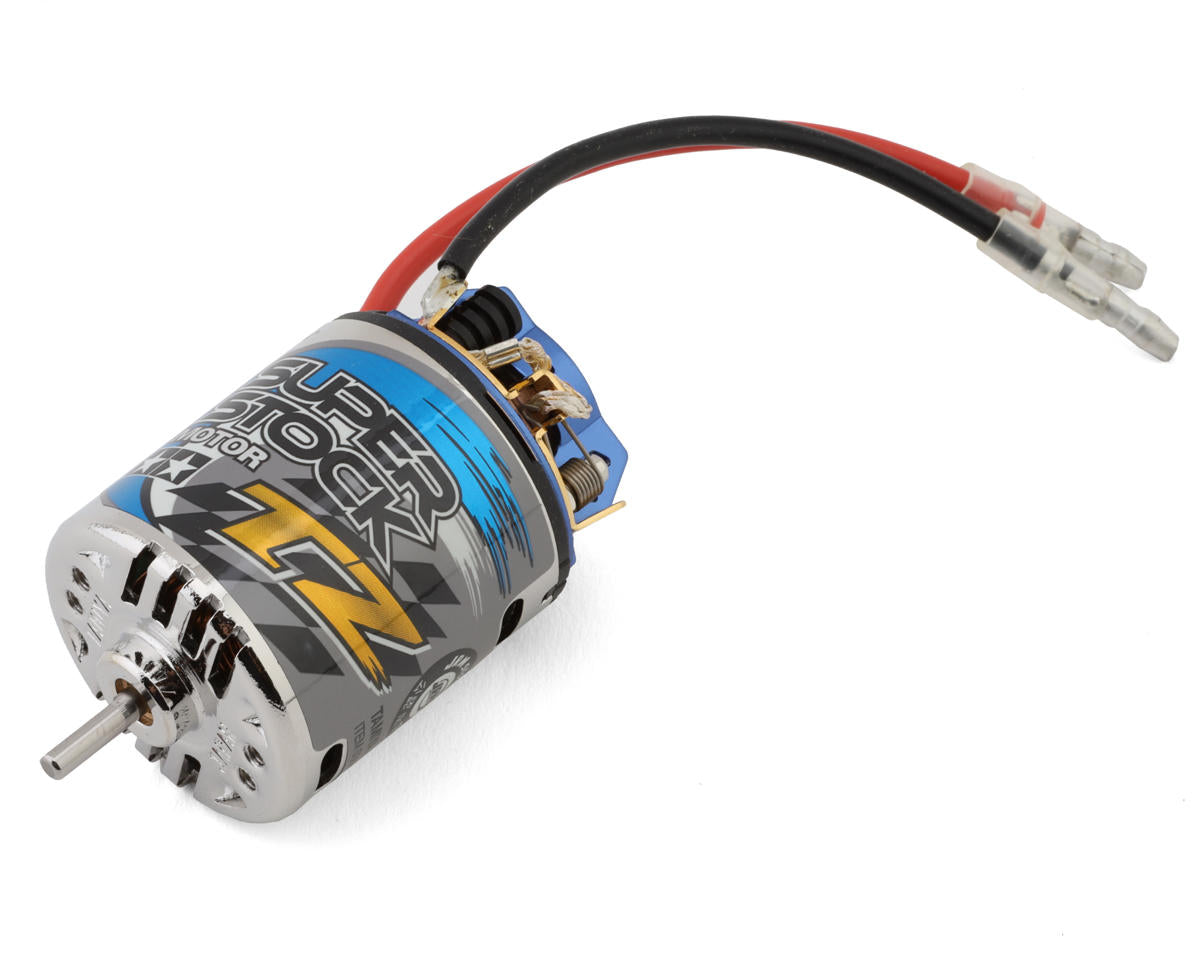

Tamiya Super Stock TZ Brushed 540 Motor (23T)

The Tamiya Super Stock TZ Brushed 540 Motor delivers strong torque for low-speed tracks and endurance racing. Its 23T brushed design is intended for 1/10 applications and features a blue anodized end bell with red and black anodized brush heatsinks.

Features

• Excellent torque for low-speed tracks or endurance racing
• Can be disassembled for convenient maintenance
• Pre-installed motor leads
• Detachable chip capacitor
• Brush holders provide a large surface for transferring electricity to the commutator
• Motor slits support heat dissipation
• Brush dampers increase contact with the commutator

Specifications

• Suggested Application: 1/10
• Size: 540
• Type: Brushed
• Turn: 23T
• Voltage: 7.2-8.4V
• Adjustable Timing: -
• RPM at No Load: 26,500
• RPM at best Efficiency: 500gf/cm
• Connector: Bullet
• Dimensions: -
• Shaft Diameter: 0.12in (3mm)
• Weight: -

Includes

• (1) Tamiya Super Stock TZ Brushed 540 Motor
