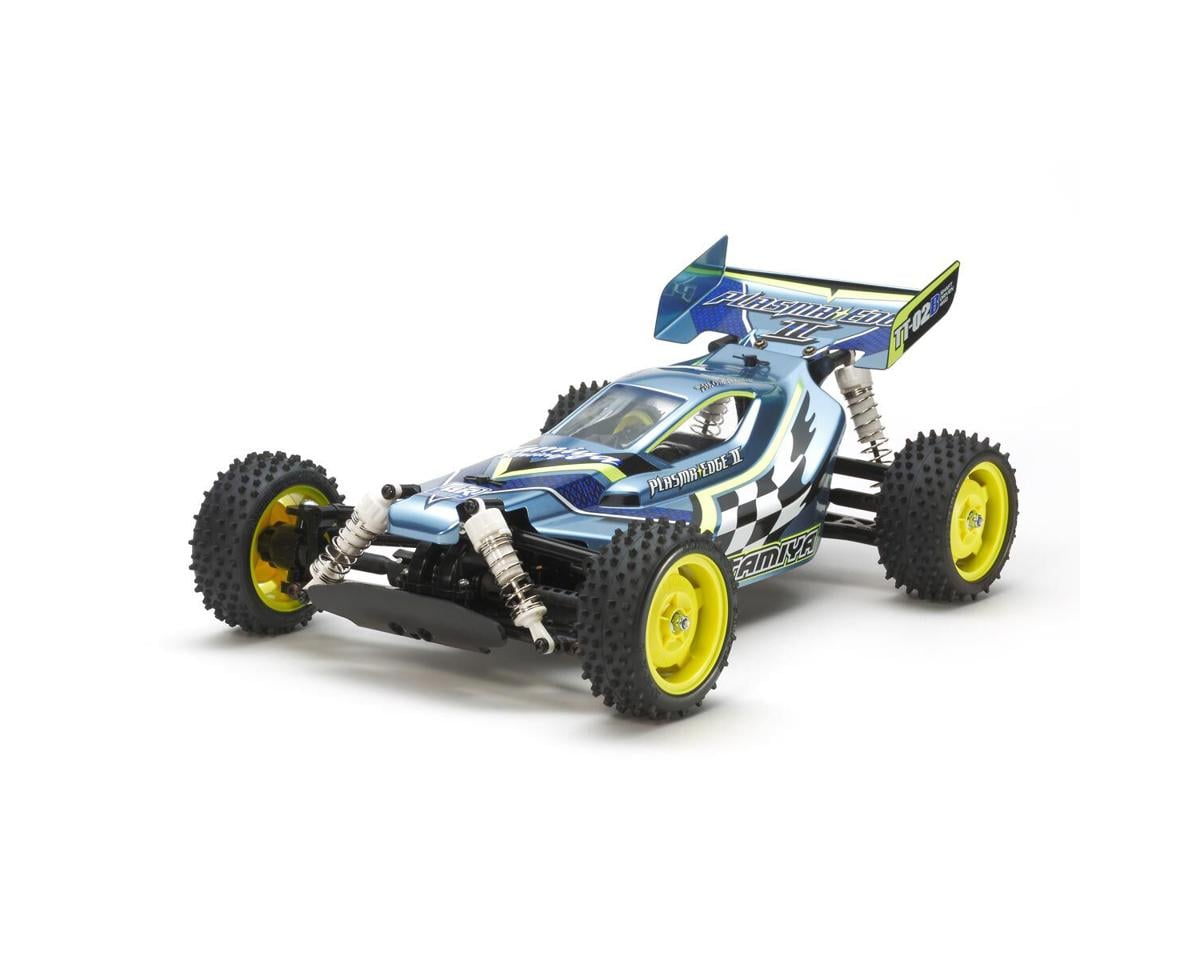

Tamiya Plasma Edge II 1/10 4WD Off Road Buggy Kit (TT-02B)

The Tamiya Plasma Edge II is a 1/10 4WD off-road buggy kit built on the shaft-driven TT-02B chassis. It features a stylish polycarbonate body, rear wing parts, fluorescent yellow star-dish wheels, white CVA oil shocks, and marking stickers.

TT-02B Chassis Features

• Shaft-driven 4WD system with a skid-shaped bathtub frame
• 4-wheel independent double wishbone suspension with long arms
• White CVA oil-filled shock units
• Front and rear gearboxes with sealed 4-bevel gear differentials
• Receiver case and motor cover help protect against dirt and debris
• Four adjustable gear ratios using three separately sold types of pinion gear
• Left and right suspension arms and uprights are identical for simplified assembly
• High-grip square spike tires

Kit Details

• Polycarbonate body with rear wing parts
• Fluorescent yellow star-dish wheels
• Body marking stickers and masking stickers for painting
• Includes 540-size brushed motor
• Includes Hobbywing THW-1060 Brushed ESC
• Assembly kit

Specifications

• Scale: 1/10
• Drive type: Gearbox
• Differential type: Gear
• Bearings: Plastic bushing
• Body material: Polycarbonate
• Chassis material: Plastic
• Motor: 540-brushed type
• Shock damper: Oil-filled damper
• Suspension: Fully independent double wishbone
• Terrain use: Off-road
• Adjustable gear ratio: Yes

Needed to Complete

2-channel radio and receiver, steering servo, battery pack, charger, paint, AA batteries, and tools are required to complete the model.

The finished model shown in photos is for illustrative purposes only.
