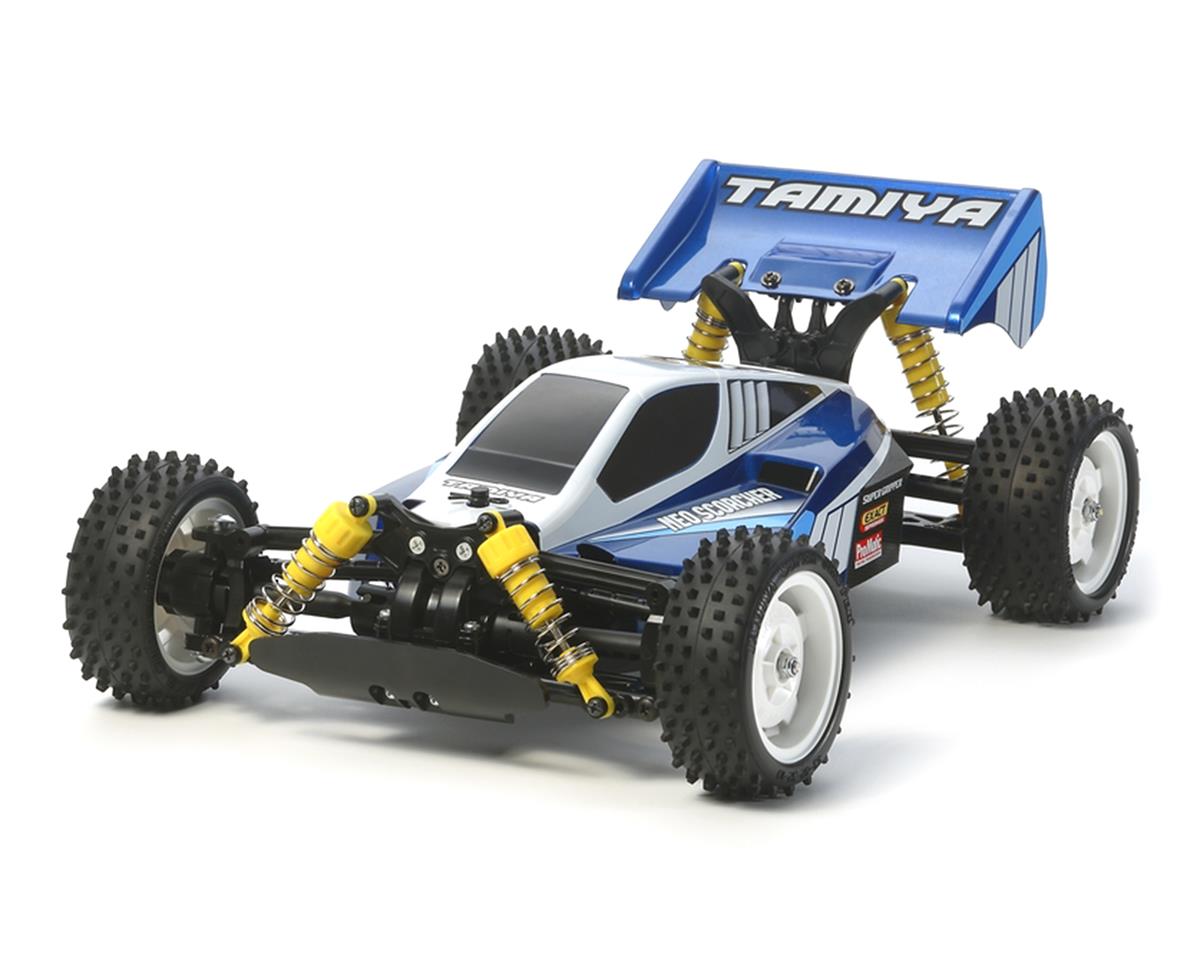

Tamiya Neo Scorcher 1/10 4WD Electric Buggy Kit (TT-02B)

The Tamiya Neo Scorcher is a 1/10-scale 4WD electric buggy kit built on the shaft-driven TT-02B chassis. Inspired by the original Scorcher, it features a durable polycarbonate body, large rear wing and included stickers for decorating the body.

TT-02B Chassis Features

• Shaft-driven 4WD with front and rear 4-bevel resin differentials
• 4-wheel independent double wishbone suspension with long arms
• Front and rear CVA oil dampers
• Sealed gearboxes and receiver compartment help protect against dirt and debris
• Longitudinally placed battery and flat R/C gear layout for a low center of gravity
• Robust plastic dogbones
• Four gear ratios can be selected using three separately sold pinion gear types
• Includes a 540 RS Torque Tuned Motor and Hobbywing THW-1060 Brushed ESC

Specifications

• Length: 380mm
• Width: 250mm
• Height: 145mm
• Wheelbase: 266mm
• Tread: 217mm (Front), 208mm (Rear)
• Tire Width/Diameter: 32/82mm (Front), 41/82mm (Rear)
• Gear Ratio: 10.71:1 (using kit-included pinion gear)

Needed to Complete

• 2 channel radio system
• Steering servo
• Polycarbonate paint for body
• 7.2 - 7.4 volt battery
• Compatible charger

Note: Finished kit shown in photos is for illustrative purposes only.
