Tamiya Fire Dragon 2020 1/10 4WD Buggy Kit

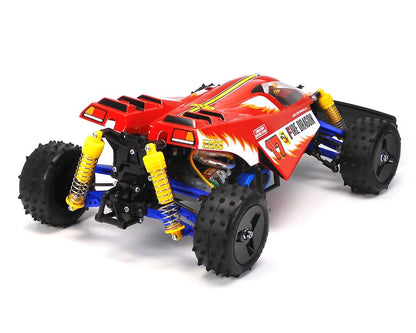

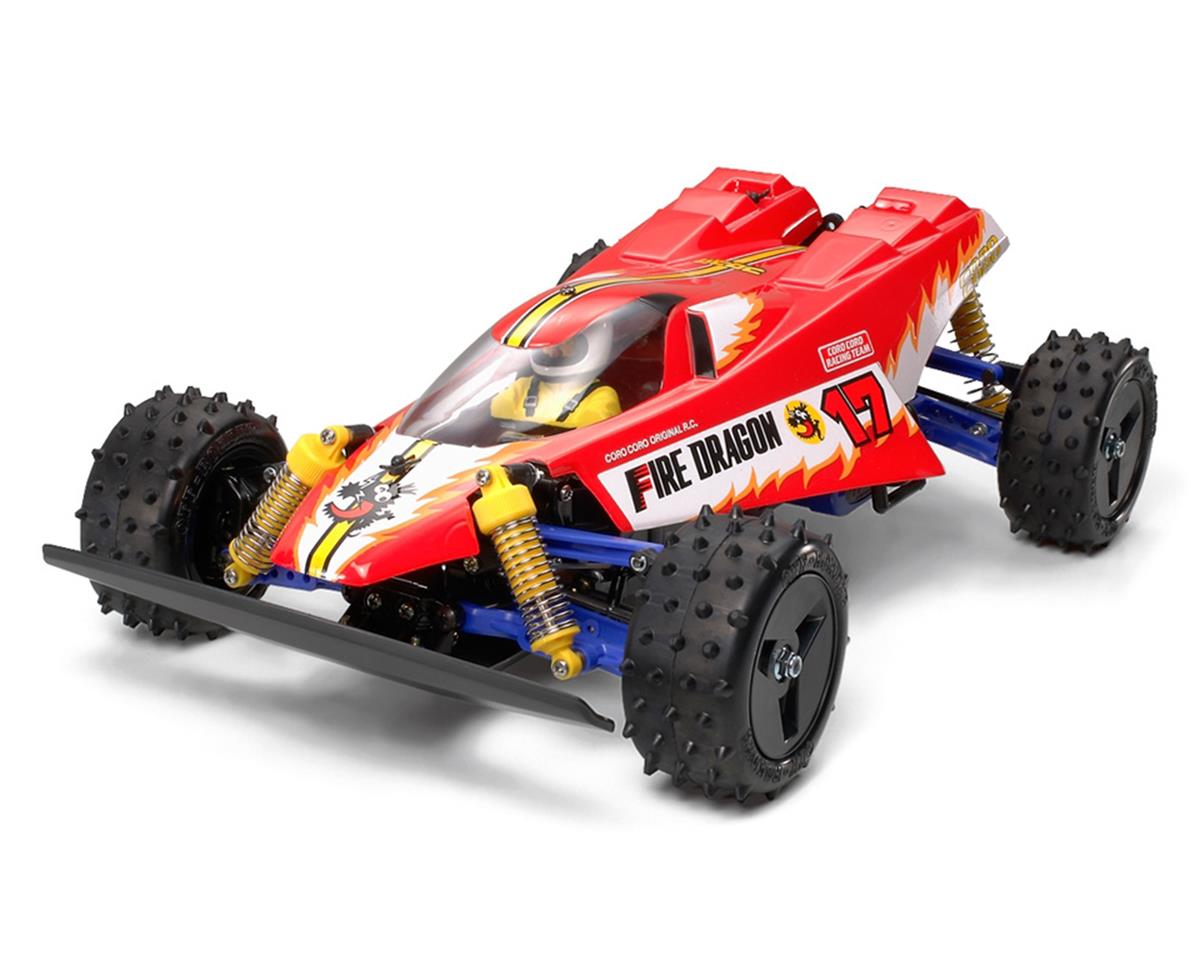

The Tamiya Fire Dragon 2020 1/10 4WD Buggy Kit updates the original 1989 R/C model with revised parts for improved durability. Its colorful polycarbonate body is pre-painted red, and included stickers complete the distinctive buggy styling.

Chassis and Drivetrain

• 4WD shaft-drive system with the motor mounted amidships
• Tough ABS plastic bathtub frame with front and rear gearboxes

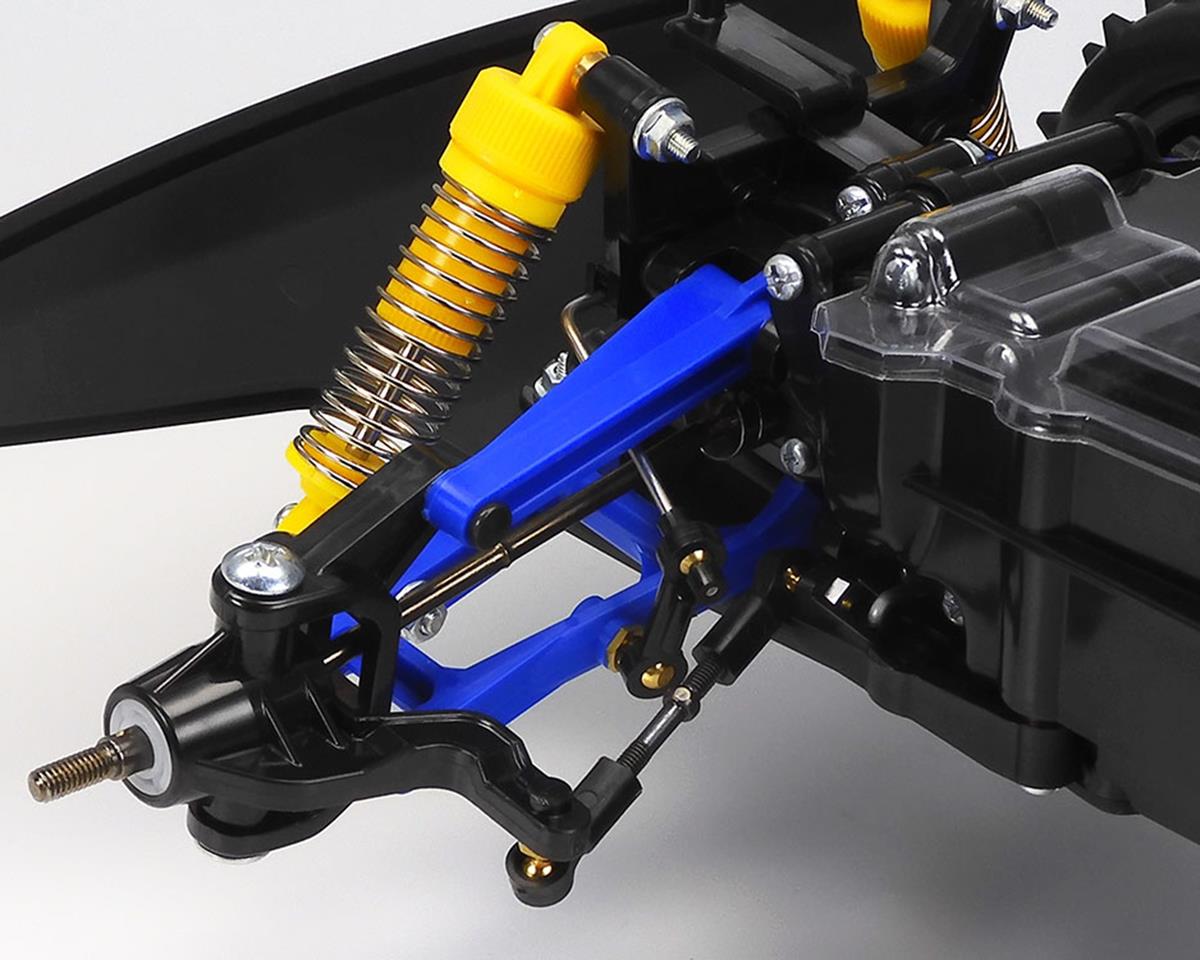

• 4-wheel fully independent double wishbone suspension

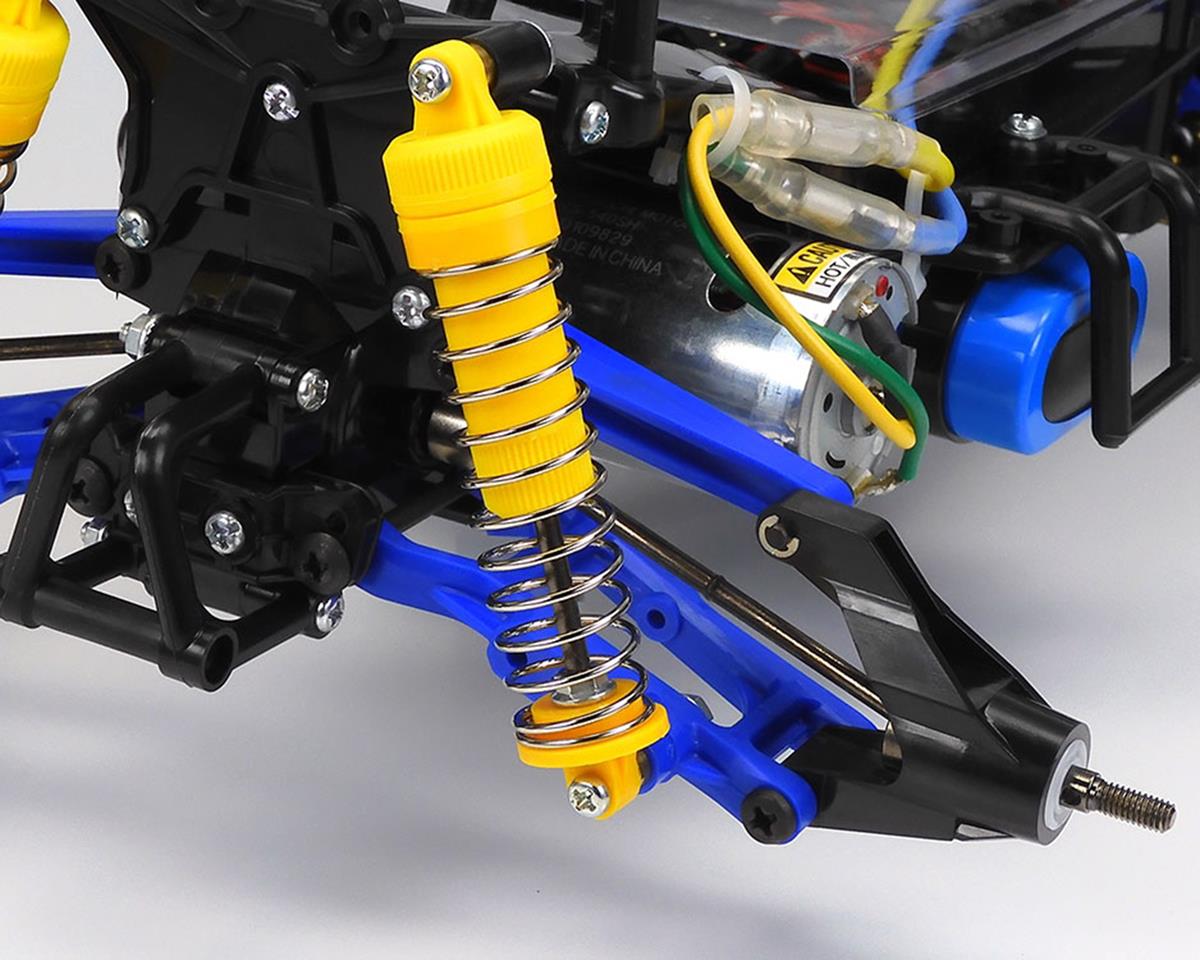

• CVA oil-filled dampers at all four corners
• Front stabilizer for a firm setup
• Front and rear sealed, die-cast 3-bevel gear differentials
• Aluminum motor mount for improved rigidity
• 3-piece steering tie-rod setup with adjusters for toe adjustment

Included Electronics

• 540-brushed type motor

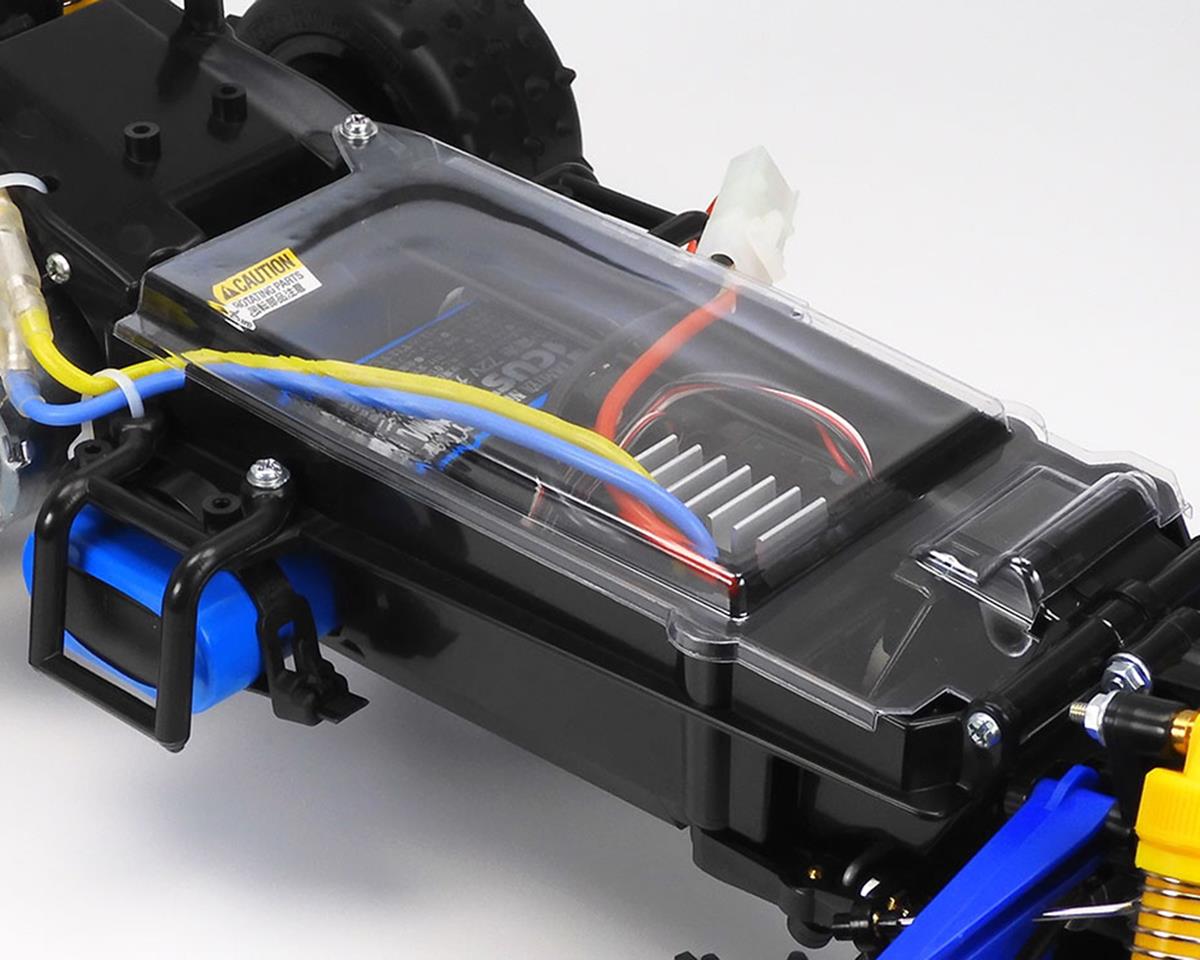

• Hobbywing THW-1060 Brushed ESC

Specifications

• Scale: 1/10
• Length: 390mm
• Width: 240mm
• Height: 139mm
• Gear Ratio: Fixed
• Bearings: Plastic bushing
• Body Material: Polycarbonate
• Chassis Material: ABS Plastic
• Differential Type: Gear
• Drive Type: 4WD
• Shock Damper: CVA Oil Filled
• Body Stickers: Included

Required to Complete

This is an assembly kit. A 2-Channel Radio, Servo, 7.2-7.4V battery pack, and Compatible Charger are required to complete the model.
