Tamiya F104 PRO II 1/10 2WD Electric Competition F1 Chassis Kit (Clear)

The Tamiya F104 PRO II is a 1/10 2WD electric Formula One chassis kit with a direct-drive layout, fiber-reinforced plastic double-deck construction, and a redesigned lower deck. Its inline longitudinal battery configuration, 1.5-millimeter FRP T-bar with U-cutaway, friction-plate rear suspension, TRF damper, and aluminum ball differential provide a tunable chassis platform for on-road racing.

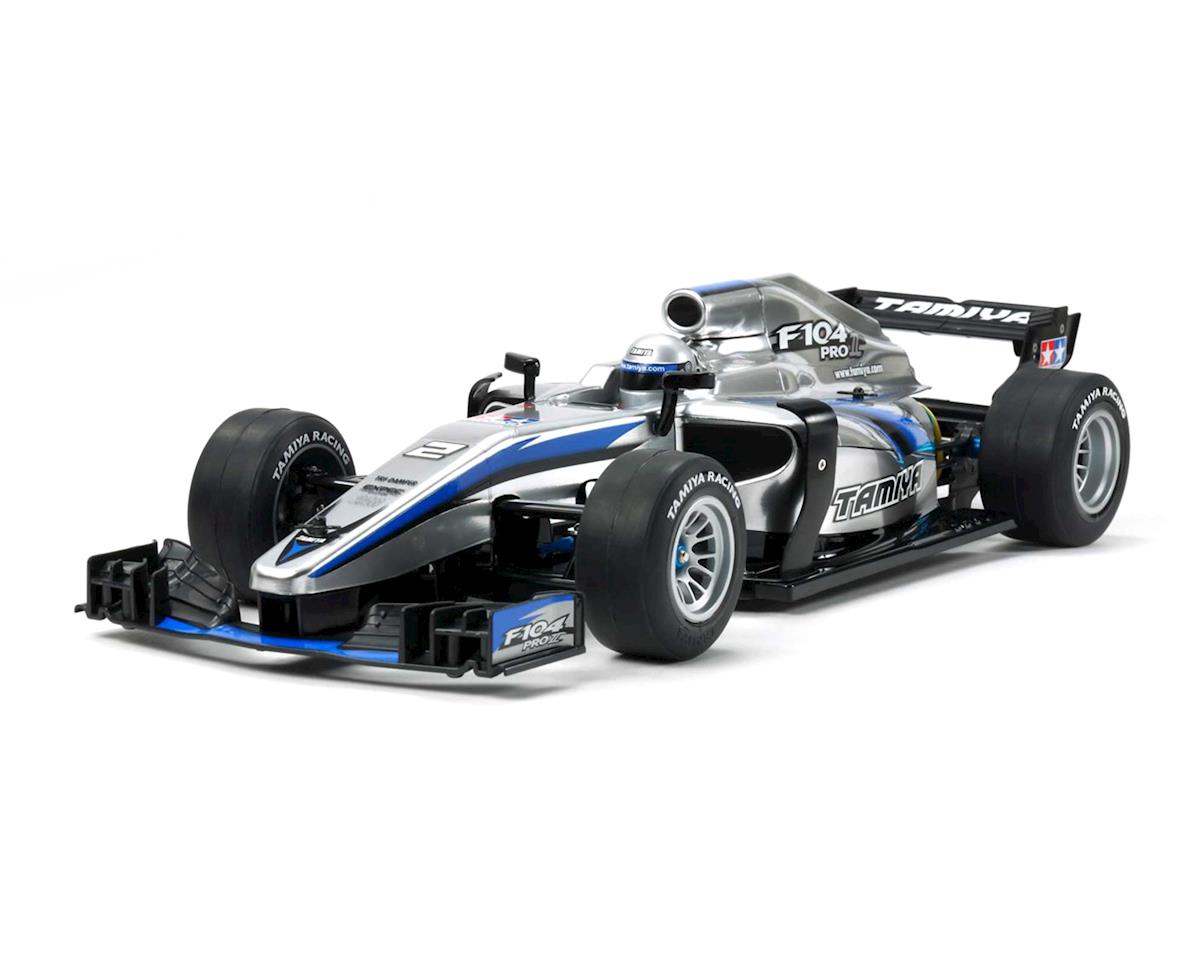

The kit includes a clear 2017-inspired F1 body. The body design features a slanting nose, side pontoons, separate front and rear wing components, a rear diffuser, mirrors, and a driver helmet. Semi-pneumatic synthetic rubber tires and marking stickers complete the presentation.

Features

• Direct-drive 2WD Formula chassis layout
• Fiber-reinforced plastic double-deck construction
• Redesigned lower deck for improved handling response
• Inline longitudinal battery configuration
• 1.5-millimeter FRP T-bar with U-cutaway for controlled flex
• Rear suspension with friction plates and TRF damper
• Front independent coil spring suspension with adjustable camber
• Aluminum ball differential
• Compatibility with a wide range of optional hop-up parts

Includes

• F104 PRO II 1/10 2WD Electric Competition F1 Chassis Kit
• Clear 2017-Inspired F1 Body
• Product Manual

Needed to Complete

• 2-Channel Transmitter & Receiver
• Electronic Speed Controller (ESC)
• 540 Motor
• Steering Servo
• 6-Cell NiMH or 2S LiPo Battery (7.2-7.4V)
• Compatible Battery Charger
• Paint for Body
• Tools for Assembly

Specifications

• Scale: 1:10
• Drive: 2WD
• Power Source: 2S LiPo
• Length: 17.32in (440mm)
• Wheelbase: 10.63in (270mm)
• Width: 7.09in (180mm)
• Height: 3.46in (88mm)
• Assembly Level: Kit

This is an unassembled remote control model kit that requires assembly, racer-selected electronics, and other racer-provided items.
