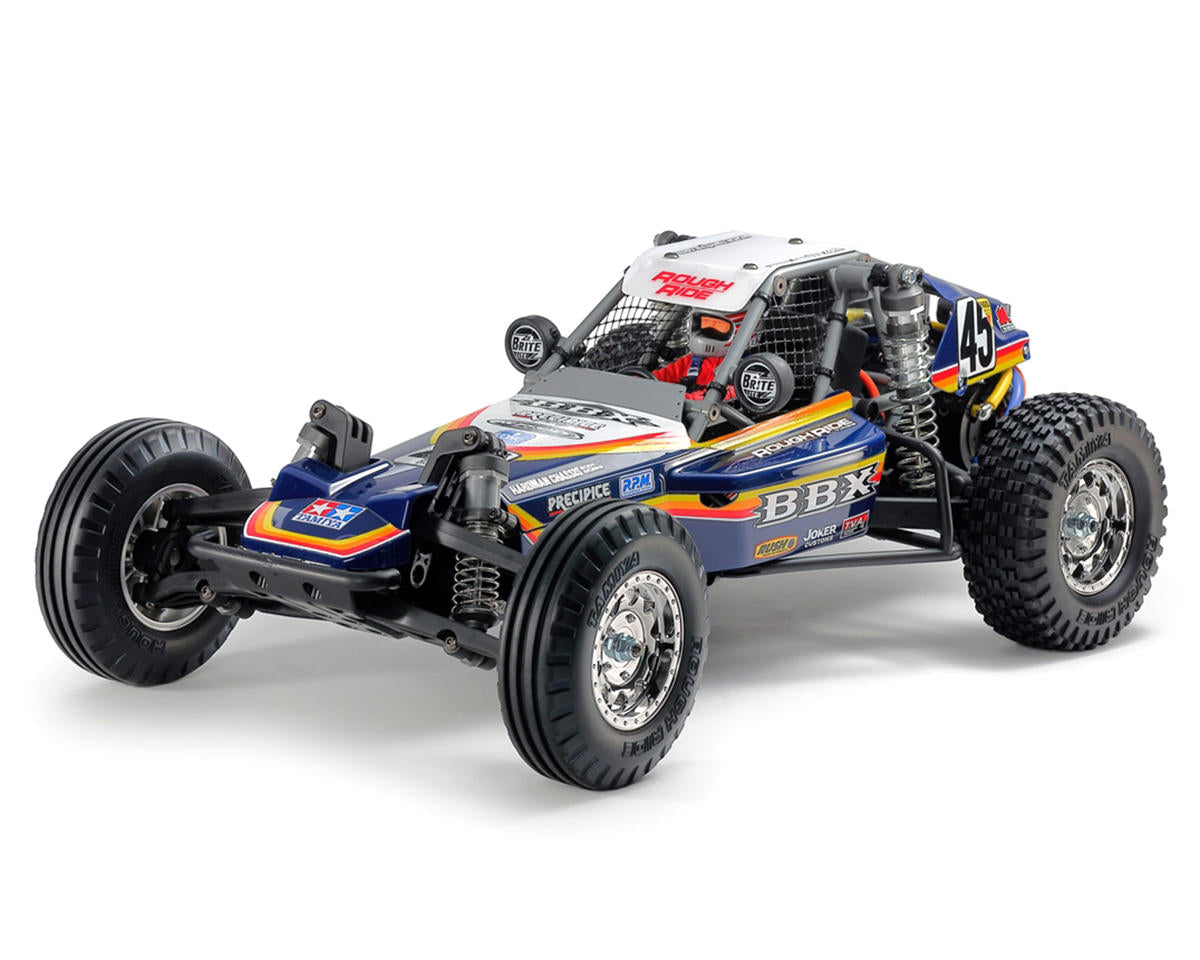

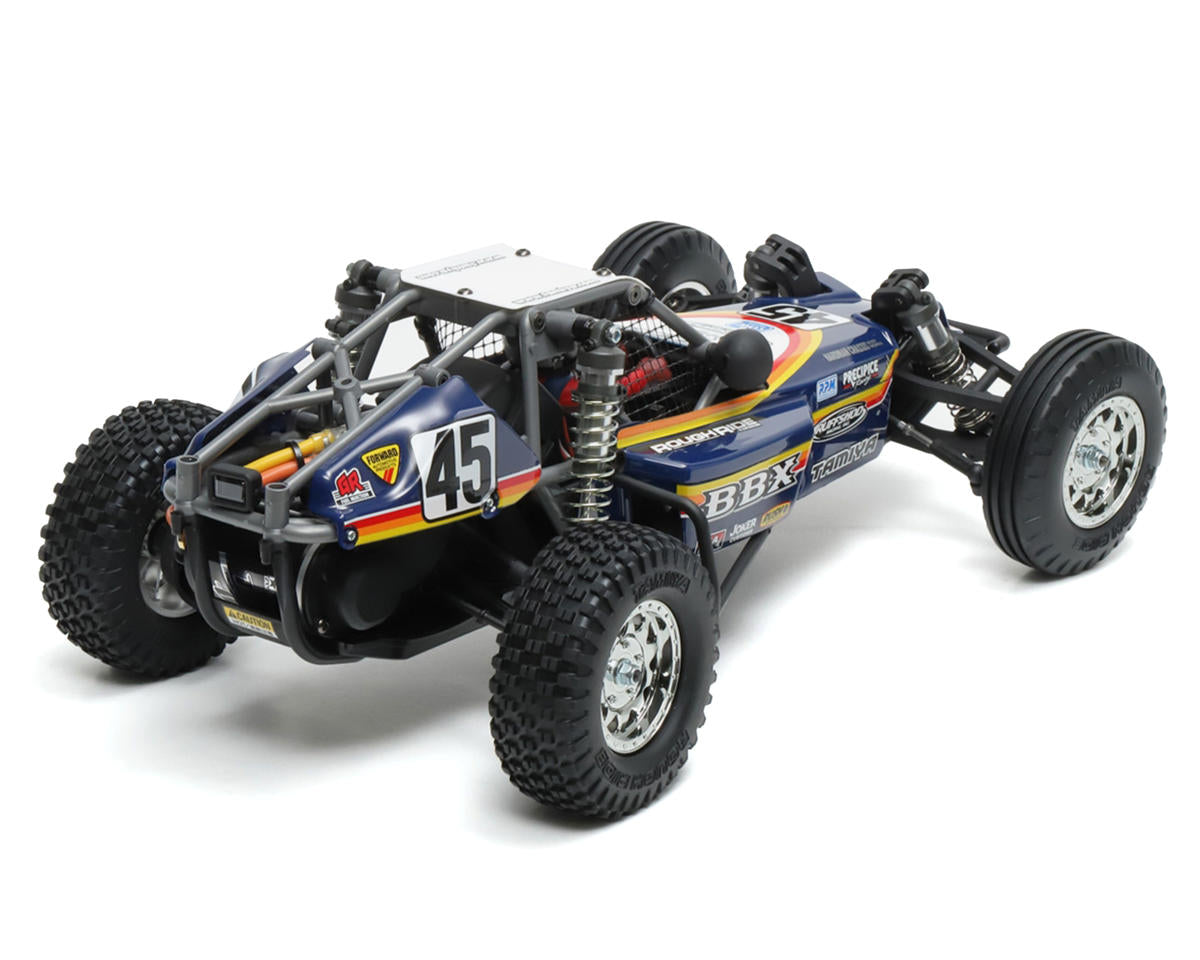

The Tamiya BBX 2WD Off-Road Buggy Kit combines a redesigned BB-01 chassis with a one-piece monocoque frame and roll cage. Its 1/10-scale layout features independent suspension, a rear-mounted motor position, and a 0.7mm polycarbonate body with an 1980s-inspired design.

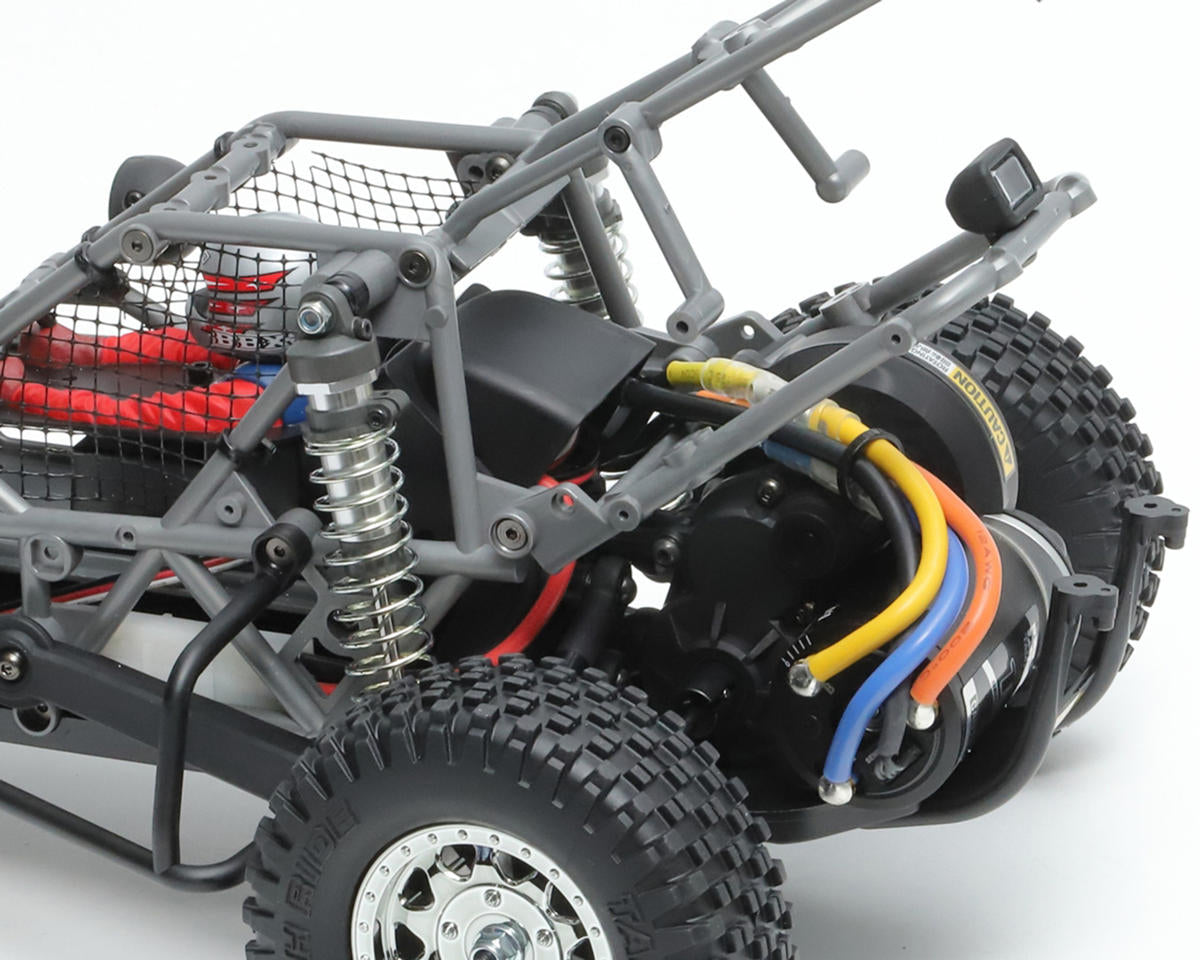

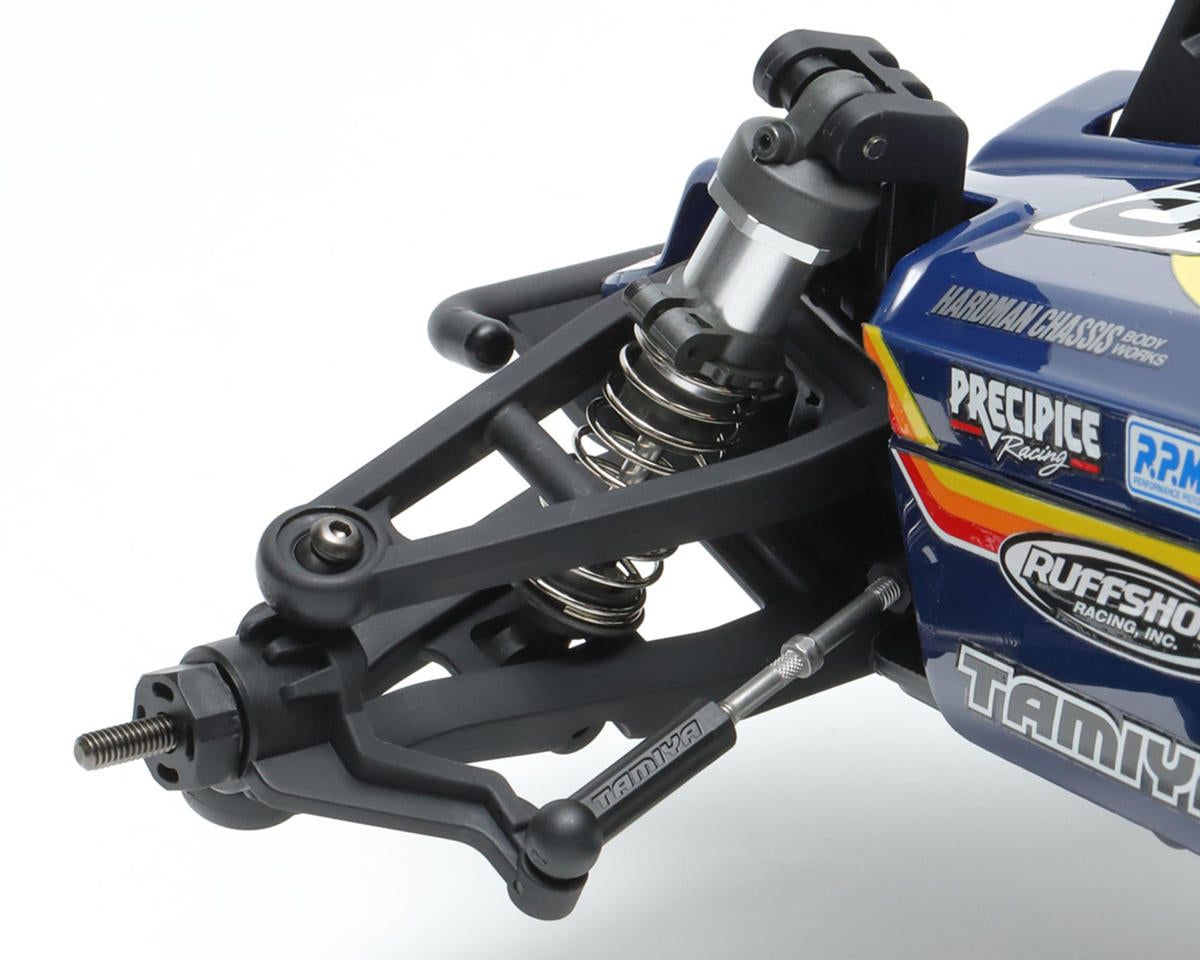

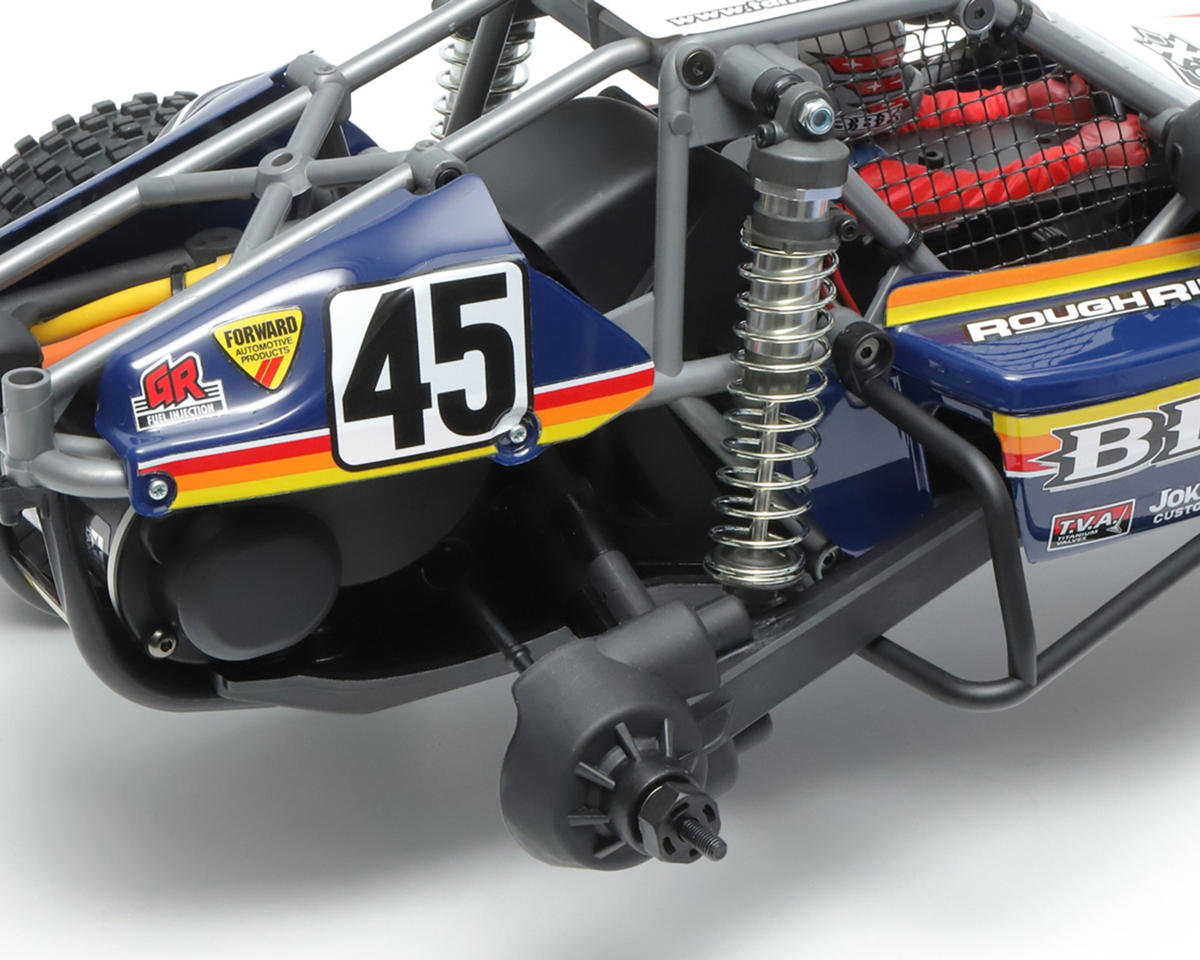

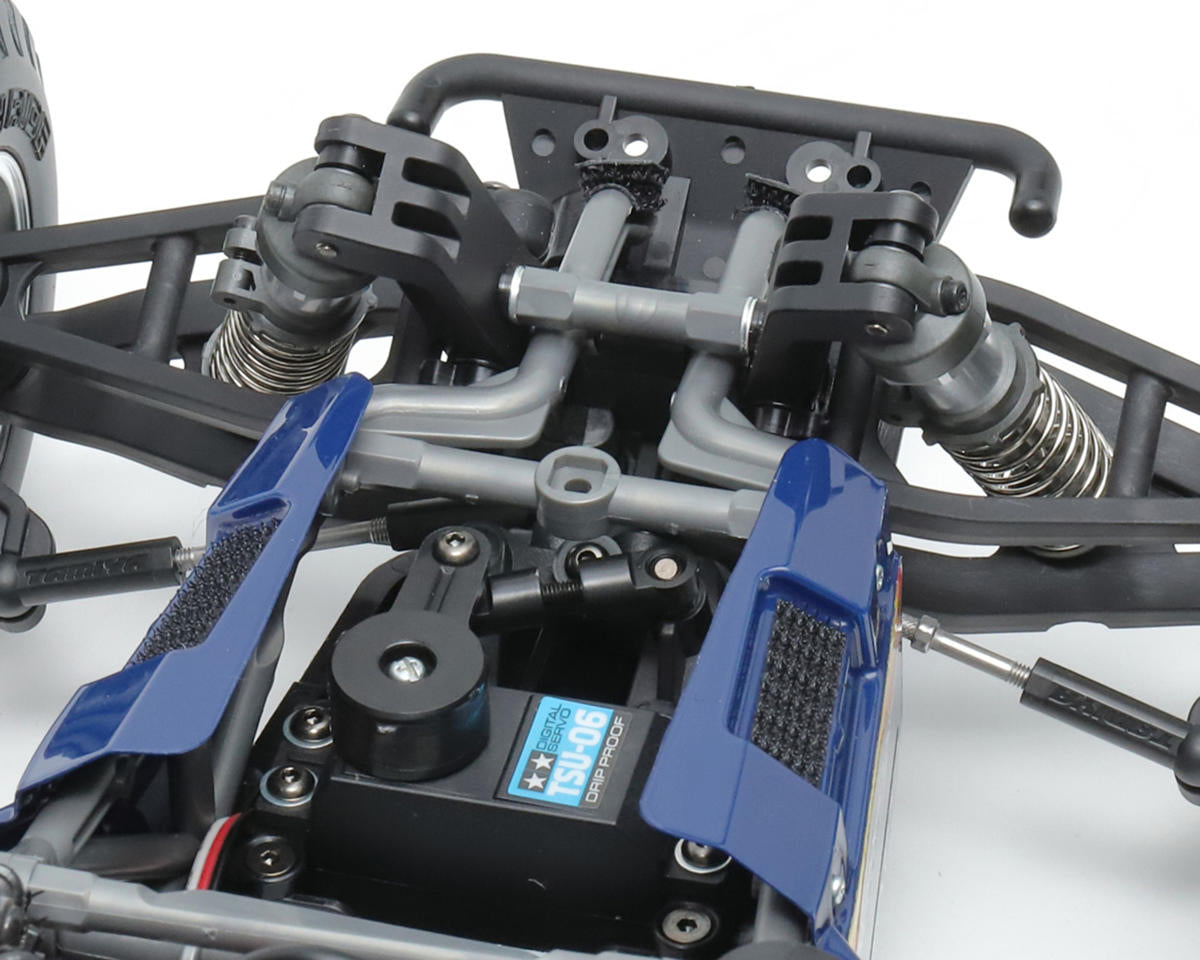

The chassis uses front double wishbone suspension and rear trailing arms inspired by full-size UTVs. Full ball bearings, universal drive shafts, a TA06 rear ball differential, oil-filled shocks, and metal-plated bead lock type wheels support the buggy's off-road design. The removable rear cage provides access for maintenance.
Features
Full ball bearings and universal drive shafts
TA06 rear ball differential
Four-wheel double wishbone suspension system

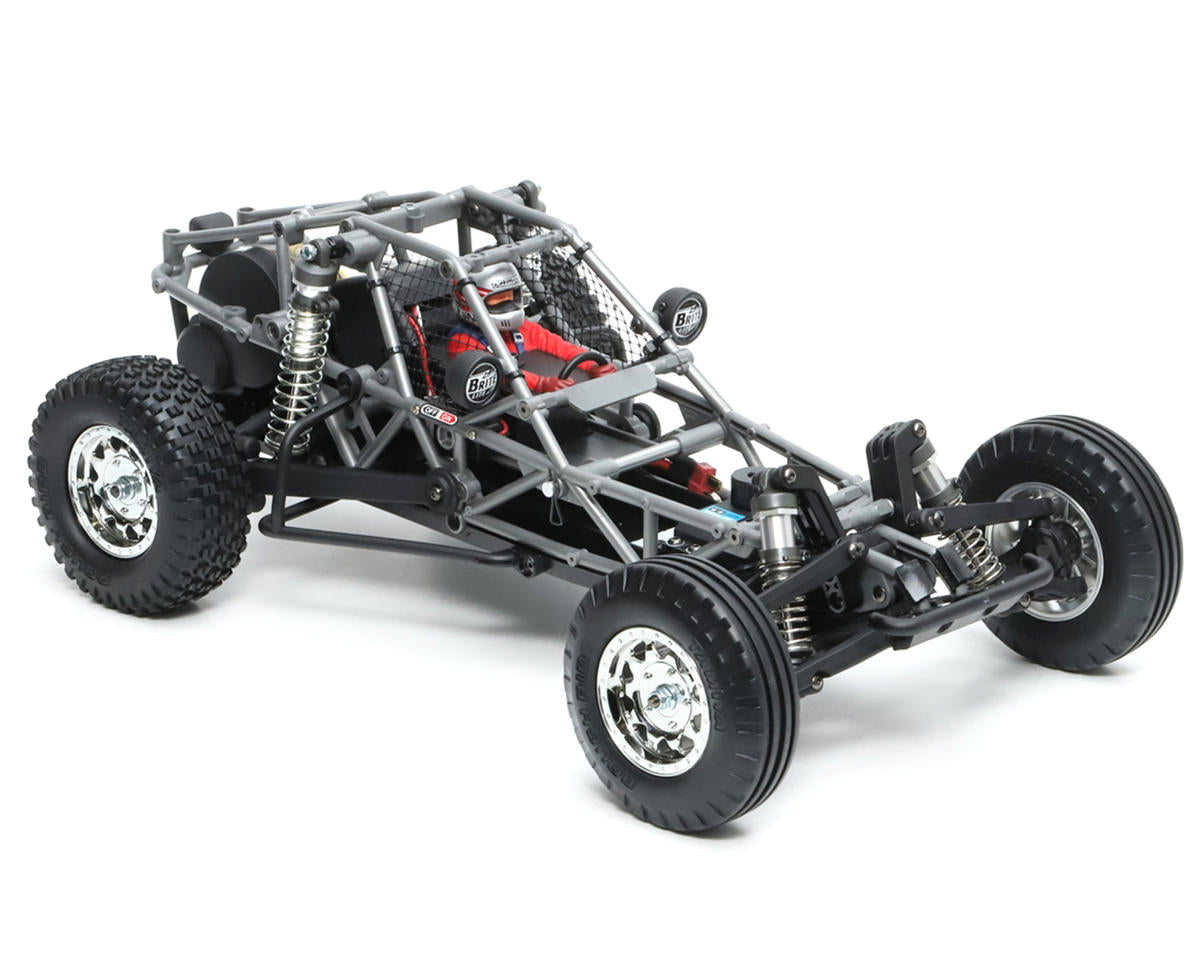

One-piece monocoque frame and roll cage

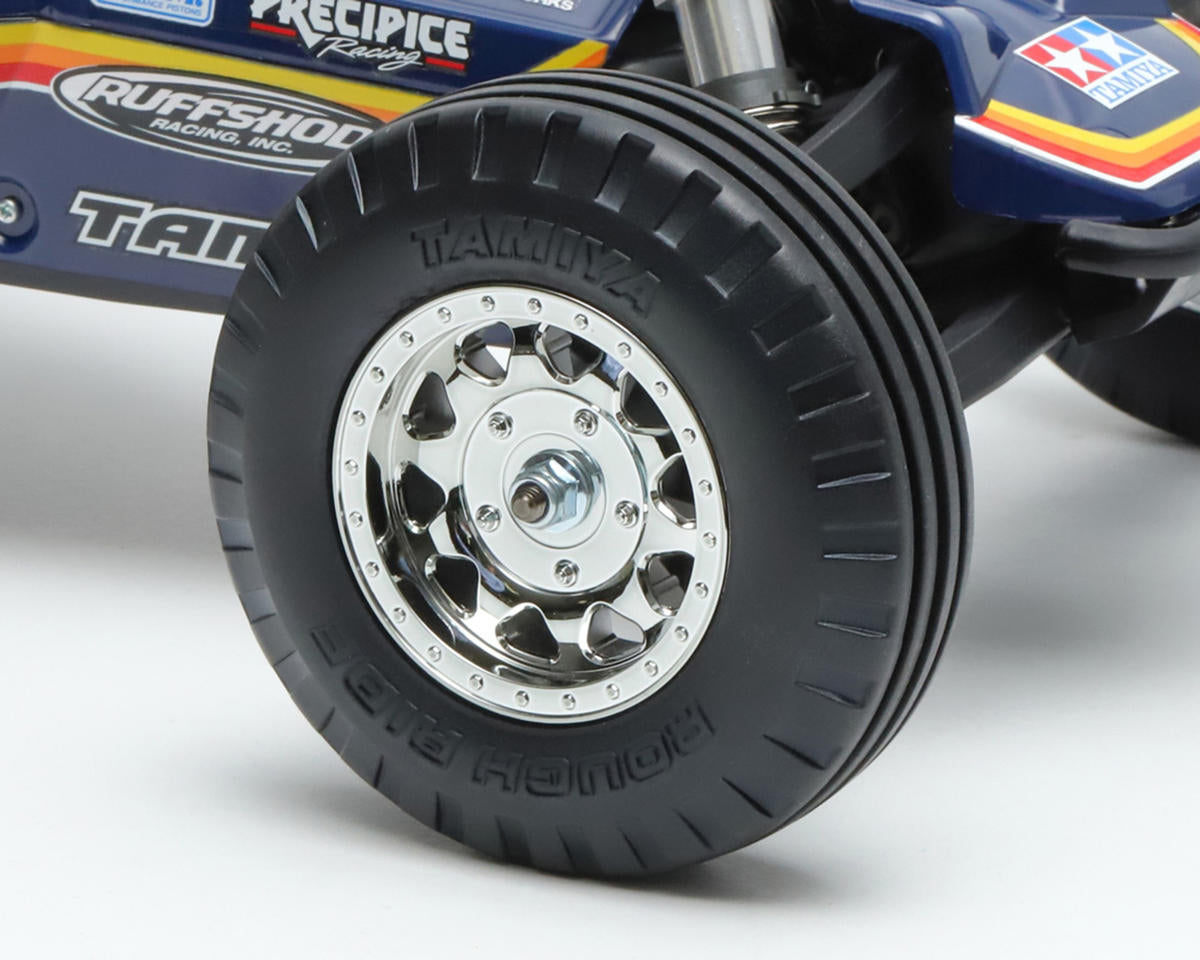

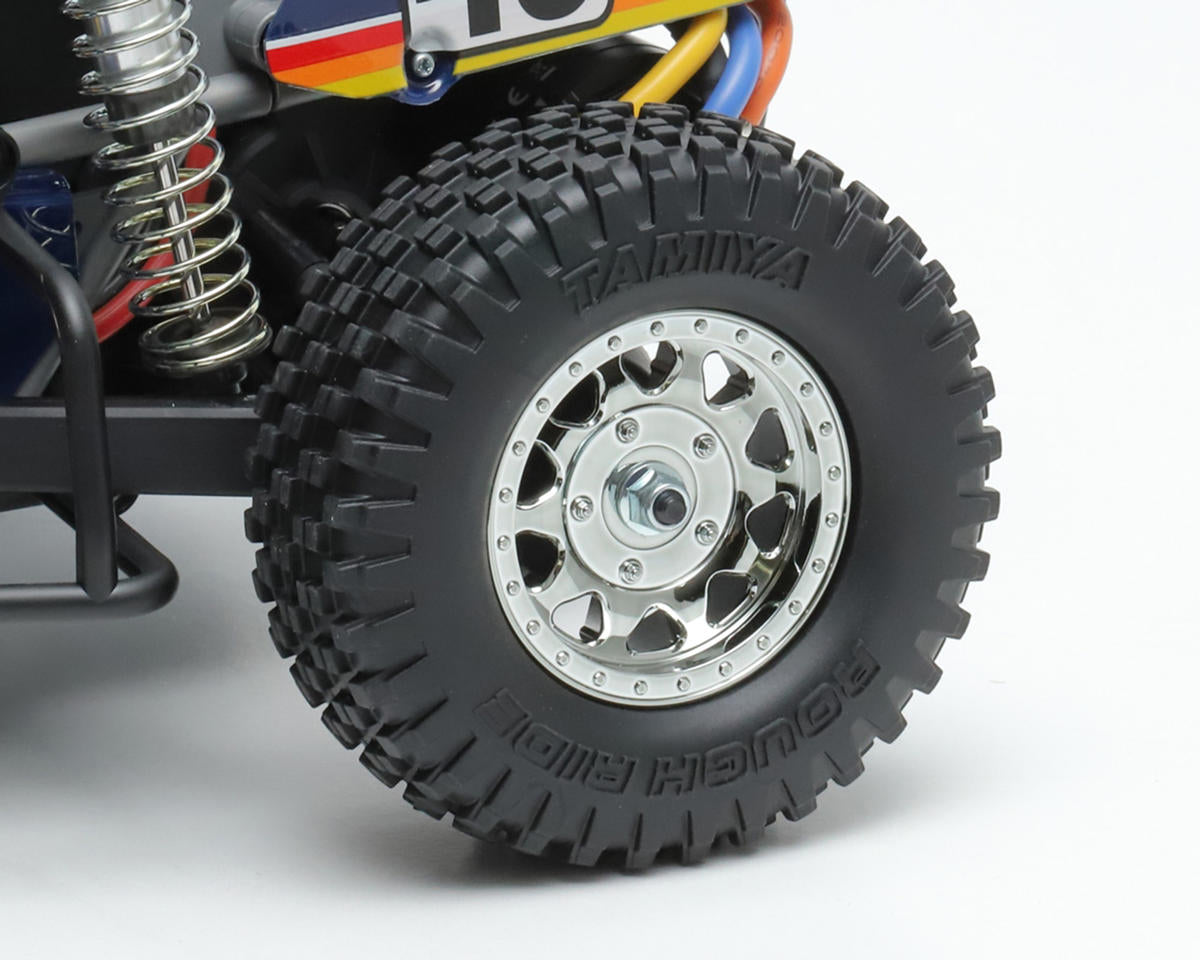

Metal-plated bead lock type wheels with large-diameter tires

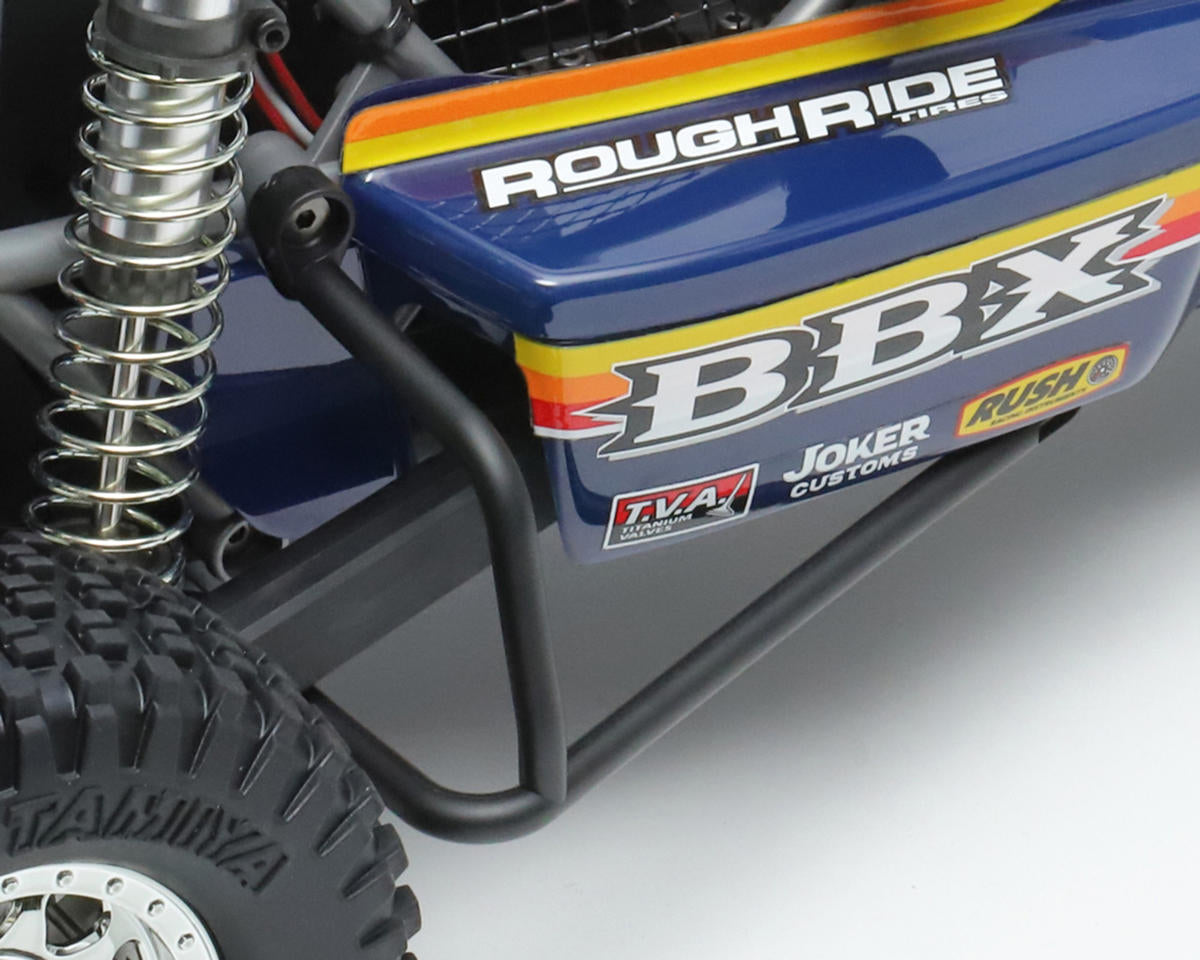

Removable rear cage for ease of maintenance
0.7mm polycarbonate body made in three sections
Soft rubber tires with 1980s-inspired tread pattern
Specifications
Scale: 1/10
Length: 16.29in (414mm)
Width: 9.17in (233mm)
Height: 5.35in (136mm)
Wheelbase: 11.14in (283mm)
Drive: 2WD
Input Voltage: 7.2-7.4V
Assembly Level: Kit
Includes
(1) Tamiya BBX 2WD Off-Road Buggy Kit (BB-01)
Manual
Needed to Complete
ESC and Motor
(1) 2-channel Transmitter/Radio
(1) Low Profile Steering Servo
(1) 2S (7.2V-7.4V) Battery
(1) Compatible charger
Polycarbonate paint for body
1mm Drill Bit for Shock Caps
RC Kits are unassembled remote control models that require assembly, racer-selected electronics, and other racer-provided items. Photos of assembled kit are for illustrative purposes only.
