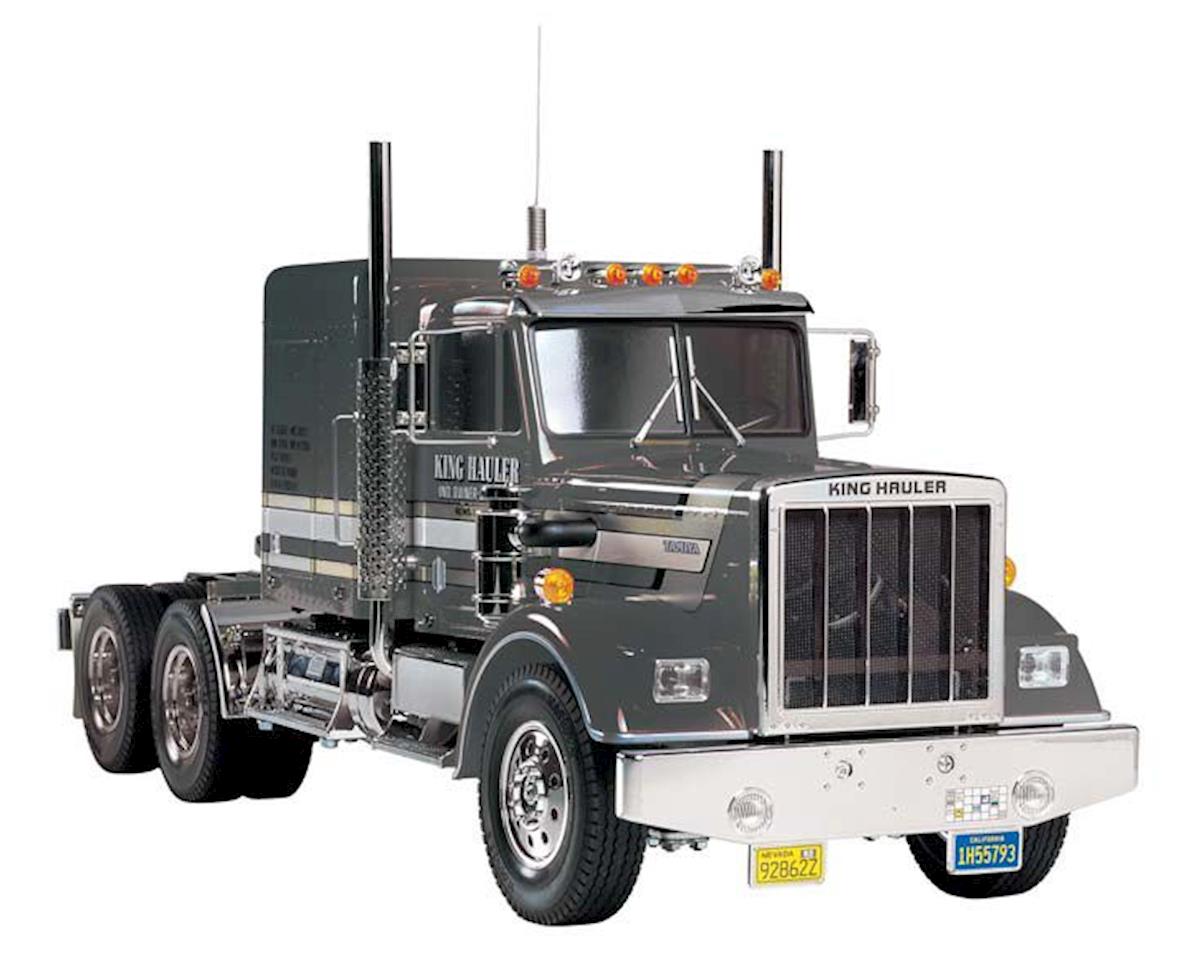

Tamiya 1/14 King Hauler Semi Tractor Kit (Black Edition)

The Tamiya 1/14 King Hauler Black Edition Semi Tractor Kit features a precision-molded tractor truck body with pre-painted metallic black parts and chrome-plated details, including the front grille and air cleaners. Its aluminum and polycarbonate resin ladder frame uses front and rear leaf spring suspension with aluminum friction dampers.

A front-mounted Type 540 motor drives the rear 2-axle drivetrain through a propeller shaft and 3-gear transmission. Gear shifting is operated from the transmitter. The separately sold MFC-01 Multi-Function Control Unit provides light, sound, and vibration operation, including engine, air horn, gear shifting, headlight, brake light, fog lamp, hazard light, and turn signal functions.

Specifications

• Scale: 1/14
• Length: 692mm
• Width: 192mm
• Height: 330mm
• Weight: Approx. 3.9kg (with all equipment attached)
• Wheelbase: 433mm+103mm
• Tread: 156mm (Front), 138mm (Rear, Double Tire)
• Chassis: Aluminum & Polycarbonate Resin Ladder Frame
• Suspension: Front/Rear Leaf Springs
• Dampers: Front/Rear Aluminum Friction Dampers
• Drivetrain: Rear 2-Axle Drive
• Transmission: 3-Gear Transmission
• Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
• Diff Gear: 3-Bevel Diff.
• Motor: Type 540
• Tire Width: 22mm (Front/Rear)
• Tire Diameter: 83mm (Front/Rear)

Needed to Complete

• 4-channel transmitter & receiver
• MFC-01
• 2 servos
• 7.2V battery pack & charger

Six types of semi-trailer, including semi-trailer, tank-trailer, and pole-trailer, are separately available and can be attached via the model's coupler.
