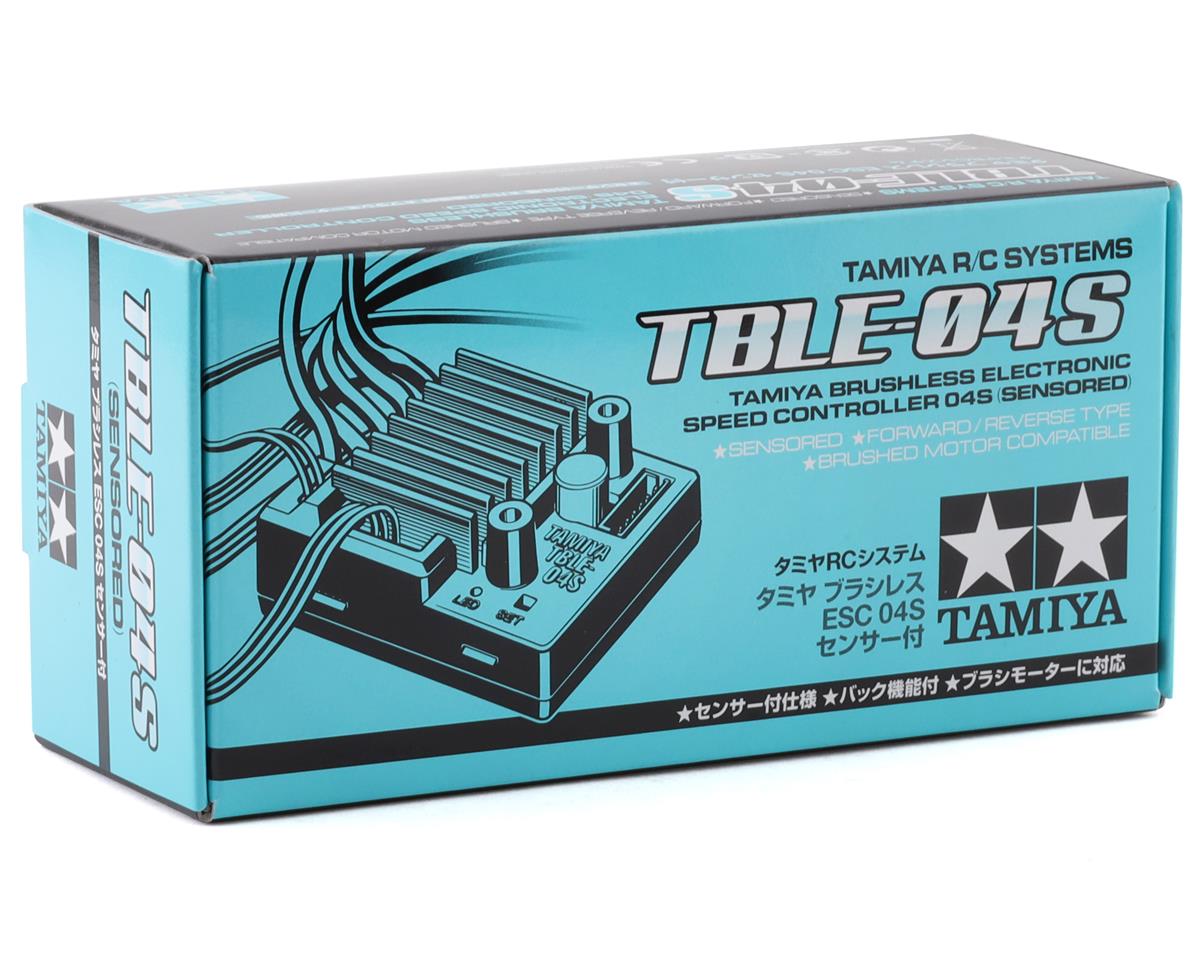

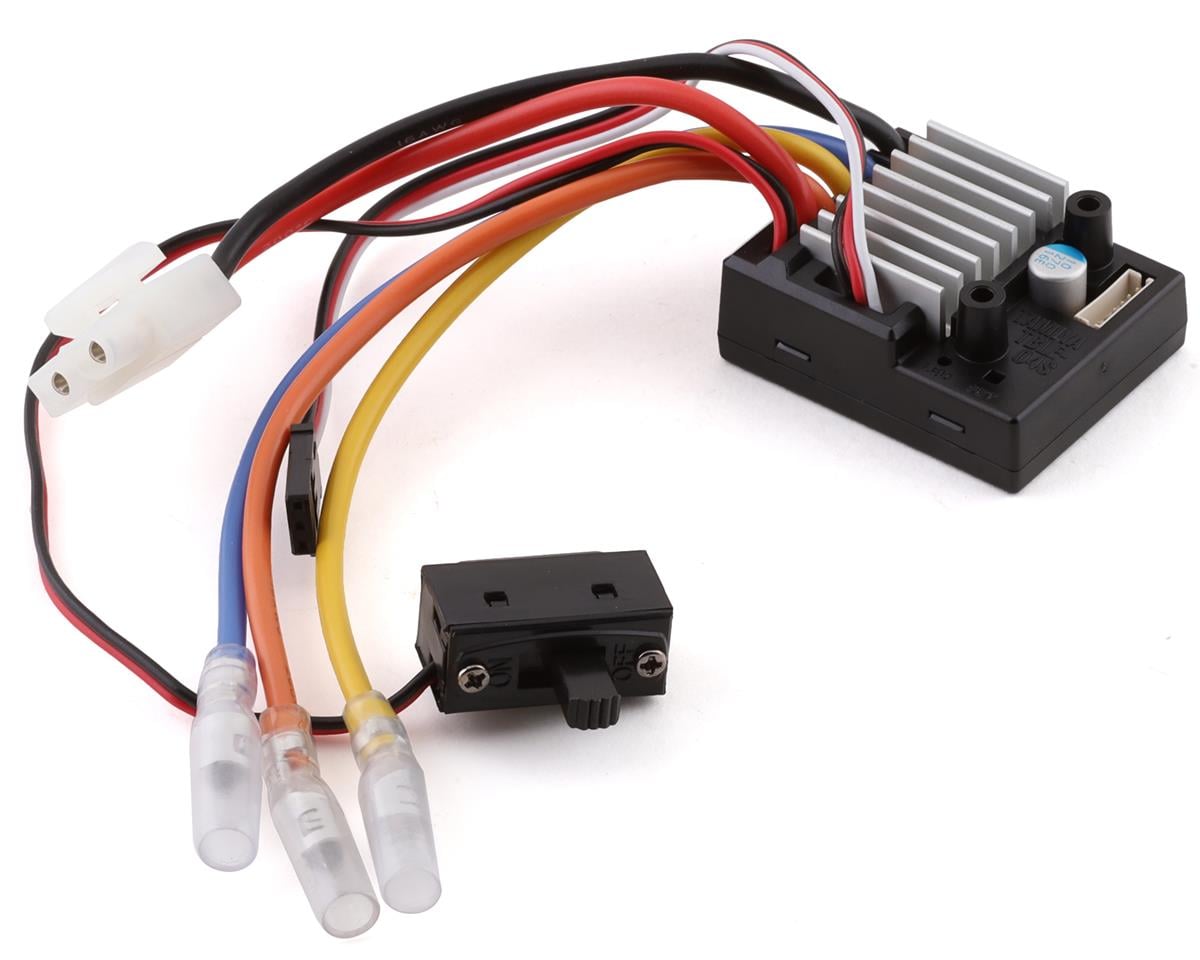

Tamiya 04S Sensored Brushless ESC

The Tamiya 04S Sensored Brushless ESC provides precise rotor-position detection for smoother motor response and more efficient power delivery. It is compatible with Tamiya sensored brushless motors of 21.5+ turns and Tamiya brushed motors 25 turns and over.

Features

• Adjustable high point, neutral brake and brake settings
• Choose from 10 different settings for neutral brake and brake
• Selectable battery cut-off, reverse and motor modes
• LED setup identification
• Overheating and overload protection functions
• Low battery cut-off setting cuts off at approximately 5.6 volts; best for Ni-CD, NI-MH and Li-FE battery chemistry
• High battery cut-off setting cuts off at approximately 6.2 volts; best for other battery chemistries

Specifications

• Dimensions: 41.5 x 33.4 x 18mm
• Maximum continuous current: 75A
• Input voltage: 6.6V - 7.2V
