SSD RC Front Axle Portal Delete Kit for Traxxas TRX-4 (Black)

The SSD RC Front Axle Portal Delete Kit is a CNC machined tuning option for the Traxxas TRX-4. It removes the portal boxes to reduce ride height by 13mm, lower the center of gravity and reduce track width by 12mm total—6mm per side.

Features

• CNC machined aluminum rear lockouts
• Anodized black
• Hardened steel stub axles
• Fits the stock TRX-4 rear axle case, rear shafts and hexes
• Reduces ride height by 13mm
• Lowers center of gravity and improves stability
• Eliminates gear reduction to increase speed
• Reduces track width by 12mm total, or 6mm per side

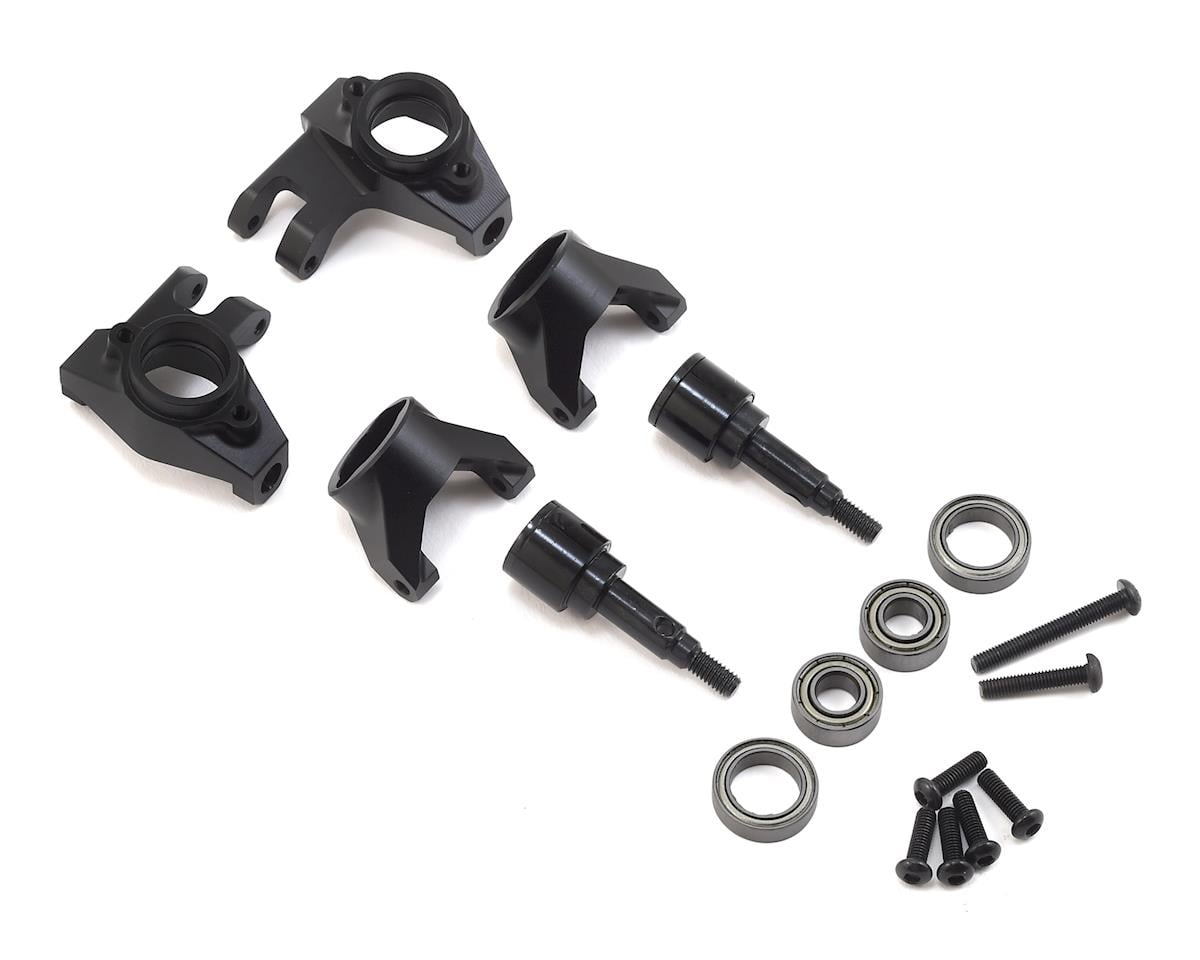

Includes

• (2) aluminum 8 degree C hubs, black: left and right
• (2) aluminum 8 degree components, black: left and right
• (2) steel stub axles
• (2) 10 x 15 x 4mm bearings
• (2) 6 x 13 x 5mm bearings
• (4) M3 x 10mm screws
• (1) M3 x 14mm screw
• (1) M3 x 25mm screw

Installation Notes

• This kit changes the direction the wheels spin, and the motor rotation will need to be changed.
• The body will need to be raised a few holes on the body posts.
• Bumpers can be raised by flipping the bumper mounts on the chassis.
