SSD RC 2-Speed Wraith Transmission Kit

The SSD RC 2-Speed Wraith Transmission Kit is a conversion kit for Axial Wraith applications, adding selectable gearing for higher wheel speed on flat terrain and improved low-speed control for technical crawling. It uses a CNC machined aluminum transmission case and motor mount with wide hardened steel 48 pitch gears.

Note: This is a conversion kit, not a complete transmission. Existing transmission components are required to complete the assembly. Shifters must be removed from the Wraith interior.

Features

• CNC machined aluminum transmission case
• CNC machined aluminum 3mm thick motor mount
• Wide hardened steel 48 pitch gears
• Hardened steel output shaft
• Shift servo mount fits standard and mini servos
• Same mounting as stock Axial Wraith and SCX10 transmission
• Fits stock Axial transmission input shaft
• Fits stock Axial transmission gear cover
• Direct fit into Axial Wraith

Specifications

• Internal 1st gear ratio: 4.91:1
• Internal 2nd gear ratio: 1.8:1
• Output shaft OD: 5mm
• Weight when fully assembled with shift servo: 335g

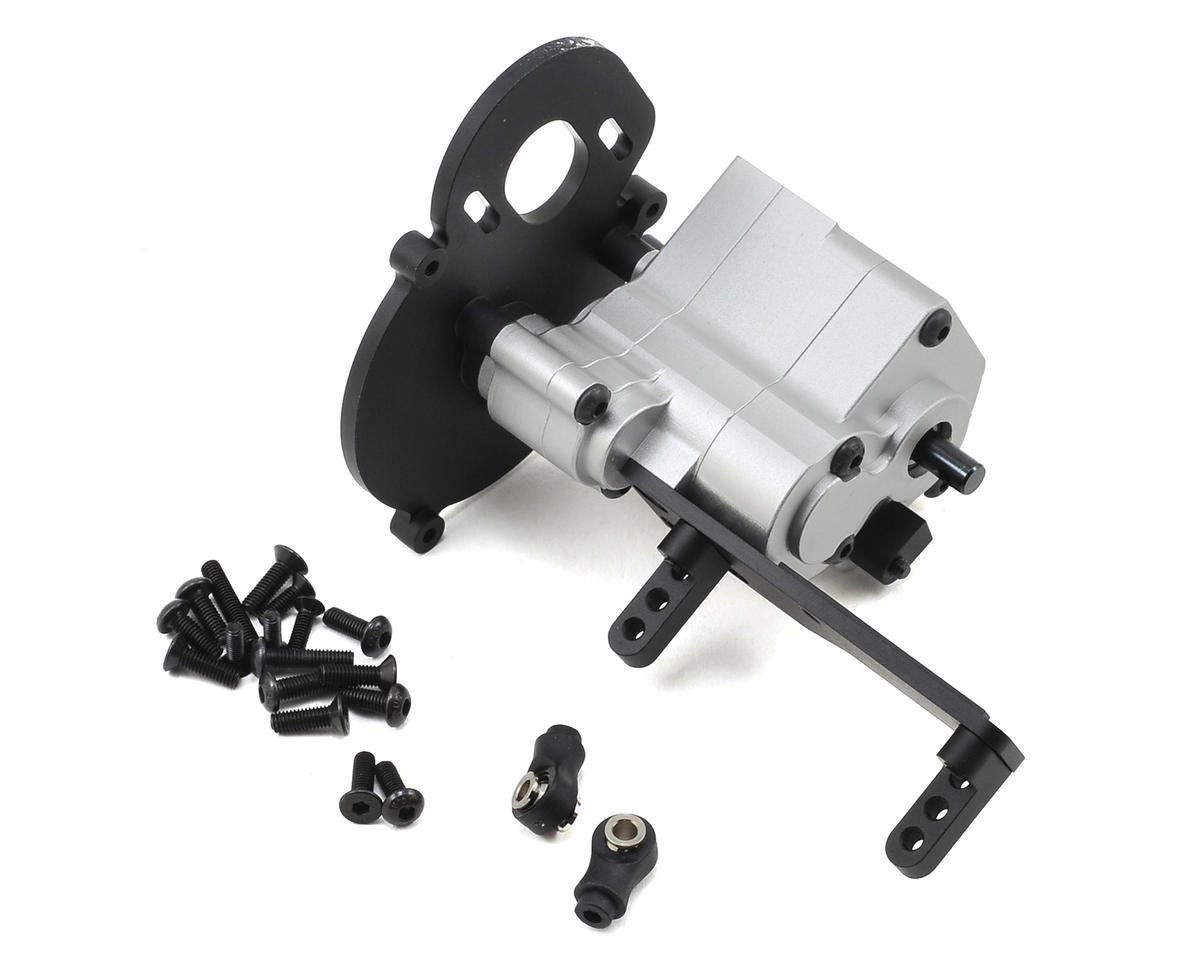

Includes

• 1 2 Speed Transmission assembled with motor mount
• 4 M3 x 10mm flat head screws
• 3 M2.5 x 6mm flat head screws
• 4 M3 x 8mm button head screws
• 2 M3 x 12mm button head screws
• 1 M3 x 15mm threaded set screw
• 2 3mm mini plastic rod ends

Needed to Complete

• Axial transmission input shaft (AXI31149)
• Axial 20T drive gear and pin (AXI30394, AXI30162)
• Axial Slipper plates and pads (AXI31026, AXI31068)
• Axial 56T 32P Spur gear (AXI31027)
• Axial 13T 32P Pinion gear (AXI30724)
• Axial Slpper spring (AXI30413)
• Axial Gear cover (AXI80078)

This kit can also be used on an SCX10, but shorter driveshafts are required. Assembly instructions are available in the resources tab. Replacement output shaft: SSD00088.
