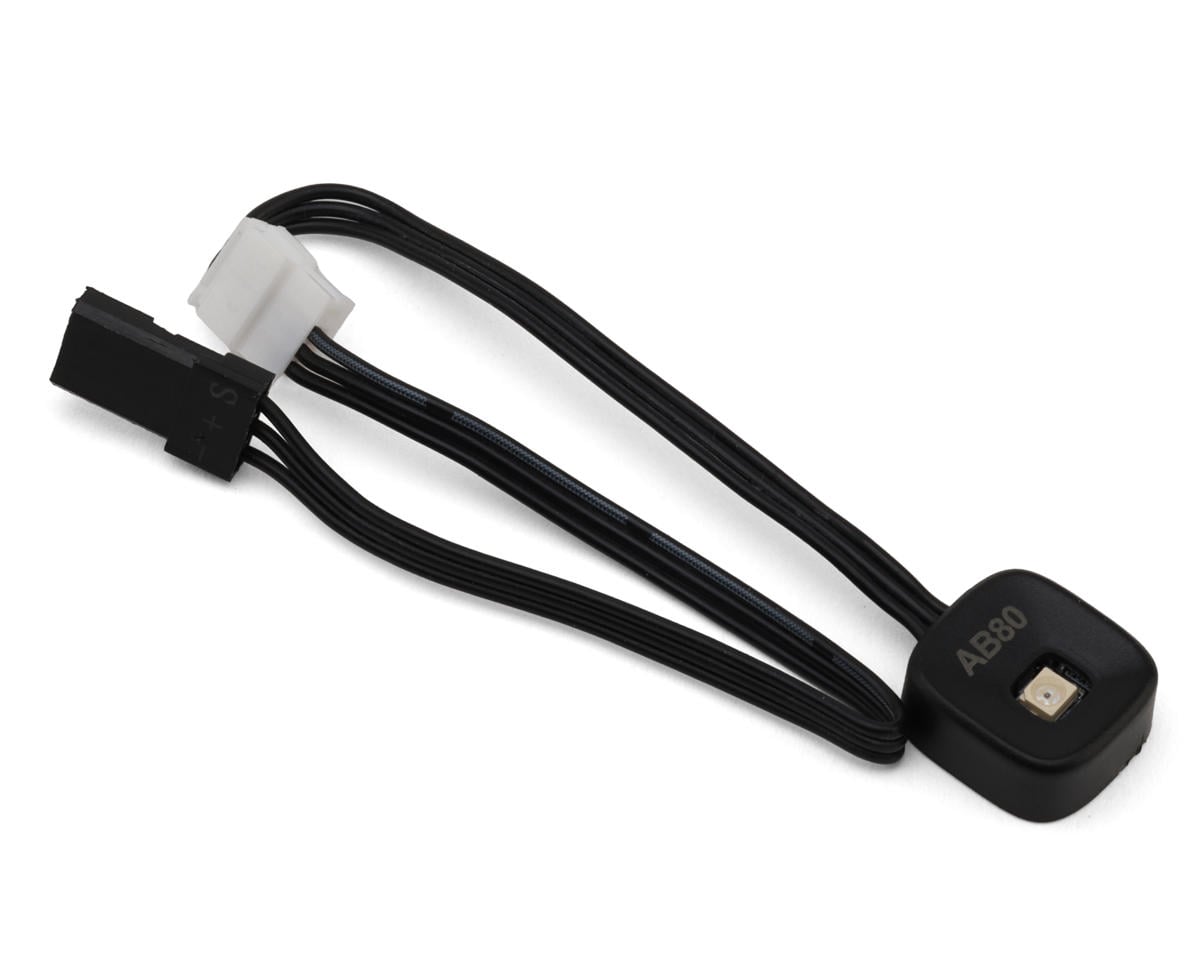

SkyRC LapWiz T03 Mini-Z Transponder

The SkyRC LapWiz T03 Mini-Z Transponder is designed for Kyosho Mini-Z vehicles and works with the SkyRC LapWiz Smart RC Lap Timing System (SKY-500048-01), sold separately. It uses infrared lap detection and connects to the Mini-Z ICS port through a JST-ZH 4-pin connector.

With a weight of 0.05oz (1.5g), the T03 adds minimal load to the vehicle. Its compact design supports plug-and-play installation for Mini-Z lap timing applications.

Features

• Compatible with SkyRC LapWiz System (SKY-500048-01)
• Designed for Kyosho Mini-Z vehicles
• Uses accurate infrared lap detection
• Connects via JST-ZH 4-pin connector
• Installs with plug-and-play simplicity

Specifications

• Application: Mini-Z
• Input Voltage: 3-15V DC
• Detection Range: 16.4ft (5m)*
• Controller Dimensions: 0.59x0.55x0.24in (15x14x6mm)
• Cable Length (with extension): 7.56in (192mm)
• Connector: JST-ZH 4-Pin
• Weight: 0.05oz (1.5g)

*Testing was done under standard indoor conditions. Detection range may vary with lighting conditions, infrared interference, transponder placement, and vehicle speed.

Includes

• (1) LapWiz T03 Mini-Z Transponder
