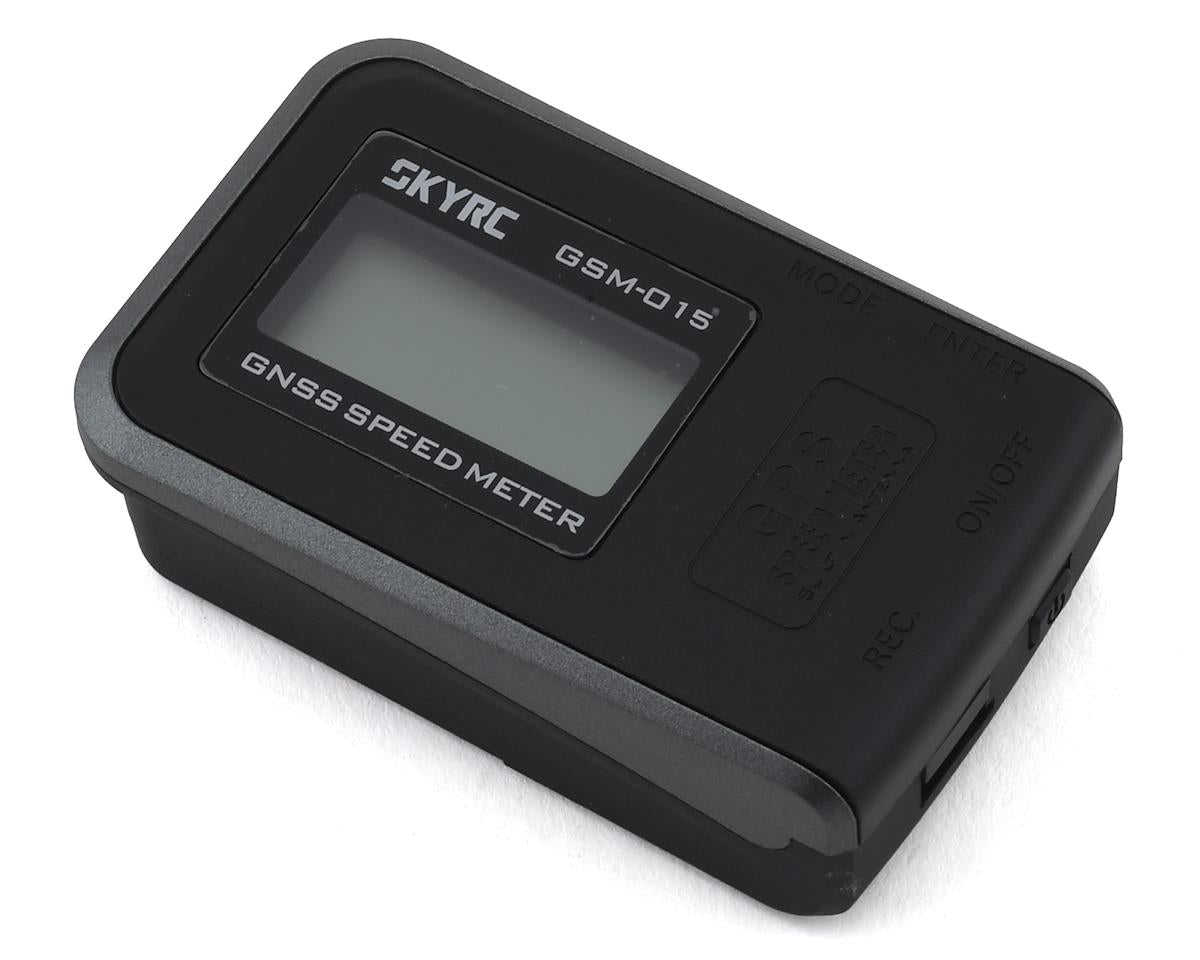

SkyRC GPS Speed Meter & Data Logger

The SkyRC GPS Speed Meter & Data Logger records model speed, altitude, total mileage/kilometer, and longitude/latitude information for later review. Its compact GPS module uses a hidden built-in antenna and weighs 41g.

Use the SkyRC GPS Logger software to transfer recorded data to a PC, view track data in Google Earth, select English or Chinese, switch between Metric and Imperial measurements, choose the GPS update rate, and upgrade firmware.

Features

• Compact design
• Top speed memory
• Peak altitude memory
• GPS coordinates
• Built-in 4M flash with recording time of 6 hours
• UTC timestamp logged for each track point
• Built-in rechargeable LiPo battery 200mAh with operating time of 150 minutes
• Supports Metric and Imperial systems of measurement
• PC link for data logging and Google Earth
• Firmware upgradeable

Specifications

• Receiver: L1, 1575.42 MHZ
• Frequency: 1.023 MHZ
• Update frequency: 1 Hz
• Antenna type: Built-in
• Satellite signal reception sensitivity: -159dBm
• Dimensions: 65.7x39.6x20.8mm
• Weight: 41g
• Operating temperature: 0° to +50°
• Storage temperature: -10° to +60°
• Operating humidity: 5% to 90%
