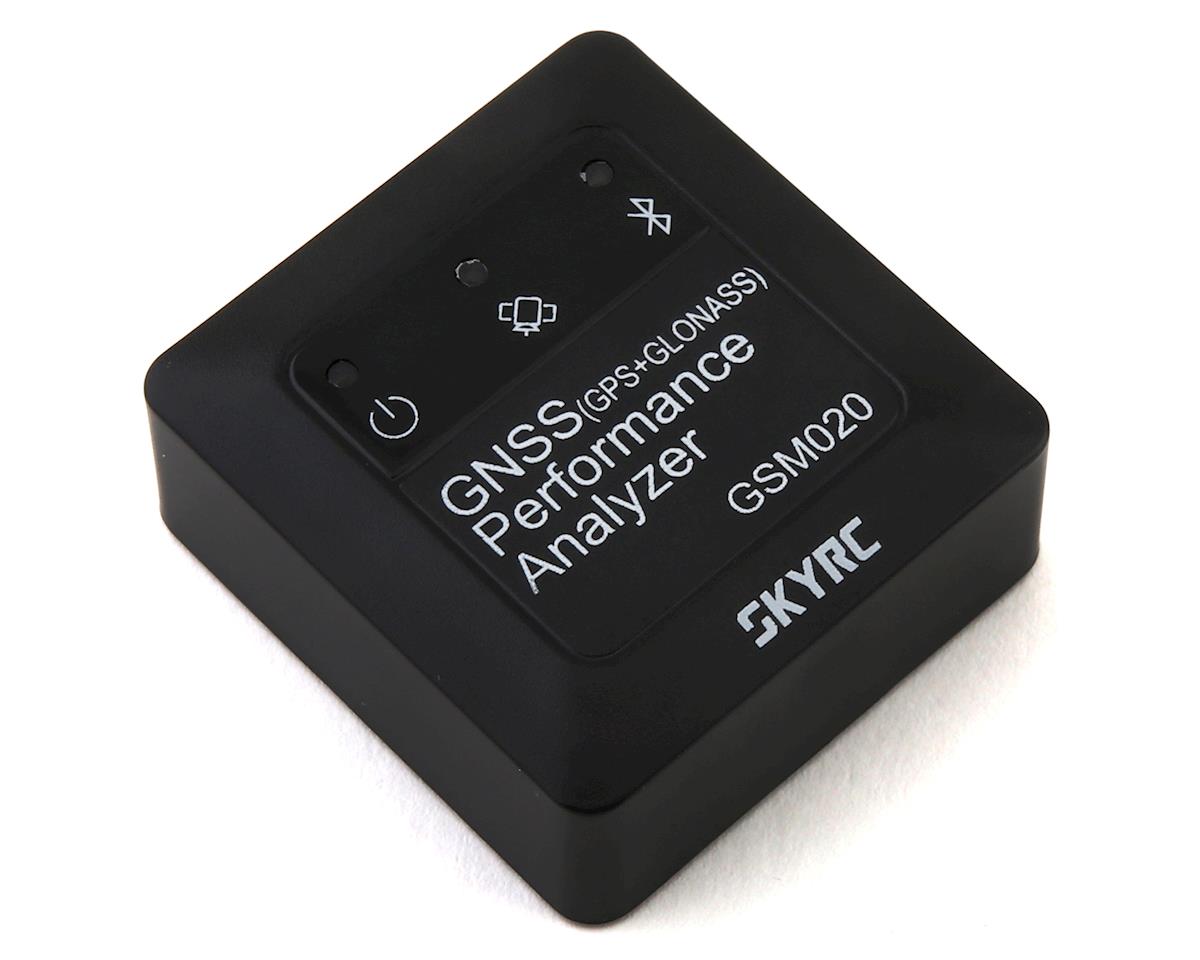

SkyRC GNSS Performance Analyzer Bluetooth GPS Speed Meter & Data Logger

The SkyRC GNSS Performance Analyzer Bluetooth GPS Speed Meter & Data Logger records RC vehicle and aircraft performance data in a compact device. Use the free mobile app to view results in real time, review stored runs, and measure speed, distance, elapsed time, altitude, and G-forces.

Measurement Modes

• Drag Racing: Set start and finish distances to measure time to the finish line, with built-in logging for reviewing data.
• Track Racing: Log speeds and G-forces over time to help evaluate handling and setup changes.
• Flying: Measure average speed, maximum speed, time elapsed, distance, and altitude.

Features

• Improved accuracy using GPS and GLONASS satellite constellations
• Up to 5hrs of use per charge
• Built-in 1M memory stores up to 50 runs
• Metric or imperial units
• Visual LED indicator
• 10 Hz update frequency
• Compact size for easy installation

Specifications

• Dimensions: 1.57x1.53x0.62in (40x39x16mm)
• Weight: 0.035oz (38g)
• Concurrent Reception: GPS & GLONASS
• Receiver: L1, 1575.42 MHZ
• Antenna Type: Built-In
• Satellite Signal Sensitivity: -167dBm
• Operating Temperature: 0°C - +40°C
• Storage Temperature: -10°C - +70°C
• Operating Humidity: 5% - 90%

Includes

• (1) GPS Speed Meter/Data Logger

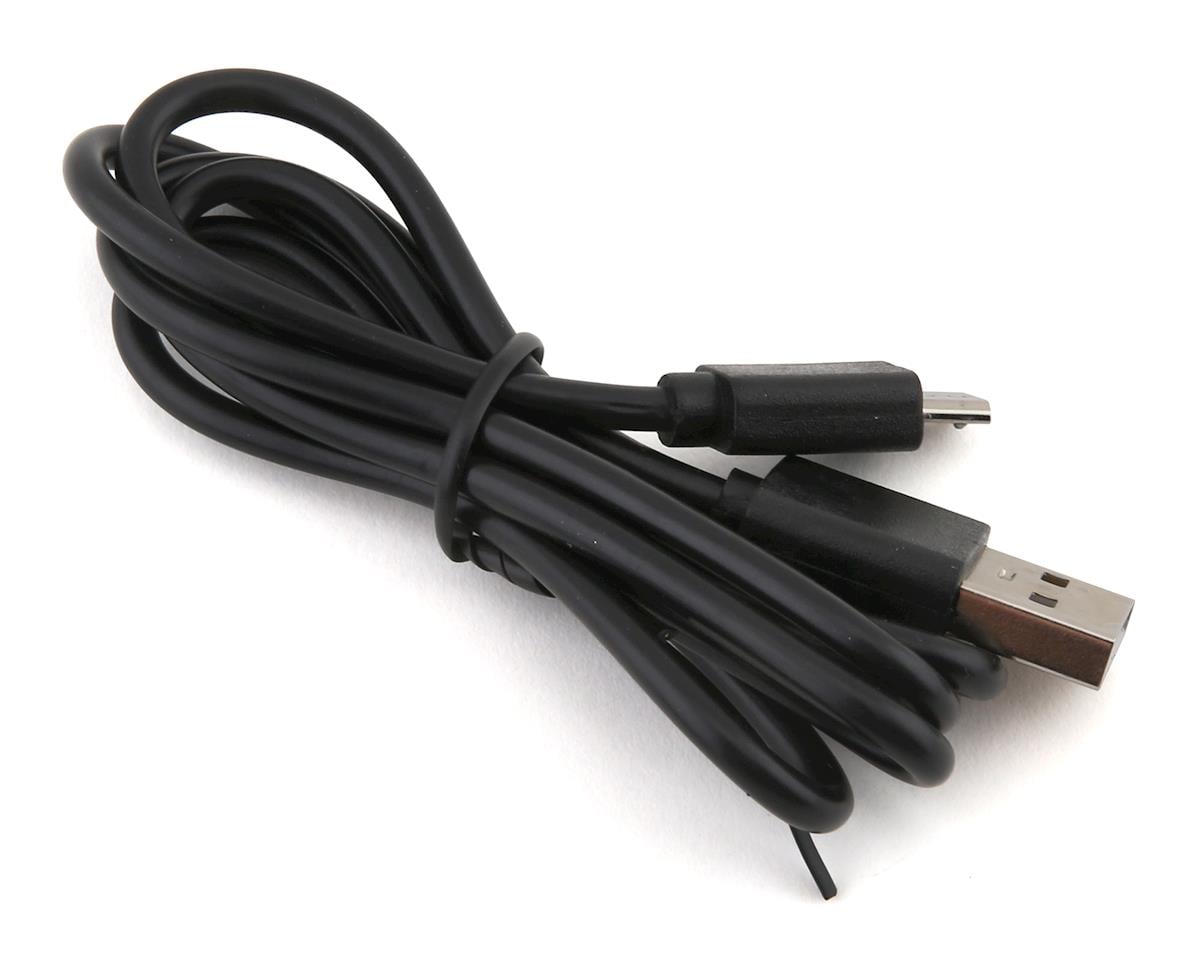

• (1) USB Charge Cable
