SkyRC Digital Airplane CG Gauge & Angle Sensor Combo

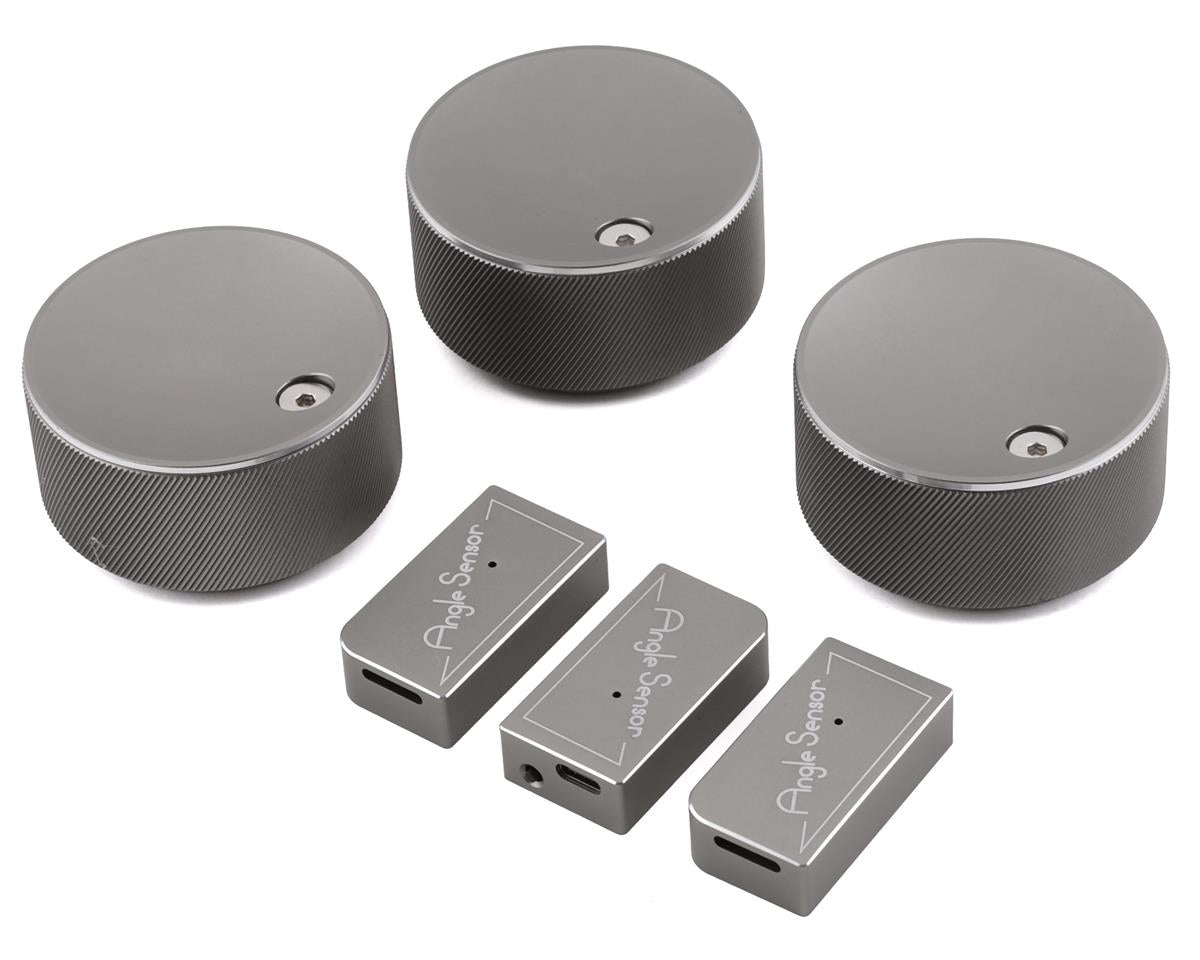

The SkyRC Digital Airplane CG Gauge & Angle Sensor Combo measures the center of gravity and control-surface angles of fixed-wing aircraft. Three weighing modules connect wirelessly to a smartphone through Bluetooth and the RC Gears app, while three angle-gauge modules help check control-surface throw and relative angles.

CG Gauge

• Measures aircraft weight and center of gravity
• Maximum load: 20kg/module
• Measuring accuracy: ±3g
• Display resolution: 1g/0.01oz
• Working voltage: 3.4-4.2V
• Working current: ≤15mA
• Bluetooth 5.0 connection
• Built-in 3.7V 10440 rechargeable LiPo battery

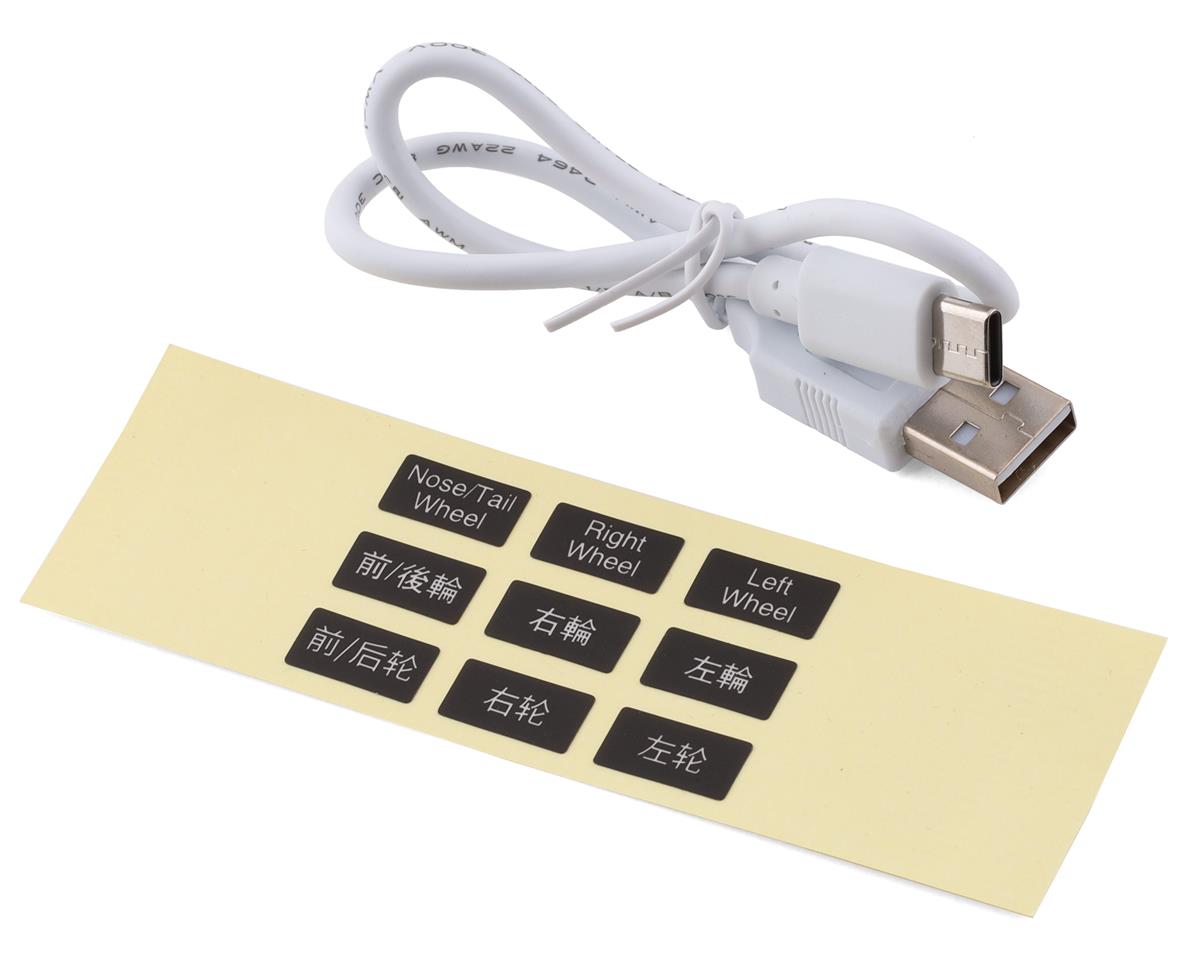

• USB Type C charging interface

Angle Gauge

• Measures control-surface angles, including rudder maximum value, mixing control-surface relative angle, and aileron differential angle value
• Measuring accuracy: ±2°
• Travel accuracy: ±0.1mm
• Working voltage: 3.4-4.2V
• Working current: ≤10mA
• USB Type C charging interface

Construction and App Features

• Real-time data is displayed and recorded through the RC Gears app
• High-hardness aluminum case with CNC machining
• Arc-shaped weighing-module tops help prevent wheel sliding and center the wheel
• Low-voltage protection at ≤3.4V, indicated by a flashing red light
