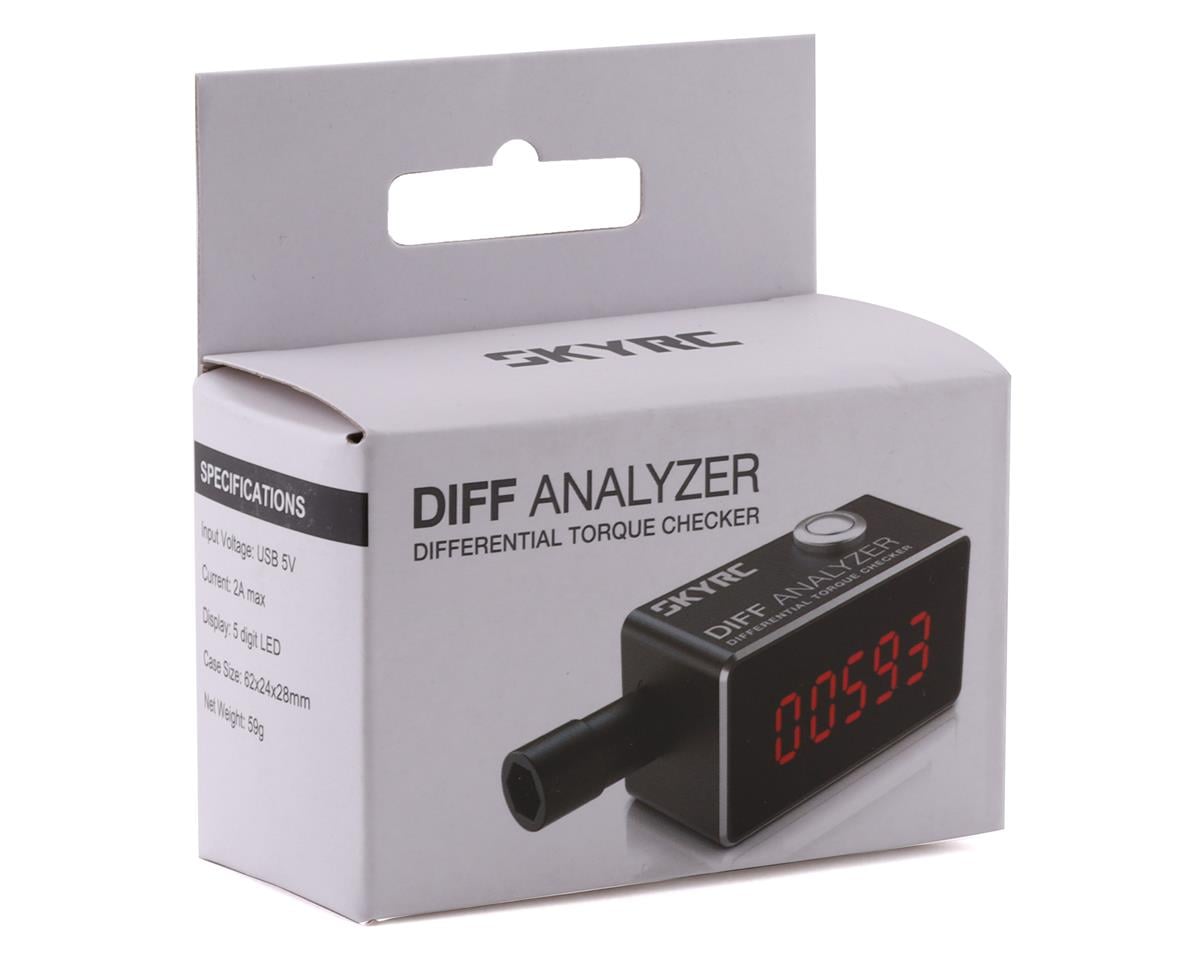

SkyRC Differential Analyzer

The SkyRC Differential Analyzer provides numeric measurements for setting up and fine-tuning differential hardness on 1/10th scale cars. Use the readings to compare differentials and reproduce a setup after rebuilding, without relying on feel by hand.

Features

• Displays a numeric value for the differential being tested
• Test duration is around 3-5 seconds
• Powered by any universal Micro USB output, power bank, or regular Micro 5V USB port
• Weighs 59 grams and measures 54x28x24.8mm
• Precision machined aluminum enclosure

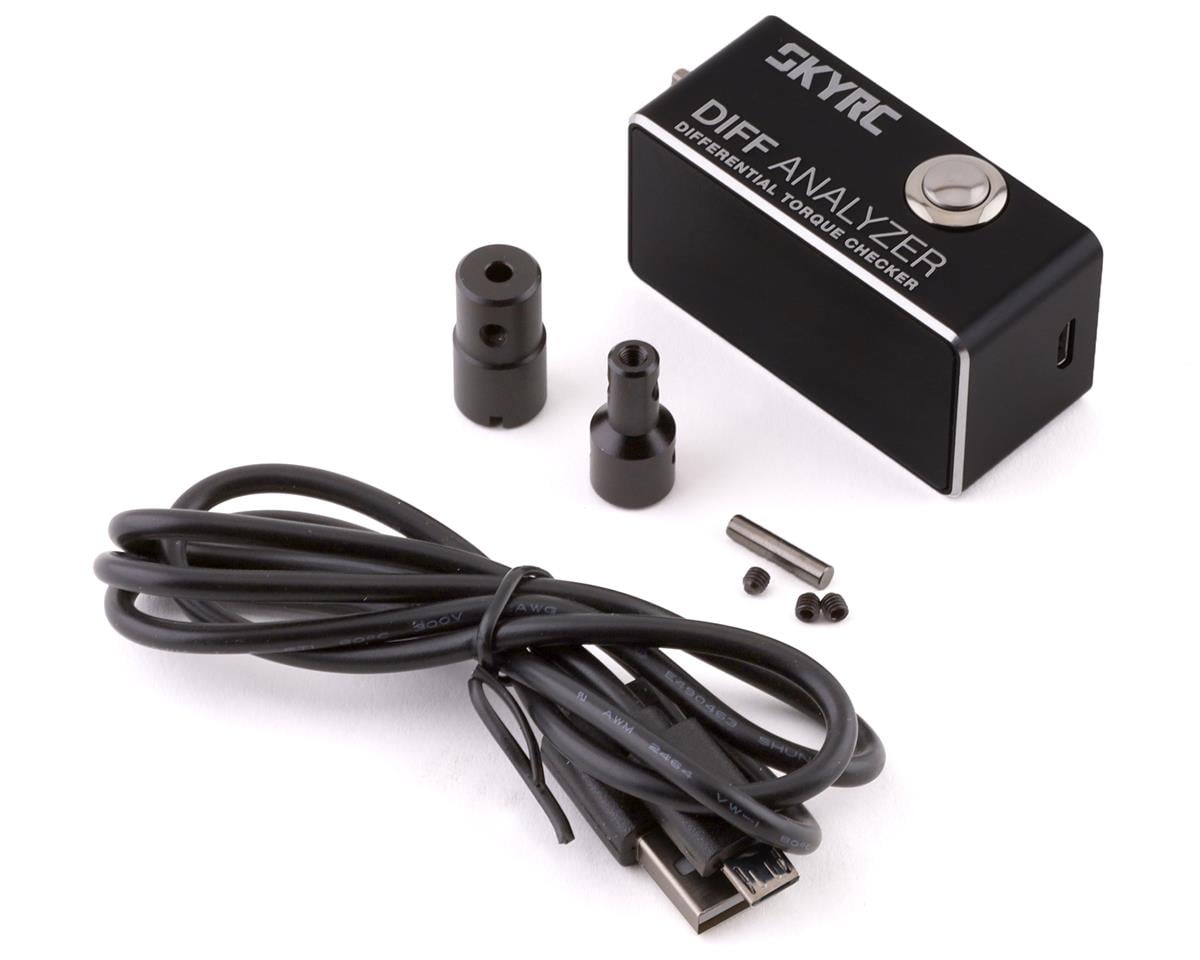

• Includes two 1/10th scale adapters: a hex type adapter for measuring from the wheel nut and a pin type adapter for measuring from the diff outdrive

Usage Notes

Connect the analyzer to a power bank or regular Micro 5V USB port, connect the differential, and press the power button. Repeat the process for other differentials to compare their numeric values.

Diff oil viscosity is sensitive to temperature, so ambient temperature variations can affect measurement values. Testing in similar temperature environments is recommended.

Adapters for 1/8th scale and Mini-Z are available separately and are not included.
