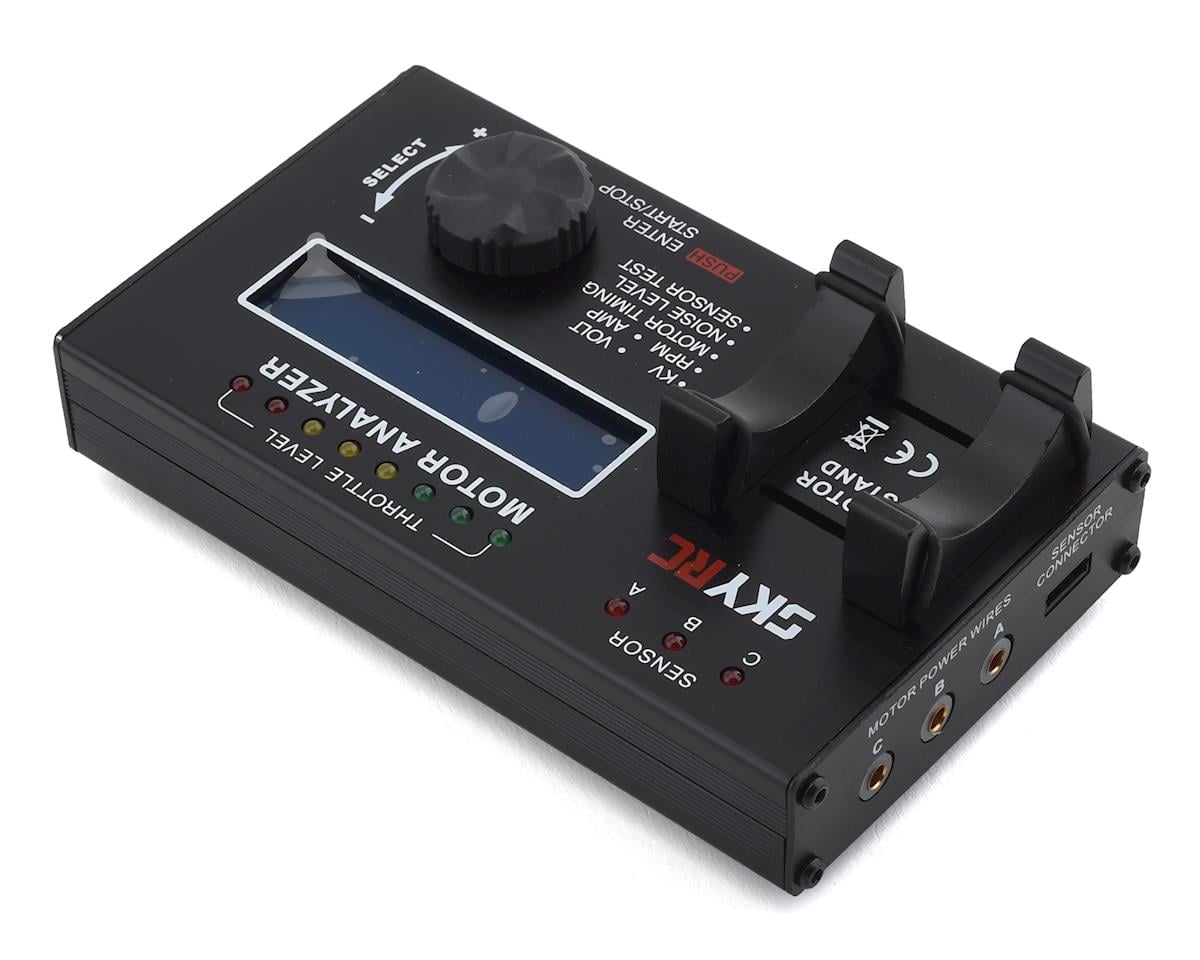

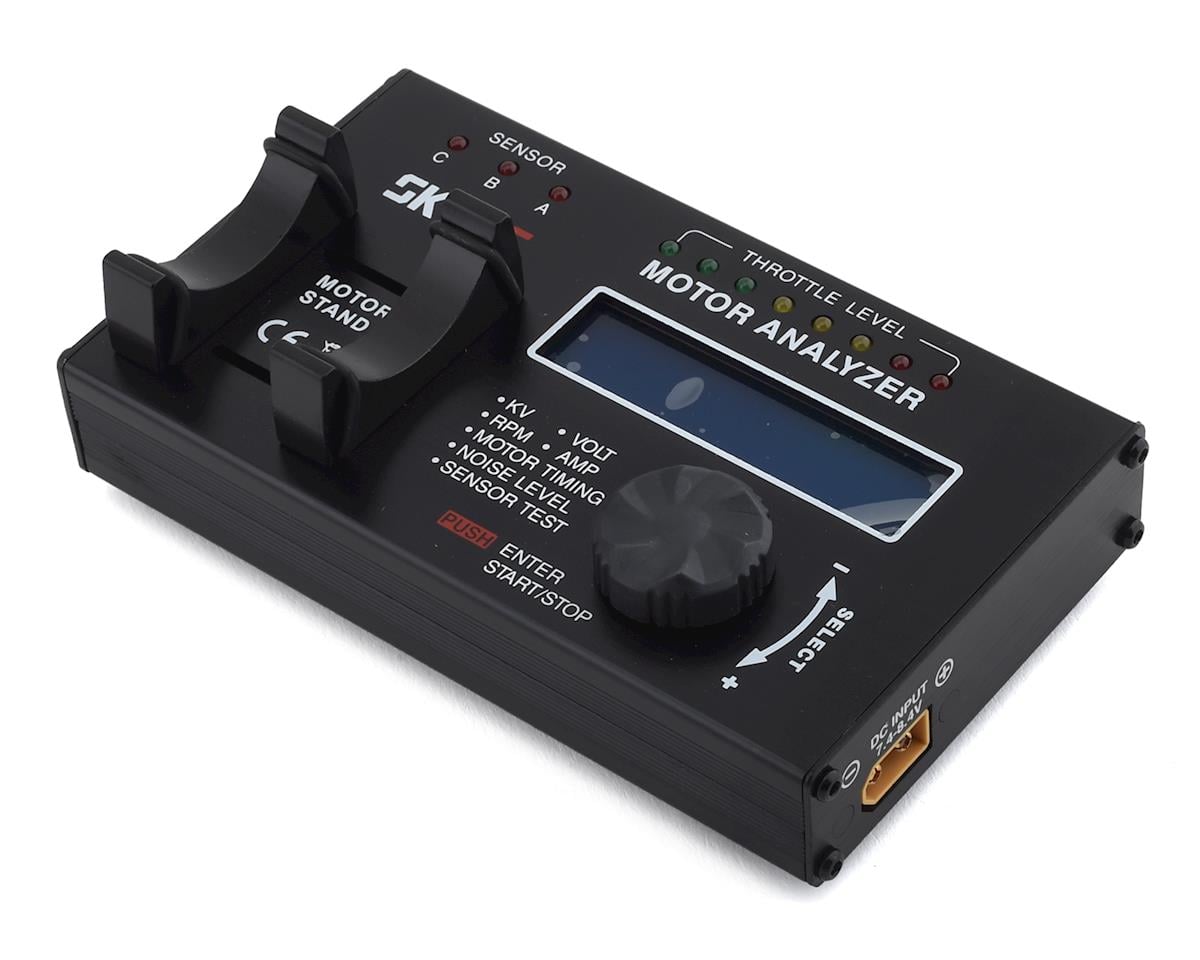

SkyRC Brushless Motor Analyzer (Sensored & Sensorless)

The SkyRC Brushless Motor Analyzer measures key performance values for sensored and sensorless brushless motors, including KV, voltage, RPM, current draw, motor timing, vibration noise level and Hall effect sensor function.

Features

• KV / VOLT / RPM / AMP: Displays rotor RPM per volt, input voltage, rotor revolutions and current drawn at a selected throttle power level.
• Motor Timing: Measures average physical endbell timing from 0 to 70 degrees.
• Noise Level: Measures motor vibration noise from 60dB to 120dB.
• Phase A, B and C Sensor Timing: Shows the actual timing of the three sensor elements.
• 2 x 16 character LCD with blue backlight and white text displays real-time measurement values.

Specifications

• Supported Motor: Sensor or Sensor-less Brushless Motor, 2 Poles to 36 Poles
• Input Voltage: 7.4-8.4V
• Suggested Battery: 7.4V 2S 1P LiPo Battery
• KV Value Accuracy: +/- 3%
• Motor Timing Accuracy: +/- 4%
• Motor Timing Range: 0-70°
• Noise Level Measurement Range: 60dB - 120dB
• Net Weight: 282gram (Without Cable)
• Length: 80.6mm
• Width: 136.5mm
• Height: 24.5mm

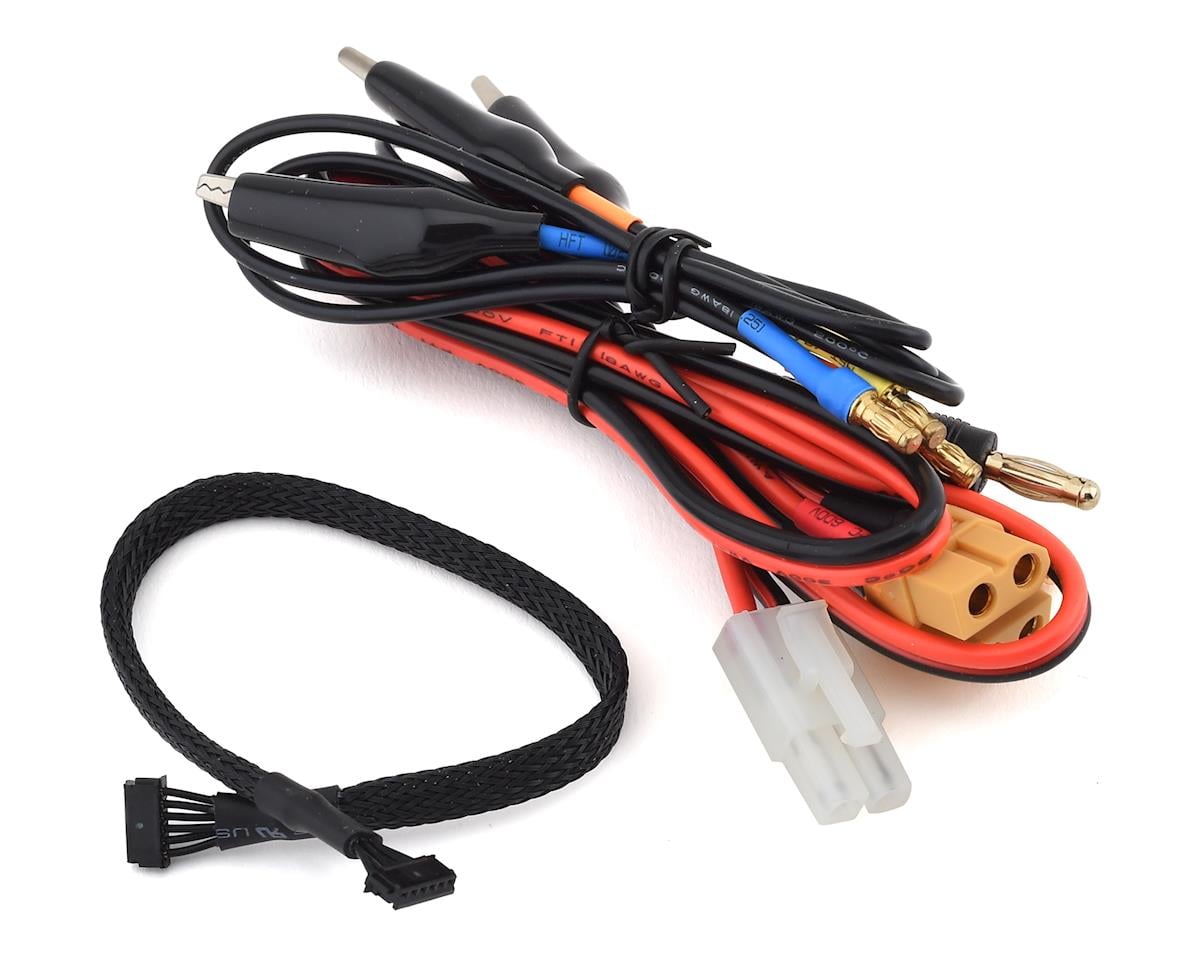

Includes

• (1) Brushless Motor Analyzer
• (3) Motor Cables
• (1) Motor Sensor Cable
• (1) DC Input Power Cable w/Banana Connector
• (1) DC Input Power Cable w/Tamiya Connector
• (1) Instruction Manual
