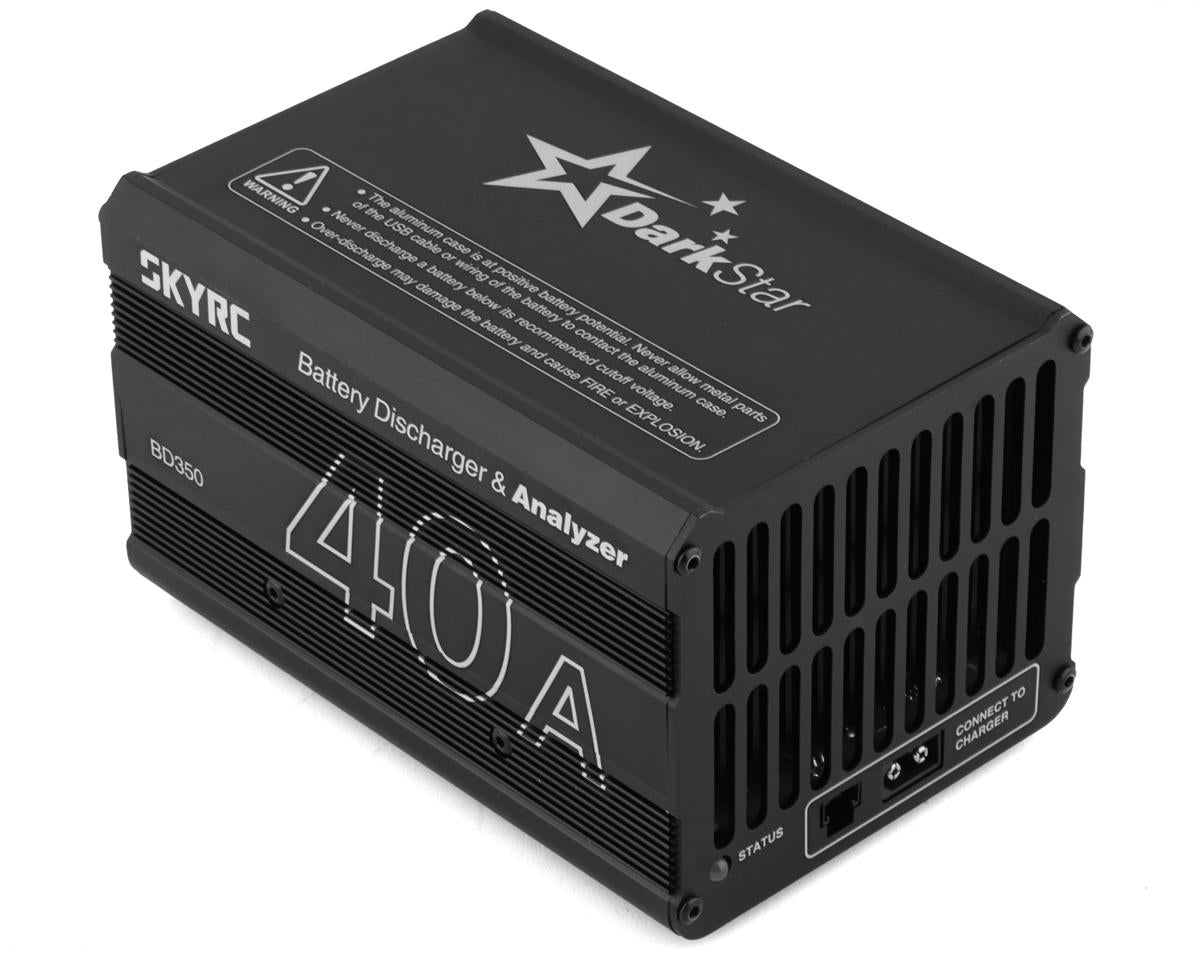

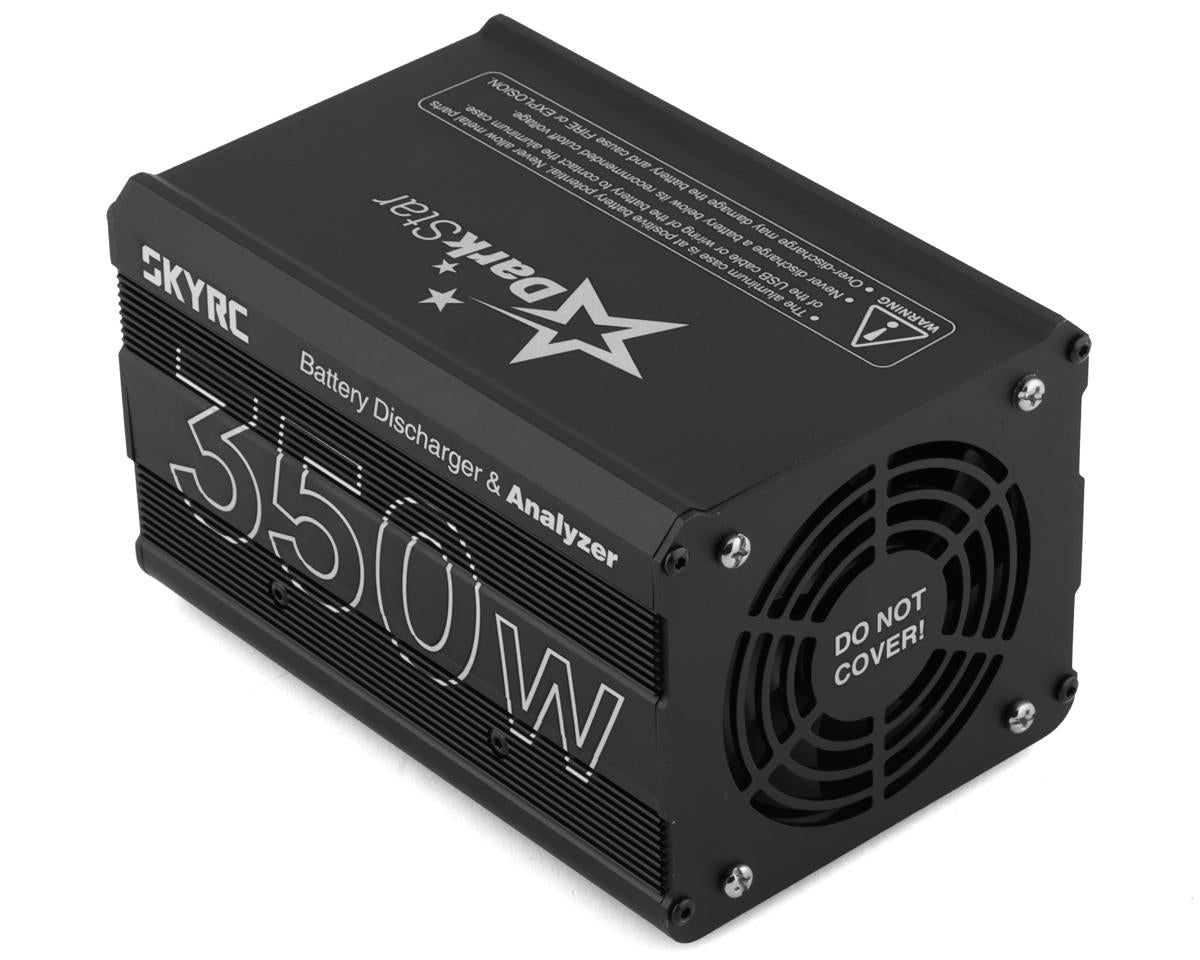

SkyRC BD350 Battery Discharger & Analyzer (40A/350W)

The SkyRC BD350 Battery Discharger & Analyzer is a 40A / 350W test instrument for measuring, graphing and comparing battery parameters. It supports discharge currents from 0.1-40A and discharge voltages from 3.0V-28.0V for precise battery capacity and performance testing.

Pair the BD350 with SkyRC T1000 and D200 NEO chargers, sold separately, to expand discharge capabilities. With compatible SkyRC Charger Master software, you can view or export battery discharge curves in real time and compare multiple curves for battery analysis.

Features

• 40A / 350W discharge power
• Compatible with SkyRC T1000 and D200 NEO chargers, sold separately
• Multi-protection for high voltage, low voltage, over-current and thermal conditions
• Red and green multi-color LED status indicator
• Fan for heat dissipation
• Compatible with SkyRC Charger Master software for viewing, exporting and comparing discharge curves

Specifications

• Operation Voltage: ±0.5V
• Discharge Voltage: 3.0V-28.0V
• Discharge Power: 40A / 350W
• Discharge Current: 0.1-40A
• Standby Current: <100mA
• Voltage Tolerance: (3-10V ±8mV) / (10-28V ±160mV)
• Capacity Tolerance: ±3%
• Over Temp. Protection: >95C
• Working Temp.: 32-104F (0-40C)
• Low Voltage Alert: <3.0V±0.5V
• High Voltage Alert: >28V±1V
• Working Humidity: 0%-75%
• Dimensions (LxWxH): 157x105x93mm
• Weight: 1240g

Includes

• (1) SkyRC BD350 40A / 350W Battery Discharger & Analyzer
