Savox SW-2294SG Aluminum 4S Direct Power Waterproof Brushless Servo (HV)

The Savox SW-2294SG is a waterproof, high-torque direct power brushless servo for 1/10 to 1/7 bashers and crawlers. Its CNC aluminum case supports heat dissipation, while steel gears provide strength and durability for heavier RC rigs.

Direct power is designed to handle a 10A+ current draw and helps deliver consistent torque and fast response under load. The servo features a 25T output shaft spline and includes an aluminum servo horn.

Features

• High-torque servo for RC crawlers, monster trucks, and heavier rigs
• Steel gears
• CNC aluminum case
• Direct power designed to handle 10A+ current draw
• Brushless motor
• Waterproof design

Specifications

• Application: 1/10 to 1/7 Bashers & Crawlers
• Input Voltage: 8.4-16.8V
• Operating Speed @ 16.8V: 0.11sec/60°
• Dynamic Torque @ 16.8V: 1041.5oz-in (75Kg-cm)
• Gear Material: Steel
• Motor Type: Brushless
• Output Shaft Spline: 25T
• Dimensions: 1.61x0.83x1.57in (41x21x39.9mm)
• Weight: 3.17oz (90g)

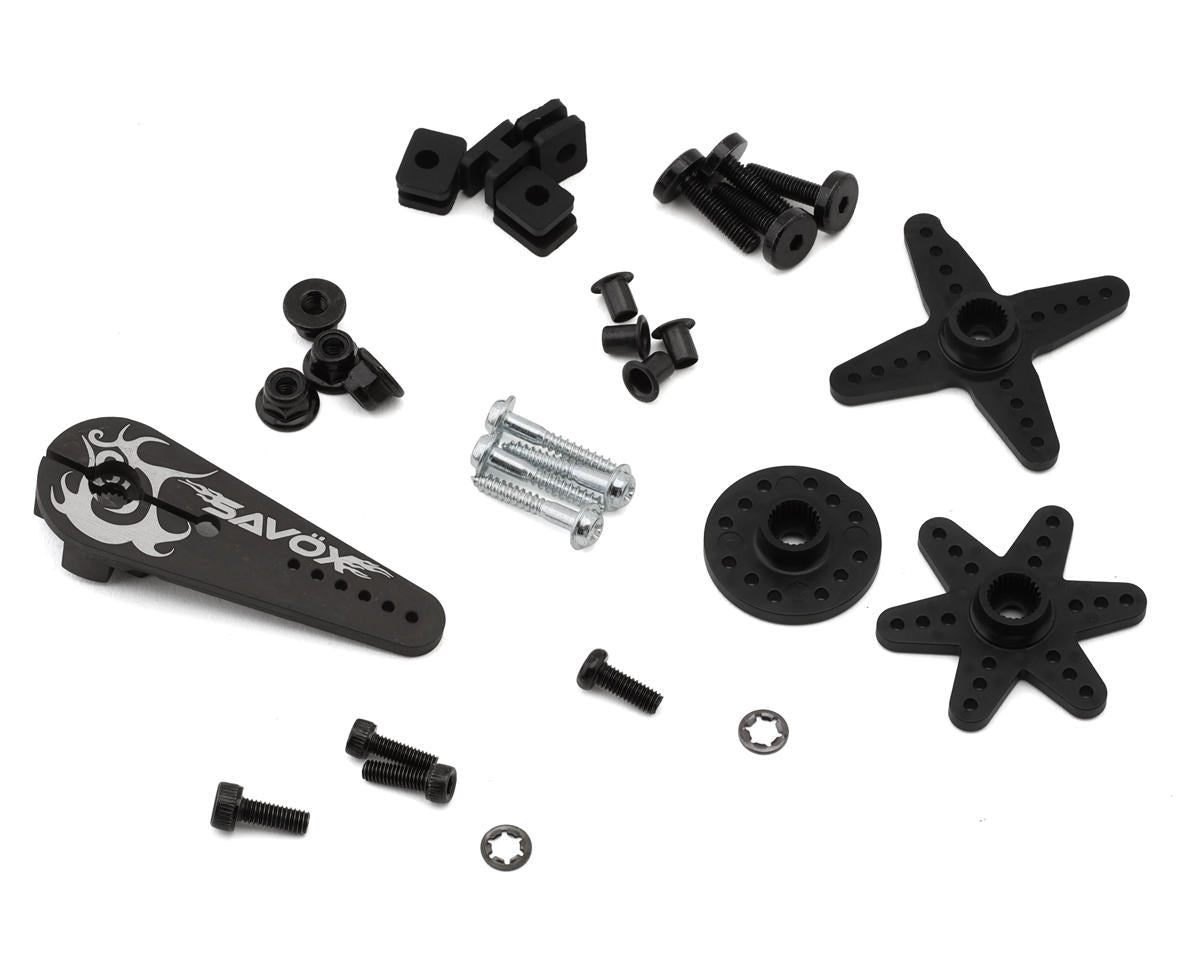

Includes

• (1) SW-2294SG Aluminum Direct Power Brushless Steel Gear Servo (HV)
• (1) Aluminum Servo Horn
• Servo Accessories
