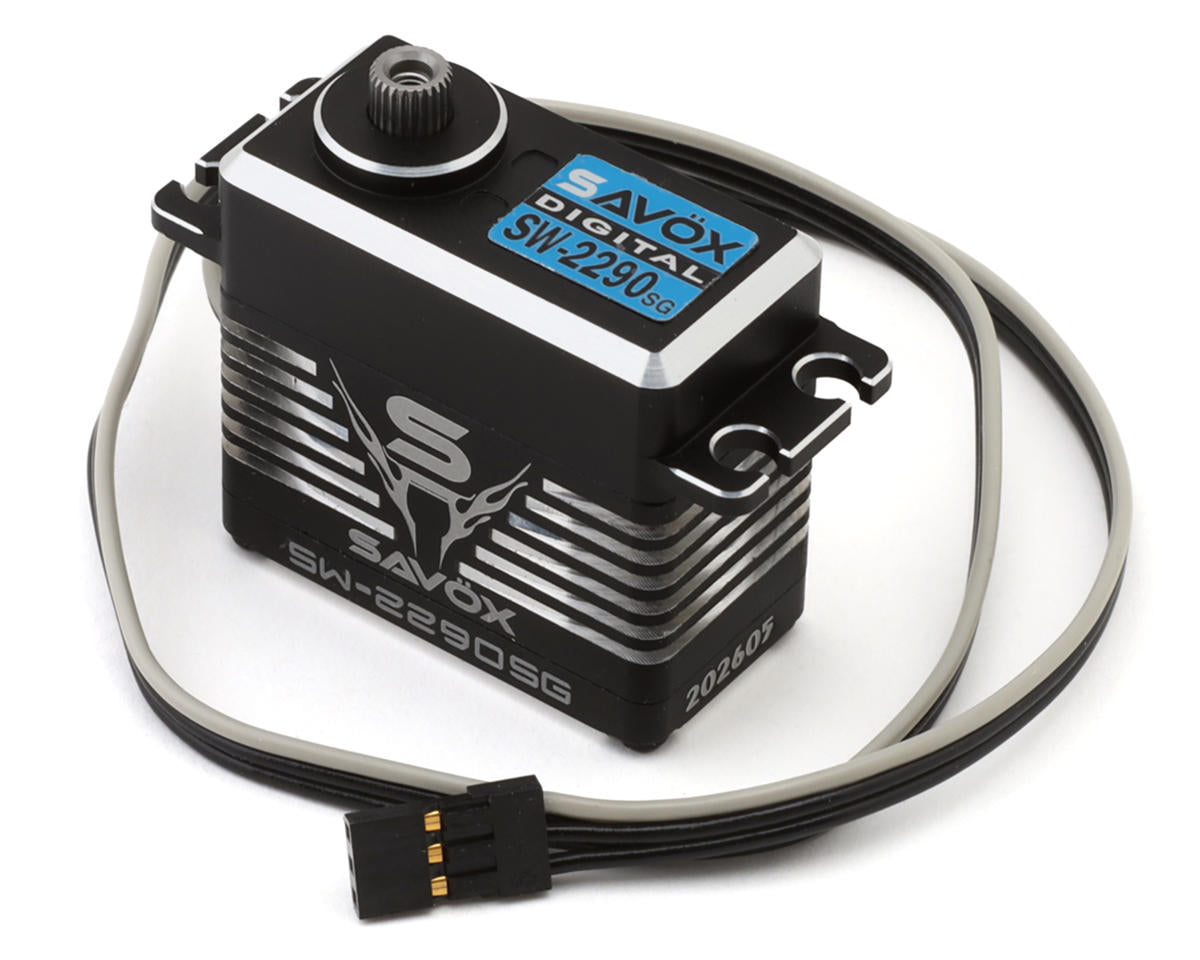

Savox SW-2290SG-BE Aluminum "Monster Torque" Waterproof Brushless Servo (HV)

The Savox SW-2290SG-BE Black Edition servo combines a brushless motor, full aluminum case, hardened steel gears, and IP67 waterproof protection for 1/10 to 1/7 bashers and crawlers. It delivers up to 972.1 oz-in (70kg-cm) of dynamic torque at 8.4V and supports an input voltage range of 6-8.4V.

Features

• Brushless motor delivers smooth and efficient performance
• Dynamic torque of up to 70.0kg (972.1 oz-in) at 8.4V
• Full aluminum case helps improve strength and heat dissipation
• IP67 waterproof design
• Hardened steel gears
• High-voltage compatibility
• Three precision ball bearings
• Designed for 1/10, 1/8, and 1/7 scale crawlers and bashers

Specifications

• Application: 1/10 to 1/7 Bashers & Crawlers
• Input Voltage: 6-8.4V
• Operating Speed @ 6.0V: 0.16 sec/60°
• Operating Speed @ 7.4V: 0.13 sec/60°
• Operating Speed @ 8.4V: 0.11 sec/60°
• Dynamic Torque @ 6.0V: 624.9oz-in (45kg-cm)
• Dynamic Torque @ 7.4V: 763.8oz-in (55kg-cm)
• Dynamic Torque @ 8.4V: 972.1oz-in (70kg-cm)
• Gear Material: Steel
• Motor Type: Brushless
• Output Shaft Spline: 25T
• Dimensions: 1.59x0.8x1.52in (40.3x20.2x38.7mm)
• Weight: 2.85oz (81g)

Includes

• (1) SW-2290SG-BE Aluminum "Monster Torque" Waterproof Brushless Servo (HV) (Black Edition)

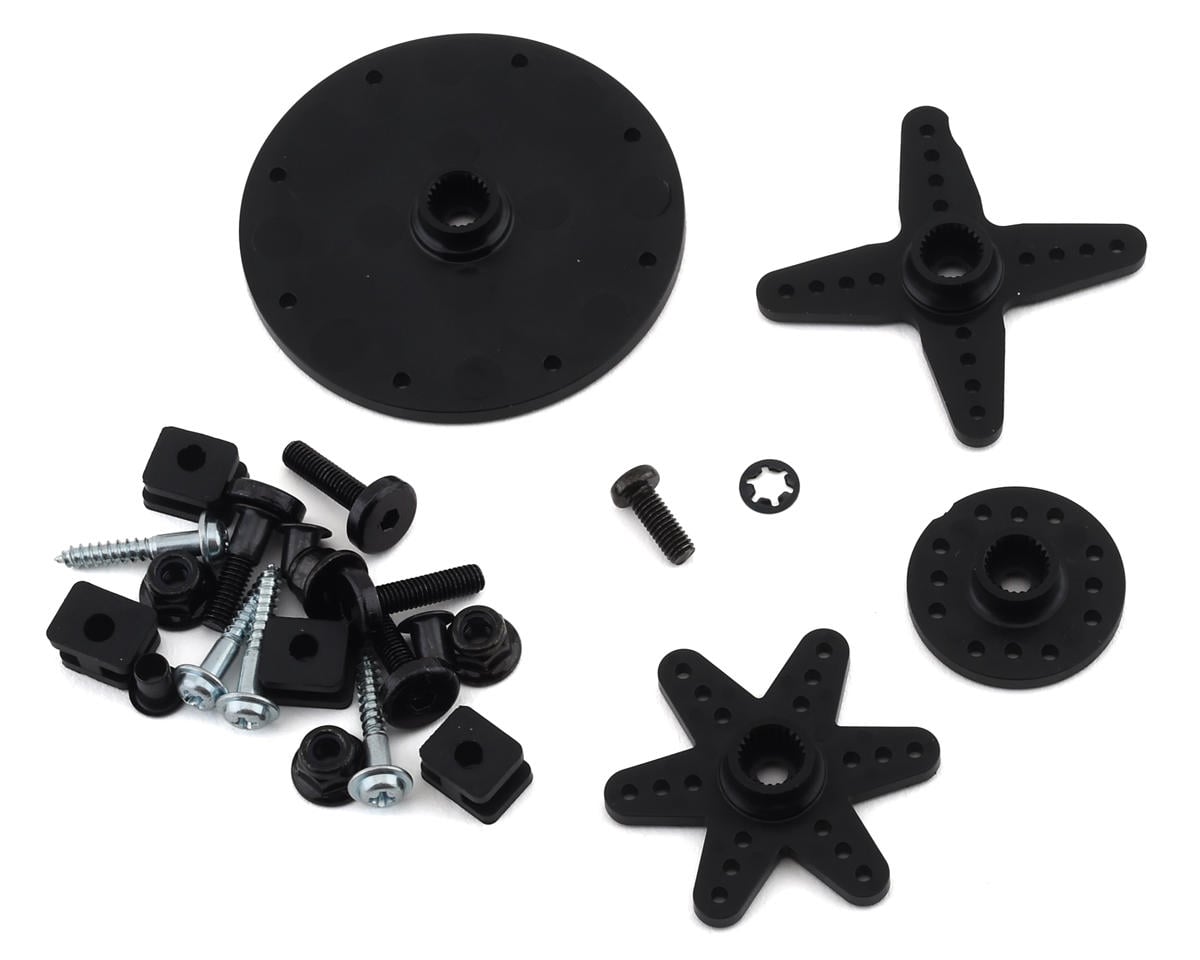

• Composite Servo Horns & Accessories
