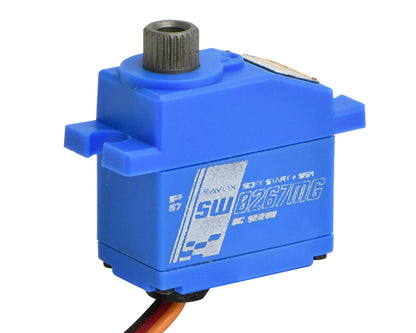

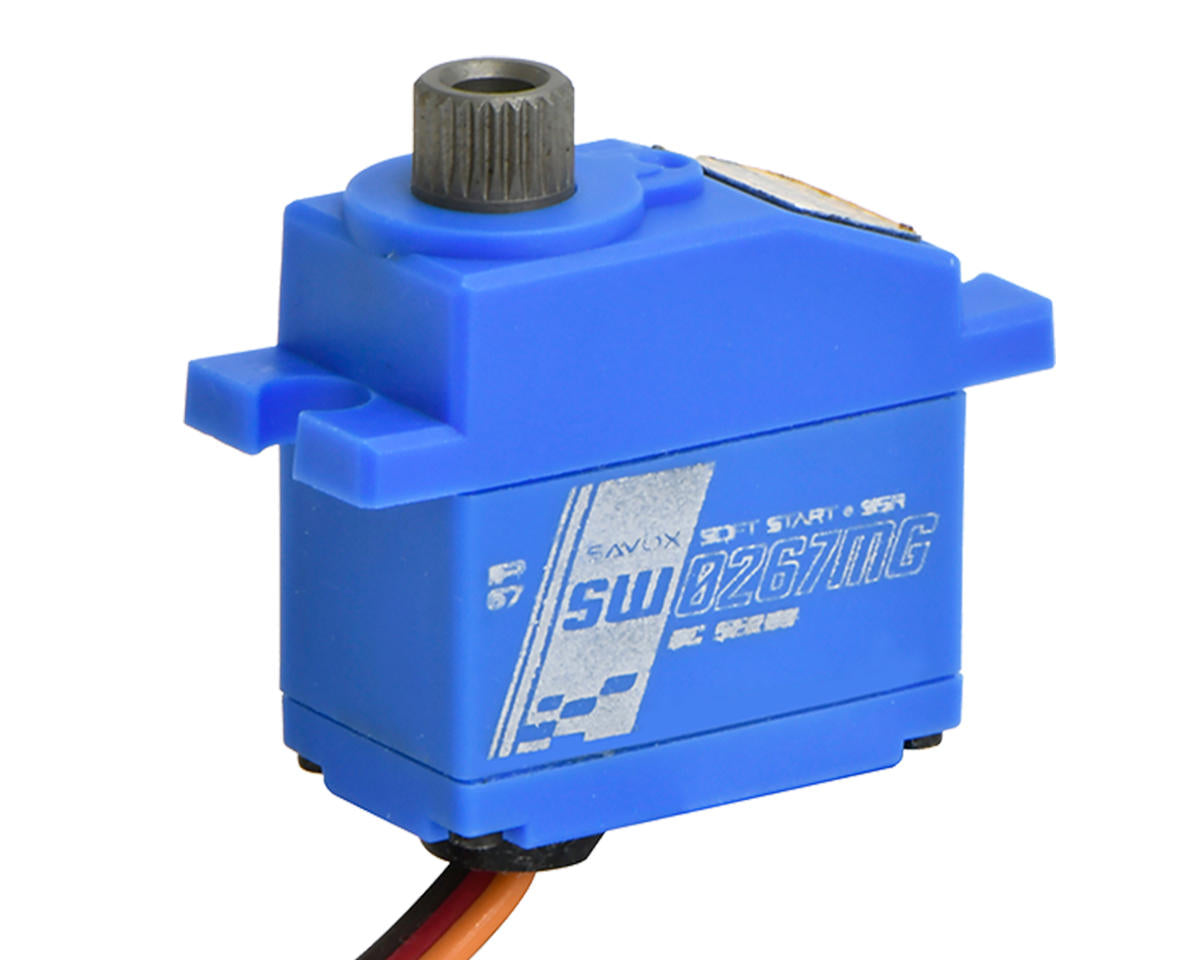

Savox SW-0267MGP Waterproof Digital Micro Servo

The Savox SW-0267MGP Waterproof Digital Micro Servo combines a compact micro-size case with waterproof construction, digital control, metal gears, and a 3-pole brushed motor. Its vertical wire exit design supports installation in tight chassis layouts, while the servo delivers up to 83.3oz-in (6kg-cm) of dynamic torque at 6.0V.

Features

• Waterproof case design
• Digital control response
• Dynamic torque up to 83.3oz-in (6kg-cm) at 6.0V
• 3-pole brushed motor
• Metal gear train
• Ball bearing supported output
• 25T output shaft spline
• Vertical wire exit design
• Direct fit for Traxxas 2065 replacement

Specifications

• Application: Micro
• Input Voltage: 4.8-6.0V
• Operating Speed @ 4.8V: 0.16 sec/60°
• Operating Speed @ 6.0V: 0.135 sec/60°
• Dynamic Torque @ 4.8V: 69.44oz-in (5kg-cm)
• Dynamic Torque @ 6.0V: 83.3oz-in (6kg-cm)
• Gear Material: Metal
• Motor Type: Brushed
• Output Shaft Spline: 25T
• Dimensions: 0.89x0.50x0.93in (22.6x12.6x23.5mm)
• Weight: 0.50oz (14g)

Includes

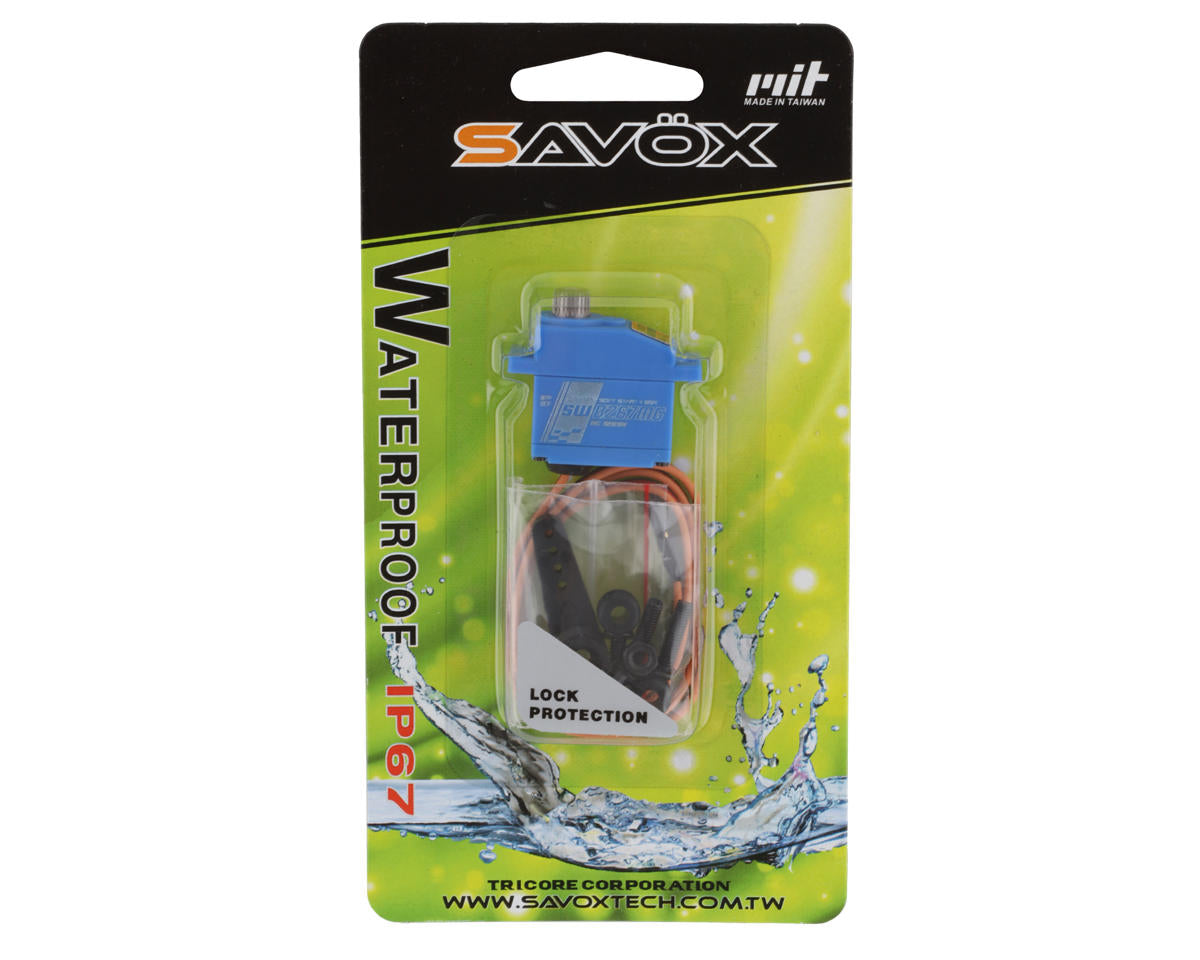

• (1) SW-0267MGP Waterproof Digital Micro Servo
• Servo Horns & Accessories
