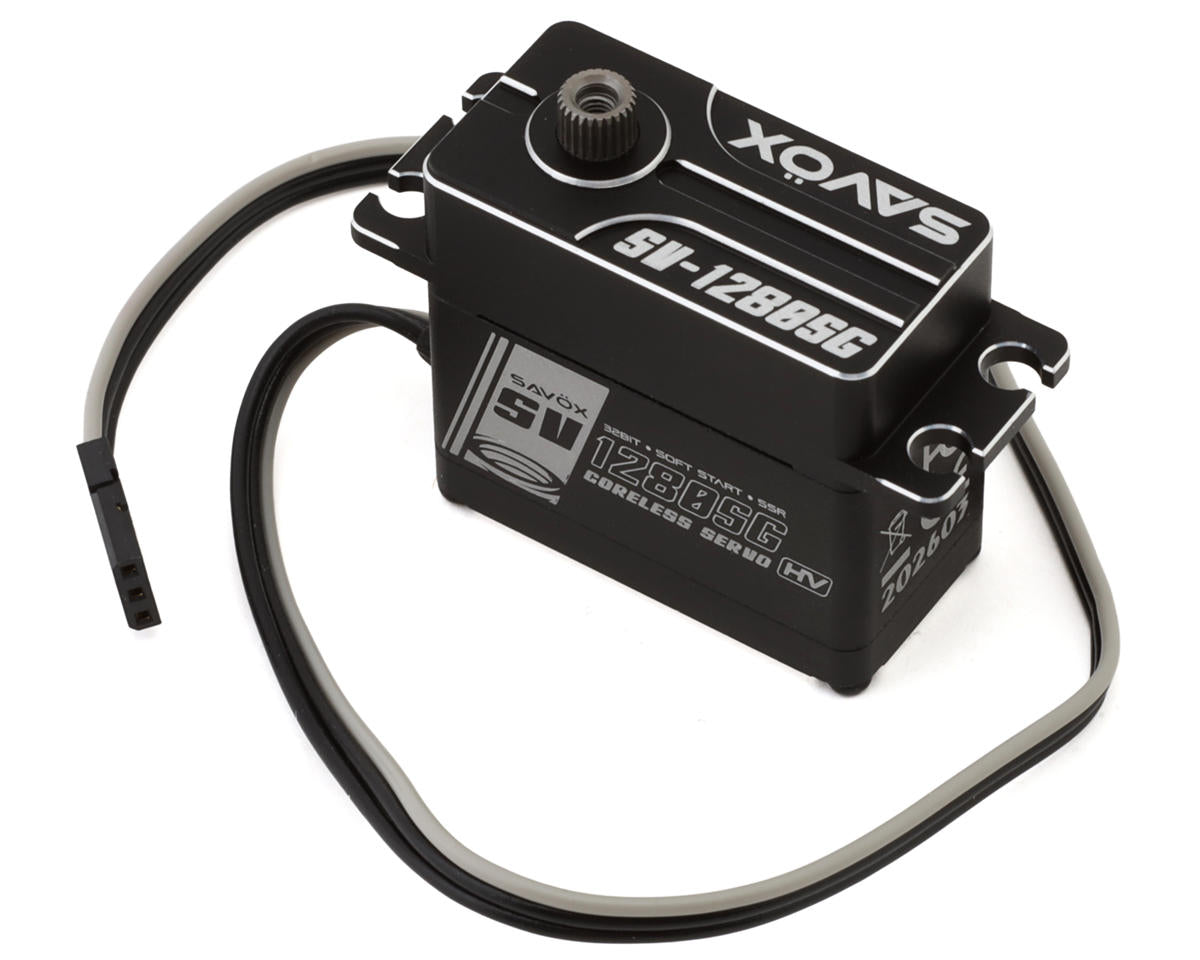

Savox SV-1280SGP Black Edition Digital "Monster Torque" Steel Gear Servo

The Savox SV-1280SGP Black Edition Digital "Monster Torque" Steel Gear Servo is a high-voltage servo with a digital coreless motor, CNC-machined steel gears, and an aluminum case. It delivers up to 55kg-cm (763.8 oz-in) of dynamic torque at 8.4V.

Features

• High-voltage operation up to 8.4V
• Dynamic torque up to 55kg-cm (763.8 oz-in)
• 0.12 sec/60° operating speed at 8.4V
• Powerful digital coreless motor
• CNC-machined steel geartrain
• Aluminum case improves heat dissipation
• Soft Start technology
• Sanwa SSR compatible

Specifications

• Application: 1:8
• Operating Voltage: 7.4V - 8.4V
• Operating Speed @ 7.4V: 0.14sec/60° sec
• Operating Speed @ 8.4V: 0.12sec/60° sec
• Dynamic Torque @ 7.4V: 624.9oz-in (45 kg-cm)
• Dynamic Torque @ 8.4V: 763.8oz-in (55 kg-cm)
• Motor Type: Corless Digital
• Output Shaft: 25T
• Gears: Steel
• Weight: 2.6oz (76g)
• Dimensions: 1.58x0.79x1.5in (40.3x20.2x38.2mm)

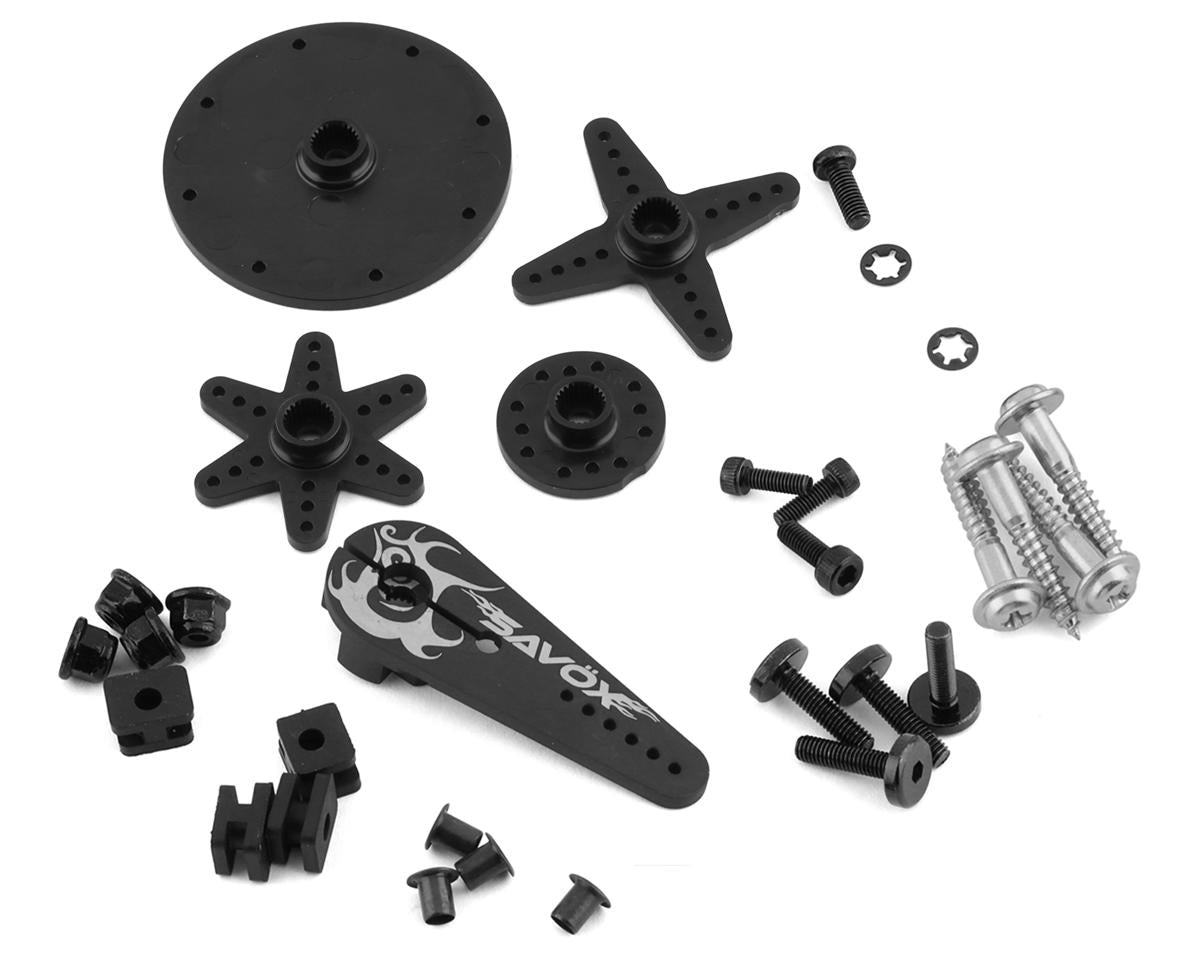

Includes

• SV-1280SGP Black Edition Digital "Monster Torque" Steel Gear Servo
• Aluminum Servo Horn
