Savox SV-1273TGP Hybrid "Ultra Speed" Titanium Gear Digital Servo (HV)

The Savox SV-1273TGP Hybrid "Ultra Speed" Titanium Gear Digital Servo (HV) delivers rapid response and durable control for 1/10 off-road vehicles and some helicopters. It features titanium gears, a brushed coreless motor, high-voltage operation, Soft Start technology, and Sanwa SSR compatibility.

Features

• Ultra-speed digital servo for rapid response control
• Input voltage: 6-8.4V
• Operating speed of 0.055sec/60° at 8.4V
• Dynamic torque of 347.2oz-in (25kg-cm) at 8.4V
• Titanium gear material
• Coreless motor for smooth and efficient operation
• Soft Start technology improves movement smoothness
• Sanwa SSR compatibility
• Application: 1/10 Off-Road & Some Helicopters

Specifications

• Input Voltage: 6-8.4V
• Operating Speed @ 6.0V: sec/60°
• Operating Speed @ 7.4V: 0.065 sec/60°
• Operating Speed @ 8.4V: 0.055sec/60°
• Dynamic Torque @ 6.0V: oz-in (25kg-cm)
• Dynamic Torque @ 7.4V: 277.7oz-in (20kg-cm)
• Dynamic Torque @ 8.4V: 347.2oz-in (25kg-cm)
• Gear Material: Titanium
• Motor Type: Brushed
• Output Shaft Spline: 25T
• Dimensions: 1.59x0.8x1.46in (40.3x20.2x37.2mm)
• Weight: 2.26oz (64g)

Includes

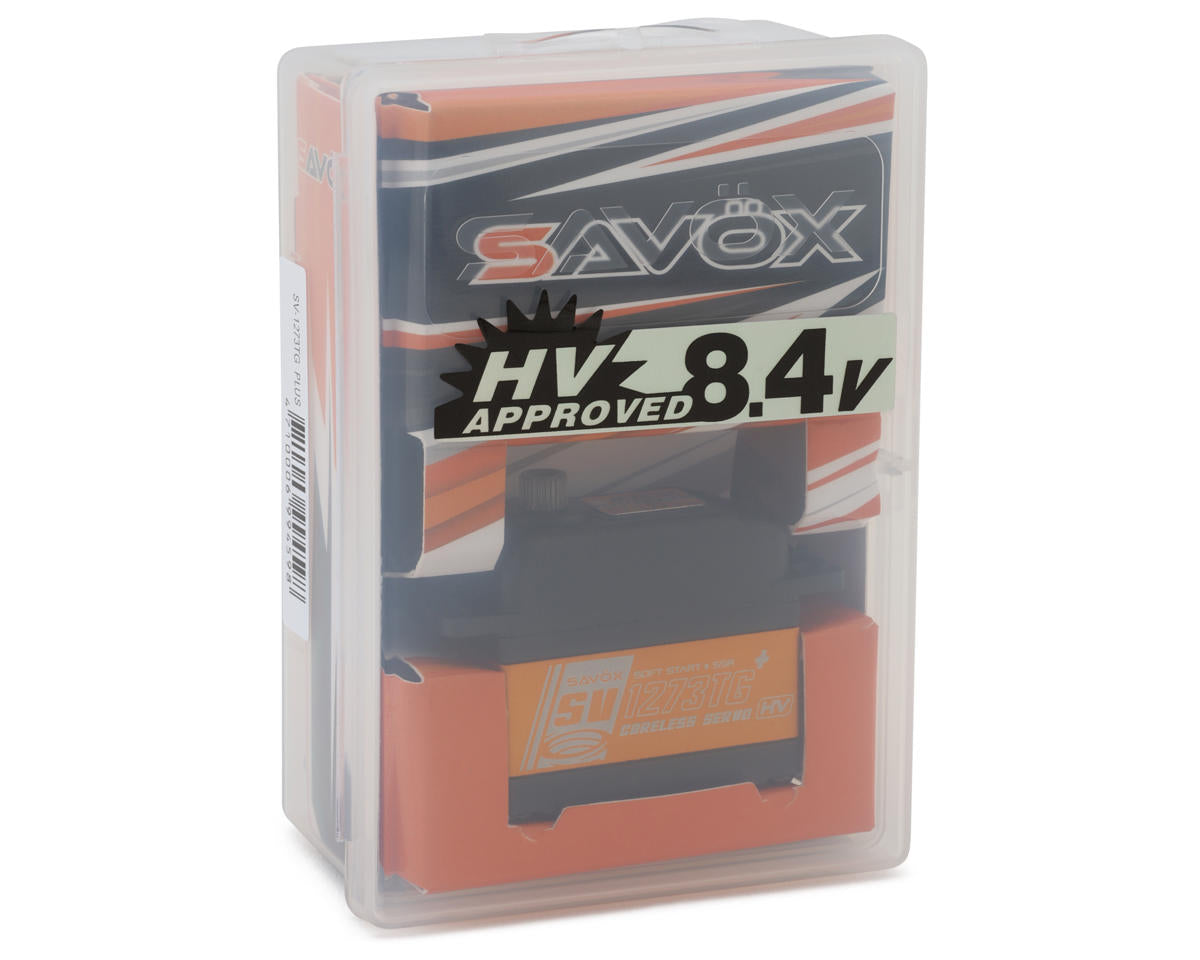

• (1) SV-1273TGP Hybrid "Ultra Speed" Titanium Gear Digital Servo (HV)
• Composite Servo Horns & Accessories
